Wichard Captive Pin Long D Shackle - Diameter 6mm - 1/4"
SKU: 93117 · UPC: 768536014136 · MPN: 01413
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$42.82
$50.38Save $7.56
or 4 payments of $10.70 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$42.82
02 · Overview
Wichard Captive Pin Long D Shackle - Diameter 6mm - 1/4" — Product description

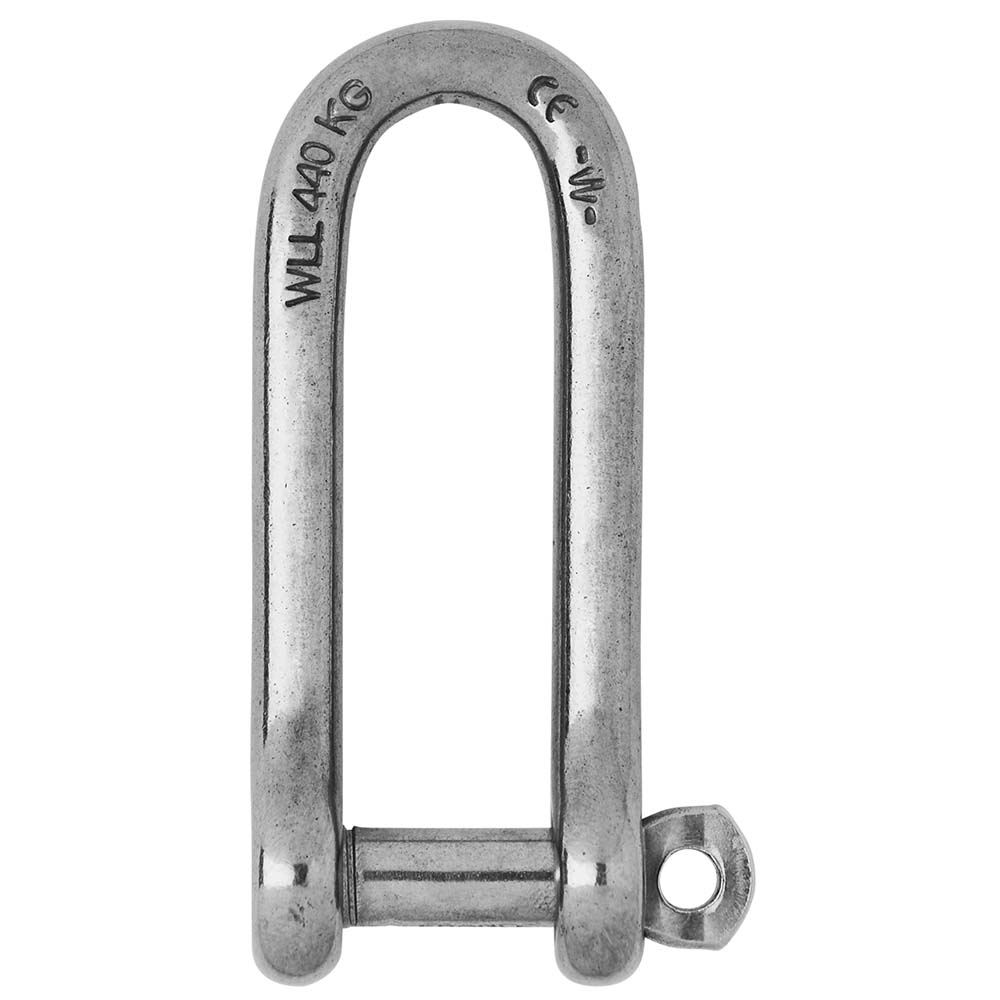

Captive Pin Long D Shackle - Diameter 6mm - 1/4"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1490
- WLL (lb) 970
- Breaking load (lb) 4850
- Weight (lb) 0.088
Dimensions (see 2nd image):
- A (inch) 1-13/16"
- B (inch) 15/32"
- C (inch) 9/32"
- D (inch) 35/64"
- D diameter (inch) 15/64"
- E (inch) 15/64"
- F (inch) 2-31/64"
- G (inch) 1-17/64"
SKU: NVN-93117
MPN: 01413
UPC: 768536014136
03 · The numbers
Technical specifications
| Brand | Wichard Marine |
| Model | Wichard Captive Pin Long D Shackle - Diameter 6mm - 1/4" |
| SKU / MFR# | 93117 |
Set product metafields under specs.* to populate this table.
