Wichard Marine
Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"
SKU: 93110 · MPN: 01402
★★★★★
4.7 · 0 reviews
Authorized dealer15% off
$27.02
$31.79Save $4.77
or 4 payments of $6.75 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$27.02
02 · Overview
Wichard Captive Pin D Shackle - Diameter 5mm - 3/16" — Product description

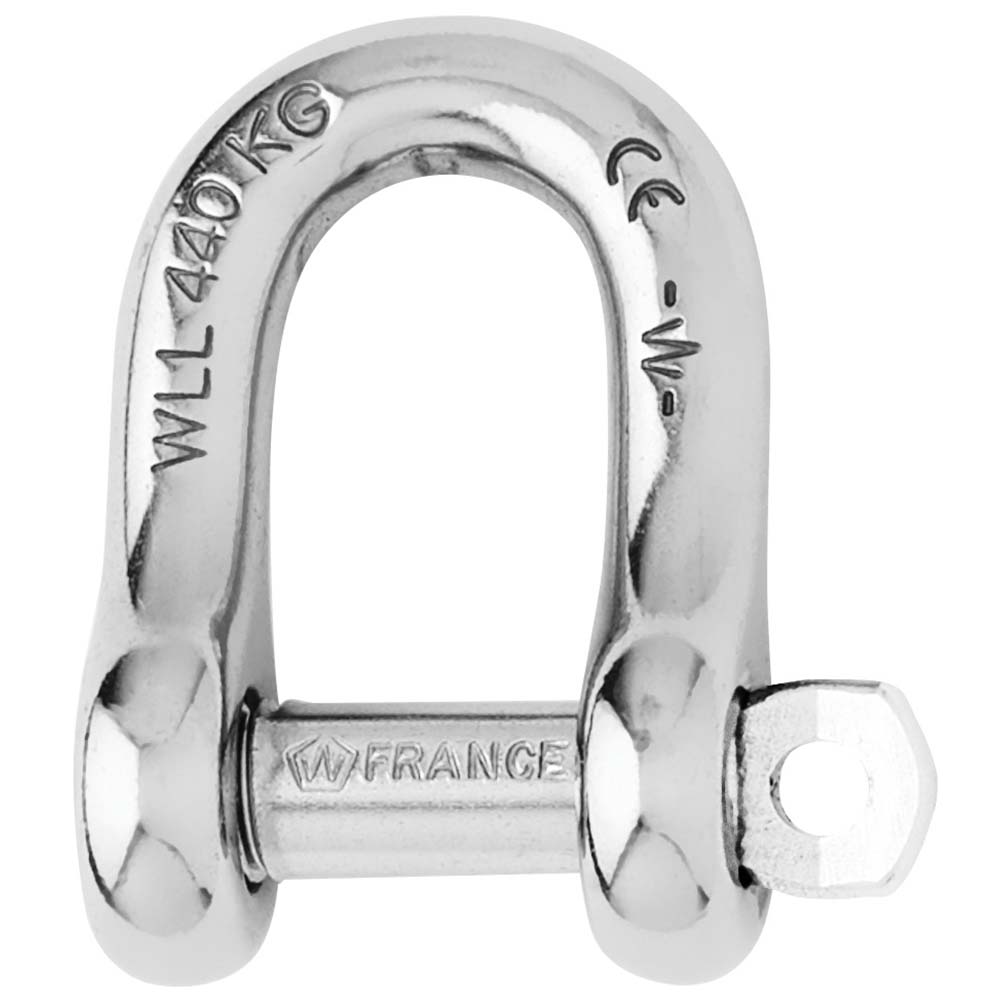

Captive Pin D Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.035
Dimensions (see 2nd image):
- A (inch) 5/8"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 7/16"
- G (inch) 1-3/16"
- H (inch) 1-1/16"
SKU: NVN-93110
MPN: 01402
UPC:
03 · The numbers
Technical specifications
| Brand | Wichard Marine |
| Model | Wichard Captive Pin D Shackle - Diameter 5mm - 3/16" |
| SKU / MFR# | 93110 |
Set product metafields under specs.* to populate this table.
