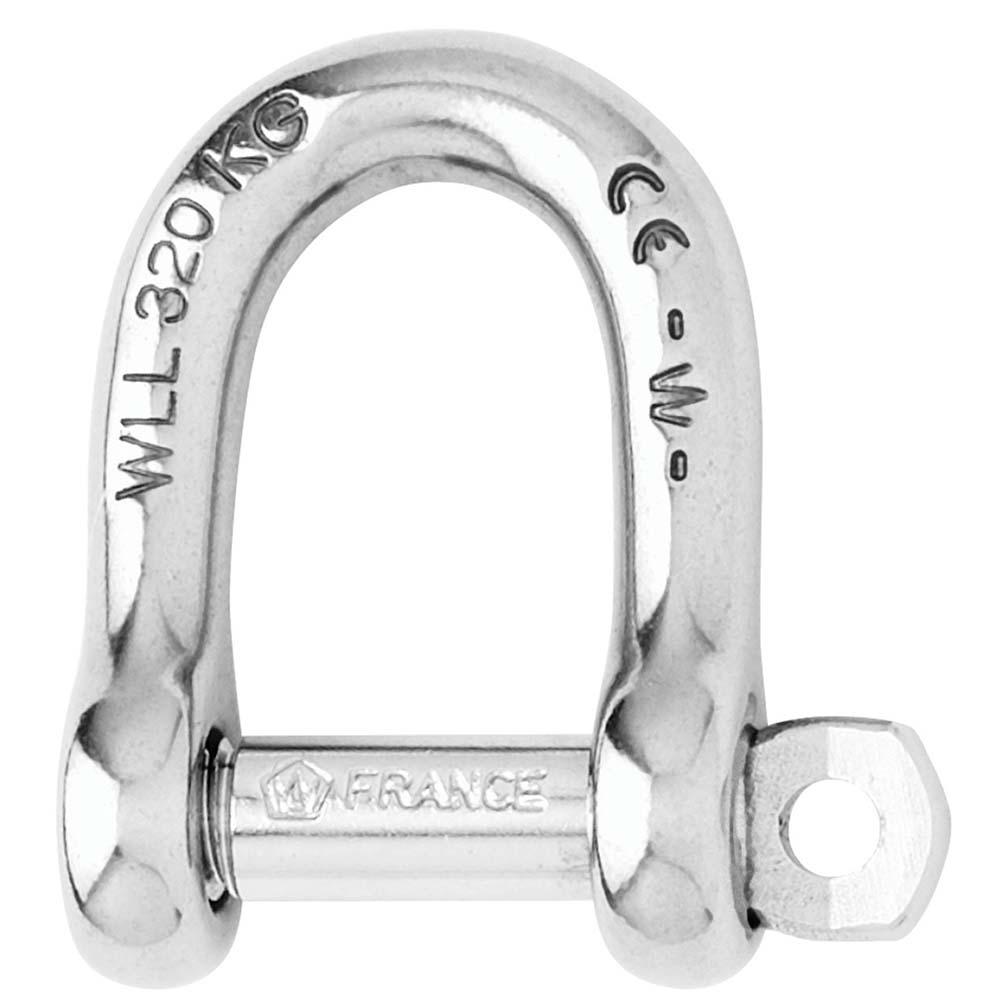

Wichard Self-Locking D Shackle - Diameter 10mm - 13/32"
SKU: 93094 · UPC: 768536012057 · MPN: 01205
★★★★★
4.7 · 0 reviews
Authorized dealer14% off
$54.29
$63.87Save $9.58
or 4 payments of $13.57 with Affirm
In stock — Ships today
Pickup available · NVN Marine (FL)
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$54.29
02 · Overview
Wichard Self-Locking D Shackle - Diameter 10mm - 13/32" — Product description
Self-Locking D Shackle - Diameter 10mm - 13/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 1890
- Breaking load (lb) 9470
- Weight (lb) 0.216
Dimensions (see 2nd image):
- A (inch) 1-19/64"
- B (inch) 25/32"
- C (inch) 25/64"
- D (inch) 3/4"
- D diameter (inch) 25/64"
- E (inch) 23/64"
- F (inch) 2-1/4"
- G (inch) 2-3/64"
SKU: NVN-93094
MPN: 01205
UPC: 768536012057
