Schaefer Marine

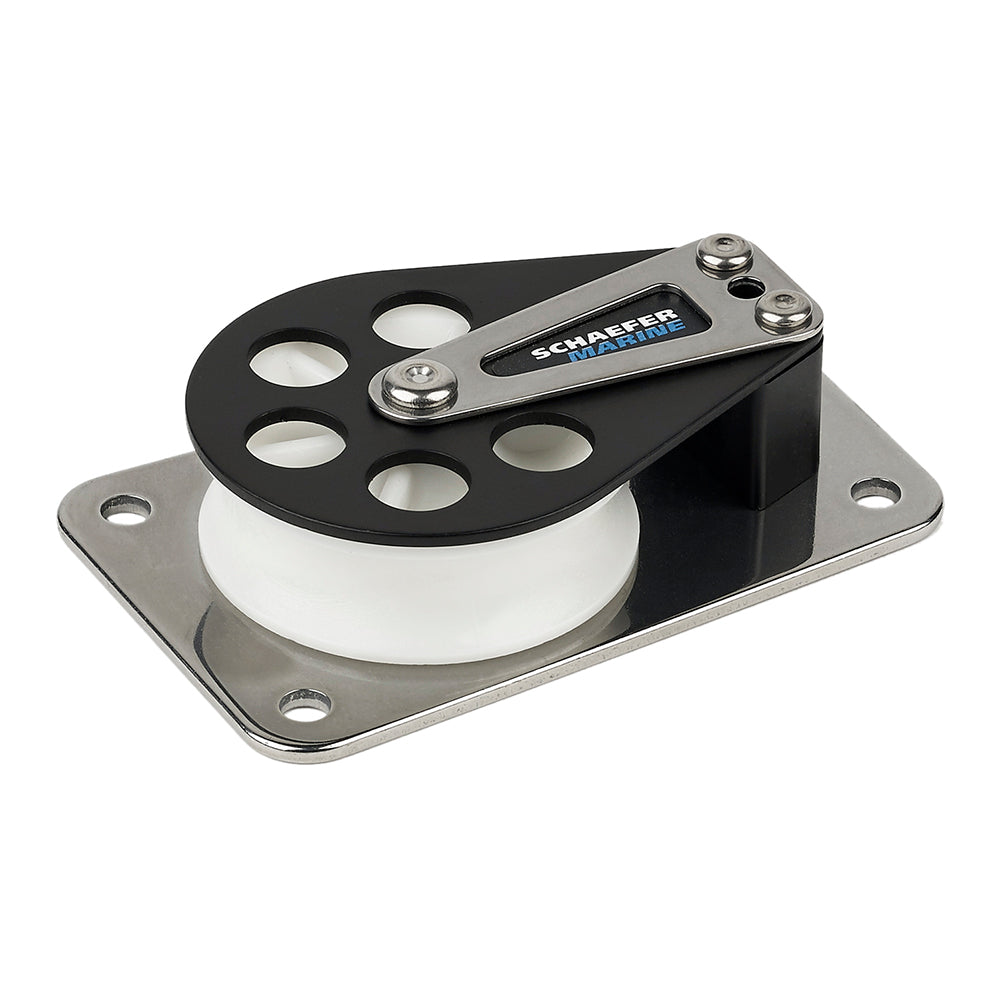

Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
SKU: 74738 · UPC: 740507010705 · MPN: 704-11
★★★★★
4.7 · 0 reviews
Authorized dealer30% off
$111.39
$161.20Save $49.81
or 4 payments of $27.84 with Affirm
In stock — Ships today
SAME-DAY SHIPPING · 14:23 EST
Order in time, ships today
Ships from your nearest warehouse. UPS Ground 2–4 business days.
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$111.39
02 · Overview
Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave — Product description
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Dia. 2-3/8" (60 mm)
- Max. Line 1/2" (13 mm)
- Length 4-3/8" (111 mm)
- Width 2-3/4" (70 mm)
- Height 1" (25 mm)
- Fasteners (4) 1/4" RH (6 mm)
- C/C 3-5/8" (92 mm)
- C/C (wide end) 2" (51mm)
- C/C (narrow end) 1-9/16"
- SWL 2250 lbs. (1020 kg)
- Weight Alum. 9.6 oz. (272 g)
Series 7 Flat Base / Aluminum Cheek / Delrin Sheel Delrin pulley ensures smooth operation and high safe working load. The stainless steel base can distribute the load to a larger surface...
SKU: NVN-74738
MPN: 704-11
UPC: 740507010705
03 · The numbers
Technical specifications
| Brand | Schaefer Marine |
| Model | Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave |
| SKU / MFR# | 74738 |
Set product metafields under specs.* to populate this table.
04 · Before you buy
Frequently asked questions
No questions yet. Got one? Drop us a line.
