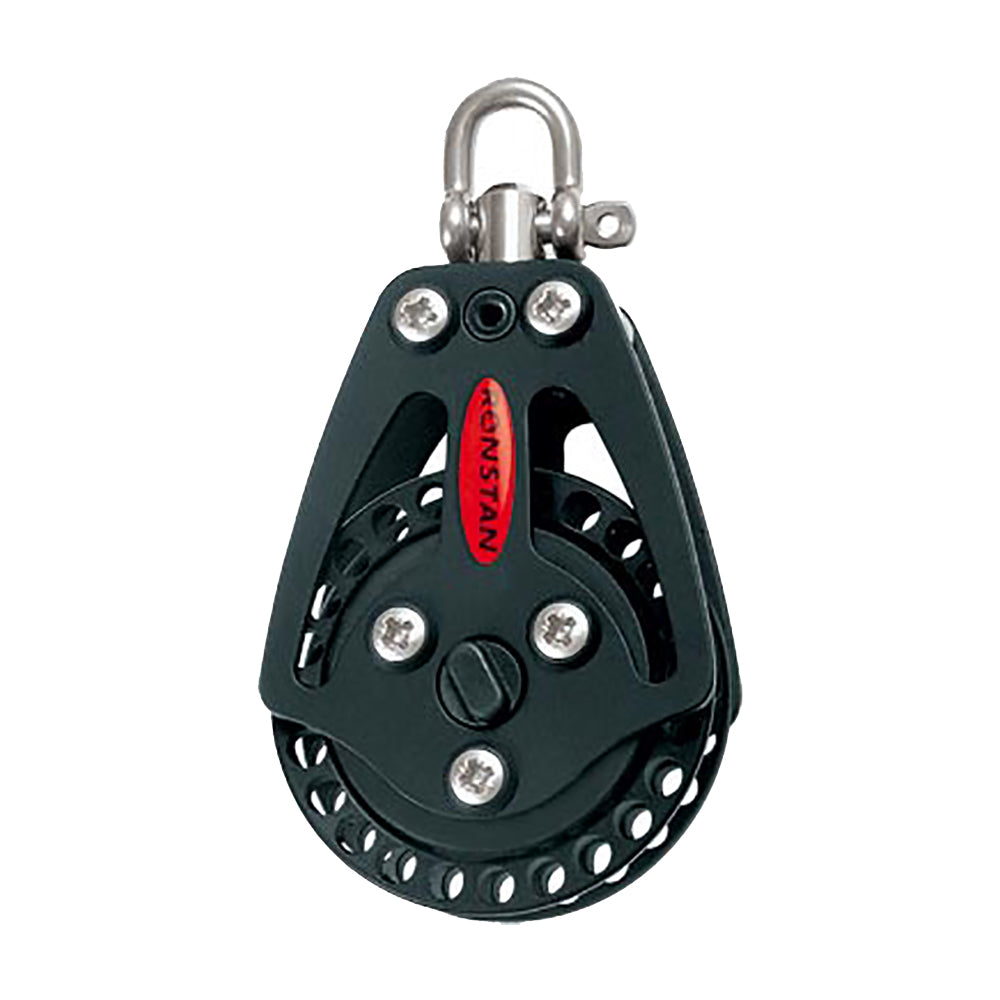

Ronstan Series 60 Ultimate Ratchet - Single

Series 60 Ultimate Ratchet - Single

The extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivaled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features:

• Unrivalled 20:1 holding power
• Dual sided On-Off switch
• Ability to operate On/Off switch under load
• Low friction ball bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance

Applications:

• Mainsheet on powerful dinghies and skiffs
• Series 60 mainsheet systems on sports boats using RF7 mainsheet swivel units
• Control line applications on larger yachts
• Spinnaker sheets on sports boats and small keel boats (lateral lead blocks)

Materials:

• Carbon black Acetal ball bearings
• Anodised aluminium sheave and cheek plates
• Torlon® ratchet pawl
• Grade 316 stainless steel forged shackle

Specifications:

• Sheave Ø: 2-3/8"
• Max. Rope Ø: 3/8"
• Pin Ø: 3/16"
• M.W.L.: 550lb
• B. L.: 3020lb
• Weight: 5.3oz

"The Frederiksen ratchet block is legendary. It is light and very strong for optimal performance. The ratchet has a small distance between each click to enhance control of sheets. This is the ideal Laser mainsheet block. From Ronstan: The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 14:1 holding power. Unrivaled low weight is achieved by the use of a Torlon ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired), and for foot blocks simply turn the sheave upside down before installation to change the sense of rotation. Unique On-Off switch mechanism can be operated under load."
SKU: NVN-66612
MPN: RF62100
UPC: 9316800209101
