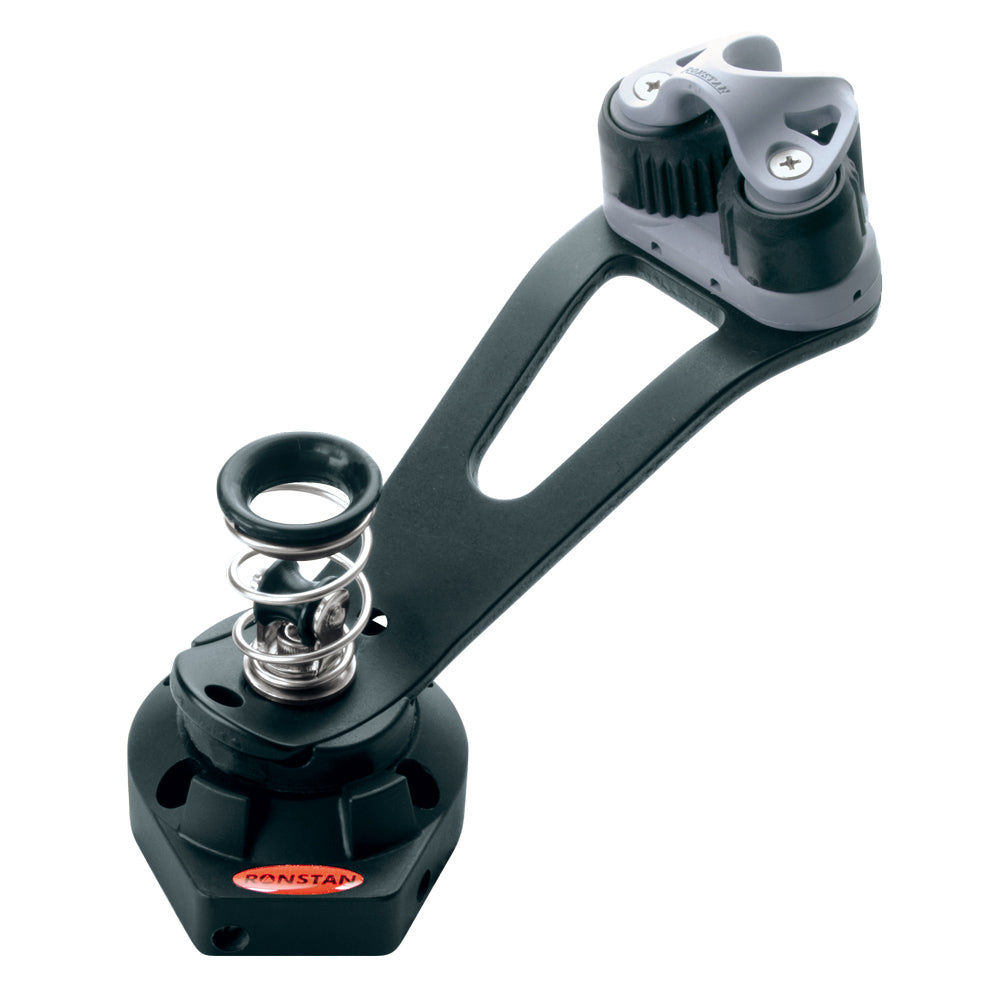

Ronstan Ball Bearing Swivelling Cam Cleat Base

Ball Bearing Swivelling Cam Cleat Base

Swivel cleat bases permit easy cleating and releasing from any angle.Swivel cleat bases permit easy cleating and releasing from any angle. Height adjustable arm for optimum cleating angle. Twin ball bearing race minimises friction. Adjustable ratchet system prevents the arm from falling to leeward. Twin rows of ball bearings support the cleat arm, and stops are provided to limit rotation to 260°. The rotation stop on the cleat arm moulded cleat arm cradle part can be cut off to allow full 360° rotation. Fork fittings have a 5mm pin to permit direct attachment to the head post of a block (ie. not using a shackle). Suits traditional post/shackle head blocks and Dyneema® Link head Orbit Blocks™.

Features:

• Height adjustable arm

• Twin ball bearing race

• Adjustable ratchet system

Applications:
Mainsheet systems on dinghies and sportboats to 8M(26')

Materials:

• Alloy cleating arms

• Fiber reinforced Nylon base

• Grade 316 stainless steel fittings

"Swivel cleat bases permit easy cleating and releasing from any angle. The adjustable arm controls the height for optimum cleating angle. The dual rows of race ball bearings in the base minimize friction, while the adjustable ratchet system prevents the arm from falling to leeward. Stops are provided to limit rotation to 260\u00b0 and can be removed to allow full 360\u00b0 rotation. Fork fittings have a 5mm pin to permit direct attachment to the head post of a block (ie. not using a shackle)."
SKU: NVN-55354
MPN: RF7
UPC: 9316800145836
