Ritchie Navy Standard Compass - Binnacle Mount - Black

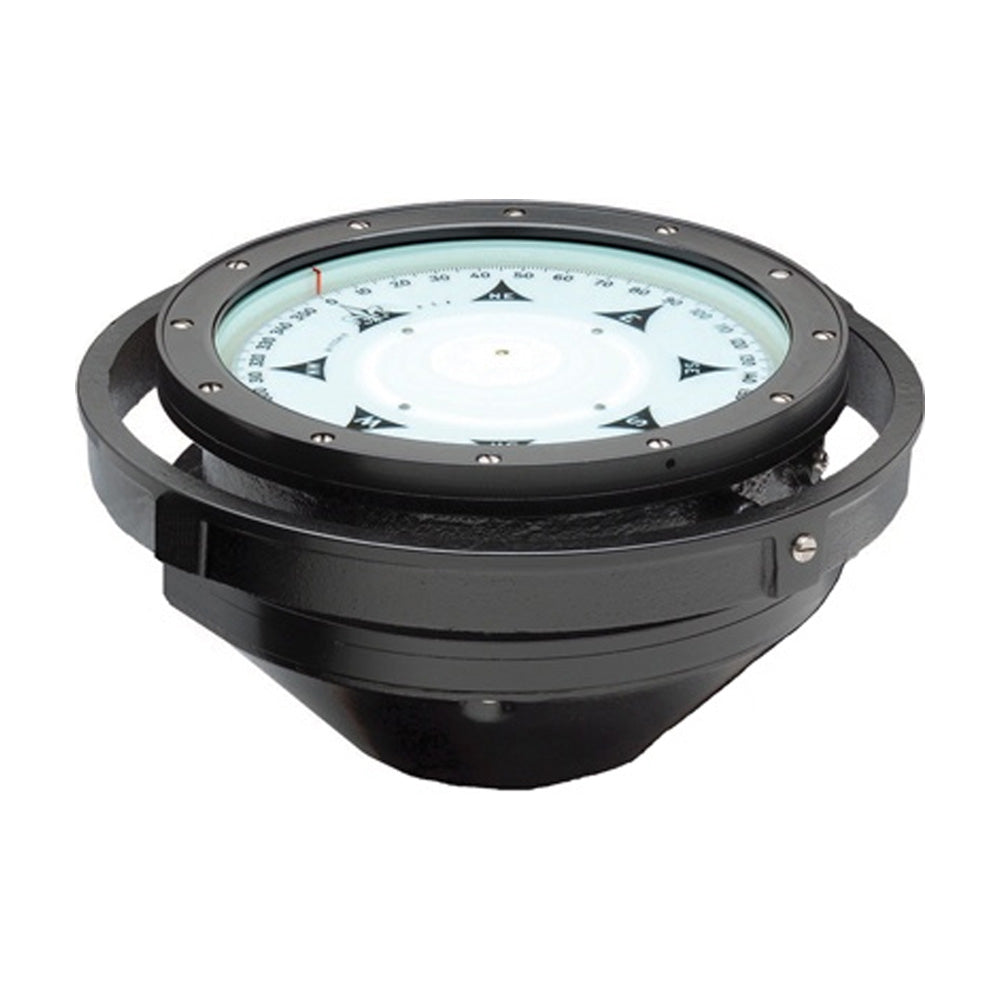

Navy Standard Compass - Binnacle Mount - Black

Navy Standard compasses are professional compasses intended for coastal or worldwide naviagtion. The NS-7.5 BIN is for installation into ship's binnacle. Comes with 12V, 24V/32V, and 110V lights included. The compass dial system features a 7-1/2" (192mm) dial with one degree graduations and cardinal and inner cardinal markings. The dial float chamber removes nearly all the weight from the pivot and jewel. The bezel is machined to accommodate Navy Standard azimuth or bearing circles. The compass meets or exceeds Solas ISO Class A compass requirements.

Features:

• Without mounting yoke for installation in ship's binnacle

• Dial 7.5" (192mm)

• 1 degree increments with cardinal and inner cardinal markings

• Dial float chamber removes nearly all the weight from pivot and jewel
  to extend operation by years

• Bezel machined to accommodate 7.5" Navy standard azimuth circle orbearing circle

• Meets or exceeds Solas ISO Class A compass requirements

• Operating Temperature Range: -22°F (-30°C) to +175°F(+80°C)

• 12, 24, 32 VDC and 110 VAC lighting included

• 100% Repairable

• Exclusive 5-Year Ritchie Warranty

• Width: 12-1/2"

• Depth: 11-3/4"

• Height: 9-3/8"

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Navy Standard Compass-Binnacle Mount-BlackNavy Standard Compass is a professional compass used for coastal or global navigation. NS-7.5 BIN is used to install in the binaural ship on board. With...
SKU: NVN-59097
MPN: NS-7.5-BIN
UPC: 010342040107
