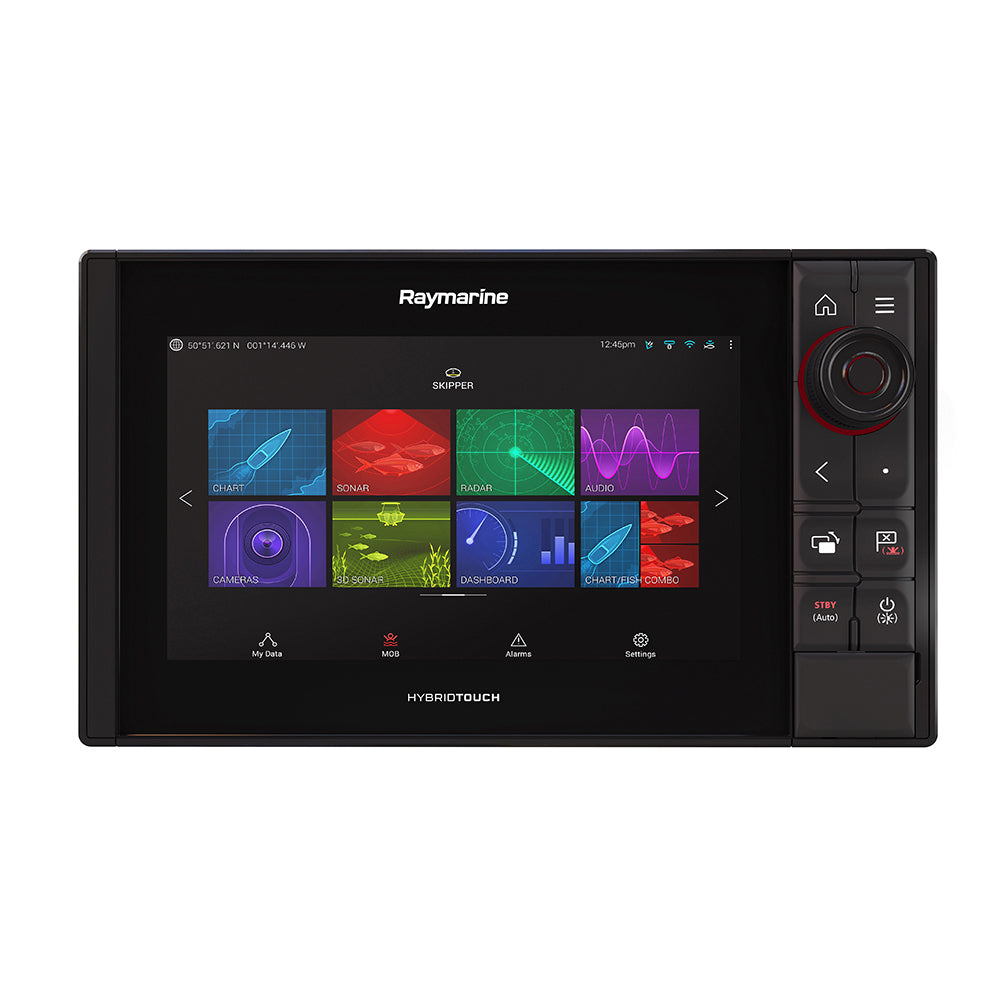

Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar - Lighthouse North America Chart
Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar - Lighthouse North America Chart — Product description
Step up your boating game with the Raymarine Axiom Pro 9 S, a powerhouse multifunction display that blends cutting-edge sonar capabilities with seamless navigation. Designed for serious mariners who demand reliability on the water, this 9-inch unit packs single-channel High CHIRP sonar for crystal-clear underwater imaging, helping you spot fish schools, structure, and bottom details with precision that rivals dedicated fishfinders. Paired with preloaded Lighthouse North America charts covering lakes and coastal areas, it's your all-in-one command center for safer, smarter voyages.
Why the Axiom Pro 9 S Stands Out on the Water
Imagine heading out at dawn for a deep-sea fishing adventure or navigating foggy coastal waters— the Axiom Pro 9 S has you covered. Its quad-core processor ensures lightning-fast performance, smoothly handling charts, sonar returns, and radar overlays without a hitch. The optically bonded IPS screen delivers vivid colors and wide viewing angles, staying readable even under direct sunlight or through polarized lenses. HybridTouch controls let you swipe, tap, or spin the knob for effortless operation, whether your hands are wet or gloved.
Captains love how it expands effortlessly into a full marine network. Link it to Evolution autopilots for hands-free steering, Quantum radars for target tracking, or FLIR thermal cameras for night ops. With built-in Wi-Fi and Bluetooth, wireless updates and remote access keep you connected without cluttering your helm.
Superior Sonar and Navigation Performance
- High CHIRP Sonar Excellence: Single-channel setup excels at separating targets in shallow to mid-depths (up to 900 feet), ideal for bass fishing in lakes or trolling offshore. Pair with CPT-S transducers for plug-and-play simplicity.
- Lighthouse 3 OS: Intuitive interface with customizable layouts—drag apps, pinch-to-zoom charts, and access sonar history with Sonar Scrollback for reviewing missed bites.
- Robust Connectivity: Dual Ethernet ports, NMEA2000/0183, and video inputs support up to 10 IP cameras, AIS transponders, and digital switching for a fully integrated setup.
- GPS Precision: 10Hz GNSS receiver with multi-constellation support locks on fast, ensuring accurate waypoints, routes, and autopilot tracking.
Built Tough for Real-World Boating
Rated IPX6/IPX7 waterproof, it shrugs off spray, rain, and submersion. Operating from -25°C to +55°C, it's ready for arctic outings or tropical heat. The slim profile (just 2.56 inches deep) fits tight consoles, with versatile mounting options: bail, flush, or surface.
Detailed Specifications
| Feature | Details |
|---|---|
| Display | 9" IPS, 1280x720 WXGA, 1200 nits brightness, multitouch |
| Sonar | High CHIRP (built-in), up to 900 ft depth; compatible with external modules |
| Networking | 2x RayNet Ethernet, NMEA2000, NMEA0183, Wi-Fi, Bluetooth |
| Power | 12/24V DC (8-32V), ~20W draw |
| Dimensions & Weight | 11.9" x 6.85" x 2.56" (300x174x65 mm), 3.35 lbs (1.52 kg) |
| Memory | 16GB internal + 2x microSDXC slots |
Complete Package for Easy Setup
Everything you need arrives ready to install: trunnion bracket, suncover, power/video/NMEA cable, RayNet and DeviceNet adaptors, Lighthouse NC3 North America chart card, and mounting hardware. Quick-start guide gets you charting courses in minutes.
Frequently Asked Questions
What transducers work with the Axiom Pro 9 S built-in sonar?
It uses CPT-S transducers exclusively via the 25-pin connector for optimal High CHIRP performance. For advanced setups, add external sonar modules like CP470 with the A80490 adaptor.
Can I network multiple Axiom displays together?
Yes, with dual RayNet Ethernet ports, create a gimbaled network for sharing sonar, radar, and charts across screens seamlessly.
Is the screen visible in sunlight?
Absolutely—1200 nits brightness, optical bonding, and IPS technology ensure sharp visibility in harsh sunlight, even with polarized sunglasses.
Does it support autopilot integration?
Full compatibility with Raymarine Evolution autopilots for precise course-holding and waypoint navigation.
What charts are preloaded?
Lighthouse North America charts, including detailed lakes and coastal coverage with tide stations. Expand with Navionics or C-MAP via microSD.
How do I control the unit?
HybridTouch offers multitouch screen, physical buttons, and rotary knob for flexible, intuitive control in any conditions.
Is it compatible with cameras and thermal imaging?
Supports 1 analog BNC input and up to 10 IP cameras, plus FLIR thermal night vision via IP or analog.
Equip your vessel with the Axiom Pro 9 S and experience navigation elevated—reliable, responsive, and ready for whatever the water throws your way.
Axiom Pro 9 S MFD with Single Channel High CHIRP Sonar - Lighthouse North America Chart
With single-channel high CHIRP Sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for an “all-in-one” display. And with a blazing fast quad-core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.
Axiom Pro is engineered for captains that want it all. The new standard for “all-in-one” multifunction devices. And with a blazing fast quad-core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.
Blazing Fast
Quad-core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
Bold & Bright
Optical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.
HybridTouch™
Control Axiom Pro from its multi-touch screen, its buttons, and rotary knob, or any combination of both. This choice is yours.
Custom Key
Get instant access to your favorite function with a user-programmable Custom Key.
Lighthouse 3 OS
Fast, fluid, and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.
Specifications:
- Screen Size: 9"
- Display Resolution: 1280 x 720
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting Options: Front and trunnion-mount Front
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
- Voltage: 12 / 24 V dc
- Weight: 3.35lbs / 1.52kg
- Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF)
- Wi-Fi
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Radar Compatible
- Thermal Night Vision Compatible
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in Sonar: High CHIRP Sonar built-in – S models only - uses CPT-S Transducers Only
- External Sonar Compatible
- GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288)
- Optional Remote Controls
- AIS
- Audio Integration
- Autopilot Control: Evolution Autopilot Control
- Digital Switching: Empirbus compatible
- Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm
The Axiom Pro 9 S includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, RayNet (F) to Raynet (F) 2M cable, and installation instructions. Also Lighthouse North America Chart
Axiomâ„¢ Pro 9 S MFD with single-channel high CHIRP sonar-North American Lighthouse Chart Axiom Pro 9 with single-channel high CHIRP sonar and Raymarine HybridTouch controls is new...
SKU: NVN-88434
MPN: E70481-00-102
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom Pro 9 S MFD w/Single Channel High CHIRP Sonar - Lighthouse North America Chart |
| SKU / MFR# | 88434 |
