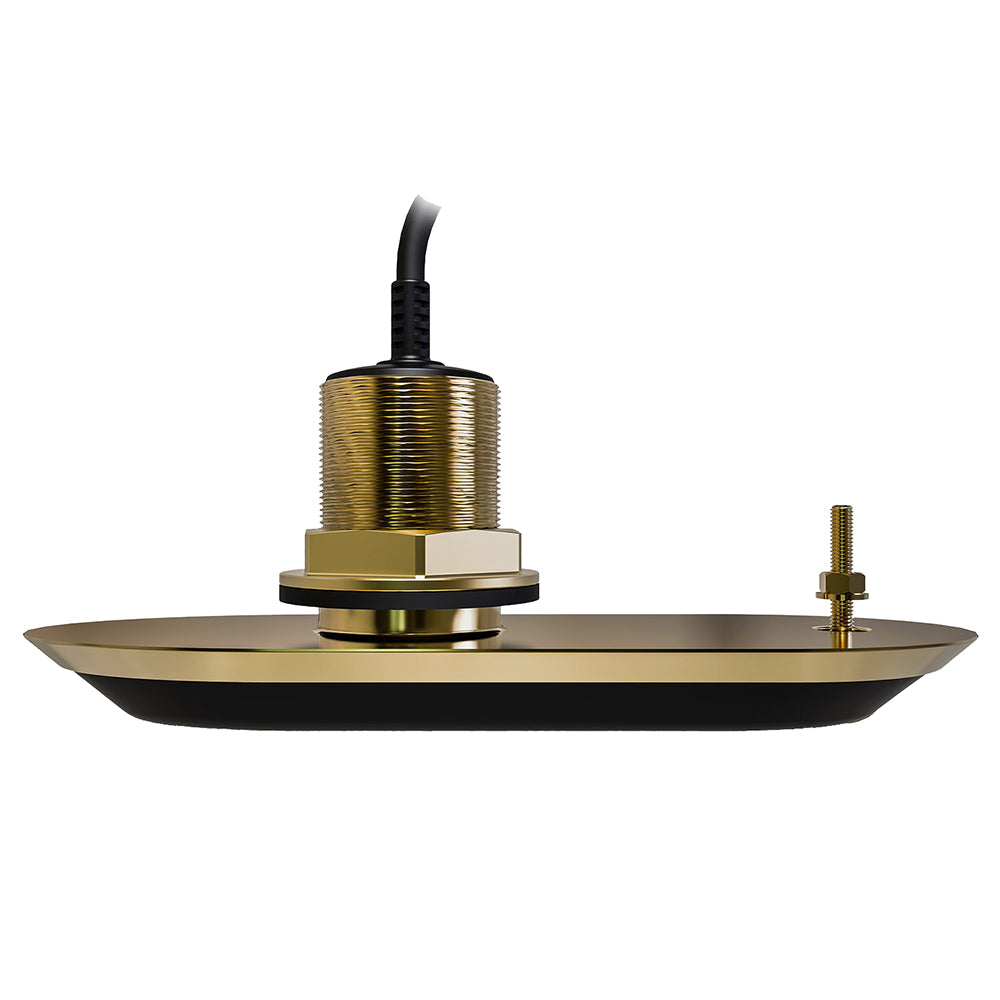

Raymarine RV-220S RealVision 3D™ Thru-Hull CHIRP Bronze Transducer - 20° - 2M Cable Replacement
Raymarine RV-220S RealVision 3D™ Thru-Hull CHIRP Bronze Transducer - 20° - 2M Cable Replacement — Product description
Discover Superior Underwater Visibility with Raymarine RV-220S
Imagine gliding across the water, pinpointing fish and structures with stunning clarity that feels almost lifelike. The Raymarine RV-220S thru-hull transducer brings this reality to your boat through its innovative RealVision 3D sonar technology. Tailored for inboard and outboard powerboats, this bronze-mounted powerhouse combines multiple sonar modes into one compact unit, delivering unmatched detail without the clutter of traditional setups.
What sets it apart? Its built-in attitude and heading reference system (AHRS) acts like a digital stabilizer, smoothing out boat roll, pitch, and yaw to paint a steady, distortion-free picture of the depths. Whether you're chasing trophy bass in shallow bays or scanning for wrecks in deeper waters, this transducer ensures every scan is reliable and revealing.
Key Sonar Capabilities That Elevate Your Fishing Game
- RealVision 3D Sonar: Merges DownVision, SideVision, and high-frequency CHIRP for a photo-realistic 3D map of the bottom, making it simple to spot fish hiding near cover or suspended in the water column.
- Wide Spectrum CHIRP: Operates across 60 frequencies, from medium to high ranges, providing razor-sharp target separation that traditional fixed-frequency sonar can't match. This means fewer false echoes and more actual fish on your screen.
- Gyro-Stabilized Imagery: Automatically adjusts for vessel motion caused by waves or turns, so your sonar view remains rock-solid even in choppy conditions.
- Integrated Temperature Sensor: Delivers real-time water temp readings to help you track thermoclines and locate baitfish schools drawn to specific temperatures.
- Four-Channel Versatility: Handles RealVision 3D, CHIRP DownVision, SideVision, traditional 50/200kHz sonar, and more, covering every angling scenario from shallow flats to offshore hunts.
Robust Design Built for Real-World Boating Demands
Crafted from durable cast bronze, the RV-220S thrives in saltwater environments and mounts seamlessly through fiberglass or wooden hulls. Its low-profile shape minimizes drag and cavitation, keeping your boat's performance optimized while underway. For trailered vessels, the flush design means no bulky fairing blocks to fabricate or worry about during transport.
The RV-220 system shines brightest when paired as a dual-transducer setup—one handling port and down, the other starboard and down—for complete 180-degree coverage. This is a game-changer on boats with deep keels or hull appendages that might block single-unit views.
Streamlined Installation and Everyday Advantages
Setting up the RV-220S is straightforward for most DIY boaters. The 20-degree beam angle pairs perfectly with its thru-hull mount, and the 2-meter cable offers ample reach without excess slack. No need for complex fairings; just cut a precise hole, bed it in sealant, and connect to your Raymarine multifunction display.
Anglers report transforming their fishing success after switching: clearer fish arches, precise structure outlines, and the ability to navigate tight spots with confidence. It's not just about seeing more—it's about understanding the underwater world like never before.
Why Bronze Thru-Hull Beats the Rest for Serious Boaters
Bronze construction resists corrosion far better than plastic alternatives, standing up to the harshest marine conditions year after year. Unlike transom-mount options that suffer from turbulence and air bubbles, thru-hull placement delivers clean, uninterrupted signals right from the hull's smoothest point.
For powerboaters, this means consistent performance at higher speeds, revealing bottom contours and bait balls that speed past traditional sonar. Pair it with Raymarine's ecosystem for seamless integration, unlocking features like forward-scan overlays for safer navigation.
Frequently Asked Questions
What boats is the Raymarine RV-220S transducer best suited for?
It's ideal for inboard and outboard powerboats with fiberglass or wooden hulls, especially those trailered frequently due to its low-profile, drag-free design.
How does RealVision 3D sonar differ from standard 2D sonar?
RealVision 3D creates lifelike 3D images by combining DownVision, SideVision, and CHIRP, stabilized by AHRS for motion compensation, offering far superior structure and fish identification.
Does the RV-220S include a water temperature sensor?
Yes, it has a built-in fast-response sensor that provides accurate, real-time water temperature data to help track fish-preferred zones.
What's the coverage like with the RV-220 system?
Using two transducers (port/down and starboard/down), it delivers full 180-degree underwater coverage, perfect for boats with deep keels or protrusions.
Is the RV-220S suitable for high-speed boating?
Absolutely—its bronze thru-hull design with a low profile reduces drag and cavitation, maintaining clear sonar at planing speeds.
Can I use this transducer on wooden hulls?
Yes, the rugged cast-bronze body is compatible with both fiberglass and wooden hulls, ensuring a secure, long-lasting installation.
What cable length comes with the RV-220S?
It features a 2-meter (6.6 feet) cable, providing flexibility for routing to your display unit without unnecessary extensions.
Unlock the Full Potential of Your Raymarine Setup
Integrating the RV-220S elevates your multifunction display into a comprehensive fishing command center. Boaters who invest in this level of sonar often find their catch rates soar, thanks to the intuitive views that reveal what others miss. Ready to see beneath the surface like a pro? This transducer delivers the edge you've been searching for.
Raymarine’s RV-200 Bronze All-In-One Through Hull Transducer is designed for inboard and outboard powerboats. The RV-200 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-200 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-200 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-200 features a rugged cast-bronze through hull body suitable for fiberglass or wooden hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-200 works great on trailered boats too, and with no fairing block to cut, installation is a breeze.
Raymarine A80469 Attributes
- Mounting Location: Thru-Hull Mount
- Cable Length: 6.6 Feet
Raymarine A80469 Features & Benefits
- Bronze All-In-One Through Hull Transducer Is Designed For Inboard And Outboard Powerboats
- Lets You Easily Identify Structures And Locate Fish With The Life-Like Clarity Of RealVision 3D™ Sonar
- Transducer Has A Built-In Attitude And Heading Reference System That Stabilizes 3D Sonar Imagery, Automatically Compensating For Vessel Motion
- Built-In Fast-Response Water Temperature Sensor For Quick, Accurate Readings
- Features A Rugged Cast-Bronze Through Hull Body Suitable For Fiberglass Or Wooden Hulls
- Limited 2 Year Warranty
Raymarine A80469 Warranties
RV-220S RealVision 3D™ Thru-Hull CHIRP Bronze Transducer - 20° - 2M Cable Replacement
The RV-220 system features rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions.
Features:
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W 50/200kHz traditional sonar
Raymarine's RV-220 bronze through-hull sensor is specially designed for ships with 13°-20° no load, and can be used with inboard or outboard engines. View the structure and find...
SKU: NVN-84562
MPN: A80469
UPC: 723193816578
Technical specifications
| Brand | Raymarine |
| Model | Raymarine RV-220S RealVision 3D™ Thru-Hull CHIRP Bronze Transducer - 20° - 2M Cable Replacement |
| SKU / MFR# | 84562 |
