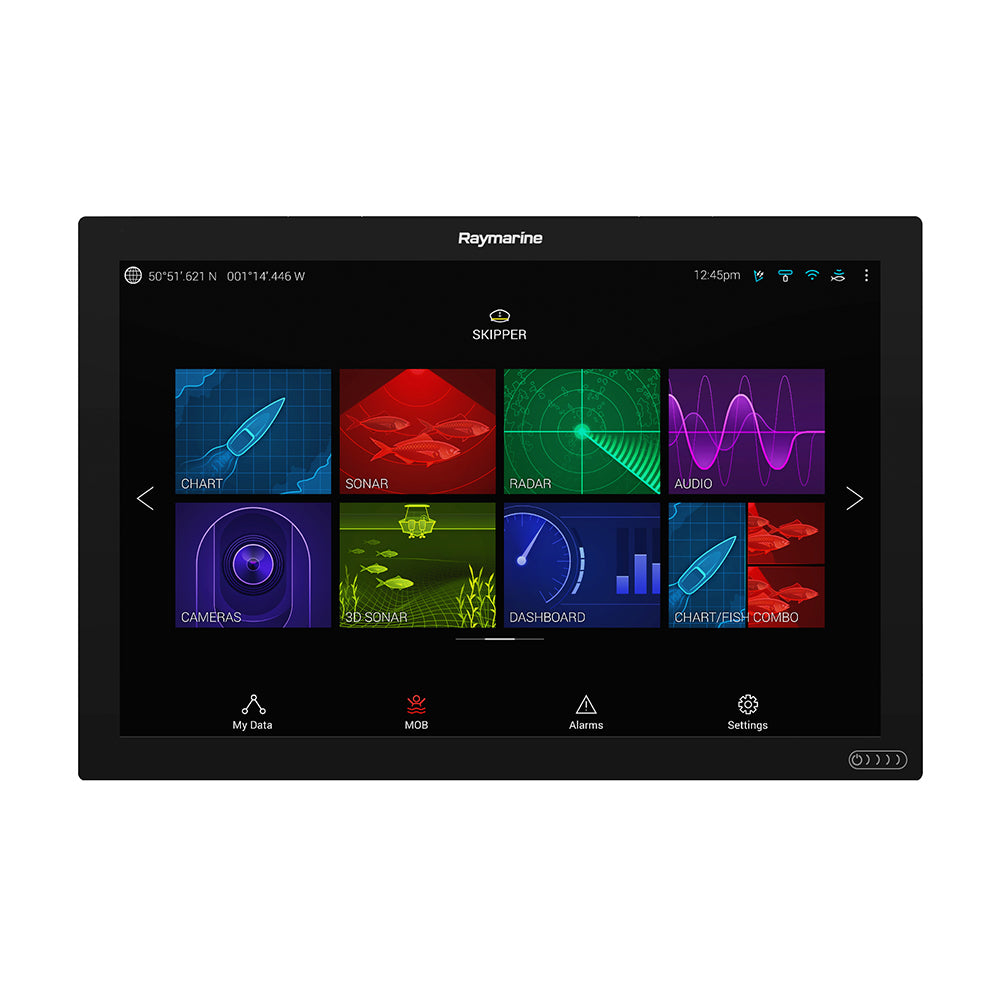

Raymarine Axiom XL 24 Glass Bridge Multifunction Display Kit w/RCR-SD, Alarm & Cable
Raymarine Axiom XL 24 Glass Bridge Multifunction Display Kit w/RCR-SD, Alarm & Cable — Product description
Transform your vessel's helm into a seamless glass bridge command center with the Raymarine Axiom XL 24 multifunction display kit. This powerhouse unit combines cutting-edge marine navigation, video monitoring, and system integration into one expansive 24-inch canvas, perfect for captains who demand reliability during long offshore passages or in demanding coastal environments. Its edge-to-edge glass design not only elevates the aesthetic of modern yachts and sportfishing boats but also ensures crystal-clear visibility from any angle, thanks to advanced IPS technology and optical bonding that fights glare on the sunniest decks.
Why Choose the Axiom XL 24 for Your Next Voyage
Imagine plotting intricate routes across open water while simultaneously monitoring engine bays, crew areas, and radar returns—all from a single, responsive touchscreen. The quad-core processor powers through complex tasks without lag, making split-second decisions feel effortless. Whether you're dodging weather fronts or tracking fish schools in RealVision 3D, this MFD adapts to your style with the intuitive LightHouse operating system. Customize dashboards for weather overlays, thermal imaging, or even streaming apps during downtime at anchor, turning navigation into an extension of your command.
Unmatched Durability Meets Modern Connectivity
Built to thrive in the harshest marine conditions, the Axiom XL 24 boasts IPX6 and IPX7 waterproofing, shrugging off heavy spray and submersion. Operating from -25°C to +55°C, it's ready for arctic expeditions or tropical squalls. Connectivity shines with three Ethernet ports for radar, sonar modules like the RVX1000, and additional displays across your network. HDMI inputs let you mirror PCs or entertainment systems, while video-over-IP supports up to four camera feeds—ideal for keeping tabs on live bait wells or docking maneuvers.
Key Integration Highlights
- Autopilot Synergy: Pair with Evolution systems for one-touch waypoint engagement and precise 9-axis course holding.
- Radar and Sonar Excellence: Quantum 2 Doppler tracking spots collision risks early; optional CHIRP sonar reveals underwater structure in stunning 3D.
- Thermal Vision Boost: FLIR ClearCruise auto-detects objects day or night, enhancing safety in low visibility.
- Vessel Control: Digital switching via YachtSense manages lights, pumps, and more from the helm touchscreen.
- Entertainment and Apps: Wi-Fi streaming for weather services, music, or partner integrations like lighting controls.
Effortless Setup for Professional Results
Flush or surface mounting options make installation straightforward for builders or savvy owners. The buttonless, swipe-to-wake design keeps cockpits clutter-free, and the ambient light sensor auto-adjusts brightness for optimal viewing from dawn patrols to midnight watches. Power it with standard 12/24V DC systems (8-32V range), and integrate SeaTalk NG for legacy sensors. The included remote card reader simplifies chart updates and data access without cluttering the display.
What's Included in This Comprehensive Kit
- Axiom XL 24-inch MFD unit
- Complete mounting hardware for secure installation
- Right-angle power/data cable for clean wiring
- RayNet networking cable
- STNG-DeviceNet adapter
- External alarm for critical alerts
- Video/alarm extension cable
- Remote SD card reader (RCR-SD)
- Silicone sun cover and gaskets
- Detailed documentation
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Display Size | 24.0 inches |
| Resolution | 1920 x 1200 WUXGA |
| Display Type | IPS with 24-bit color depth |
| Viewing Angles | 89° all directions |
| Power Draw | Max 96W (12/24V DC) |
| Dimensions (W x D x H) | 22.77" x 2.91" x 15.23" (579 x 74 x 387 mm) |
| Weight | 11.3 kg |
| Storage | 64 GB (62 GB usable) |
| Waterproof Rating | IPX6 / IPX7 |
Frequently Asked Questions
What makes the Axiom XL 24 ideal for glass bridge setups?
Its expansive 24-inch edge-to-edge glass design integrates flawlessly into modern helms, offering wide viewing angles and sunlight readability for multi-station yacht bridges.
Does this kit come with pre-loaded charts?
No, it ships without pre-loaded maps, allowing you to choose and load the best charts from providers like Navionics or C-MAP via the included remote SD reader.
How many video inputs does it support?
Up to four simultaneous camera streams via analog, IP, or HDMI, with DVR recording for engine room or deck monitoring.
What networking options are available?
Three RayNet Ethernet ports plus SeaTalk NG compatibility connect radars, sonars, displays, and more in a robust marine network.
Is it suitable for autopilot control?
Yes, it integrates deeply with Raymarine Evolution autopilots for waypoint plotting and automatic course-keeping using advanced sensors.
What power setup is required?
Operates on 12/24V DC (8-32V range) with a 15A fuse or breaker; the kit includes a right-angle power cable for tidy installs.
Can I control onboard systems from the display?
Absolutely, through YachtSense digital switching for lights, pumps, and appliances directly from the touchscreen interface.
Equip your boat with the Axiom XL 24 kit and experience navigation redefined—responsive, integrated, and built to last through countless horizons.
Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge chartplotters can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast and unmatched readability in bright sun.
Raymarine T70430 Attributes
- Maps: No Pre-Loaded Maps
- Display Size: 24 Inch
- Display Type: WUXGA 1920 x 1200 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 22.77 Inch Width X 15.23 inch Height
- Waterproof: IPX6/ IPX7 Waterproof
Raymarine T70430 Features & Benefits
- Flagship Performance: At The Heart Of Each Axiom XL Display Is A Blazing Fast Quad-Core Processor That Delivers A Responsive And Powerful All-In-One Big Screen Navigation Experience
- Elegant Simplicity: Axiom XL Displays Are Powered By Raymarine's LightHouse Operating System And Offer A Fast, Fluid And Uncluttered Interface That Is Easily Personalized For Your Navigation Style
- Superior Integration: A Powerful Network And Video Integration Platform, Feature Three Ethernet Ports For Connecting Radar, CHIRP And 3D Sonar Modules, Plus Additional Axiom Family Displays
- Smart And Rugged All-Glass Display Is Optimized For Flush Or Surface Mounting
- Features A Sleek Buttonless Design With Swipe-To-Power Touch Control
- Keep Watch On The Crew Or Engine Room With Marine Video Cameras
- Get Underway Faster With The Intuitive LightHouse Operating System
- Axiom XL And YachtSense Technology Offer Simple Touch Screen Control Of Onboard Electrical Devices
- Stay On Course With Evolution Autopilot Integration, Plot A Waypoint On Axiom XL And Engage Evolution's Intelligent Sensor To Keep You On The Perfect Course
- Limited 2 Year Warranty
Raymarine T70430 Installation Instructions
Raymarine T70430 Warranties
Raymarine T70430 Technical Bulletins
- Axiom XL Supplementary information 82400-2-EN.pdf
- Axiom XL Installation instructions 87344-2-EN.pdf
- AXIOM XL24 MDF E70401 3D Surface Mount PDF.pdf
- AXIOM XL24 MDF E70401 3D Surface Mount PDF.pdf
Axiom XL 24 Glass Bridge Multifunction Display Kit with RCR-SD, Alarm & Cable
The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.
Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.
Available in 16, 19, 22 and 24-inch display sizes, Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.
Flagship Performance
At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.
Elegant Simplicity
Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.
Superior Integration
A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.
Features:
- Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
- Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazu and Lumishore.
- Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
- Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
- Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
- Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
- Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
- An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
- Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
- Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
- Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
- Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.
Raymarine Axiom XL 24" MFD Kit
Model: T70430- Full HD (1080p) multi-touch display with IPS technology
- Blazing fast quad core processor delivers a powerful all-in-one big screen navigation experience
- Powered by Raymarine’s LightHouse 3 OS. Fast, fluid, and easy-to-learn
- Users can enjoy multi-touch screen control or add the Raymarine RMK-10 keypad
- 3 Raynet Ethernet ports for connecting radar, CHIRP sonar, cameras, and additional Axiom, Axiom Pro, and Axiom XL family displays
- View 4 video camera streams simultaneously with IP camera support and analog video input for visible light and FLIR thermal cameras
- Ready-to-fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module.
- Bring your computer to the helm. Axiom XL lets users view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
- Axiom XL’s HDMI input also supports full integration with B ning PC Based Digital Switching systems
- HDMI video output lets users monitor Axiom XL from the big screen below deck
- Be entertained with LightHouse Apps. Stream movies and music from Netflix and Spotify on Axiom XL’s full HD display
- Axiom XL and LightHouse Apps lets you integrate with marine technology partners like Theyr weather and Lumishore LED lighting
- Integrated Wi-Fi for mobile apps and Bluetooth for streaming audio and alarms to remote speakers
At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.
Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.
A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.
Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore.
Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.
Specifications| General Specifications | |
| Display Size | 24.0" |
| Display type | IPS (In-Plane Switching) |
| Color Depth | 24 bit |
| Display Resolution | 1920 x 1200 WUXGA |
| Display Aspect Ratio | 16:10 |
| Viewing Angle | Top 89’ / Bottom 89’ / Left 89’ / Right 89’ |
| Power | |
| Nominal supply voltage | 12 / 24 Vdc |
| Operating voltage range | 8 Vdc to 32 Vdc |
| Fuse Requirements | Inline fuse = 15Amp, or Thermal breaker = 15Amp |
| Max. Power | 96W |
| Enviromental | |
| Operating Temperature Range | -25°C to + 55°C |
| Storage temperature range | -30°C to +70°C |
| Humidity | Up to 93% @40°C |
| Water Ingress Protection | IPx6 and IPx7 |
| Overall Dimensions W x D x H (mm) | 579 x 74 x 387 |
| Product Weight (Kg) | 11.3 |
| Other | |
| Internal Storage | 64 GB Solid State (62 GB usable) |
What's in the Box:
- Axiom XL 24 MFD
- Mounting Kit
- Right Angle Power Cable
- STNG - Devicenet Adapter
- RayNet Cable
- Gasket Material
- Silicon Sun Cover
- Documentation Pack
- External Alarm
- Video/Alarm Cable
- Remote Card Reader
The Axiom XL series is the pinnacle of Raymarine navigation and modern helmet integration. The Axiom XL monitor specially designed for glass bridge installation can provide excellent performance,...
SKU: NVN-83936
MPN: T70430
UPC: 723193826645
