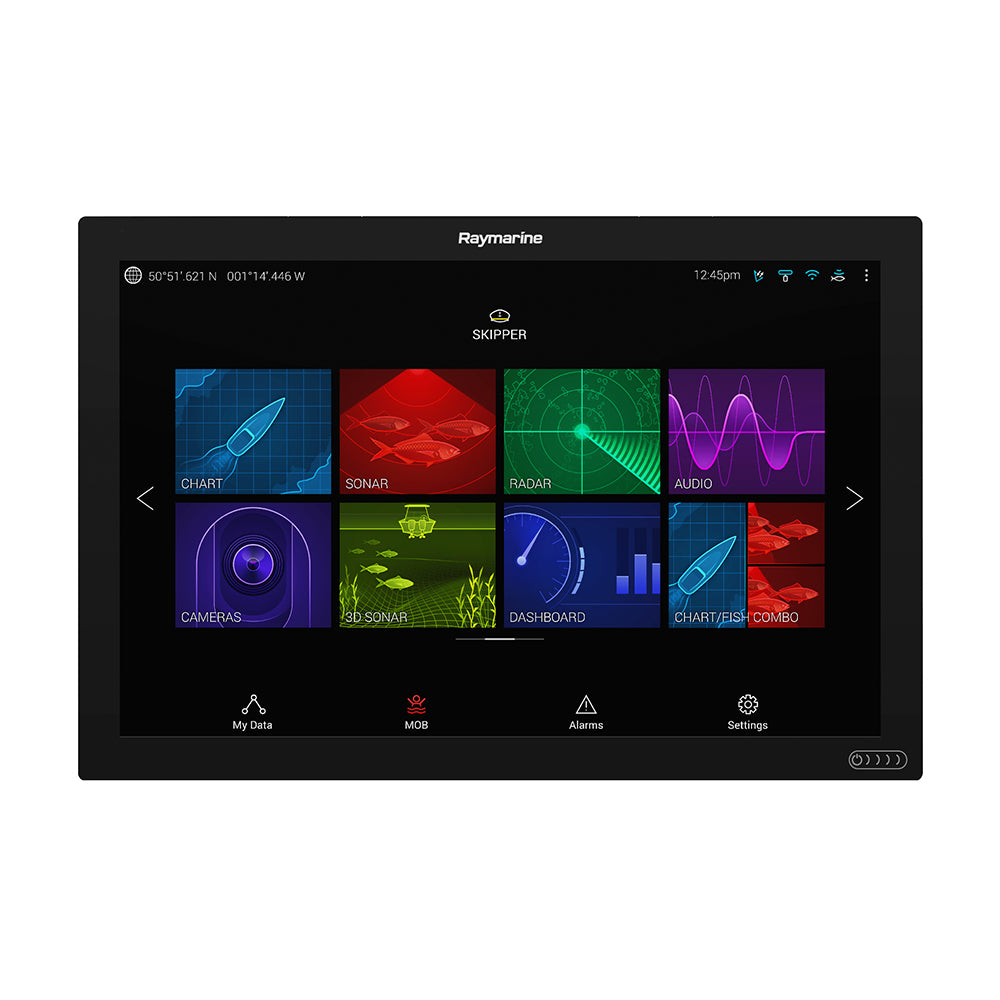

Raymarine Axiom XL 24 Glass Bridge Multifunction Display (E70401)

Professional 24-Inch Marine Navigation System with LightHouse 4 OS and Quad-Core Performance

Experience Premium Glass Bridge Navigation with Raymarine's Flagship 24-Inch Display

The Raymarine Axiom XL 24 Glass Bridge Multifunction Display (E70401) represents the pinnacle of marine navigation technology, delivering uncompromising performance through its expansive 24-inch display and cutting-edge LightHouse 4 operating system. Engineered for serious mariners who demand the ultimate in visibility, functionality, and integration, this flagship MFD transforms your helm into a professional command center.

With its elegant edge-to-edge glass construction and quad-core processor, the Axiom XL 24 delivers lightning-fast performance while maintaining the sophisticated aesthetics demanded by modern yacht design. Whether installed in open cockpits or enclosed bridge stations, this fully waterproof system provides unmatched readability and control in all maritime conditions.

Superior Display Technology & Visibility

Advanced Visual Performance

• 24-Inch WUXGA Display: Stunning 1920 x 1200 pixel resolution with crystal-clear detail
• IPS Technology: In-plane switching delivers wider viewing angles and superior color accuracy
• Optical Bonding: Raymarine's advanced optical bonding eliminates internal reflections for unmatched readability in bright sun
• Ambient Light Sensor: Automatic display brightness adjustment based on lighting conditions
• Multi-Touch Interface: Responsive touchscreen control with intuitive gesture navigation

Professional Glass Bridge Design

• Edge-to-Edge Glass Construction: Sleek, buttonless design creates seamless helm integration
• Dual Mounting Options: Optimized for both flush and surface mounting installations
• Swipe-to-Power Control: Elegant power activation with simple touch gesture
• IPX6/IPX7 Waterproof Rating: Engineered to perform in extreme marine conditions

Flagship Performance & Processing Power

Quad-Core Processor Excellence

• Blazing-Fast Performance: Quad-core processor delivers instant response times and seamless multitasking
• LightHouse 4 Operating System: Latest software version with enhanced chart performance and reduced redraw times
• Multi-Display Network: Seamlessly integrate with additional Axiom XL, Axiom, and Axiom Pro displays
• Advanced Memory Management: Optimized performance for complex navigation tasks and data processing

Superior Connectivity & Network Integration

Comprehensive Port Configuration

• Three RayNet Ethernet Ports: Connect radar, CHIRP sonar, cameras, and additional displays
• HDMI Input/Output: Serve as remote PC display or stream to external monitors
• Integrated Wi-Fi: Connect mobile apps and cloud services
• Bluetooth Connectivity: Stream audio and alarms to remote speakers
• USB Ports: Computer control and peripheral connections

Professional Video Integration

• Four Simultaneous Video Streams: Monitor multiple camera angles simultaneously
• IP Camera Support: Connect advanced marine video systems
• FLIR Thermal Camera Integration: Enhanced awareness with ClearCruise™ thermal object recognition
• Built-in DVR Capability: Record and playback video feeds for security and analysis
• Analog Video Input: Support for traditional marine camera systems

Advanced Radar & Sonar Integration

Quantum 2 CHIRP Radar Technology

• Doppler Target Tracking: Monitor potentially dangerous targets with precision
• CHIRP Pulse Compression: Superior target separation and clarity
• Bird Mode: Track seabird activity to locate fishing opportunities
• Safety Zone Alerts: Configurable collision avoidance warnings

Professional Sonar Solutions

• RVX1000 3D CHIRP Sonar: Optional remotely mounted sonar module
• RealVision™ 3D Technology: Award-winning underwater imaging
• CHIRP DownVision: High-resolution bottom structure imaging
• CHIRP SideVision: Port and starboard underwater scanning

Comprehensive Chart & Navigation Features

Premium Chart Compatibility

• LightHouse Charts Gen 2: Advanced vector charts with enhanced performance
• Navionics Charts: Industry-leading electronic nautical charts
• C-MAP Charts: Professional marine cartography
• LightHouse Raster Charts: Traditional paper chart presentation

Advanced Navigation Tools

• Evolution Autopilot Integration: 9-axis intelligent sensor navigation
• Advanced Waypoint Management: Plot and navigate with precision
• Route Planning: Create complex multi-leg routes with ease
• Weather Overlay: Real-time weather data integration

Vessel Automation & Digital Switching

YachtSense Technology

• Digital Switching Integration: Touch screen control of onboard electrical systems
• Engine Monitoring: Real-time engine data display and alerts
• Environmental Controls: HVAC and lighting system integration
• Security Systems: Monitor and control vessel security features

Mobile Connectivity

• RayRemote Mobile App: Control and monitor from smartphone or tablet
• LightHouse Apps: Access entertainment and marine technology partners
• Cloud Integration: Backup and sync navigation data

Flexible Control Options

Multi-Touch Interface

• Gesture Navigation: Intuitive pinch, zoom, and swipe controls
• Customizable Layouts: Personalize display arrangement for your navigation style
• Quick Access Menus: Single-touch access to frequently used functions

Optional Physical Controls

• RMK-10 Keypad: Dedicated physical control unit for complete system operation
• Remote Station Control: Operate from multiple helm positions
• Integration with Existing Controls: Compatible with third-party marine control systems

Technical Specifications

Display Specifications

• Screen Size: 24 inches (diagonal)
• Resolution: WUXGA 1920 x 1200 pixels
• Aspect Ratio: 16:10 widescreen
• Display Technology: IPS with optical bonding
• Touch Interface: Multi-touch capacitive

Physical Dimensions

• Width: 22.77 inches (578 mm)
• Height: 15.23 inches (387 mm)
• Mounting: Flush or surface mount compatible
• Waterproof Rating: IPX6/IPX7

Performance & Power

• Processor: Quad-core ARM
• Operating System: LightHouse 4
• Operating Voltage: 12-24V DC
• Power Consumption: [Varies by usage]

Connectivity

• RayNet Ethernet: 3 ports
• HDMI: Input/Output capability
• USB: Multiple ports
• Wi-Fi: Integrated
• Bluetooth: Audio streaming

Frequently Asked Questions

What charts come pre-loaded with the Axiom XL 24?

The Axiom XL 24 (E70401) does not include pre-loaded charts. Charts must be purchased separately from Navionics, C-MAP, or Raymarine's LightHouse chart library based on your navigation area requirements.

Can the Axiom XL 24 be installed in outdoor cockpit areas?

Yes, the Axiom XL 24 is fully waterproof with IPX6/IPX7 rating and engineered to perform in extreme conditions. It can be safely installed in both open cockpits and enclosed bridge stations.

What's the difference between LightHouse 3 and LightHouse 4?

LightHouse 4 offers enhanced chart performance with reduced redraw times, improved networking capabilities, support for LightHouse Charts Gen 2, and better integration with marine apps and systems.

How many radar and sonar devices can be connected?

With three RayNet Ethernet ports, you can connect multiple radar units, CHIRP sonar modules, cameras, and additional displays, creating a comprehensive marine electronics network.

Can I control other boat systems from the display?

Yes, through YachtSense technology and digital switching integration, you can control onboard electrical devices, engine monitoring, HVAC systems, and security features directly from the touchscreen.

Does the display support video recording?

Yes, the Axiom XL 24 includes built-in DVR capability, allowing you to record and playback video feeds from connected marine cameras for security and analysis purposes.

Ideal Marine Applications

• Luxury Yacht Navigation: Premium glass bridge installations for superyachts and motor yachts
• Sport Fishing: Advanced fish finding with 3D CHIRP sonar and video monitoring
• Commercial Vessels: Professional navigation for charter boats and working vessels
• Offshore Cruising: Long-range navigation with comprehensive safety features
• Fleet Operations: Integrated monitoring and control for commercial marine operations

Why Choose Raymarine Axiom XL 24

Flagship Performance

Quad-core processor with LightHouse 4 OS delivers the fastest, most responsive marine navigation experience available.

Professional Glass Bridge Design

Elegant edge-to-edge glass construction with buttonless design creates the perfect modern helm aesthetic.

Unmatched Integration

Superior network and video integration with three Ethernet ports supports comprehensive marine electronics systems.

All-Conditions Reliability

Engineered for extreme marine conditions with IPX6/IPX7 waterproof rating and optical bonding for bright sun readability.

Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge chartplotters can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast and unmatched readability in bright sun.

Raymarine E70401 Attributes

• Maps: No Pre-Loaded Maps
• Display Size: 24 Inch
• Display Type: WUXGA 1920 x 1200 Pixels Resolution
• Interface: Touchscreen Interface
• Dimensions: 22.77 Inch Width X 15.23 inch Height
• Waterproof: IPX6/ IPX7 Waterproof

Raymarine E70401 Features & Benefits

• Flagship Performance: At The Heart Of Each Axiom XL Display Is A Blazing Fast Quad-Core Processor That Delivers A Responsive And Powerful All-In-One Big Screen Navigation Experience
• Elegant Simplicity: Axiom XL Displays Are Powered By Raymarine's LightHouse Operating System And Offer A Fast, Fluid And Uncluttered Interface That Is Easily Personalized For Your Navigation Style
• Superior Integration: A Powerful Network And Video Integration Platform, Feature Three Ethernet Ports For Connecting Radar, CHIRP And 3D Sonar Modules, Plus Additional Axiom Family Displays
• Smart And Rugged All-Glass Display Is Optimized For Flush Or Surface Mounting
• Features A Sleek Buttonless Design With Swipe-To-Power Touch Control
• Keep Watch On The Crew Or Engine Room With Marine Video Cameras
• Get Underway Faster With The Intuitive LightHouse Operating System
• Axiom XL And YachtSense Technology Offer Simple Touch Screen Control Of Onboard Electrical Devices
• Stay On Course With Evolution Autopilot Integration, Plot A Waypoint On Axiom XL And Engage Evolution's Intelligent Sensor To Keep You On The Perfect Course
• Limited 2 Year Warranty

Raymarine E70401 Installation Instructions

• Axiom XL Supplementary information 82400-2-EN.pdf
• Axiom XL Installation instructions 87344-2-EN.pdf

Raymarine E70401 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine E70401 Technical Bulletins

• AXIOM XL24 MDF E70401 3D Surface Mount PDF.pdf
• Axiom XL Installation instructions 87344-2-EN.pdf
• AXIOM XL24 MDF E70401 3D Surface Mount PDF.pdf
• Axiom XL Supplementary information 82400-2-EN.pdf

Axiom XL 24 Glass Bridge Multifunction Display

The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.

Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.

Available in 16, 19, 22 and 24-inch display sizes, Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.

Flagship Performance

At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.

Elegant Simplicity

Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.

Superior Integration

A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.

Features:

• Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
• Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazu and Lumishore.
• Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
• Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
• Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
• Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
• Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
• An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
• Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
• Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
• Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
• Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.

Axiom XL 24, display only, MFG#E70401, 24 multi-function display, glass bridge, specially used in the cab or fly bridge. Optional radar, sonar, thermal imager, Sat WX, system control.
SKU: NVN-83935
MPN: E70401
UPC: 723193824238
