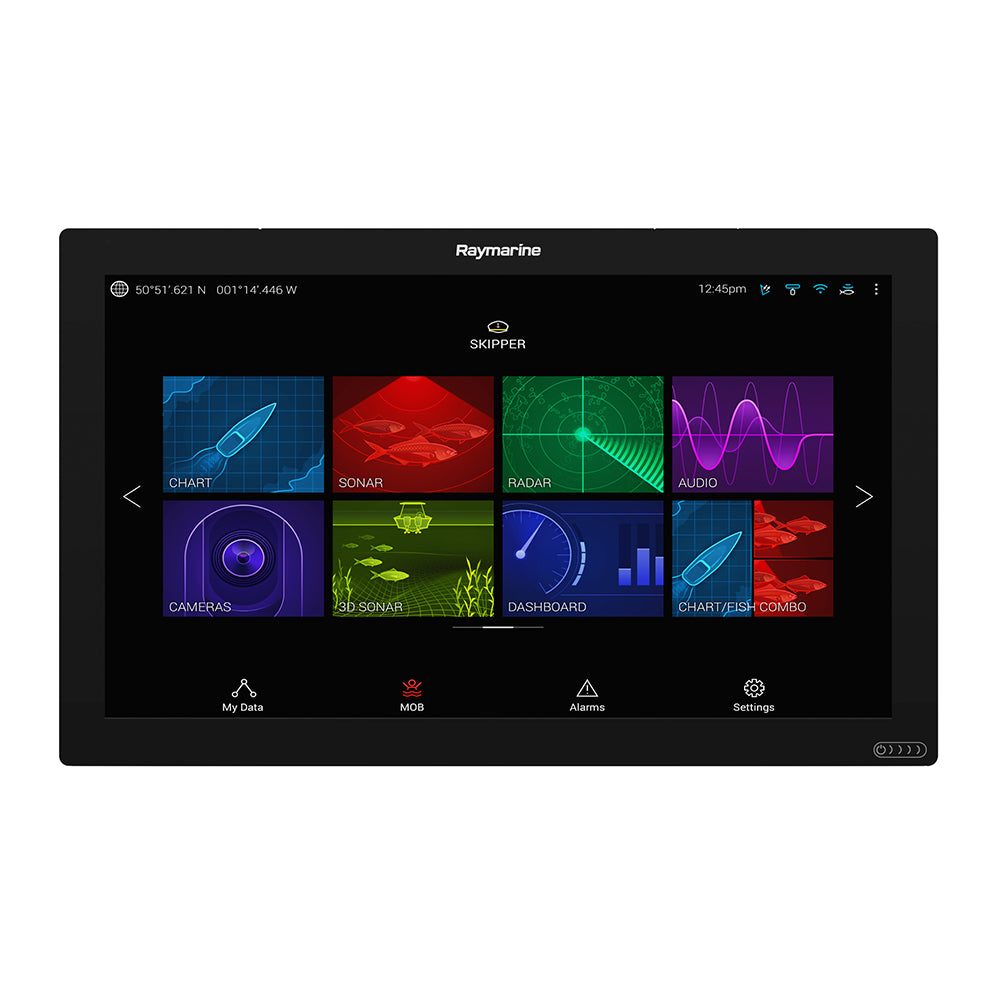

Raymarine Axiom XL 22 Glass Bridge Multifunction Display

Transform Your Helm with the Ultimate Glass Bridge Experience

Imagine a helm station where every glance at your display reveals crystal-clear charts, real-time radar sweeps, and thermal imaging—all on a massive, sunlight-readable screen that feels like an extension of your vessel. The Raymarine Axiom XL 22 redefines marine navigation for serious boaters who demand precision, power, and seamless integration. Built for the rigors of open water and luxury bridges alike, this multifunction display (MFD) combines cutting-edge hardware with intuitive software to keep you ahead of the curve, whether you're chasing big game offshore or cruising coastal waters.

What sets it apart? It's not just a screen; it's a command center. With its edge-to-edge glass design and buttonless interface, it blends effortlessly into modern yacht aesthetics while delivering unmatched durability. Captains rave about how it simplifies complex tasks, from plotting routes in seconds to monitoring multiple feeds without distraction.

Unrivaled Display Performance for Any Conditions

Crafted with in-plane switching (IPS) technology and optical bonding, the 21.5-inch Full HD (1920x1080) touchscreen offers wide viewing angles—up to 89 degrees in all directions—and superior contrast that cuts through glare. No more squinting in direct sunlight or dimming in shaded helms; a smart ambient light sensor handles brightness automatically.

• Sunlight Readability: Optical bonding eliminates air gaps, reducing reflections for pinpoint accuracy.
• Responsive Touch: Multi-touch gestures and swipe-to-power make operation fluid, even with wet hands or gloves.
• Rugged Build: Fully waterproof (IPX6/IPX7) and rated for -25°C to +55°C, it's ready for extreme marine environments.

This isn't entry-level gear—it's engineered for pros who navigate where others hesitate.

Blazing-Fast Processing and LightHouse 3 OS

Powered by a quad-core processor, the Axiom XL 22 handles heavy loads effortlessly: overlay radar on charts, process 3D sonar data, or stream video from four cameras simultaneously. Raymarine's LightHouse 3 operating system is the secret sauce—fluid, customizable, and beginner-friendly yet deep enough for experts.

Key perks include:

• Instant route planning: Tap waypoints and go, with drag-and-drop simplicity.
• Personalization: Rearrange panels, themes, and shortcuts to match your workflow.
• Remote control option: Pair with an RMK-10 keypad for touch-free operation from anywhere on deck.

Boaters often share stories of shaving hours off passages thanks to its speed and smarts.

Seamless Connectivity and Expansion

Three Ethernet (RayNet) ports make networking a breeze—link radars like Quantum 2 with CHIRP and Doppler tracking, add RVX1000 for RealVision 3D sonar, or daisy-chain multiple Axiom displays. NMEA 0183/2000, Wi-Fi, Bluetooth, HDMI in/out, and USB ensure it plays nice with everything from Evolution autopilots to FLIR thermal cams.

Connection Type	Capabilities
Ethernet (3x RayNet)	Radar, sonar, IP cameras, multi-display sync
HDMI Input/Output	PC mirroring, entertainment apps, big-screen relay
Analog Video + IP	4x camera feeds, DVR recording

Integrate with partners like Navionics, C-MAP, Seakeeper, or Lumishore lights. Stream weather data, control digital switching, or even run Netflix during downtime—it's versatile beyond navigation.

Real-World Applications: Safety, Fishing, and Beyond

For offshore anglers, pair it with RVX1000 for hyper-detailed fish arches and bottom structure in 3D. Safety-minded cruisers love FLIR ClearCruise thermal detection, spotting hazards day or night. Yacht owners use it as a PC monitor or DVR for engine bays and crew quarters.

• Fishing Edge: CHIRP sonar reveals schools others miss.
• Night Navigation: Doppler radar flags collision risks early.
• Entertainment Hub: LightHouse Apps for music, movies, and more.

Compact at 21"W x 12.8"H x 3"D (21.8 lbs), it supports flush or surface mounts, ideal for custom glass bridges.

FAQ

Is the Raymarine Axiom XL 22 suitable for open cockpits?

Yes, its IPX6/IPX7 waterproof rating and wide temperature tolerance make it perfect for exposed helm stations, delivering reliable performance in rain, spray, or blazing sun.

Can I connect multiple displays to the Axiom XL 22?

Absolutely—three Ethernet ports allow seamless integration with other Axiom, Axiom Pro, or XL units, creating a unified glass bridge network.

Does it support thermal cameras and radar?

Yes, compatible with FLIR thermal imaging for ClearCruise object detection and Quantum 2 radar for CHIRP/Doppler target tracking, enhancing situational awareness.

How easy is the user interface to learn?

LightHouse 3 OS is designed for quick mastery—intuitive charting, customizable dashboards, and multi-touch controls mean you'll be plotting courses in moments.

What power requirements does it have?

Operates on 12/24V DC (8-32V range), with a max draw of 84W and 15A fuse/breaker—standard marine setup friendly.

Can it record video from cameras?

Yes, view and record up to four simultaneous streams from analog or IP cameras, turning it into an onboard security DVR.

Raymarine Axiom XL Multi-Function DisplayDisplay only Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun. At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine's family of Axiom and Axiom Pro displays at remote stations. A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display. Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions. Access Axiom Everywhere using Axiom XL's HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps. Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets. Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer's HDMI output and USB touch screen control.

Raymarine E70505 Attributes

• Display Size: 21.5" Color Multi-Touch LCD, 16:9
• Display Type: LCD
• Resolution: 1920 X 1080 Pixels
• Interface: NMEA 0183, NMEA 2000, Ethernet, WiFi, Bluetooth
• Dimensions: 21"W x 12.8"H x 3.0"D; Wt: 21.8 lb.

Raymarine E70505 Features & Benefits

• Three years, after on-line registration

Axiom XL 22 Glass Bridge Multifunction Display

The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.

Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.

Available in 16, 19, 22 and 24-inch display sizes, Axiom XL’s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance.

Flagship Performance

At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.

Elegant Simplicity

Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.

Superior Integration

A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.

Features:

• Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
• Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazu and Lumishore.
• Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
• Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
• Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
• Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
• Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
• An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
• Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
• Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
• Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
• Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.

Raymarine Axiom XL 21" MFD

Model: E70515

• Full HD (1080p) multi-touch display with IPS technology
• Blazing fast quad core processor delivers a powerful all-in-one big screen navigation experience
• Powered by Raymarine’s LightHouse 3 OS. Fast, fluid, and easy-to-learn
• Users can enjoy multi-touch screen control or add the Raymarine RMK-10 keypad
• 3 Raynet Ethernet ports for connecting radar, CHIRP sonar, cameras, and additional Axiom, Axiom Pro, and Axiom XL family displays
• View 4 video camera streams simultaneously with IP camera support and analog video input for visible light and FLIR thermal cameras
• Ready-to-fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module.
• Bring your computer to the helm. Axiom XL lets users view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
• Axiom XL’s HDMI input also supports full integration with B ning PC Based Digital Switching systems
• HDMI video output lets users monitor Axiom XL from the big screen below deck
• Be entertained with LightHouse Apps. Stream movies and music from Netflix and Spotify on Axiom XL’s full HD display
• Axiom XL and LightHouse Apps lets you integrate with marine technology partners like Theyr weather and Lumishore LED lighting
• Integrated Wi-Fi for mobile apps and Bluetooth for streaming audio and alarms to remote speakers

At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.

Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system control.

A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.

Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.

Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore.

Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.

Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.

Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.

Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.

Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.

An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.

Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.

Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.

Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.

Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.

Specifications

General Specifications
Display Size	21.5"
Display type	IPS (In-Plane Switching)
Color Depth	24 bit
Display Resolution	1920 x 1080 FHD
Display Aspect Ratio	16:9
Viewing Angle	Top 89’ / Bottom 89’ / Left 89’ / Right 89’
Power
Nominal supply voltage	12 / 24 Vdc
Operating voltage range	8 Vdc to 32 Vdc
Fuse Requirements	Inline fuse = 15Amp, or Thermal breaker = 15Amp
Max. Power	84W
Enviromental
Operating Temperature Range	-25°C to + 55°C
Storage temperature range	-30°C to +70°C
Humidity	Up to 93% @40°C
Water Ingress Protection	IPx6 and IPx7
Overall Dimensions W x D x H (mm)	534 x 75 x 326
Product Weight (Kg)	9.9
Other
Internal Storage	64 GB Solid State (62 GB usable)

What's in the Box:

• Axiom XL 22 MFD
• Mounting Kit
• Right Angle Power Cable
• STNG - Devicenet Adapter
• RayNet Cable
• Gasket Material
• Silicon Sun Cover
• Documentation Pack

The Axiom XL series is the pinnacle of Raymarine navigation and modern helmet integration. Axiom XL monitor is specially designed for glass bridge installation, with excellent performance, large-format visibility and simple appearance. Designed for working under extreme conditions, the fully waterproof Axiom XL series glass bridge MFDS can be installed in open cockpits and closed bridges. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to provide a wider viewing angle, sharp contrast, and unparalleled readability in bright sunlight. The edge-to-edge glass structure of the Axiom XL enables ship designers to create an integrated and elegant navigation helmet look.
SKU: NVN-83933
MPN: E70515
UPC: 723193826423
