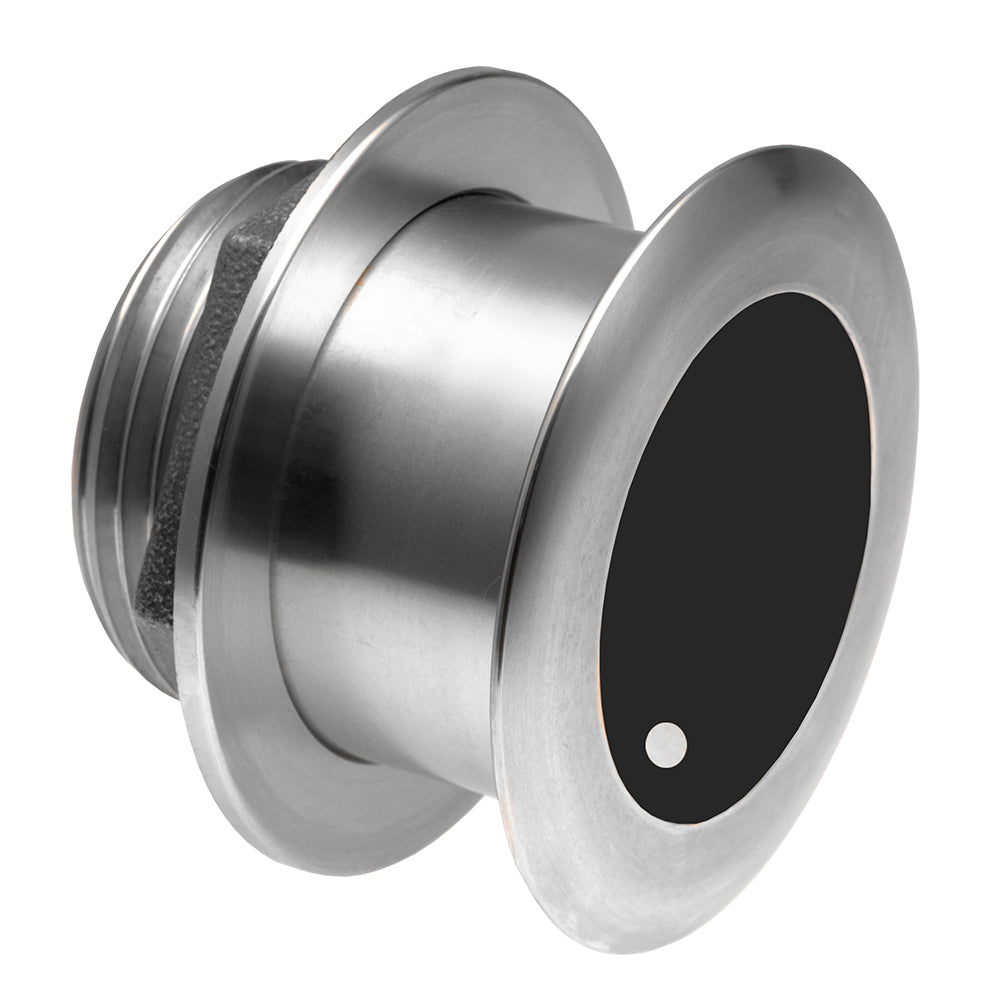

Raymarine SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW f/CP370 Sounder
Raymarine SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW f/CP370 Sounder — Product description
Upgrade your boat's sonar capabilities with a transducer designed for serious anglers who demand precision without compromising hull performance. This stainless steel thru-hull model delivers powerful 1kW imaging tailored for high-speed trailering and center-console adventures, ensuring you spot fish and structure exactly where it counts—right below your vessel.
Why Choose This Flush-Mount Transducer for Your Vessel?
Built tough for everyday abuse on the water, its innovative design eliminates the drag of bulky fairings. The low-profile housing barely kisses the hull's exterior, sitting flush enough to roll over bunks and trailers without a hitch. Inside, the tilted ceramic elements optimize beam angles for deadrise angles from 0 to 7 degrees, firing maximum energy straight down for crystal-clear bottom reads even at speed.
- Superior Depth Penetration: Reach up to 500 meters with reliable echoes, perfect for deep-water pursuits.
- Dual-Frequency Flexibility: Switch between a wide 22-degree beam at 50kHz for broad coverage and a razor-sharp 6-degree at 200kHz for pinpoint targeting.
- Real-Time Temp Sensing: Track water temperature changes instantly to locate bait schools and thermoclines.
- Universal Compatibility: Pairs seamlessly with 600W or 1kW sounders, unlocking advanced CHIRP potential.
- Hull-Agnostic Durability: Stainless steel construction laughs off corrosion in saltwater, freshwater, or brackish environments.
Maximize Your On-Water Edge
For tournament pros and weekend warriors alike, this transducer shines on boats up to 35 feet. Its fixed 0-degree tilt means no adjustments needed for most planing hulls, keeping your setup simple and reliable. Forget fairing kits that add weight and complexity—this flush-mount solution maintains your boat's sleek lines and top-end speed.
| Feature | Details |
|---|---|
| Power Rating | 1kW |
| Frequencies | 50kHz / 200kHz |
| Beam Widths | 22° @ 50kHz / 6° @ 200kHz |
| Max Depth | 500m (1640') |
| Hull Protrusion | < 6.35mm (0.25") |
| Boat Length | Up to 11m (35') |
| Hull Deadrise | 0° to 7° |
Seamless Setup for Lasting Results
Installing this thru-hull unit keeps things straightforward: drill, seal, and wire up. Its stainless housing bonds securely to fiberglass, wood, or metal hulls using standard marine-grade compounds. Pro tip: Position it forward of props and struts for clean water flow, minimizing air bubbles that muddy your returns. Once mounted, the exclusive ID technology auto-calibrates with compatible displays, saving hours of tweaking.
From Trailering to Trophy Hunting
Picture this: You're trailering to distant hotspots, transducer tucked safely on rollers. Launch, power up, and watch arches stack on screen as you idle over reefs. At trolling speeds, the wide beam sweeps structure; crank it up, and the narrow focus locks on individual marks. Anglers report fewer false readings and sharper separations between bait and gamefish, turning good days into limits.
Keep It Performing Season After Season
A quick freshwater rinse after saltwater runs prevents buildup. Inspect the face annually for marine growth— a soft brush restores like new. Avoid antifouling paints on the active face to preserve acoustic clarity. With proper care, expect years of trouble-free service, even in harsh conditions.
Frequently Asked Questions
What hull types work best with this transducer?
It's ideal for planing hulls with 0 to 7-degree deadrise, like center consoles and sportfishers up to 35 feet. Works on fiberglass, aluminum, or wood.
Does it require a fairing block?
No fairing needed thanks to the built-in tilted element, which angles beams perfectly without external adjustments.
What's the advantage of 1kW power over lower-wattage options?
Higher power punches through deeper water and thermoclines for stronger signals and better target resolution, especially in rough seas.
Can it handle trailering?
Absolutely—the ultra-low profile under 0.25 inches protrudes minimally, safe for bunks and rollers without damage.
How does the temperature sensor perform?
Fast-response thermistor provides accurate, real-time readings to help identify productive water columns.
Is it compatible with all sounders?
Designed for 600W or 1kW units; check your display for specific plug-and-play support.
Why stainless steel over plastic housings?
Offers superior strength and corrosion resistance for long-term reliability in demanding marine environments.
SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW for CP370 Sounder
Step up to a 1 kW—without a fairing! Airmar’s innovative Tilted Element™ technology to a higher power. The 1 kW, flush-mount, tilted element transducer is perfect for fast, trailered, tournament sportfishing vessels that cannot accomodate a high-performance fairing. The flush-mounted, stainless steel housing protrudes less than 6.35 mm (0.25") outside your hull and can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing providing the perfect vertical beam with maximum energy on what is directly below the boat.
Features:
- Depth and fast-response water-temperature sensor
- 1 kW power for performance to 500 m (1640'), 50 kHz with a wide 22° beam, 200 kHz with a 6° beam
- Interfaces to any 600 W or 1 kW echosounder
- Engineered for center-console and trailered boats
- Low-profile protrusion - less than 6.35 mm (0.25") outside your hull
- Fixed 0° tilted version for 0° to 7° hull deadrise
- No affect on boats running performance
- Stainless steel transducer housing for use on all hull materials
- Recommended boat size: up to 11 m (35')
- Exclusive Xducer ID® technology
SS164 stainless steel straight through hull-0° tilt element-suitable for CP370 depth sounder from 1 kW to 1 kW, without fairing! Airmar's innovative Tilted Element™ technology provides higher power. This ...
SKU: NVN-83445
MPN: A80451
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine SS164 Stainless Steel Thru-Hull - 0° Tilted Element - 1KW f/CP370 Sounder |
| SKU / MFR# | 83445 |
