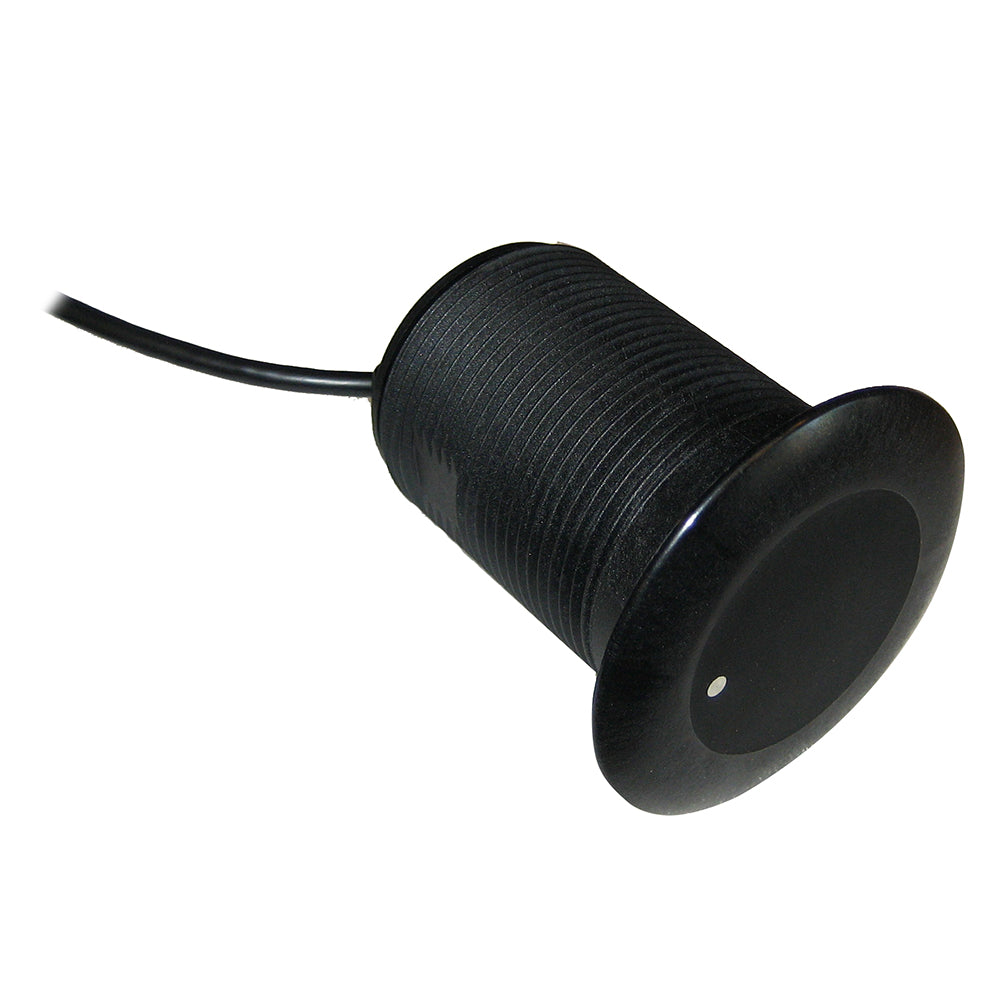

Raymarine CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 12° Angle
Raymarine CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 12° Angle — Product description
Upgrade your vessel's sonar capabilities with the Raymarine CPT-S High CHIRP plastic thru-hull flush mount transducer, designed specifically for the 12-degree deadrise angle. This compact powerhouse delivers crisp, high-resolution depth readings through advanced CHIRP technology, making it a go-to choice for sailors, cruisers, and small powerboat enthusiasts navigating fiberglass hulls. Unlike traditional sonar, CHIRP sweeps across frequencies centered around 200 kHz, providing superior target separation and clarity even at higher speeds, so you can confidently track bottom structure and fish targets without guesswork.
Standout Features for Reliable On-Water Performance
- High CHIRP Sonar Precision: Single-element conical beam spans 25 degrees, capturing detailed imagery up to 900 feet deep, ideal for spotting wrecks, reefs, and schools in varied conditions.
- Flush-Mount Design: Low-profile plastic housing (urethane construction) blends seamlessly with your hull, reducing drag and maintaining a sleek aesthetic while ensuring durability against marine environments.
- Extended Cable Reach: 33-foot cable offers flexible routing options, simplifying setup on boats of different sizes without signal loss.
- Speed-Optimized Operation: Maintains accurate depth data at planing speeds, perfect for dynamic boating scenarios where stability matters.
- Backed by Warranty: Comes with Raymarine's standard limited coverage for peace of mind during your adventures.
Effortless Installation and Broad Compatibility
Installing the CPT-S is straightforward for thru-hull applications on non-cored fiberglass hulls. Position it to match your 12-degree deadrise (optimized for 6-17 degree ranges across models), cut a precise hole, and secure with the included tube housing—no complex fairing blocks needed. It transmits directly through the hull for clean, interference-free readings.
Seamlessly integrates with Raymarine's ecosystem, including Axiom DV multifunction displays and CP100 sonar modules. For Axiom Pro S series, pair with the optional adapter cable to unlock full CHIRP functionality. Whether you're retrofitting an older setup or building new, this transducer slots in effortlessly, enhancing your chartplotter's down-looking prowess without major overhauls.
Why Boaters Trust the CPT-S for Everyday and Extreme Conditions
Engineered for real-world reliability, the CPT-S excels where others falter. Its CHIRP pulse compression cuts through thermoclines and minimizes noise from aerated water, delivering consistent performance from trolling to racing. Boat owners rave about its ability to reveal subtle contours on sandy bottoms or rocky drop-offs, aiding in anchoring, fishing hotspots, and navigation in unfamiliar waters.
Choose this model for hulls with moderate deadrise—think trailerable sailboats or day cruisers—where space and budget align with pro-grade sonar. It's not just depth data; it's actionable intelligence that keeps you ahead of the curve.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Mount Type | Thru-Hull Flush Mount |
| Max Depth | 900 feet |
| Beam Width | 25° Conical |
| Supported Deadrise | 6-17° (12° optimized) |
| Frequency | High CHIRP (centered ~200 kHz) |
| Cable Length | 33 feet |
| Material | Plastic Urethane |
Frequently Asked Questions
What hull deadrise angles does the Raymarine CPT-S 12° model support?
This transducer is optimized for 12-degree deadrise hulls and works well across 6-17 degrees, ensuring proper beam alignment without additional fairings.
What's the maximum depth capability of this CHIRP transducer?
It reaches up to 900 feet, providing reliable bottom tracking in deep coastal or offshore waters.
Is this transducer suitable for high-speed boating?
Yes, its CHIRP design maintains clear depth readings even at planing speeds, minimizing cavitation interference.
Which Raymarine displays pair with the CPT-S?
Direct compatibility with Axiom DV series; use an adapter for Axiom Pro S series and CP100 modules for embedded CHIRP MFDs.
What beam width does it offer for fish targeting?
A 25-degree conical beam excels at wide-area scanning for bait balls and structure while maintaining resolution.
Can I install this on any fiberglass hull?
Best for non-cored fiberglass; ensure your deadrise matches and follow thru-hull mounting guidelines for optimal performance.
How long is the cable included?
33 feet, giving ample length for routing to your helm station or junction box.
The CPT-S In-hull transducer provides a simple-to-install depth-only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200 Kilohertz. The CPT-S In-hull transducer transmits sonar signals through the boat's hull, simplifying installation while providing reliable high-speed depth recording. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 Degree dead rise.
Raymarine A80448 Attributes
- Mounting Location: Thru-Hull Mount
- Depth: 900 Feet Maximum Depth For CHIRP Fish finder
- Supported Angle: 25 Degree Conical Beam Width/ 7 To 17 Degree Deadrise Angle
- Cable Length: 33 Feet
Raymarine A80448 Features & Benefits
- No Drilling Through The Hull Is Required
- Supports Single High CHIRP Sonar With A 25 Degree Conical Beam
- Up To 600 Feet Depth Range
- Transducers Connect Directly To Axiom DV Models
- Limited 2 Year Warranty
Raymarine A80448 Warranties
CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 12° Angle
The CPT-S High CHIRP transducer provides high resolution sonar imagery in a small and inexpensive package. With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed. This CPT-S is a low profile, flush-mounted plastic Thru Hull High CHIRP transducer compatible with Raymarine's CP100 sonar module and embedded CHIRP MFD's. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth of 900 feet. This model CPT-S accommodates hulls with a deadrise between 7-17 degrees.
Also connects to Axiom Pro S series Units with optional adapter cable A80490.
Features:
- High Chirp Sonar
- Max Depth: 900'
- 12 Degree Deadrise
"With a simple design, the CPT-S is easy to install, while still offering excellent performance at speed. This CPT-S is a low profile, flush-mounted plastic Thru Hull High CHIRP transducer compatible with Raymarine's CP100 sonar module and embedded CHIRP MFD's. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth of 900 feet. This model CPT-S accommodates hulls with a deadrise between 7-17 degrees. Also connects to Axiom Pro S series Units with optional adapter cable A80490."
SKU: NVN-81177
MPN: A80448
UPC: 723193816516
Technical specifications
| Brand | Raymarine |
| Model | Raymarine CPT-S High CHIRP Plastic Thru-Hull Flush Mount Transducer - 12° Angle |
| SKU / MFR# | 81177 |
