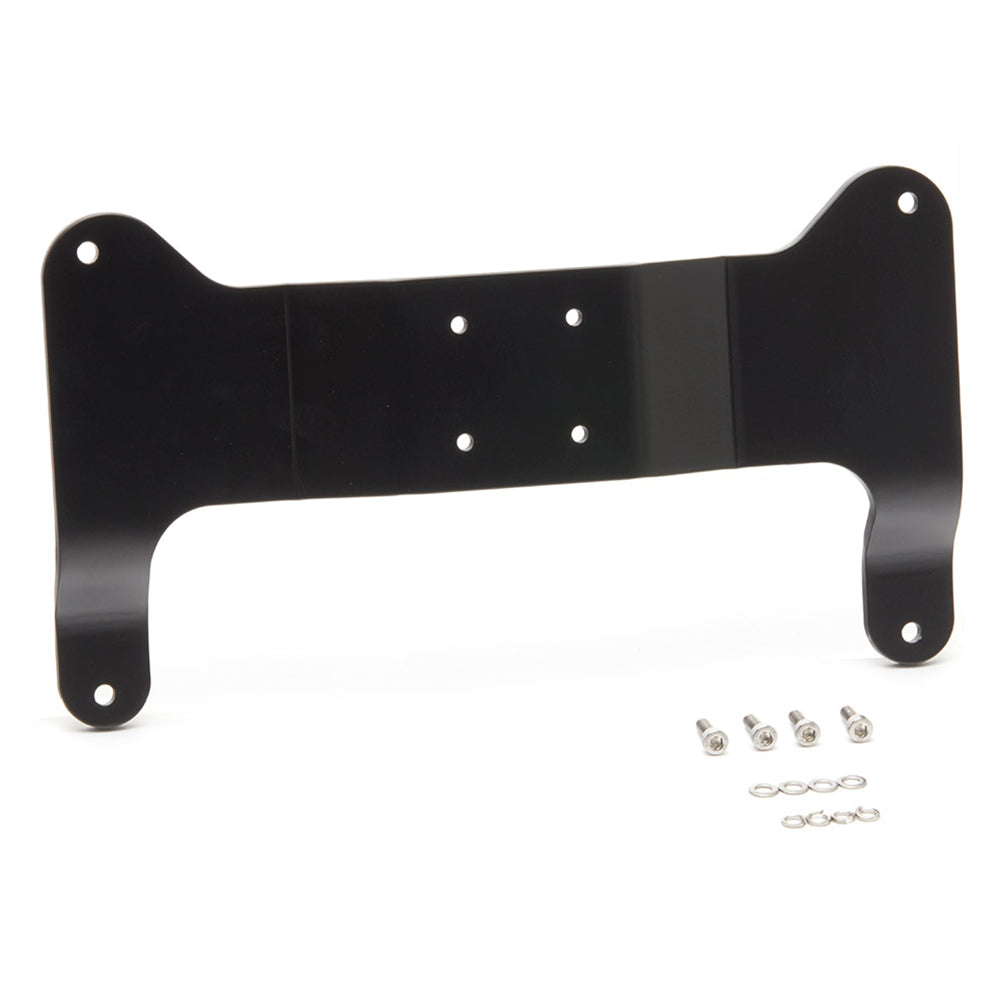

Raymarine Axiom™ Pro 16 Bracket Ball Mount Plate
Raymarine Axiom™ Pro 16 Bracket Ball Mount Plate — Product description
Upgrade your boating setup with the Raymarine Axiom Pro 16 Bracket Ball Mount Plate, a durable adapter designed specifically for seamless integration of your multifunction display. This rugged plate transforms your Axiom Pro 16 into a versatile powerhouse, ready for bracket or ball-style mounting on any compatible surface. Whether you're navigating open waters or tackling rough coastal conditions, this mount ensures rock-solid stability without compromising on accessibility.
Engineered for Marine Toughness
Crafted from high-grade materials that resist corrosion and UV exposure, the Axiom Pro 16 mount plate stands up to the harshest saltwater environments. Its precision-machined design fits flush against the display's frame, eliminating wobble or vibration even at high speeds. Boaters trust it for its straightforward attachment process—no special tools required beyond what's in your standard marine toolkit.
Versatile Mounting Options
- Bracket Mounting: Secure it directly to gimbals or fixed brackets for a permanent, low-profile setup ideal for helm stations.
- Ball Mounting: Pair with popular ball-and-socket systems for adjustable positioning, perfect for flybridges or multi-angle consoles.
- Universal Compatibility: Works with a wide range of RAM-style balls and standard marine brackets, giving you freedom to customize your installation.
This flexibility means you can adapt your chartplotter, sonar, and radar display to fit any vessel, from center consoles to yachts.
Why It Enhances Your On-Water Experience
Imagine quick glances at charts without straining your neck, or repositioning your screen effortlessly during fishing trips or night runs. The plate's low-profile design keeps your Axiom Pro 16 protected and within easy reach, reducing clutter on deck. It's not just a mount—it's an investment in safer, more intuitive navigation. Anglers, cruisers, and commercial operators alike report fewer adjustments needed mid-trip, letting you focus on what matters: the horizon ahead.
Simple Installation Steps
- Power down and remove your Axiom Pro 16 from its current setup.
- Align the plate with the display's mounting holes and secure using the provided hardware.
- Attach your chosen bracket or ball system to the plate's reinforced base.
- Test for levelness and tighten all connections for a vibration-free hold.
- Reinstall cabling and power up—your display is ready to go.
Most installs take under 30 minutes, even for DIY enthusiasts. For added security in extreme conditions, apply marine-grade sealant around edges.
Maintenance Tips for Longevity
Rinse with fresh water after every outing to prevent salt buildup. Inspect bolts seasonally and re-torque as needed. This proactive care keeps your mount performing like new, season after season.
Frequently Asked Questions
Is the Raymarine Axiom Pro 16 Bracket Ball Mount Plate compatible with older Axiom models?
This plate is optimized for the Axiom Pro 16 but check hole patterns for smaller models. It's designed primarily for the 16-inch display frame.
Can I use this mount with RAM ball systems?
Yes, it features standard threading that pairs perfectly with RAM mounts and similar ball-and-socket setups for full adjustability.
Does the mount add significant bulk to my helm?
No, its slim profile maintains a clean look while providing robust support—no unnecessary overhang.
Is installation DIY-friendly for boat owners?
Absolutely. With basic tools like a screwdriver and wrench, most users complete it quickly without professional help.
How does this plate handle vibrations from rough seas?
Exceptionally well, thanks to its reinforced construction and secure fastening points that lock out movement.
Will it protect my Axiom Pro 16 from splashes?
It enhances stability but relies on the display's IPX rating for water resistance. Position it to minimize direct exposure.
Can I remove and reinstall the display frequently?
Yes, the design allows easy detachment for storage or transport without damaging the plate or display.
Axiom™ Pro 16 Bracket Ball Mount Plate
This adapter plate allows your Axiom™ Pro 16 to easily be bracket or ball mounted. The rugged plate attaches to your Axiom Pro 16 and is compatible with most mounting solutions.
"Raymarine . The rugged plate attaches to your Axiom Pro 16 and is compatible with most mounting solutions."
SKU: NVN-80685
MPN: A80537
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom™ Pro 16 Bracket Ball Mount Plate |
| SKU / MFR# | 80685 |
