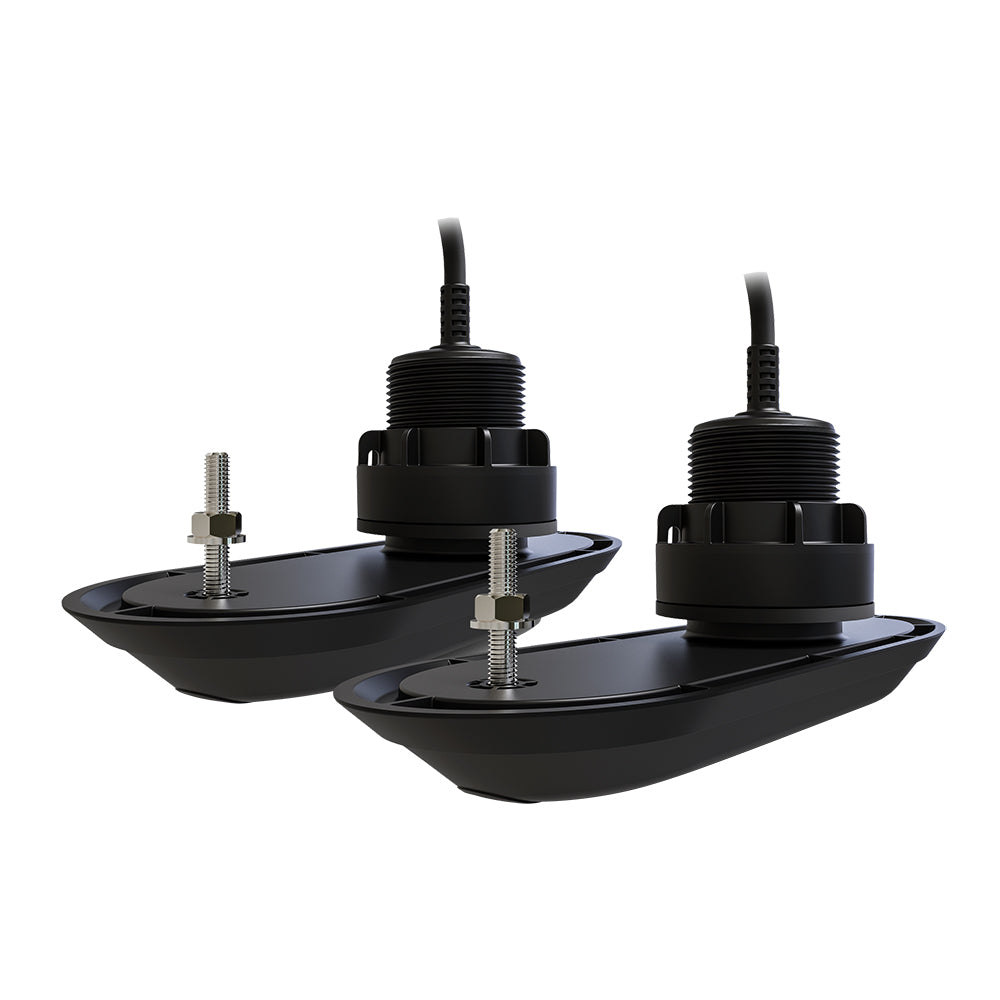

Raymarine RV-312 RealVision™ 3D Transducers - Pair - Nylon Thru-Hull 12° Deadrise
Raymarine RV-312 RealVision™ 3D Transducers - Pair - Nylon Thru-Hull 12° Deadrise — Product description
Raymarine RV-312 RealVision 3D Transducer Pair - Professional Thru-Hull System for 12° Deadrise
Transform your underwater imaging with the Raymarine RV-312 RealVision 3D Transducer Pair, featuring revolutionary multi-channel CHIRP technology that delivers unprecedented sonar clarity. This professional-grade thru-hull transducer system combines DownVision, SideVision, traditional CHIRP, and groundbreaking RealVision 3D sonar in one comprehensive package designed specifically for boats with 12-degree deadrise hulls.
Revolutionary RealVision 3D Sonar Technology
Experience underwater structure and fish like never before with RealVision 3D sonar technology. This advanced imaging system creates photo-realistic 3D representations of the underwater environment, allowing you to visualize fish, structure, and bottom contours with life-like detail and depth perception that traditional 2D sonar cannot match.
Four-Channel Wide Spectrum CHIRP System
The RV-312 integrates multiple sonar technologies into a dual-transducer configuration:
- RealVision 3D: Photo-realistic underwater imaging to 300 feet
- CHIRP DownVision: Crystal-clear bottom imaging to 300 feet
- CHIRP SideVision: Wide-area side scanning to 300 feet
- High Frequency CHIRP: Superior fish targeting and bottom discrimination
- Traditional Sonar: 600W 50/200kHz for maximum depth (900 feet)
Optimized Hull Compatibility
12-Degree Deadrise Design
Specifically engineered for boats with deadrise angles between 5° and 15°, the RV-312 system features internal offset compensation that ensures optimal sonar beam angles regardless of hull configuration. The rugged nylon thru-hull bodies are compatible with fiberglass, steel, and aluminum hulls, providing professional installation flexibility.
Complete 180° Coverage
The dual-transducer design provides comprehensive underwater coverage with one transducer transmitting and receiving to port and downward, while the other covers starboard and downward areas. This configuration ensures complete sonar coverage even on boats with deep keels or underwater protrusions that might create blind spots with single-transducer systems.
Advanced Stabilization and Sensing
Built-in AHRS System
Each RV-312 transducer incorporates an Attitude and Heading Reference System (AHRS) that automatically stabilizes sonar imagery by compensating for vessel pitch, roll, and yaw. This advanced stabilization ensures clear, consistent sonar readings regardless of sea conditions or boat movement.
Integrated Temperature Sensor
Built-in fast-response water temperature sensors provide accurate, real-time temperature readings essential for fishing success and engine cooling system monitoring. The sensors deliver quick response times for immediate temperature data display on your Axiom multifunction display.
Professional Installation Specifications
- Hull Deadrise Compatibility: 5° to 15° (optimized for 12°)
- Transducer Material: Marine-grade nylon construction
- Mounting Style: Thru-hull installation
- Cable Configuration: 2m pigtail + joining Y-cable + 8m extension
- Total Cable Length: 10 meters (33 feet)
-
Maximum Depth Ratings:
- Traditional Sonar: 900 feet
- RealVision 3D: 300 feet
- CHIRP DownVision: 300 feet
- CHIRP SideVision: 300 feet
Axiom Display Compatibility
The RV-312 system is specifically designed for seamless integration with Raymarine Axiom displays:
- Axiom RV Series: Complete RealVision 3D compatibility
- Axiom PRO RVX Series: Full feature access and integration
- Direct Connection: No additional interface modules required
- Plug-and-Play Setup: Automatic configuration and recognition
Hydrodynamic Design Features
- Low-Profile Housing: Streamlined design minimizes drag and cavitation
- Marine-Grade Materials: Corrosion-resistant construction for saltwater environments
- Precision Machining: Accurate beam angles and consistent performance
- Dual-Element Configuration: Independent port and starboard transducer elements
Installation and Package Contents
Complete Transducer System
- Port Side RV-312 Thru-Hull Transducer
- Starboard Side RV-312 Thru-Hull Transducer
- Y-Cable Junction Box
- 8-Meter Extension Cable
- Installation Hardware Kit
- Comprehensive Installation Instructions
Frequently Asked Questions
What hull deadrise angles are compatible with the RV-312?
The RV-312 is designed for boats with deadrise angles between 5° and 15°, with internal offset compensation to ensure optimal sonar beam angles. This specific model is optimized for 12-degree deadrise hulls.
Which Raymarine displays are compatible with the RV-312?
The RV-312 is compatible with Raymarine Axiom RV and Axiom PRO RVX displays, providing direct connection capability for full RealVision 3D functionality without additional interface modules.
What is the maximum depth capability for different sonar modes?
Traditional sonar reaches 900 feet depth, while RealVision 3D, CHIRP DownVision, and CHIRP SideVision all operate to 300 feet maximum depth with optimal performance.
Does the RV-312 include speed sensing capability?
No, the RV-312 includes temperature sensing and AHRS stabilization but does not include speed sensing. Speed data must be obtained from GPS or a separate paddle wheel sensor.
What is the AHRS system and how does it benefit sonar performance?
The Attitude and Heading Reference System (AHRS) automatically compensates for vessel pitch, roll, and yaw movements, stabilizing sonar imagery for clear, consistent readings regardless of sea conditions or boat movement.
Professional Marine Sonar Solution
The Raymarine RV-312 RealVision 3D transducer pair represents the pinnacle of marine sonar technology, combining multiple CHIRP technologies with revolutionary 3D imaging capabilities. Its specialized design for 12-degree deadrise hulls, integrated stabilization system, and comprehensive coverage make it the ideal choice for serious anglers and marine professionals demanding the highest level of underwater imaging performance.
With its robust construction, advanced sensing capabilities, and seamless Axiom integration, the RV-312 transforms your fishing and navigation experience by providing unprecedented underwater awareness and target identification capabilities.
RV-312 RealVision™ 3D Transducers - Pair - Nylon Thru-Hull 12° Deadrise
The RV312 Thru-Hull Transducer from Raymarine provide RealVision Sonar to Compatible Axiom RV and Axiom PRO RVX Displays. View Structure and Fish with life-like quality of RV 3D Sonar. Designed for boats with a deadrise of 5°-15°.
"The Raymarine RV-312 Plastic All-In-One Thru-Hull Transducer pair is perfectly designed for inboard and outboard powerboats and offers internal offset for boats with a deadrise from 1\u00b0-12\u00b0. It\u2019s rugged thru-hull body allows for installation in fiberglass, steel, or aluminum hulls. Once installed, the RV-312 is ready to display lifelike clarity of fish while identifying structure with RealVision 3D sonar. Wide spectrum CHIRP for DownVision and SideVision, and High Frequency CHIRP sonar for fish targeting. Your RV-312s low profile design allows for a smooth transition through water without causing drag or cavitation and works great for boats that are trailered as well. Wide spectrum CHIRP sonar transmits on multiple different frequencies providing the best below water images you can find. Each RV-312 is constructed with a stabilizer, known as attitude and heading reference system (AHRS), which stabilizes your sonar image and compensates for your vessels motion providing you with the best picture. The AHRS feature works flawlessly in bigger waves & swells, while moving from point A to point B. Built in to every RV-312 thru-hull is a fast response water temperature sensor that offers quick and accurate readouts. For a great sonar solution for your Axiom MFD, the RV-312 is the perfect option."
SKU: NVN-79519
MPN: T70320
UPC: 723193817056
Technical specifications
| Brand | Raymarine |
| Model | Raymarine RV-312 RealVision™ 3D Transducers - Pair - Nylon Thru-Hull 12° Deadrise |
| SKU / MFR# | 79519 |
