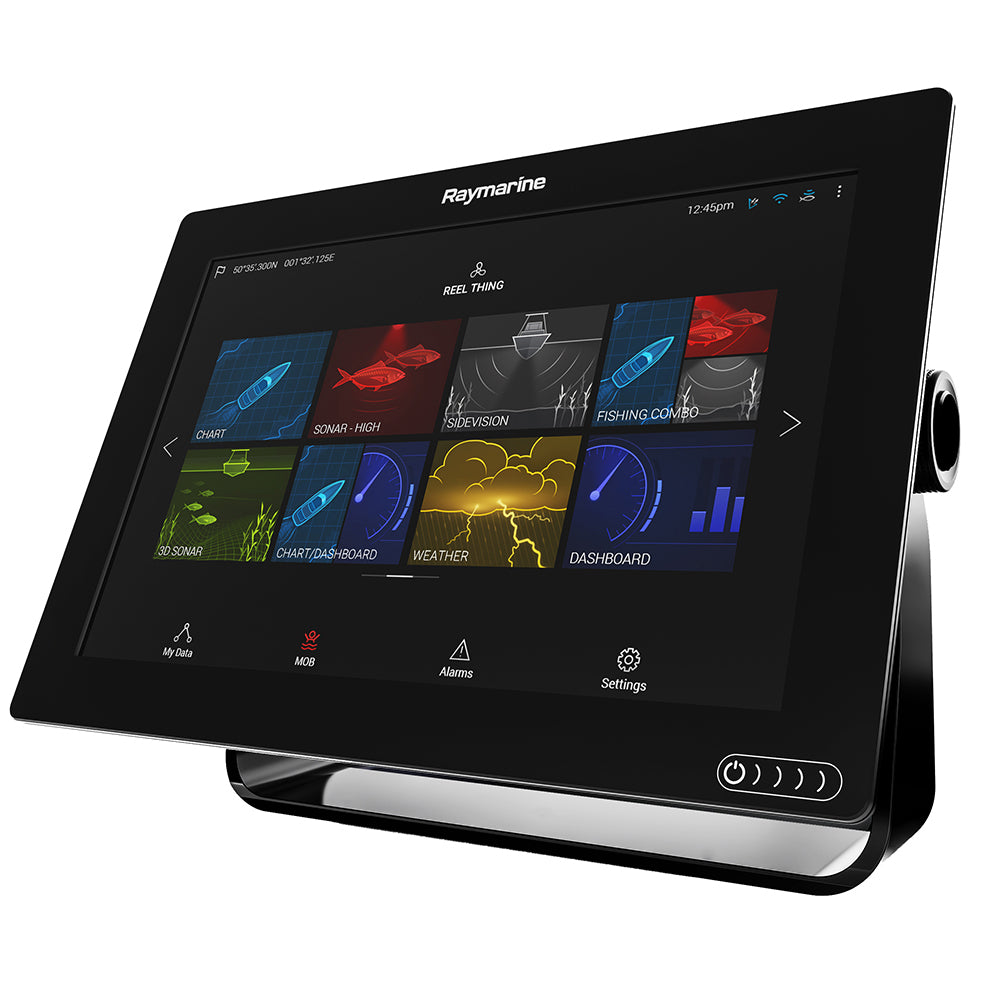

Raymarine Axiom™ 12 - 12" MFD Chartplotter

Discover the ultimate edge on the water with the Raymarine Axiom 12, a 12-inch multifunction display that redefines marine navigation. Designed for boaters who demand precision, reliability, and seamless integration, this chartplotter packs a quad-core processor and intuitive LightHouse 3 interface into a rugged, optically bonded glass touchscreen. Whether you're plotting coastal cruises, chasing offshore fish, or managing a busy cockpit, the Axiom 12 delivers responsive performance that keeps you focused on the horizon.

What sets it apart? It's not just hardware—it's a smart system that grows with your boating adventures. From built-in GPS for rock-solid positioning to expandable networking for radar, sonar, and cameras, this MFD adapts to your needs without overwhelming the helm. Boaters rave about its sunlight-readable display and fluid touch controls, making complex tasks feel effortless even in rough seas.

Why Choose the Axiom 12 for Your Vessel?

• Crystal-Clear Visibility: The 12-inch optically bonded LCD with 1280x800 resolution shines through glare, ensuring you spot waypoints, radar returns, or thermal images at a glance—day or night.
• Lightning-Fast Navigation: Powered by a 10Hz GPS/GLONASS receiver, it provides smooth tracking and rapid updates, ideal for high-speed pursuits or tight maneuvers in marinas.
• Personalized Interface: LightHouse 3 OS lets you customize screens, declutter views, and access tools intuitively—no steep learning curve, just pure boating flow.
• Versatile Chart Support: Load up on detailed raster and vector charts from trusted providers, revealing underwater contours, hazards, and points of interest for safer, smarter passages.
• Expanded Awareness: Pair with Quantum CHIRP radar for clutter-free short-range detection or FLIR thermal cameras for nighttime obstacle avoidance, turning potential hazards into non-events.

Seamless Connectivity and Expansion

Stay connected without cables cluttering your deck. Built-in Wi-Fi streams data to your smartphone or tablet via Raymarine apps, letting you mirror the display, share routes, or even control playback on NMEA2000 audio systems. Bluetooth pairs effortlessly with accessories, while RayNet Ethernet and NMEA2000 ports link multiple units or add instruments, engines, and autopilots.

Imagine monitoring video feeds from IP cameras while the Evolution autopilot holds course—perfect for keeping an eye on the crew or docking with confidence. High-powered sonar modules like CP470/570 unlock fishfinding prowess, revealing structure and schools in stunning detail.

Top Expansion Options:

• Quantum and HD radars for all-weather scanning
• FLIR M100/M200 thermal imaging for low-light ops
• CHIRP/Digital sonar for pro-level fishing
• Marine stereo integration (e.g., Rockford Fosgate)
• AIS receivers/transponders for collision avoidance
• Digital switching and engine data displays

Effortless Setup for Any Helm

Flexible mounting keeps your setup clean: flush for a modern console look, trunnion bracket for quick adjustments, or surface/top for smaller spaces. IPX6/IPX7 waterproofing laughs off spray and submersion, with an operating range from -25°C to +55°C (-13°F to 131°F) handling extreme conditions.

Power it with 12/24V DC systems, and you're ready. Pro tip: Use the included NMEA2000 adapter to backbone your network early—future-proofs your boat for years of upgrades.

Technical Specifications at a Glance

Feature	Details
Display	12" Optically Bonded LCD, 1280 x 800 Resolution, Touchscreen
GPS Receiver	10Hz 72-Channel GPS/GLONASS/BeiDou
Networking	RayNet Ethernet, NMEA2000, Wi-Fi, Bluetooth
Memory	1x microSD Slot
Waterproof Rating	IPX6 / IPX7
Power Input	10.8-31.2V DC (12/24V Systems)
Mounting	Flush, Surface, Trunnion, Rear
Sonar	External CHIRP/Digital Modules (No Built-in)

Everything You Need to Get Started

• Axiom 12 MFD with trunnion adapter pre-fitted
• Trunnion bracket and knobs
• Suncover for trunnion mount
• Panel mount gasket
• Mounting hardware (studs, thumb nuts)
• Power/NMEA2000 cable assembly
• Comprehensive documentation

Boater Tips for Maximizing Performance

• Update charts seasonally for the latest hydrographic data—sync via Wi-Fi for hassle-free installs.
• Calibrate radar gain with Live View to cut through rain clutter on stormy days.
• Customize thermal overlays for dawn patrols, spotting unlit vessels early.
• Network multiple Axioms for a shared situational awareness across the boat.
• Purge air from NMEA2000 lines during install to avoid data dropouts.

Axiom™ 12 - 12" MFD Chartplotter

The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 12 features a 12-inch glass touchscreen display with Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor.

The Axiom 12 comes with a built-in GPS receiver.  Axiom 12 also works with wide array of raster and vector electronic charts from Navioncs, C-MAP and LightHouse Charts.

Axiom 12 is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, SiriusXM marine weather, audio integration, instruments, cameras, and Evolution autopilot. Axiom 12 also features standard Wi-Fi and Bluetooth connectivity so it can connect with the latest Raymarine apps for tablets and Smartphones.

The Axiom 12 includes surface and trunnion mounting kits, mounting hardware, power/data cable, 1m SeaTalk hs network cable, NMEA2000 network adapter and installation instructions.

Features:

• Rugged, All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking.
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras.
• Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges.
• Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps.

The powerful multi-function navigation system provided by Raymarine. With the built-in Real Vision 3D sonar, the new Light House 3 operating system and ultra-fast quad-core performance, Axiom can change your water time. The axiom is extensible, so its function can be expanded as needed. It supports all accessories of Raymarine, including quantum radar, Chirp Sonar, Flir thermal imager, audio integration, instrumentation, camera and Evolution autopilot. Standard Wi-Fi and Bluetooth connections allow connection to the latest Raymarine app for tablets and smartphones (mobile app compatibility requires future Light House 3 software updates). Axioms include surface and trunnion mounting kits, mounting hardware, power/data cables, and installation instructions.
SKU: NVN-79370
MPN: E70368
UPC: 723193814963
