Raymarine Element 12 S Combo 12" Marine Display - High CHIRP Sonar Navigation System

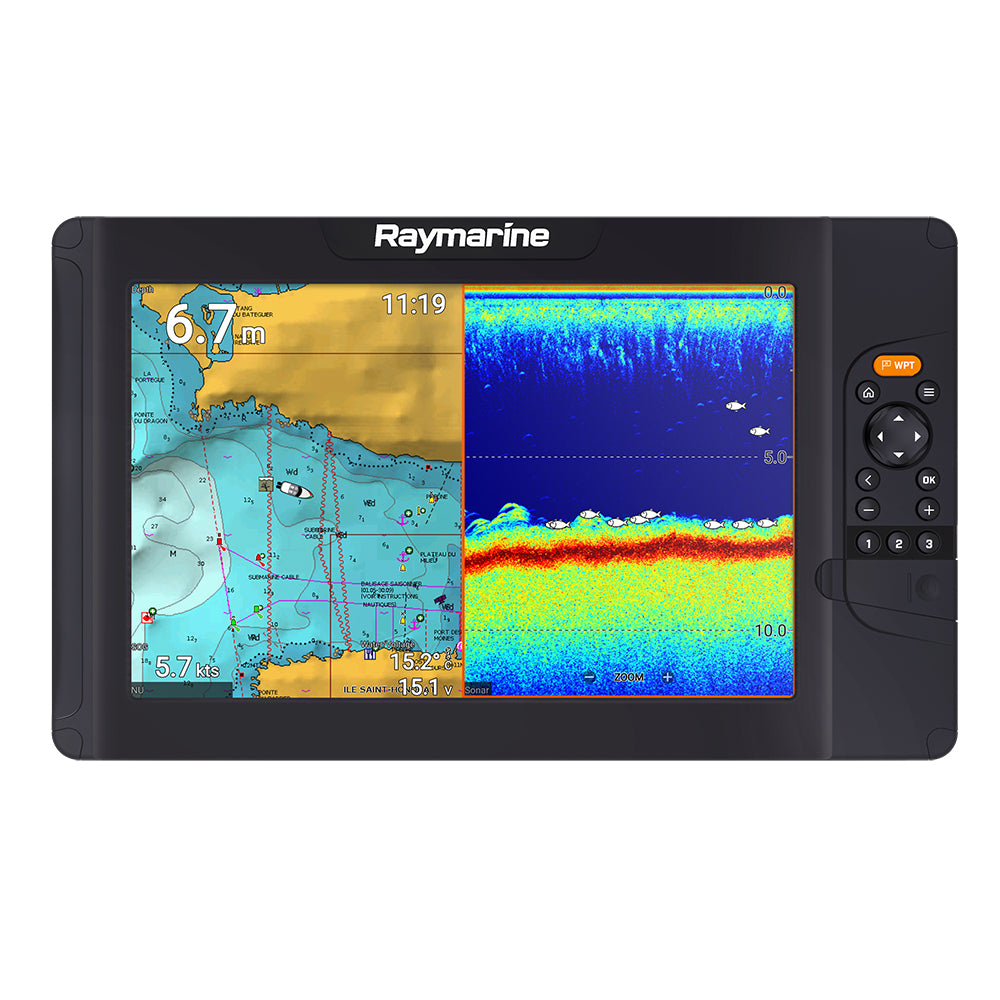

Navigate with confidence using the Raymarine Element 12 S, a powerful 12" marine navigation display featuring High CHIRP sonar technology and the intuitive LightHouse Sport operating system. Engineered for simplicity and affordable performance, this versatile chartplotter delivers professional-grade navigation capabilities with exceptional ease of use.
Built around a category-leading quad-core processor and featuring a brilliant 1,500-nit sunlight-readable display, the Element 12 S provides fast chart redraws, responsive performance, and crystal-clear visibility in all weather conditions. With comprehensive connectivity options and support for multiple chart formats, this system adapts to every boating style from fishing to cruising.
Advanced Marine Navigation Features
High-Performance Display Technology
- 12" Optically Bonded LCD: 1280 x 800 WXGA resolution for crystal-clear imaging
- 1,500-Nit Brightness: Exceptional visibility in direct sunlight conditions
- All-Weather Design: IPX6/IPX7 waterproof protection for marine environments
- Keypad Interface: Reliable button control with oversized waypoint key
- Temperature Range: -25°C to +55°C operating temperature tolerance
Quad-Core Processing Power
- Fast Chart Redraw: Category-leading performance for smooth navigation
- Responsive Operation: Quick menu access and seamless user interaction
- Real-Time Updates: Live menus with instant visualization of changes
- Multi-Tasking Capability: Simultaneous sonar, navigation, and radar processing
High CHIRP Sonar Technology
- Single Channel High CHIRP: Superior target separation and bottom imaging
- 900-Foot Depth Range: Deep water capability for offshore applications
- CPT-S Compatibility: Supports transom and thru-hull transducer options
- 9-Pin Connector: Direct connection to Raymarine CHIRP transducers
- RealBathy Mapping: Create personal sonar maps of uncharted waters
Precision GPS Navigation
- 10Hz GPS/GLONASS: Fast and accurate position updates
- Multi-Constellation Support: Enhanced reliability and precision
- Chart Compatibility: Raymarine LightHouse, Navionics, C-MAP support
- 5,000 Waypoints: Extensive navigation memory capacity
- 200 Waypoint Groups: Organized location management system
LightHouse Sport Operating System
- Simplified Interface: Intuitive operation for all skill levels
- Customizable Pages: Adapt display layout to your boating style
- Three Quick Keys: User-programmable one-button access to favorite functions
- Live Menus: Real-time visualization of setting changes
- Multiple Boating Modes: Optimized for sailing, cruising, and fishing
Comprehensive Connectivity
- NMEA 2000 Integration: Connect AIS, autopilot, engines, and instruments
- Quantum Radar Support: Wireless connection to Raymarine radar systems
- Wi-Fi Connectivity: 802.11 b/g/n wireless networking
- SeaTalkng Compatible: Integration with Raymarine marine network
- microSD Expansion: Chart and data storage capability
Technical Specifications
Display Specifications
| Screen Size | 12.0" optically bonded LCD |
| Resolution | 1280 × 800 WXGA |
| Brightness | 1,500 nits |
| Interface Type | Keypad (non-touch) |
| Waterproof Rating | IPX6/IPX7 |
Physical Dimensions
| Dimensions | 14.1" × 8.5" × 2.4" (357 × 215 × 62 mm) |
| Weight | 6.5 lbs (2.95 kg) |
| Operating Temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage Temperature | -30°C to +70°C (-22°F to 158°F) |
Power & Performance
| Voltage Input | 12V DC (8V to 16V DC) |
| Power Consumption | 25 watts maximum |
| Processor | Quad-core high-performance |
| GPS/GNSS | Built-in 10Hz GPS/GLONASS |
Sonar Capabilities
| Sonar Type | Single channel High CHIRP |
| Maximum Depth | 274m (900 feet) |
| Transducer Connector | 9-pin sonar connector |
| Compatible Transducers | CPT-S transom and thru-hull series |
| Mapping Feature | RealBathy personal sonar mapping |
Navigation Memory
| Waypoints | 5,000 waypoints |
| Waypoint Groups | 200 groups |
| Routes | 50 routes (250 waypoints max) |
| Tracks | 15 tracks (10,000 points max) |
| External Storage | 1 microSD card slot |
Connectivity Options
| NMEA 2000 | 1 DeviceNet microC port |
| Wi-Fi | 802.11 b/g/n wireless |
| Radar Support | Quantum wireless CHIRP (Wi-Fi) |
| SeaTalkng | Via A06045 adapter cable |
Chart & Mapping Support
Compatible Chart Formats
- Raymarine LightHouse NC2: Premium Raymarine navigation charts
- Navionics Charts: Comprehensive coastal and inland mapping
- C-MAP Essentials: Essential navigation chart coverage
- C-MAP 4D MAX+: Advanced chart features and overlays
- Chart Store Compatible: All charts from Raymarine Chart Store
Advanced Mapping Features
- RealBathy Personal Mapping: Create custom depth contours
- Navionics SonarChart Live: Community-sourced depth data
- Tides & Currents: Real-time tidal information (requires compatible charts)
- Chart Overlay Capability: Multiple data layer visualization
Marine Network Integration
NMEA 2000 Compatibility
- AIS Integration: Automatic Identification System overlay
- Autopilot Control: Direct control of compatible autopilot systems
- Engine Monitoring: Real-time engine data display
- Tank Sensors: Fuel, water, and waste tank monitoring
- Sailing Instruments: Wind, speed, and sailing performance data
- VHF Integration: Marine radio integration and control
Wireless Capabilities
- Quantum Radar: Wireless connection to Raymarine radar
- Chart Updates: Wi-Fi chart downloading and updates
- Remote Access: Smartphone and tablet integration
Complete Installation Package
Included Components
- Element 12S display unit
- Surface mount gasket for weather sealing
- Protective sun cover
- Trunnion bracket with knobs (2)
- Surface mount stainless steel hardware
- Power/NMEA2000 combination cable (1.5m power, 0.5m NMEA)
- Comprehensive documentation package
Mounting Options
- Trunnion Mount: Adjustable angle mounting with quick-release
- Flush Mount: Clean integration with helm dashboard
- Surface Mount: Above-surface installation with gasket seal
Ideal Marine Applications
- Sport Fishing: CHIRP sonar technology for fish finding and bottom imaging
- Recreational Cruising: Intuitive navigation with comprehensive chart support
- Sailing: Optimized sailing instrument displays and wind data
- Commercial Operations: Professional-grade reliability and performance
- Coastal Navigation: AIS integration for busy waterway safety
- Inland Waterways: Lake and river navigation with depth mapping
Marine Industry Standards
- IPX6/IPX7 Waterproof: Protection against powerful water jets and immersion
- NMEA 2000 Certified: Industry-standard marine network compatibility
- 3-Year Limited Warranty: Comprehensive coverage with product registration
- CE Compliance: European safety and electromagnetic standards
- FCC Certified: Radio frequency emission compliance
Frequently Asked Questions
Does the Element 12 S include charts and transducer?
No, this unit (E70535) comes without pre-loaded charts or transducer. This allows you to select the specific charts and transducer that best match your navigation area and fishing requirements. Charts and CPT-S transducers are available separately.
What transducers are compatible with the Element 12 S?
The Element 12 S is compatible with Raymarine's CPT-S family of transducers, including both transom-mount and thru-hull options. These High CHIRP transducers connect via the built-in 9-pin sonar connector and provide excellent depth and bottom imaging performance.
Can this unit connect to Quantum radar wirelessly?
Yes, the Element 12 S features built-in Wi-Fi connectivity specifically designed to connect wirelessly with Raymarine Quantum and Quantum 2 CHIRP radar systems. This eliminates the need for cable connections between the display and radar antenna.
What is RealBathy personal sonar mapping?
RealBathy is Raymarine's technology that allows you to create personalized depth contour maps of uncharted waters using the built-in CHIRP sonar. As you navigate, the system records depth data and creates custom bathymetric charts that can be saved and shared.
How does the LightHouse Sport OS differ from other marine operating systems?
LightHouse Sport OS is designed for simplicity and ease of use. It features large, clear icons, customizable quick keys, live menus that show changes in real-time, and mode-specific layouts optimized for sailing, fishing, or cruising. The interface prioritizes essential functions while maintaining professional capabilities.
What marine instruments can be integrated via NMEA 2000?
The Element 12 S can integrate with a wide range of NMEA 2000 compatible instruments including AIS transceivers, autopilot systems, engine monitors, tank sensors, sailing instruments (wind, speed, depth), VHF radios, and weather stations. This creates a comprehensive marine electronics network.
