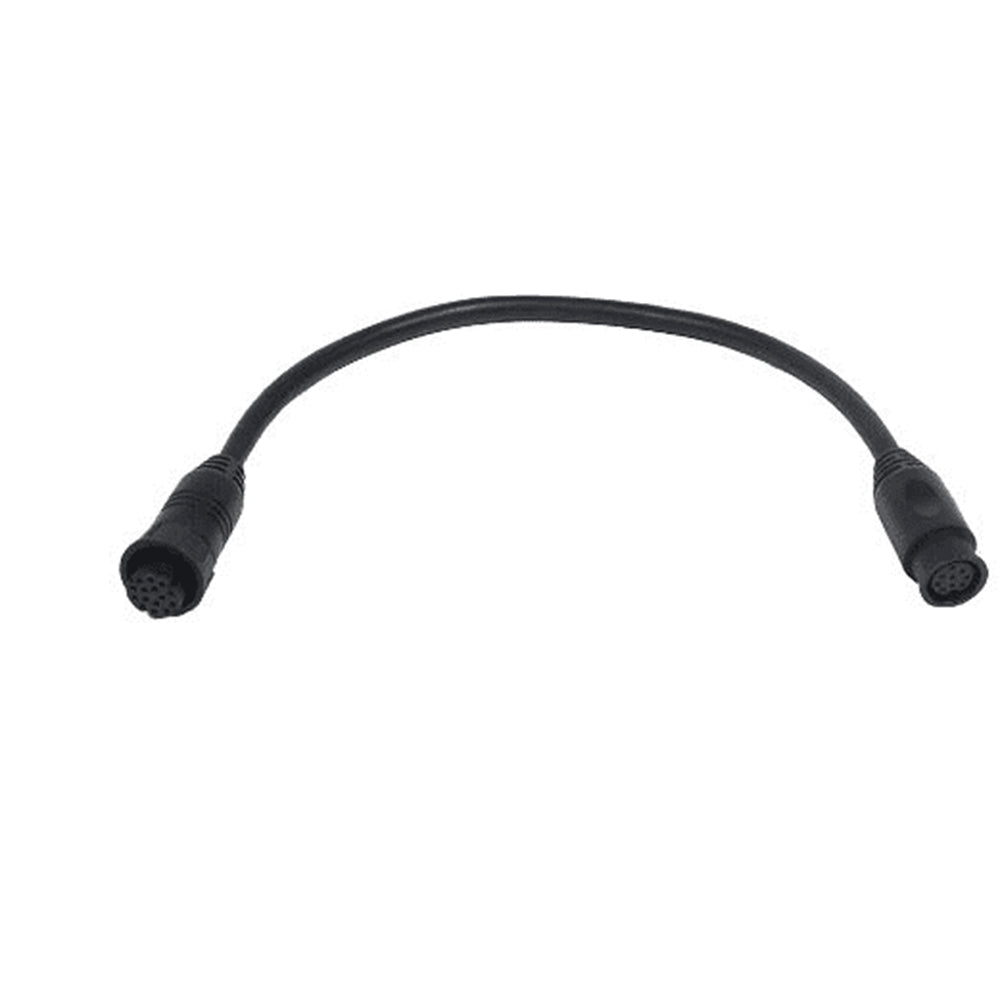

Raymarine Adapter Cable f/Minn Kota Transducer to Element 15-Pin
Raymarine Adapter Cable f/Minn Kota Transducer to Element 15-Pin — Product description
Seamless Sonar Integration for Serious Anglers
Unlock the full potential of your Minn Kota trolling motor's built-in sonar by bridging it effortlessly to your Raymarine Element HV display. This specialized adapter cable transforms incompatible hardware into a unified fishing powerhouse, delivering crystal-clear sonar readings right on your chartplotter screen. No more switching devices or compromising on data—enjoy real-time bottom structure, fish arches, and water temperature all in one intuitive interface.
Designed with the demands of offshore adventures and tournament fishing in mind, this cable ensures reliable connectivity even in harsh marine environments. Saltwater spray, vibrations from rough seas, and constant motor hum? It handles them all without skipping a beat.
Key Features That Set It Apart
- Plug-and-Play Design: Simple 15-pin connection to Element HV models—no soldering, no custom wiring, just secure it and go.
- Robust Construction: Marine-grade materials resist corrosion and UV damage, built to last through seasons of heavy use.
- High-Fidelity Signal Transfer: Preserves sonar resolution for pinpoint accuracy on structure scans and CHIRP imaging.
- Compact and Flexible: Slim profile cable routing keeps your deck tidy and out of the way of rods and gear.
Perfect Compatibility for Your Setup
This adapter pairs Minn Kota transducers—think Ulterra, Terrova, or Riptide models with integrated sonar—from your trolling motor directly to the Element series' 15-pin port. It's a game-changer for boaters running Raymarine's High-Definition displays who want to leverage Minn Kota's advanced MEGA Live or 2D sonar without extra heads.
Verify your Element model's port specs for the best fit, and pair it with popular Minn Kota bows for enhanced forward-facing sonar that spots fish before they spot you.
Boost Your Fishing Edge with Easy Installation
Getting up and running takes minutes. Start by powering down your electronics. Disconnect the Minn Kota transducer cable from the motor head, then plug this adapter into the transducer end. Route the 15-pin connector to your Element display's rear port, secure any strain relief, and power up. Fine-tune sonar settings in the Element menu for Minn Kota presets, and you're scanning.
Pro tip: Use zip ties or cable clips for clean routing around the bow to prevent snags during casts. Test in shallow water first to calibrate depth and gain for your local conditions.
Why Boaters Trust This Adapter for Peak Performance
Anglers rave about ditching fragmented systems for this streamlined solution. Imagine trolling a deep weedline, watching live sonar unfold on your Element screen—baitfish schools, suspended walleye, and drop-offs all mapped in high detail. It cuts clutter, saves battery drain from extra units, and sharpens your competitive edge on the water.
Backed by Raymarine's reputation for innovation, this cable isn't just a connector; it's the missing link in modern electro-sportfishing rigs.
Frequently Asked Questions
What transducers from Minn Kota work with this Raymarine adapter?
It supports Minn Kota trolling motors with built-in sonar like Ulterra, Terrova, PowerDrive, and Riptide series featuring MEGA or standard Down Imaging transducers.
Which Raymarine Element models is this cable compatible with?
Designed specifically for Element HV displays with the 15-pin transducer port, ensuring full sonar data integration.
Do I need additional settings changes after connecting?
Yes, select the Minn Kota sonar source in your Element's settings menu and adjust frequency or gain as needed for optimal performance.
Is this adapter waterproof and durable for saltwater use?
Absolutely—marine-rated connectors and cabling withstand immersion, corrosion, and extreme weather for reliable long-term use.
Can it handle advanced sonar features like Side Imaging?
It transmits 2D, Down Imaging, and compatible Side Imaging data from Minn Kota transducers to your Element display without loss.
What if my cable length isn't enough—can I extend it?
Use Raymarine-approved extension cables to maintain signal integrity; avoid generic ones to prevent noise interference.
Adapter Cable for Minn Kota Transducer to Element 15-Pin
Raymarine Adapter cable for Minn Kota Transducer to Element HV display.
"RaymarineRaymarine Raymarine A80560 Adapter Cable - Offered by Verified Veteran-Owned Business. Raymarine A80560 Adapter Cable . sporting goods, outdoor recreation, fishingSee more details at Discount Bandit - Gadgets Galore \u00bb"
SKU: NVN-75013
MPN: A80560
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Adapter Cable f/Minn Kota Transducer to Element 15-Pin |
| SKU / MFR# | 75013 |
