Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20° - Pair
Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20° - Pair — Product description

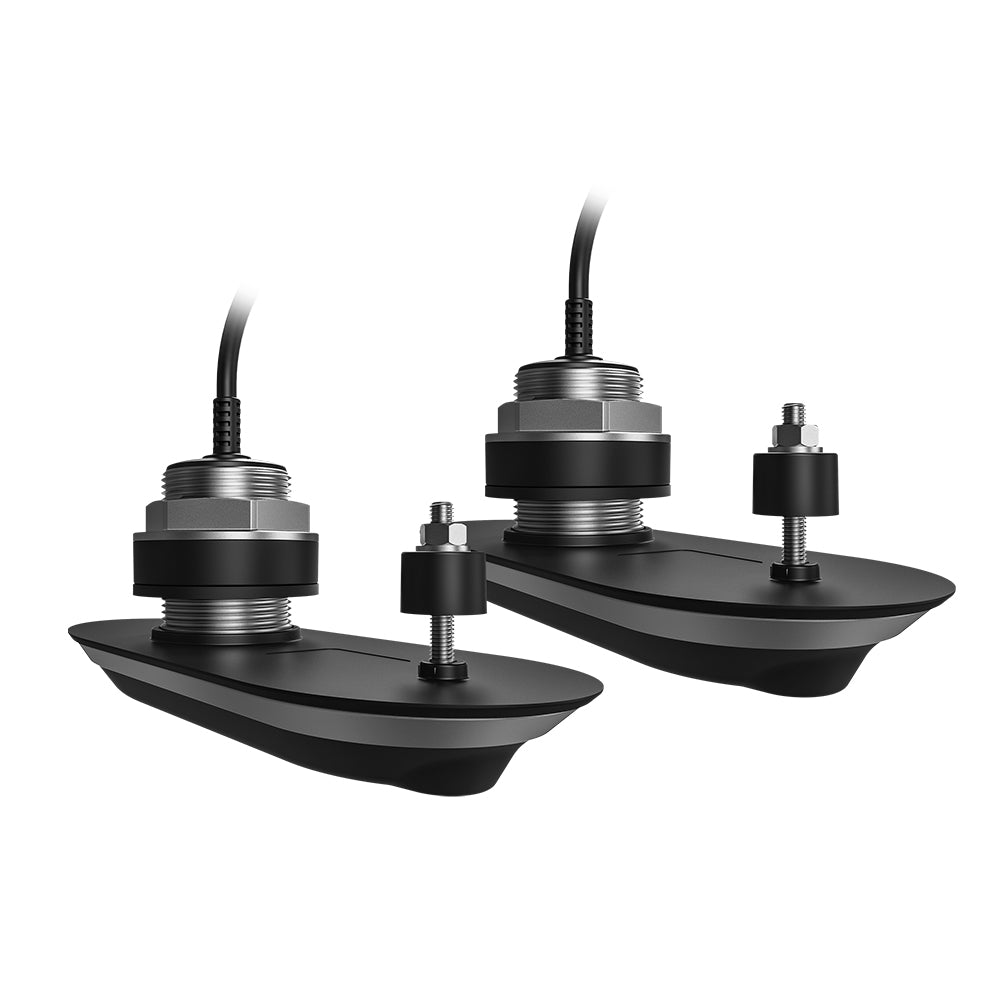

Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D Transducer System - 20° Pair
Transform your underwater vision with Raymarine's most advanced dual-transducer system. The RV-420 Stainless Steel Thru-Hull RealVision 3D transducer pair delivers unprecedented underwater clarity through cutting-edge CHIRP sonar technology, providing 180° coverage that eliminates blind spots around deep keels and underwater obstructions.
Engineered for serious anglers and navigation professionals, this NMEA-compliant transducer system combines DownVision™, SideVision™, high-frequency CHIRP fish targeting, and revolutionary RealVision 3D™ sonar in a rugged stainless steel through-hull design. The integrated Attitude and Heading Reference System (AHRS) automatically compensates for vessel motion, delivering crystal-clear imagery even in challenging sea conditions.
Advanced Sonar Technology Features
- 4-Channel Wide Spectrum CHIRP Technology: 50-60/200-350kHz dual-frequency operation for superior target definition and fish identification
- RealVision 3D™ Sonar Integration: Life-like three-dimensional underwater imaging that reveals structure details invisible to traditional sonar
- Integrated AHRS Stabilization: Built-in attitude and heading reference system eliminates motion-induced distortions from waves and vessel maneuvering
- 360° Underwater Coverage: Port and starboard transducer configuration provides complete 180° sonar coverage, ideal for deep-keel vessels
- Fast-Response Temperature Sensor: Precision water temperature monitoring for enhanced fishing success and navigation safety
Technical Specifications & Compatibility
Installation & Performance Benefits
- No Fairing Block Required: Internal 20° tilt eliminates custom fairing block cutting and installation complexity
- Low-Profile Design: Near-flush mounting reduces drag and cavitation while maintaining excellent performance on trailered boats
- Dual-Transducer Advantage: Separate port and starboard units ensure optimal coverage on vessels with complex underwater geometry
- Marine-Grade Construction: 316 stainless steel bodies resist corrosion in saltwater environments
- Professional Installation Ready: Includes anti-rotation bolt kit and comprehensive installation documentation
Complete System Package
- RV-202P stainless steel port transducer array with 2-meter cable
- RV-202S stainless steel starboard transducer array with 2-meter cable
- RealVision 3D Transducer Y-Cable for dual-unit integration
- 8-meter (26-foot) RealVision 3D Transducer Extension Cable
- Anti-rotation bolt kit for secure installation
- Professional installation instructions and mounting templates
Display System Compatibility
Engineered exclusively for Raymarine Axiom RealVision multifunction displays, ensuring seamless integration with your existing navigation electronics. Compatible with NMEA 2000 networks for comprehensive vessel data integration.
Warranty & Professional Support
Backed by Raymarine's comprehensive 2-year limited warranty, this professional-grade transducer system includes access to certified marine electronics technician support and ABYC-compliant installation guidance.
Ideal Applications
- Offshore sport fishing vessels requiring maximum underwater coverage
- Commercial fishing operations demanding precise fish location capabilities
- Navigation-critical vessels operating in complex underwater terrain
- Deep-keel sailboats and displacement hulls with significant underwater obstructions
- Professional charter boats requiring reliable, high-performance sonar systems
Why Choose the Raymarine RV-420 System?
This isn't just another transducer upgrade – it's a complete underwater vision transformation. The RV-420's dual-transducer design eliminates the coverage gaps that single-unit systems can't address, while RealVision 3D technology provides the kind of underwater detail that transforms both fishing success and navigation confidence. With AHRS stabilization and wide-spectrum CHIRP technology, you're investing in marine electronics that perform consistently in any conditions.
Frequently Asked Questions
What hull deadrise angles does the RV-420 accommodate without fairing blocks?
Can I use the RV-420 system on a trailered boat?
What's the difference between single transducers and this dual-transducer system?
Is professional installation required for the RV-420 system?
Which Raymarine displays are compatible with the RV-420?
Raymarine’s RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, conical CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.
Raymarine T70451 Attributes
- Mounting Location: Thru-Hull Mount
- Cable Length: 26 Feet/ 6.6 Feet
Raymarine T70451 Features & Benefits
- Stainless Steel All-In-One Through Hull Transducer Is Designed For Inboard And Outboard Powerboats
- Lets You Easily Identify Structures And Locate Fish With The Life-Like Clarity Of RealVision 3D™ Sonar
- Transducer Has A Built-In Attitude And Heading Reference System That Stabilizes 3D Sonar Imagery, Automatically Compensating For Vessel Motion
- Built-In Fast-Response Water Temperature Sensor For Quick, Accurate Readings
- Features A Rugged Cast-Bronze Through Hull Body Suitable For Fiberglass Or Wooden Hulls
- Limited 2 Year Warranty
Raymarine T70451 Warranties
RV-420 Stainless Steel Thru-Hull RealVision 3D 20° - Pair
RV-420 RealVision Transducer Stainless Steel Split 20° Low-Profile TH 2M with Y-Cable and 8M Extension Cable.
Features: rv-420 stainless steel straight-through hull Realvision 3d 20-pair rv-420 realvision sensor stainless steel split 20 thin th 2m, with y cable and 8m extension cable.
SKU: NVN-75012
MPN: T70451
UPC: 723193828885
Technical specifications
| Brand | Raymarine |
| Model | Raymarine RV-420 Stainless Steel Thru-Hull RealVision 3D 20° - Pair |
| SKU / MFR# | 75012 |
Set product metafields under specs.* to populate this table.
