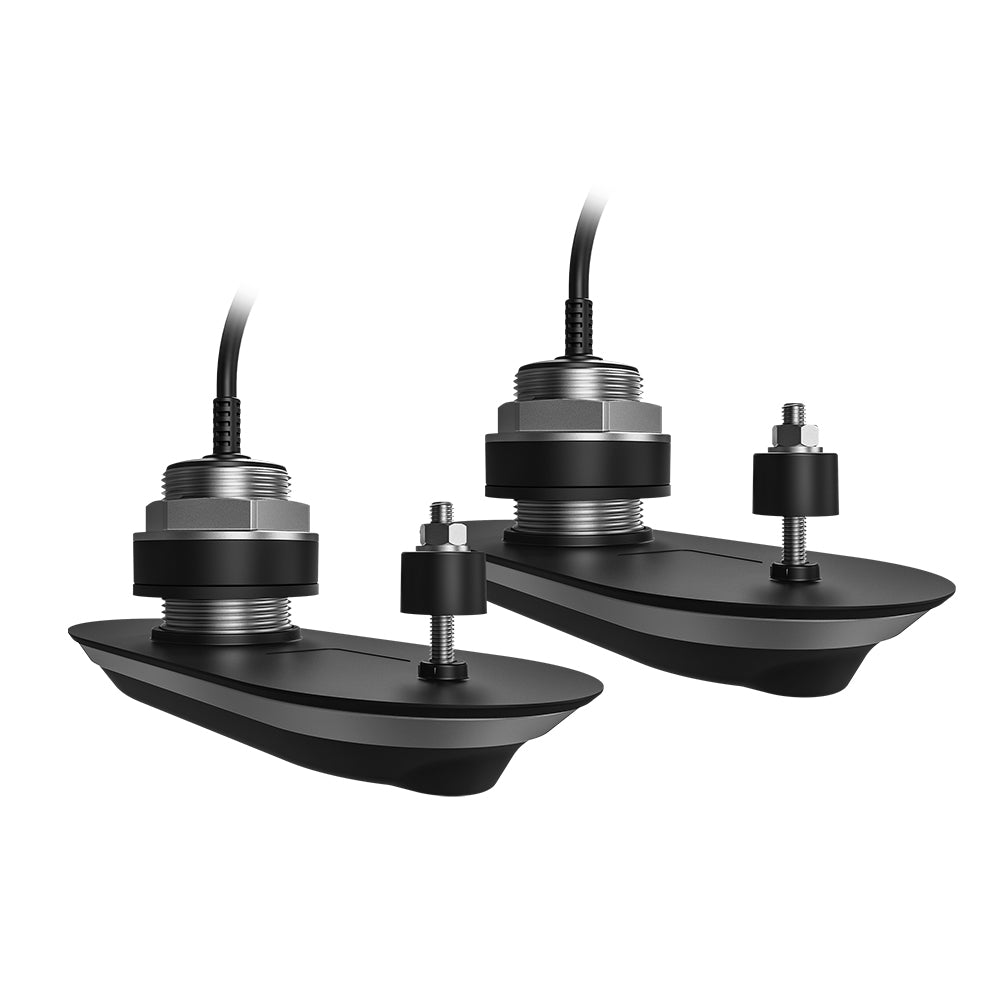

Raymarine RV-412 Stainless Steel Thru-Hull RealVision 3D 12° Transducer Pair - Model T70450
Experience the ultimate in underwater imaging with the Raymarine RV-412 RealVision 3D transducer system - the professional angler's choice for comprehensive sonar coverage. This premium stainless steel through-hull transducer pair delivers life-like 3D sonar imagery that reveals structure, fish, and underwater terrain with unprecedented clarity and detail.
Advanced Multi-Technology Sonar Platform
The RV-412 system integrates four cutting-edge sonar technologies into a single, powerful transducer pair. Each unit features Wide Spectrum CHIRP technology that transmits across 60 different frequencies simultaneously, delivering photo-realistic sonar images with superior target separation and fish identification capabilities that far exceed traditional single-frequency transducers.
- RealVision 3D Sonar: Creates stunning three-dimensional underwater models in real-time
- CHIRP DownVision: Provides photo-like images of bottom structure and fish directly beneath your boat
- CHIRP SideVision: Scans up to 600 feet on each side for comprehensive coverage of fish and structure
- High-Frequency CHIRP: Delivers precise fish arches and superior target discrimination
Professional-Grade Stabilization Technology
Each transducer incorporates an Attitude and Heading Reference System (AHRS) with built-in gyroscope technology that automatically compensates for vessel motion. This advanced stabilization ensures crystal-clear sonar imagery even in rough seas, eliminating distortion caused by waves, swells, or boat maneuvering - critical for maintaining fish targets and structure identification during challenging conditions.
Rugged Stainless Steel Construction
Engineered for demanding marine environments, the RV-412 features marine-grade stainless steel through-hull housings suitable for fiberglass, wood, or metal hulls. The low-profile design minimizes drag and cavitation while providing optimal hydrodynamic performance. Each transducer includes a comprehensive isolation kit that prevents galvanic corrosion when installed on dissimilar metal hulls.
Hull Compatibility & Installation
- Accommodates deadrise angles from 1° to 12° without fairing blocks
- Near-flush installation ideal for trailered boats
- Anti-rotation bolt kit ensures secure mounting
- Professional installation recommended for optimal performance
Comprehensive Sensor Integration
Beyond sonar capabilities, each transducer includes a fast-response water temperature sensor providing accurate thermal readings essential for locating thermoclines and temperature breaks where fish congregate. This integrated approach eliminates the need for separate temperature sensors.
Complete Installation Package
What's Included:
- RV-412P stainless steel port transducer with 2-meter cable
- RV-412S stainless steel starboard transducer with 2-meter cable
- RealVision 3D Y-Cable harness for dual transducer integration
- 8-meter (26-foot) extension cable for total 33-foot cable length
- Anti-rotation hardware kit
- Comprehensive installation instructions
- Isolation kit for galvanic corrosion prevention
Technical Specifications
| Mounting Style: | Through-hull |
| Material: | Marine-grade stainless steel |
| Deadrise Angle: | 1° to 12° |
| Total Cable Length: | 33 feet (10 meters) |
| Connector: | 25-pin |
| Temperature Sensor: | Integrated fast-response |
| AHRS Stabilization: | Built-in gyroscope technology |
| Hull Compatibility: | Fiberglass, wood, metal |
Compatibility & Requirements
The RV-412 transducer system is designed for use with Raymarine Axiom RV and Axiom PRO RVX chartplotters. Professional installation by NMEA-certified technicians is recommended to ensure optimal performance and warranty compliance.
Warranty Coverage
Backed by Raymarine's comprehensive 2-year limited warranty, providing peace of mind for your marine electronics investment. Warranty covers defects in materials and workmanship under normal marine use conditions.
Why Choose the RV-412 System?
For serious anglers and professional captains who demand the highest quality sonar performance, the RV-412 represents the pinnacle of Raymarine's transducer technology. The dual-transducer configuration ensures complete 180° underwater coverage, making it ideal for boats with deep keels or complex hull designs where single-transducer systems may have blind spots.
Frequently Asked Questions
Q: What hull types are compatible with the RV-412 system?
A: The RV-412 is compatible with fiberglass, wood, and metal hulls. The included isolation kit prevents galvanic corrosion on metal hulls.
Q: Do I need fairing blocks for installation?
A: No, the RV-412's internal 12° tilt accommodates deadrise angles up to 12° without requiring fairing blocks, simplifying installation.
Q: What's the maximum depth capability?
A: CHIRP technology enables bottom tracking beyond 1,200 feet and fish detection beyond 400 feet, depending on water conditions.
Q: Can this system be used on trailered boats?
A: Yes, the low-profile, near-flush design is specifically engineered for trailered boats without risk of damage during launch and retrieval.
Q: What chartplotters are compatible?
A: The RV-412 requires Raymarine Axiom RV or Axiom PRO RVX displays for full functionality of all sonar modes.
Q: Is professional installation required?
A: While not mandatory, professional installation by NMEA-certified technicians ensures optimal performance and maintains warranty coverage.
Raymarine’s RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, conical CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings. The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.
Raymarine T70450 Attributes
- Mounting Location: Thru-Hull Mount
- Cable Length: 26 Feet/ 6.6 Feet
Raymarine T70450 Features & Benefits
- Stainless Steel All-In-One Through Hull Transducer Is Designed For Inboard And Outboard Powerboats
- Lets You Easily Identify Structures And Locate Fish With The Life-Like Clarity Of RealVision 3D™ Sonar
- Transducer Has A Built-In Attitude And Heading Reference System That Stabilizes 3D Sonar Imagery, Automatically Compensating For Vessel Motion
- Built-In Fast-Response Water Temperature Sensor For Quick, Accurate Readings
- Features A Rugged Cast-Bronze Through Hull Body Suitable For Fiberglass Or Wooden Hulls
- Limited 2 Year Warranty
Raymarine T70450 Warranties
RV-412 Stainless Steel Thru-Hull RealVision 3D 12° - Pair
RV-412 RealVision Transducer Stainless Steel Split 12° Low-Profile TH 2M w/ Y-Cable and 8M Extension Cable brings RealVision 3D, CHIRP DownVision, SideVision and High Frequency CHIRP sonar into a low-profile stainless-steel housing. The RV-412 features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. Each transducer comes with an isolation kit that creates separation between the stainless-steel transducer body and any dissimilar metal hulls, eliminating risk of galvanic corrosion. Ideal for inboard and outboard powerboats, the RealVision 3D Stainless Steel transducers are available as a single transducer for flat hulls or a split pair with Y-cable to accommodate deadrise angles up to 26°. The transducers also have a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, compensating automatically for vessel motion. You’ll enjoy crystal-clear imagery even in waves, swells, and when maneuvering.
"This stainless-steel all-in-one through hull transducer option is the perfect addition to inboard and outboard powerboats with fiberglass, wood, or metal hulls. A sleek low profile design allows for effortless transmission through the water without causing drag or cavitation and works great for trailered boats. A built-in tilt and no fairing block to cut makes installation easier than ever. Built to accommodate a hull deadrise from 6\u00b0 to 18\u00b0 degrees, one transducer transmits and receives to the port side and downwards and the other to the starboard side and downwards, ensuring a full 180\u00b0 underwater view on boats with deep keels. Easily identify structure and locate fish with life like clarity of RealVision 3D sonar. This 4 channel wide spectrum CHIRP transducer with DownVision, SideVision, and conical CHIRP targeting provides every angler with an unsurpassed sonar experience. Built in attitude and heading reference system (AHRS) stabilize the sonar image while your vessel is in motion ensuring every image provided is the clearest possible."
SKU: NVN-75011
MPN: T70450
UPC: 723193828878
Technical specifications
| Brand | Raymarine |
| Model | Raymarine RV-412 Stainless Steel Thru-Hull RealVision 3D 12° - Pair |
| SKU / MFR# | 75011 |
