Raymarine RV-100 RealVision 3D Transom Bracket Kit
Raymarine RV-100 RealVision 3D Transom Bracket Kit — Product description
Enhance Your RealVision 3D Sonar Setup with the Reliable Transom Bracket Kit
Boat owners who rely on Raymarine's RV-100 RealVision 3D transducer know how crucial a sturdy transom mount is for crystal-clear underwater imaging. Whether you're navigating rocky shallows, chasing fish in murky waters, or simply maintaining your vessel's electronics, this transom bracket kit steps in as the perfect replacement or spare. Designed specifically for the RV-100, it restores full functionality without the hassle of sourcing individual parts.
Picture this: you're out on the water, and a minor collision or years of saltwater exposure leaves your mount compromised. Instead of downtime, this kit gets you back in action quickly. Its thoughtful design prioritizes durability and ease, making it a go-to for marine enthusiasts who demand precision from their sonar systems.
What's Inside the Kit: Complete Spare Parts Breakdown
This service-oriented kit packs everything needed to rebuild your transom mount setup:
- Stainless steel transom bracket: Corrosion-resistant and built to withstand harsh marine conditions, ensuring long-term stability.
- Mounting screws: High-quality fasteners for secure attachment to your boat's transom.
- Kick-up pivot hardware: Innovative mechanism that allows the transducer to pop up on impact, protecting both the mount and your hull from damage during trailering or shallow-water runs.
- Transducer carrier bracket: Holds the RV-100 securely in place for optimal 3D CHIRP, DownVision, and SideVision performance.
- Carrier mounting bolt: Robust connection point for hassle-free assembly.
Note that the RV-100 transducer and its cable are not part of this kit, allowing you to reuse your existing unit seamlessly.
Perfect Compatibility for Raymarine RealVision Systems
Tailored exclusively for the RV-100 RealVision 3D transducer, this kit integrates flawlessly with Raymarine multifunction displays like the Axiom, Element, and A-series chartplotters. It's ideal for boats with transom-mounted sonar needs, from center consoles to offshore cruisers. If your setup includes RealVision 3D technology for lifelike underwater views, this bracket ensures it performs at peak efficiency.
Step-by-Step Installation Tips for Flawless Setup
Installing this kit is straightforward for DIY-savvy boaters, but a few pro tips elevate results:
- Clean the transom thoroughly, removing old adhesive or growth for a solid bond.
- Position the bracket at the recommended height—typically 1/3 from the keel line—for balanced water flow and minimal air bubbles.
- Torque screws to spec (around 10-15 ft-lbs) to prevent loosening from vibrations.
- Assemble the kick-up pivot first, then attach the carrier bracket; test the pop-up action before full mounting.
- Route any existing cables carefully to avoid pinching, and seal holes with marine sealant.
Expect 30-60 minutes for the job, depending on your boat's access. Always power off electronics beforehand for safety.
Why This Bracket Kit Stands Out in Marine Environments
Crafted from premium 316 stainless steel, it laughs off saltwater corrosion, UV exposure, and constant wave slap—common culprits in transducer mount failures. The kick-up feature is a game-changer for trailered boats or those exploring stump-filled bays, reducing repair costs over time. Users rave about its vibration-dampening properties, which keep sonar images sharp even at trolling speeds up to 25 knots.
Beyond replacement, it's a smart addition to your boating toolkit for routine maintenance or upgrades, ensuring your RealVision 3D views remain vivid and reliable season after season.
Maintenance Essentials for Longevity
To maximize lifespan:
- Inspect pivot hardware seasonally for wear.
- Rinse with fresh water after saltwater use.
- Apply marine grease to moving parts annually.
- Check alignment post-beaching to confirm optimal sonar cone coverage.
Simple habits like these prevent common issues, keeping your setup adventure-ready.
Frequently Asked Questions
What components are included in the Raymarine RV-100 transom bracket kit?
The kit includes a stainless steel transom bracket, mounting screws, kick-up pivot hardware, transducer carrier bracket, and carrier mounting bolt. It provides all spare parts originally shipped with the RV-100 transducer.
Does this kit come with the RV-100 transducer or cable?
No, the RV-100 RealVision 3D transducer and its cable are not included. This is a mount service kit designed to work with your existing transducer.
Is this bracket kit compatible with all Raymarine RealVision 3D systems?
It's specifically designed for the RV-100 transducer and pairs perfectly with Raymarine displays supporting RealVision 3D, such as Axiom and Element series.
How does the kick-up pivot hardware work?
The kick-up mechanism allows the transducer to pivot upward upon striking an underwater obstacle, protecting the mount, hull, and unit from damage during navigation or trailering.
What material is the transom bracket made from?
The bracket is constructed from durable 316 stainless steel, offering excellent resistance to corrosion in saltwater environments.
Can I install this kit myself?
Yes, it's user-friendly for those with basic tools. Follow transom cleaning, precise positioning, and torque guidelines for best results—typically a 30-60 minute process.
How often should I maintain the transom bracket?
Rinse after saltwater exposure, inspect seasonally, and grease pivots yearly to ensure peak performance and longevity.
Raymarine R70521 Attributes
RV-100 RealVision 3D Transom Bracket Kit

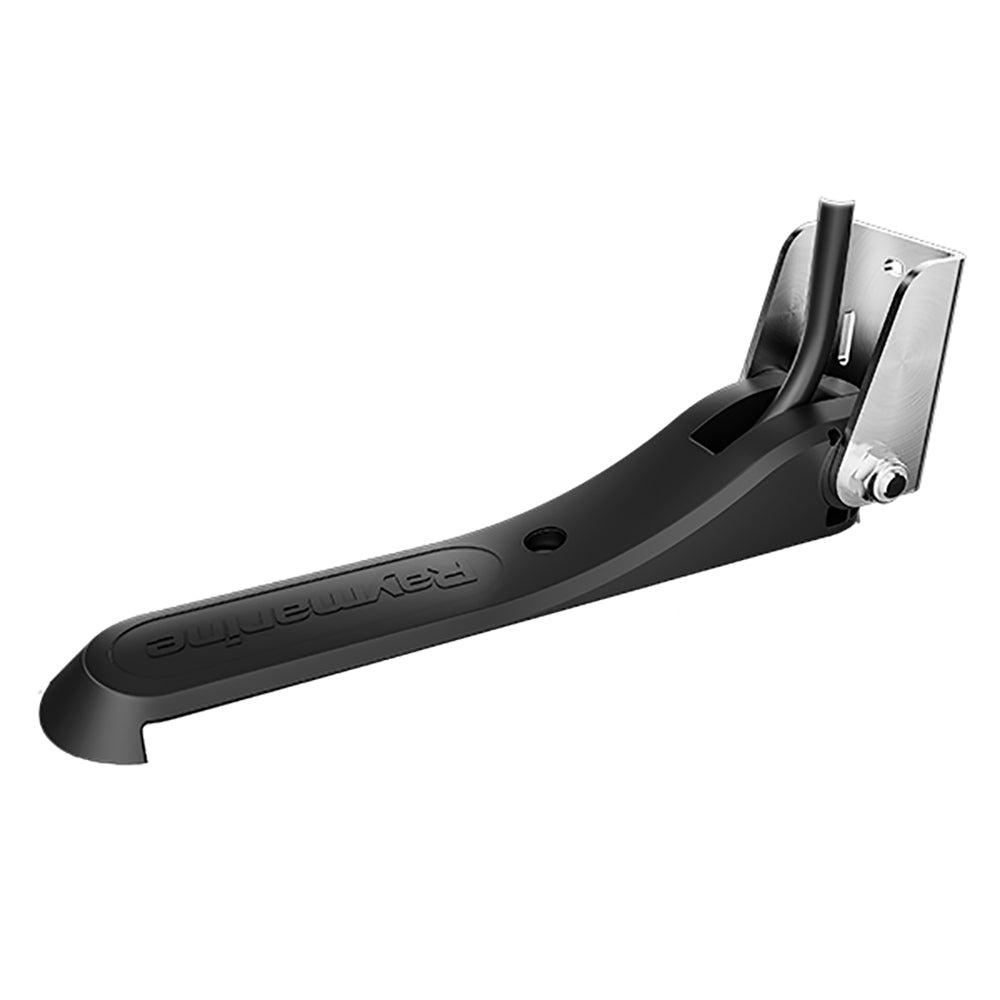

This transom mount transducer service kit includes all of the spare parts and accessories originally included with the RV-100 transducer. The bracket kit includes the stainless steel transom bracket and mounting screws, kick-up pivot hardware, transducer carrier bracket and the carrier mounting bolt.
*The RV-100 transducer and cable is not included.
"Rv-100 Real Vision 3D Transom Bracket Kit This transom mount transducer service kit includes all of the spare parts and accessories originally included with the Rv-100 transducer. The bracket kit includes the stainless steel transom bracket and mounting screws, kick-up pivot hardware, transducer carrier bracket and the carrier mounting bolt. *The Rv-100 transducer and cable is not included."
SKU: NVN-73107
MPN: R70521
UPC: 723193817285
