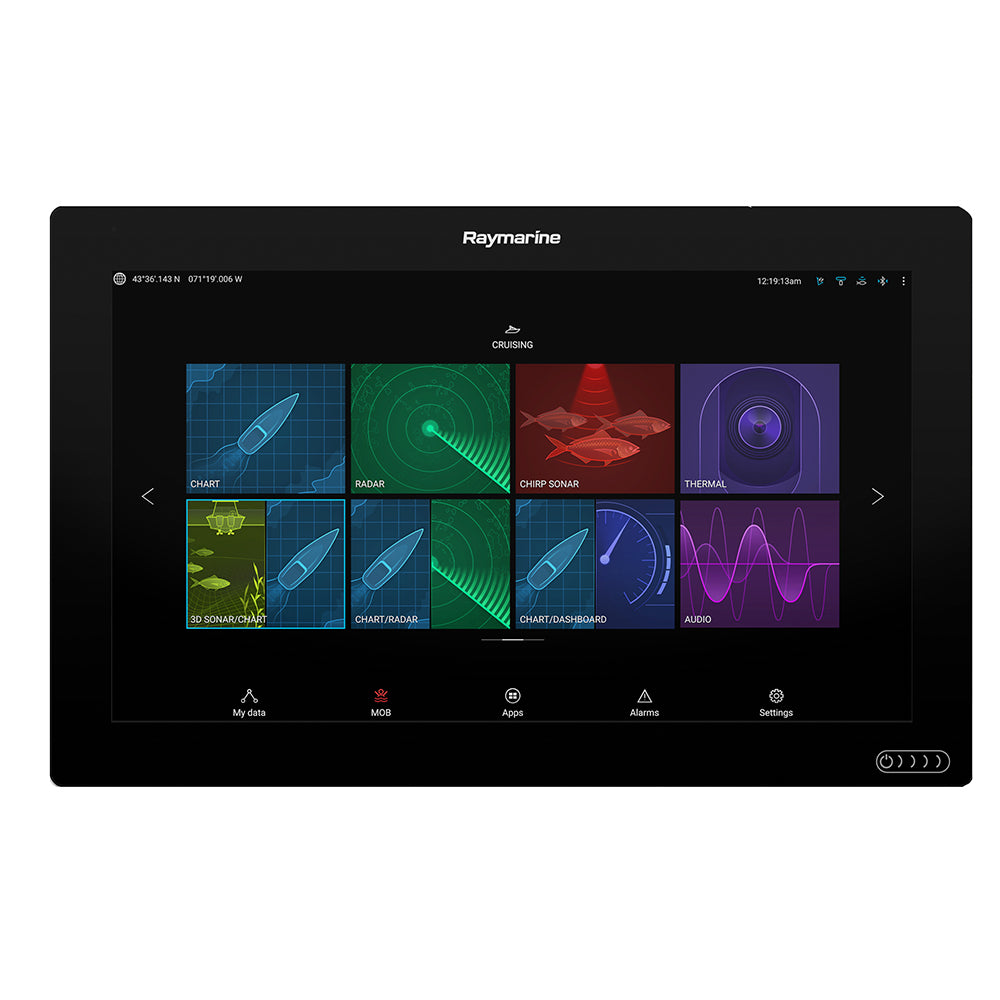

Raymarine Axiom XL 19 18.5" Multifunction Display Kit w/RCR-SD Alarm & Cable
Raymarine Axiom XL 19 18.5" Multifunction Display Kit w/RCR-SD Alarm & Cable — Product description
Why Choose the Raymarine Axiom XL 19 for Your Vessel?
Imagine commanding your boat from a sleek, expansive dashboard that feels like it's straight out of a high-tech bridge movie. The Raymarine Axiom XL 19 delivers exactly that with its massive 18.5-inch Full HD display, turning complex navigation into an effortless experience. Mariners who spend long hours at the helm rave about its crystal-clear visibility from any angle, thanks to advanced IPS technology and optical bonding that cuts glare even under the harshest sunlight.
This isn't just a screen—it's a powerhouse hub. The quad-core processor handles multiple data streams without a hitch, whether you're overlaying radar returns, sonar sweeps, or thermal feeds. Boat owners upgrading from smaller units often note how it simplifies decision-making during busy passages, reducing stress and boosting confidence on the water.
Blazing Speed Meets Intuitive Control
Powered by the renowned LightHouse 3 operating system, the Axiom XL 19 responds like a smartphone on steroids. Pinch to zoom charts, swipe through menus, or plot routes in seconds— no steep learning curve here. Pair it with the optional RMK-10 keypad for those who prefer tactile feedback during rough seas.
Real-world users highlight its multitasking prowess: track a school of fish on RealVision 3D sonar while monitoring engine vitals and crew cams. The built-in ambient light sensor fine-tunes brightness automatically, ensuring your eyes stay comfortable from dawn patrols to midnight watches.
Seamless Connectivity for Total Helm Domination
With three RayNet Ethernet ports, HDMI in/out, and support for analog/IP video, this MFD ties your entire setup together. Connect Quantum 2 radar for Doppler-boosted collision avoidance, FLIR cameras for night vision that spots hazards before your eyes do, or the RVX1000 sonar module for pinpoint fishing hauls.
Extend your reach with Wi-Fi for app streaming—pull in weather overlays or even Netflix for downtime. Bluetooth pipes audio alerts to remote speakers, and digital switching lets you control lights, pumps, and more via touch. Integrate with Evolution autopilots, and watch it hold course with gyro-stabilized precision, freeing you to focus on the horizon.
For glass bridge setups, daisy-chain multiple Axiom XL units or mix with Axiom Pro models. The included RCR-SD remote card reader and external alarm add practical touches, while the video/alarm cable ensures reliable signaling in critical moments.
Built to Conquer the Elements
Designed for flybridges exposed to spray or wheelhouses battling condensation, the Axiom XL 19 boasts IPX6/IPX7 waterproofing and operates from -25°C to +55°C. At 7.9kg and slim 77mm deep, it mounts flush or surface-style without dominating your space.
Owners of larger yachts appreciate how it withstands vibrations and shocks better than competitors, with 64GB storage safeguarding charts, waypoints, and video recordings. Power draw peaks at 72W on 12/24V systems, making it efficient for extended voyages.
Effortless Setup for Pros and Enthusiasts
The kit arrives ready to go: MFD, mounting hardware, right-angle power cable, RayNet connector, STNG adapter, sun cover, gaskets, docs, external alarm, video/alarm cable, and RCR-SD reader. Start with a solid surface prep—align the bezel-free glass for that modern look. Route cables neatly through the rear glands to maintain the IP rating.
Pro tip: Calibrate sensors post-install for optimal sonar/radar fusion. Network it via SeaTalk NG or NMEA 2000 for autopilot handshakes. Firmware updates via Wi-Fi keep it cutting-edge without downtime.
Perfect for Every Adventure
Fishing Charters: RVX1000 integration reveals fish-holding structures in 3D clarity, while CHIRP sonar slices through thermoclines.
Offshore Cruising: FLIR ClearCruise thermal analytics flags unlit vessels at night; autopilot integration nails long passages.
Yacht Entertainment: HDMI mirrors your laptop for planning or streams media via LightHouse apps—Seakeeper ride control or Lumishore lights at your fingertips.
Security-conscious skippers love the quad-video view with DVR recording, monitoring engine rooms or decks remotely via mobile apps.
Frequently Asked Questions
What makes the Axiom XL 19's display superior for marine use?
Its 18.5-inch IPS panel with Full HD resolution (1920x1080) offers wide 88-degree viewing angles, optical bonding for glare reduction, and auto-brightness adjustment, ensuring readability in direct sun or low light.
Can the Axiom XL 19 handle multiple video inputs simultaneously?
Yes, it supports up to four simultaneous streams from analog, IP cameras, or FLIR thermal units, with onboard recording turning it into a DVR for reviewing footage.
How does it integrate with other Raymarine products?
Three Ethernet ports enable networking with radars, sonars, autopilots, and other Axiom series displays. STNG adapters bridge legacy systems seamlessly.
Is the Axiom XL 19 suitable for extreme weather boating?
Absolutely—rated IPX6/IPX7 waterproof, it thrives in -25°C to +55°C temps, high humidity, and rough conditions, ideal for open cockpits or enclosed bridges.
What charts and apps work with this MFD?
Compatible with Navionics, C-MAP, and LightHouse charts. LightHouse apps stream weather, entertainment like Spotify, and partner integrations such as Seakeeper or digital switching.
Does the kit include mounting and cabling essentials?
Yes: mounting kit, power cable, RayNet cable, STNG adapter, video/alarm cable, RCR-SD reader, external alarm, sun cover, and gaskets for a complete install.
How powerful is the processor for demanding tasks?
A quad-core processor powers fluid multitasking—radar overlays, 3D sonar, video, and charts—without lag, even in multi-display setups.
Axiom XL 19 18.5" Multifunction Display Kit with RCR-SD Alarm & Cable
The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.
Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.
Flagship Performance
At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.
Superior Integration
A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.
Elegant Simplicity
Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system.
Features:
- Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
- Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore.
- Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
- Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
- Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
- Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
- Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
- An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
- Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
- Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
- Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
- Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.
"The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration. Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun. Axiom XL\u2019s edge-to-edge glass construction gives vessel designers the ability to create integrated and elegant navigation helm appearance."
SKU: NVN-72779
MPN: T70428
UPC: 723193826621
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom XL 19 18.5" Multifunction Display Kit w/RCR-SD Alarm & Cable |
| SKU / MFR# | 72779 |
