Raymarine Axiom XL 16 15.6" Multifunction Display
Raymarine Axiom XL 16 15.6" Multifunction Display — Product description
Transform Your Helm into a Seamless Glass Bridge Command Center
Imagine commanding your vessel from a expansive 15.6-inch canvas that fuses radar sweeps, sonar depths, thermal vision, and chartplotting into one intuitive interface. The Raymarine Axiom XL 16 redefines marine navigation for serious boaters who demand uncompromised visibility and control in any weather. Built tough for relentless saltwater exposure, its all-glass IPS panel shines through direct sunlight with razor-sharp Full HD clarity, wide viewing angles, and auto-adjusting brightness that keeps your focus on the horizon, not the screen.
Whether you're charting a coastal cruise, chasing offshore game fish, or managing a multi-station yacht setup, this multifunction display (MFD) pulls it all together effortlessly. Pair it with flybridge consoles or enclosed wheelhouses, and it scales seamlessly across your network—handling everything from Doppler radar alerts to crew camera feeds without breaking a sweat.
Blazing Speed Meets Intuitive Control
Powered by a quad-core processor, the Axiom XL 16 delivers buttery-smooth responsiveness, even when juggling live video, real-time sonar, and dynamic routing. Raymarine's LightHouse 3 operating system feels like second nature: pinch-to-zoom charts, drag waypoints, or swipe for power-on simplicity. Customize dashboards to match your workflow—anglers might prioritize RealVision 3D sonar views, while cruisers favor layered Navionics cartography.
Multi-touch gestures mimic your smartphone, but for precision in rough seas, pair it with an optional RMK-10 keypad. And with built-in Wi-Fi and Bluetooth, stream alarms to cabin speakers or mirror the display to mobile apps for crew coordination from anywhere onboard.
Ultimate Connectivity for Total Vessel Awareness
Three RayNet Ethernet ports make expansion a breeze—link Quantum 2 CHIRP radars for color-coded target tracking, RVX1000 sonar modules for hyper-detailed fish arches, or FLIR thermal cams with ClearCruise AI to spot unlit vessels at night. Monitor up to four camera feeds simultaneously, including IP and analog sources, with DVR recording for incident review.
HDMI in/out turns it into a helm hub: mirror PC apps, control digital switching for lights and pumps, or output to salon TVs. Integrate with Evolution autopilots for hands-free waypoint following, powered by 9-axis sensors that adapt to swells and turns. Even tie in partners like Lumishore lighting or weather services via LightHouse Apps for a smarter, more connected ride.
Engineered for the Harsh Marine Environment
No buttons to corrode, just a sleek, buttonless facade with swipe activation and an ambient light sensor that dials in perfect visibility from dawn patrols to midnight watches. Fully sealed to IPX6/IPX7 standards, it shrugs off driving rain, spray, and sub-zero chills (-25°C operating range). Flush or surface mount it confidently, backed by a lightweight 5.9kg frame that's simple to install yet rock-solid in motion.
Standout Capabilities That Set It Apart
- Crystal-Clear Visibility: 1920x1080 resolution with 88° viewing angles in all directions—ideal for crowded bridges.
- Entertainment Onboard: Stream media apps directly, blending navigation with downtime leisure.
- Sonar Supremacy: Unlock CHIRP and RealVision 3D with optional modules for bottom-hugging precision.
- Safety First: Thermal object analytics and radar Doppler modes flag collision risks before your eyes do.
- Network Native: Mix with Axiom, Axiom Pro, or more XL units for unified multi-display systems.
- Power Smart: Draws just 60W max on 12/24VDC, with wide 8-32V tolerance for generator-free reliability.
Technical Specifications at a Glance
| Category | Specification |
|---|---|
| Display | |
| Size | 15.6-inch |
| Type | IPS Full HD (1920 x 1080) |
| Viewing Angles | 88° all directions |
| Power | |
| Supply Voltage | 12/24 Vdc (8-32 Vdc range) |
| Max Consumption | 60W |
| Environmental | |
| Operating Temp | -25°C to +55°C |
| Waterproof Rating | IPX6 & IPX7 |
| Dimensions (W x D x H) | 395 x 78 x 249 mm |
| Weight | 5.9 kg |
| Storage | |
| Internal | 64 GB (62 GB usable) |
Ready to Mount and Go
Your Axiom XL 16 arrives complete with essentials: silicone sun cover, mounting hardware (bars, gaskets, bolts), power/data cables (1.5m right-angle and 3m RayNet), SeaTalkng adapter, and full documentation. Grounding kit included for clean installs.
Frequently Asked Questions
Can the Axiom XL 16 handle multiple displays in a networked setup?
Yes, with three Ethernet ports, it networks effortlessly with other Axiom series units, creating a cohesive glass bridge across helm stations.
Is it suitable for open cockpits or only enclosed bridges?
Its IPX6/IPX7 rating and wide temp range make it perfect for exposed flybridges or protected wheelhouses alike.
How does LightHouse 3 improve navigation over older systems?
It offers fluid multi-touch, quick plotting, and app expansions—plotting routes in seconds with customizable layouts.
Does it support fishing sonar modules?
Absolutely—add the RVX1000 for CHIRP and RealVision 3D sonar, rendering fish and structure in stunning detail on the big screen.
Can I integrate thermal cameras for night navigation?
Yes, FLIR support with ClearCruise provides automated object detection across four video inputs for enhanced low-light safety.
What's the power draw like for battery-powered boats?
Efficient at 60W max, with a broad voltage range to minimize drain during extended outings.

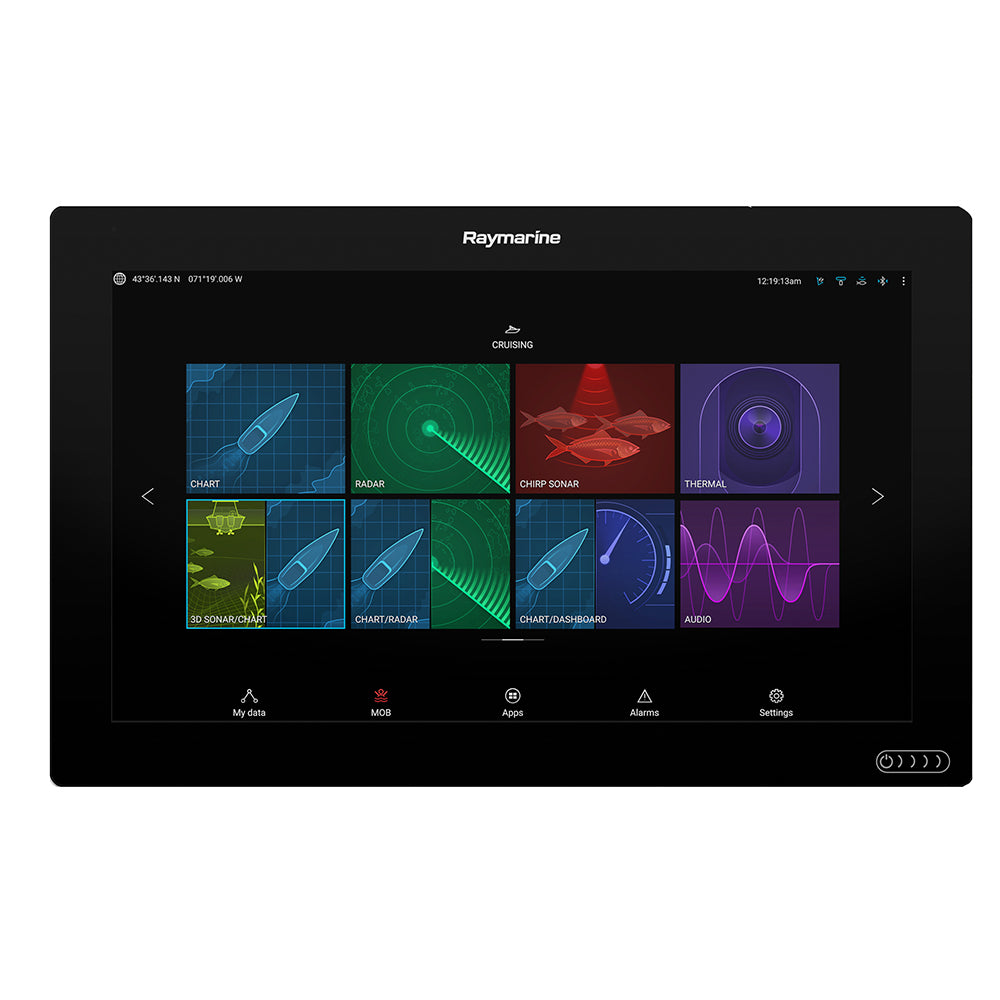

Axiom XL 16 15.6" Multifunction Display
The Axiom XL range is the pinnacle of Raymarine navigation and modern helm integration.
Designed for glass bridge installations, Axiom XL displays offer superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL family of glass bridge MFDS can be installed in both open cockpits and enclosed bridge stations. Each model uses in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun.
Flagship Performance
At the heart of each Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations.
Superior Integration
A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.
Elegant Simplicity
Axiom XL displays are powered by Raymarine’s LightHouse 3 OS and offer a fast, fluid, and uncluttered interface that is easily personalized for your navigation style. Enjoy multi-touch screen control or add the Raymarine RMK-10 keypad for complete remote system.
Features:
- Smart and Rugged All-Glass Display is optimized for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions.
- Connect Even More with LightHouse Apps. Expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore.
- Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.
- Access Axiom Everywhere using Axiom XL’s HDMI video output. Monitor Axiom from the big screen below deck or stream Axiom XL to your phone or tablet with Raymarine mobile apps.
- Vessel Automation with Raymarine Digital Switching solutions for boat builders. Axiom XL Digital Switching technology offers simple touch screen control of onboard electrical devices.
- Get Underway Faster with the intuitive LightHouse 3 OS. Spend seconds, not minutes, plotting your next course. LightHouse 3 is easy to learn and easy to customize.
- Elevate Awareness with Quantum 2 CHIRP radar and Doppler target tracking, the easier way to keep a watchful eye on potentially dangerous targets.
- An Extra Set of Eyes for safer navigation with FLIR ClearCruise™ thermal object recognition. Let Axiom XL and FLIR be your sixth sense on the water so you can navigate safer, both night and day.
- Ready to Fish with the optional RVX1000 remotely mounted 3D CHIRP sonar module. Experience Raymarine CHIRP sonar and award winning RealVision™ 3D on the big the screen.
- Bring your computer to the helm. Axiom XL lets captains view and control a remote personal computer using a computer’s HDMI output and USB touch screen control.
- Navigate with the Best Charts from Navionics, C-MAP, and Raymarine’s library of LightHouse raster and vector charts from leading map makers.
- Stay on Course with advanced Evolution autopilot integration. Plot a waypoint on Axiom XL and let Evolution’s 9-axis intelligent sensor keep you on the perfect course.
Raymarine, E70399, Axiom 15.6-inch glass bridge multi-function display, only display E70399 only includes: Axiom XL multi-function display sunshade (silicone) rear mounting pole x2 document packaging installation gasket tape power supply/video/NMEA 0183 cable. 1.5m (4.92 feet) right angle mounting rod fixture x4 (M5 x20) mounting fixture x4 (including M5 bolt x35, M5 wave washer, M5 nut and mounting feet) SeaTalkng and DeviceNet 1m (3.3 feet) adapter cable M3 screw x5, M3 spring washer and M3 crimping terminal RayNet 2m (6.6 feet) network cable Axiom XL series is the pinnacle of Raymarine navigation and modern helmet integration, specially designed for glass bridge installation, Axiom XL display has excellent performance, large format can be Visuality and elegant simplicity. The fully waterproof Axiom XL series glass bridge multifunctional displays can be installed in open cockpits and closed bridge stations. Each model uses in-plane switching technology (IPS) and Ra ymarine optical bonding to provide a larger viewing angle. It has sharp contrast and unparalleled readability in bright sunlight.
SKU: NVN-72775
MPN: E70399
UPC: 723193824214
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom XL 16 15.6" Multifunction Display |
| SKU / MFR# | 72775 |
