Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750
Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 — Product description
Raymarine R69015 Paddle Wheel Kit - Professional Speed Sensor Maintenance
Complete Replacement Kit for Accurate Marine Speed Measurement
Maintain precise boat speed readings with the Raymarine R69015 paddle wheel replacement kit. This comprehensive service kit provides all essential components needed to restore optimal performance to your Raymarine speed instruments, ensuring accurate navigation data for safe and efficient boating.
Key Features & Benefits
- Complete Service Kit - All components needed for paddle wheel maintenance in one package
- Wide Compatibility - Fits ST40, ST60, ST60 PLUS, and ST365/470/750 instruments
- Precision Engineering - Maintains factory-level accuracy for speed measurements
- Marine-Grade Materials - Stainless steel and marine rubber construction
- Easy Maintenance - Complete kit simplifies service procedures
- Genuine Raymarine - OEM quality ensures optimal instrument performance

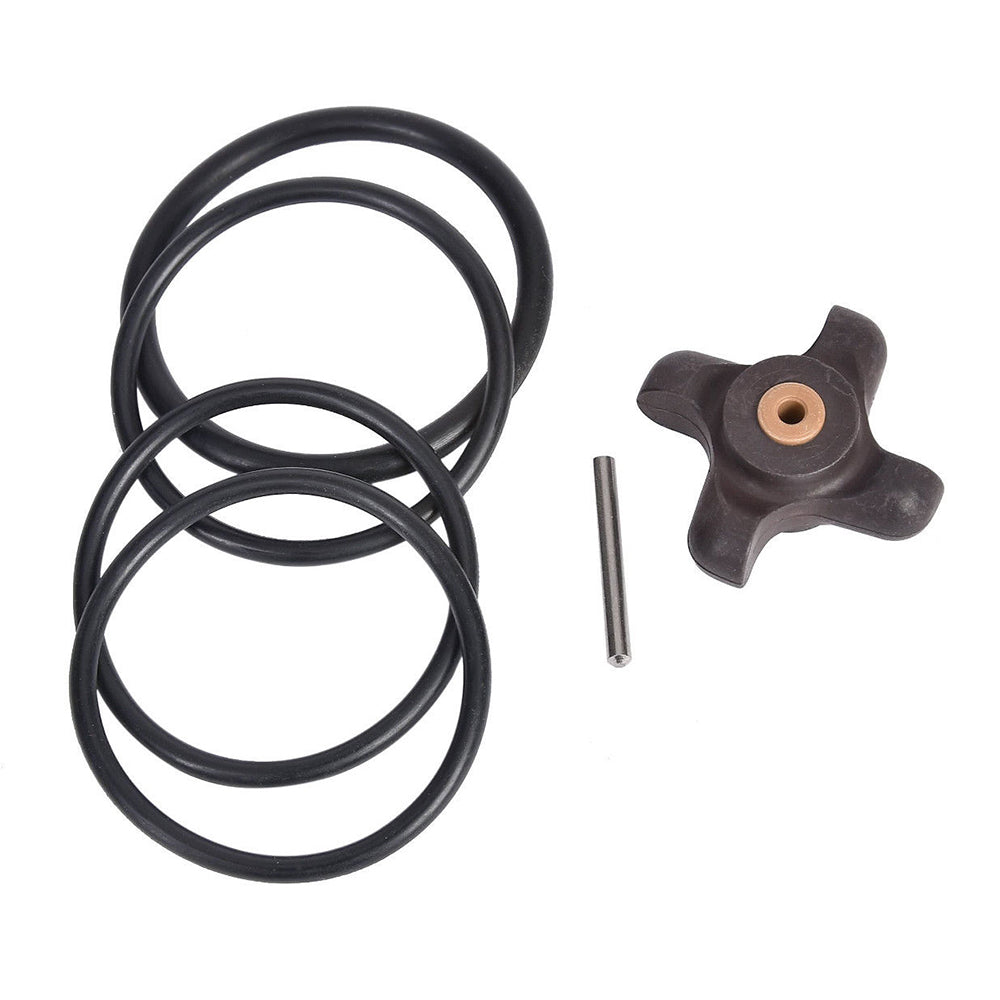

Kit Contents
| Component | Material | Function |
|---|---|---|
| Paddle Wheel | Marine-grade polymer | Primary speed sensing element |
| Axle | Stainless Steel | Corrosion-resistant rotation shaft |
| O-rings | Marine rubber | Watertight sealing |
Compatible Instruments
| Model Series | Instruments |
|---|---|
| ST40 Series | ST40 Speed Display |
| ST60 Series | ST60, ST60 PLUS Speed Displays |
| Legacy Series | ST365, ST470, ST750 |
Technical Specifications
| Model Number: | R69015 |
| UPC: | 723193690154 |
| Application: | Speed sensor maintenance |
| Paddle Wheel Material: | Marine-grade polymer |
| Axle Material: | Stainless Steel |
| Seal Material: | Marine rubber O-rings |
Speed Sensor Performance
The paddle wheel is the critical component that converts water flow into electrical signals for accurate speed measurement:
- Flow Sensing - Precision-molded paddle wheel captures water flow accurately
- Signal Generation - Consistent rotation provides reliable speed data
- Low Friction - Stainless steel axle ensures smooth rotation
- Watertight Seal - O-rings prevent water intrusion into transducer housing
- Calibrated Performance - OEM specifications maintain instrument accuracy
Maintenance Benefits
Regular paddle wheel service provides significant advantages:
- Accuracy Restoration - New components restore factory-level precision
- Reliability Improvement - Fresh O-rings prevent water leakage
- Extended Life - Proper maintenance extends instrument lifespan
- Cost Effectiveness - Kit replacement versus complete transducer replacement
- System Integration - Maintains accurate data for autopilot and navigation systems
Service Indicators
Replace your paddle wheel kit when you notice:
- Erratic Speed Readings - Inconsistent or jumping speed displays
- No Speed Reading - Complete loss of speed indication
- Calibration Drift - Speed readings consistently high or low
- Physical Damage - Visible wear, cracks, or missing paddle blades
- Water Intrusion - Moisture inside the transducer housing
Installation Considerations
Professional service recommended for optimal results:
- Proper Tools - Specialized tools may be required for transducer access
- Sealant Application - Proper O-ring installation prevents leaks
- Calibration - Speed calibration may be required after installation
- System Testing - Verify proper operation across all instrument displays
Marine Environment Durability
Components engineered for harsh marine conditions:
- Corrosion Resistance - Stainless steel axle withstands saltwater exposure
- UV Stability - Materials resist UV degradation from sun exposure
- Temperature Range - Reliable operation across marine temperature variations
- Marine Growth Resistance - Smooth surfaces minimize fouling accumulation
- Impact Resistance - Durable construction handles underwater debris
System Integration
Accurate speed data is critical for multiple marine systems:
- Navigation Systems - Precise position calculations require accurate speed
- Autopilot Performance - Speed data influences autopilot algorithms
- Fuel Management - Accurate consumption calculations depend on speed data
- Performance Monitoring - Track vessel efficiency and performance trends
- Safety Systems - Speed-dependent alarms and warnings
Frequently Asked Questions
How often should I replace the paddle wheel kit?
Replacement intervals depend on usage, but annual inspection is recommended with replacement every 2-3 years or when performance degradation is noticed.
Can I install this kit myself?
While mechanically capable boat owners can perform the replacement, professional service ensures proper sealing and calibration.
Will this kit work with other Raymarine instruments?
This kit is specifically designed for the listed models. Check compatibility for other Raymarine instruments.
How do I know if my paddle wheel needs replacement?
Signs include erratic readings, no speed indication, or visible damage to the paddle wheel during inspection.
Does the kit include installation instructions?
Basic instructions are typically included, but refer to your instrument manual for specific service procedures.
Professional Marine Instrument Maintenance
Maintaining accurate marine instrumentation is essential for safe navigation and optimal vessel performance. The Raymarine R69015 paddle wheel kit provides genuine OEM components that restore your speed instruments to factory specifications, ensuring reliable performance for years of confident boating.
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 |
| SKU / MFR# | 72443 |
