Raymarine 4kW Magnum w/6' Array & 15M RayNet Radar Cable
Raymarine 4kW Magnum w/6' Array & 15M RayNet Radar Cable — Product description
Equip your vessel with cutting-edge radar technology that delivers unparalleled clarity and reliability on the water. This 4kW Magnum open-array system, featuring a robust 6-foot antenna and a generous 15-meter RayNet cable, transforms how you navigate challenging conditions—from foggy coastal runs to open-ocean passages. Designed for serious mariners who demand precision, it leverages advanced processing borrowed from professional-grade systems used by maritime authorities, ensuring you stay one step ahead of potential hazards.
Unlock Superior On-Water Awareness
Spot Flocks from Afar with Advanced Bird Mode
Fishermen know the thrill of chasing birds to prime fishing spots. This radar elevates that game by detecting avian flocks with exceptional detail out to 10 nautical miles. No more guessing—pinpoint baitfish schools efficiently, slashing fuel use and wasted time. It's like having an extra set of eyes tuned specifically for angling success.
Crystal-Clear Imaging for Every Scenario
Raymarine's beam sharpening tech narrows the horizontal beam to under 1 degree, painting razor-sharp images of targets. Separate closely packed vessels in busy harbors, reveal intricate coastal contours like a high-res chart, and track distant objects with confidence. Whether dodging debris or scanning horizons, the detail rivals digital chartplotters.
Effortless MARPA Target Tracking
Automatic acquisition locks onto up to 25 moving targets, plotting their courses in real time using integrated 9-axis heading data. Gain instant insights into closing speeds and collision risks, freeing you to focus on command decisions rather than manual monitoring.
True Trails: Read Vessel Intentions Instantly
Watch dynamic wakes trail behind contacts, revealing speed, direction, and maneuvers at a glance. In crossing paths or overtakes, this visual history turns ambiguity into actionable intelligence, enhancing safety without cluttering your screen.
Seamless Real-Time Orientation
Paired with compatible multifunction displays, enjoy fluid heading updates—no laggy refreshes during turns. Your radar overlay stays rock-solid, mirroring your boat's motion for intuitive situational awareness on dynamic voyages.
Seamless Integration Across Systems
Plug into modern Axiom and Axiom Pro displays running LightHouse 3 for the full suite of features. It also supports older Raymarine models like eS/gS Series, C-Series, and more, though with scaled capabilities. This versatility means upgrading your radar doesn't require a full system overhaul.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Antenna Size | 6 ft 4 in |
| Maximum Range | 72 nm |
| Antenna Performance | |
| Horizontal Beam Width (Nominal) | 1.15° |
| Effective Horizontal Beam (Sharpened) | Less than 1° |
| Vertical Beam Width (-3dB) | 25° |
| Rotation Speed | 24/48 rpm (high-speed auto mode for close-range tracking) |
| Power & Environmental | |
| Voltage Range | 10.8-32V DC |
| Power Draw (Transmit/Standby/Sleep) | <70W / <30W / <1.2W |
| Target Handling | |
| MARPA Targets | 25 (auto/manual) |
| Real-Time Heading & True Trails | Yes (with heading sensor) |
*Table optimized for mobile viewing; full compatibility details vary by display software version.
Complete Kit for Quick Setup
- Sleek pedestal assembly
- 6-foot high-gain antenna
- 15m RayNet cable for flexible mounting
- VCM100 voltage converter
- Mounting hardware: studs, washers, nuts, springs
- Denso paste and cable tool
Everything arrives ready for professional installation, minimizing downtime and ensuring peak performance from day one.
Real-World Versatility for Boaters and Anglers
From tournament anglers zeroing in on structure via bird signatures to cruisers scanning for unlit vessels at night, this radar adapts to your needs. Its rugged build shrugs off salt spray and heavy weather, while low power draw suits extended trips. Pair it with AIS for layered safety, or use solo for standalone vigilance—it's the backbone of informed navigation.
Frequently Asked Questions
How does the Bird Mode help with fishing?
Bird Mode enhances detection of feeding flocks up to 10nm away, guiding you straight to baitfish concentrations for more efficient outings.
What makes the beam sharpening unique?
It digitally refines the beam to sub-1° resolution, providing map-quality separation of targets even in cluttered or distant scenes.
Is a heading sensor required for full features?
Yes, for MARPA tracking, True Trails, and real-time heading—pair with Raymarine Evolution for optimal results.
What's the power consumption like?
Efficient at under 70W transmitting, 30W standby, and just 1.2W asleep, ideal for battery-conscious setups.
Can it work with older Raymarine displays?
Yes, compatible with legacy series like eS, gS, and C-Wide, though advanced modes like auto-MARPA require newer LightHouse versions.
How fast does the antenna rotate?
24 rpm standard, boosting to 48 rpm in auto high-speed for sharp tracking of nearby fast-movers.
4kW Magnum with 6' Array & 15M RayNet Radar Cable
High Performance, Long Range Open Array Radar
Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.
Key Features:
Magnum is available in 4kW or 12kW power output options, and with either a four-foot or six-foot antenna array option. It offers a maximum range up to 96nm for 12kW models – ideal for blue water vessels – and up to 72nm for 4kW models. The perfect companion to Raymarine’s award-winning Axiom® and Axiom Pro multifunction navigation displays (MFD) running LightHouse 3, Magnum is also backwards compatible with legacy models including:
- LightHouse 2-based a, c, e, eS and gS-Series MFDs
- C-Series Widescreen and E-Series Widescreen MFDs
- E-Series Classic, G-Series Multifunction Displays
*Note: Not all Magnum features are available on all legacy MFDs.
Superior Bird Mode
Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.
Enhanced Radar Imaging
Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.
Best in Class Target Tracking
Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.
True Trails
Magnum features True Trails target history. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.
Real Time Heading Updates
Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.

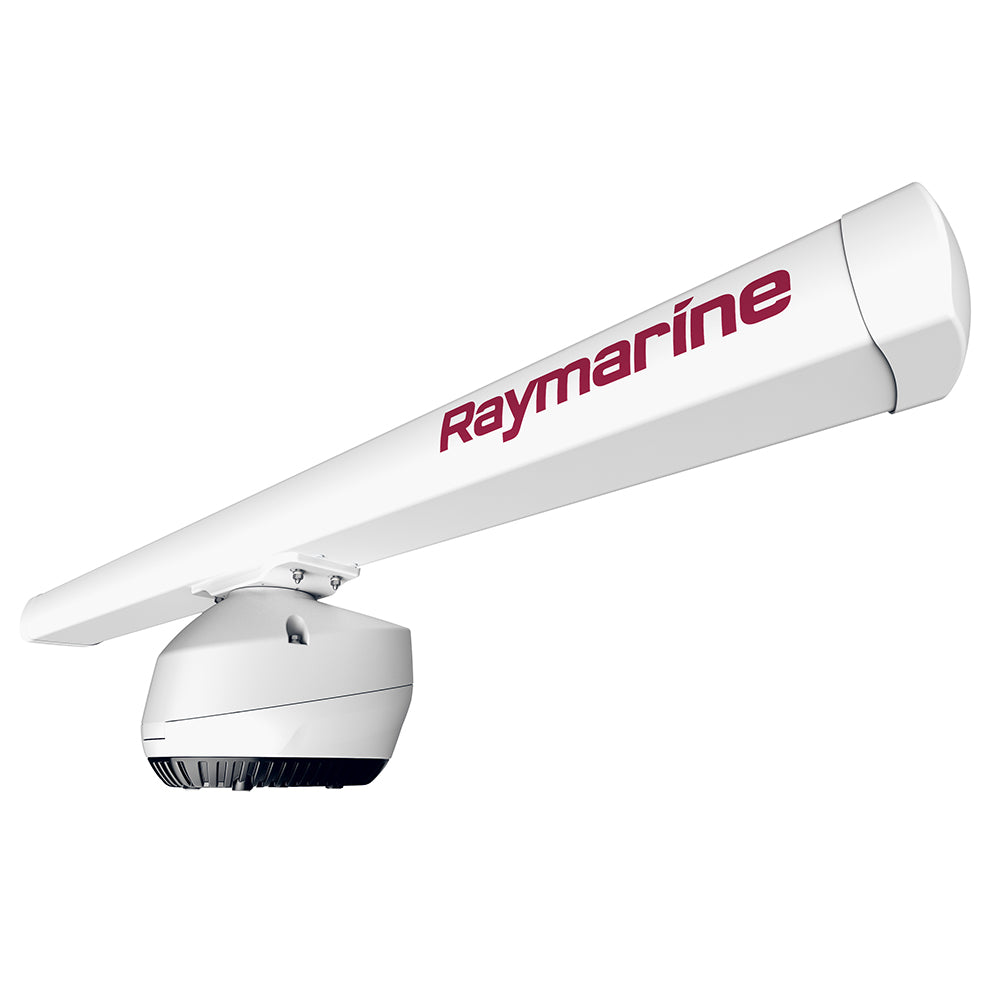

Raymarine 4kW Magnum Radar with 6' Antenna and 15m Cable
Model: T70410- Superior Bird Mode
- Enhanced Radar Imaging
- Best in Class Target Tracking
- True Trails
- Real Time Heading Updates
Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.
Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.
Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.
Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.
Magnum features True Trails target history. The True Trails features enables you to see a historical "wake" behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.
Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target imagery when making course changes. Real Time Heading updates allow the radar position display to rotate freely as-needed, without the need to refresh the entire display.
Specifications| Antenna size | 6' 4" |
| Max Range Scale | 72nm |
| Antenna Specifications | |
| Beam Width Horizontal (Nominal) | 1.15° |
| Effective Horizontal Beam Width (After Antenna Boost Beam Reduction) | Less than 1° |
| Beam Width Vertical -3dB | 25° |
| Antenna Side Lobes (Inside 10°) | < -21dB |
| Antenna Side Lobes (Outside 10°) | < -30dB |
| Rotation Rate | 24 rpm / 48 rpm (Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.) |
| Receiver Bandwidth | Matched digital filter for each pulse length |
| Pulse Length/PRF Settings | 8 |
| Number of Displayed Video Levels | 256 (8-bit) |
| Power specifications | |
| Voltage | 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems |
| Power Consumption (Typical) | <70W (Transmit) <30W (Standby) <1.2W (Sleep) |
| Targets | |
| Maximum Automatic and Manual MARPA Targets (with Heading Sensor) | 25 |
| Real-Time Heading Refresh (with Heading Sensor) | Yes |
| True Trails (with Heading Sensor) | Yes |
| Compatibility | |
| Axiom / Axiom Pro (LH3.4 or later) | Compatible with full feature set |
| eS Series / gS Series (LH3.3 or later) | Compatible with limited feature set. No automatic MARPA |
| a/c/e/eS/gS Series (LH2 v19.03) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Wide (v2.65) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| C-Wide (v2.35) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
| G-Series (v4.66) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA |
| E-Classic (v5.69) | Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode |
What's in the Box:
- Pedestal
- Denso paste
- Stud x4
- Spring washer x 4
- Cable tightening tool
- VCM100 mounting screw x2
- VCM100 Voltage Converter Module
- 6' Antenna
- Plain washer x4
- Nut x4
- 15m RayNet Radar Cable
Raymarine 4kW Magnum radar model with 6'antenna and 15m cable: T70410 Magnum high-performance open-array radar brings long-range performance and unparalleled small target radar imaging to Raymarine multifunctional navigation display. Magnum uses many of the same radar technology trusted by the US Coast Guard to provide enhanced target tracking and reliable performance. All of these components are packaged in a smooth open array base to withstand various elements. Magnum can locate flocks of birds to help anglers find school bait fish faster and more fuel-efficiently. Magnum radar also has Raymarine beam sharpening technology, which can provide azimuth resolution better than 1 degree, can achieve more detailed target separation, map-like coastal details and excellent long-range performance. Magnum provides better situational awareness through fully automated MARPA target acquisition and tracking. Magnum also uses Raymarines Evolution 9-axis heading sensor technology to provide real-time and accurate target maps. Magnum has a historical record of True Trails targets. The True Trails feature allows you to view the history "wake up" behind each mobile contact. This additional information makes it easier for you to explain the movement of other ships and make wise maneuvering decisions to pass safely. Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target images when changing course. The real-time heading update allows the radar position display to rotate freely as needed without the need to refresh the entire display.
Raymarine 12kW Magnum radar model with 6'antenna and 15m cable: T70414 Magnum high-performance open-array radar brings long-range performance and unparalleled small target radar imaging to Raymarine multi-function navigation display. Magnum uses many of the same radar technologies trusted by the US Coast Guard to provide enhanced target tracking and reliable performance. All these components are packaged in a smooth open array base that can withstand various factors. Magnum can find flocks of birds to help anglers find school bait fish faster and more fuel-efficiently. Magnum radar also has Raymarine beam sharpening technology, which can provide an azimuth resolution better than 1 degree, can achieve more detailed target separation, map-like coastal details and excellent long-range performance. Magnum provides better situational awareness through fully automated MARPA target acquisition and tracking. Magnum also uses Raymarines Evolution 9-axis heading sensor technology to provide real-time and accurate target maps. Magnum has a historical record of True Trails targets. The True Trails feature allows you to view the "wake up" history behind each mobile contact. This additional information allows you to more easily explain the movements of other ships and make wise maneuvering decisions to ensure safe passage. Connect Magnum with Axiom and LightHouse 3 and experience uninterrupted radar target images when changing course. The real-time heading update allows the radar position display to rotate freely as needed without the need to refresh the entire display.
SKU: NVN-69300
MPN: T70410
UPC: 723193823019
Technical specifications
| Brand | Raymarine |
| Model | Raymarine 4kW Magnum w/6' Array & 15M RayNet Radar Cable |
| SKU / MFR# | 69300 |
