Raymarine A9X to Axiom 9 Adapter Plate to Existing Fixing Holes

Seamless Upgrade Path for Your Boat's Navigation System

Upgrading your marine chartplotter doesn't have to mean drilling new holes or wrestling with complex mounts. This adapter plate bridges the gap between older a9X series displays and the cutting-edge Axiom 9-inch models, letting you refresh your helm setup effortlessly. Boaters often face the dilemma of balancing modern features with minimal disruption—think faster processors, intuitive touchscreen interfaces, and expanded networking capabilities without starting from scratch.

Raymarine's design philosophy shines here: precision engineering that respects your existing installation. The plate aligns perfectly with pre-drilled fixing holes, ensuring a drop-in fit that saves hours of labor. Whether you're chasing fish on weekend outings or navigating coastal waters commercially, this piece maintains the reliability sailors trust from Raymarine's 80+ years of innovation.

Effortless Installation in Minutes

Screw-on mounting keeps things straightforward—no special tools required beyond a standard screwdriver. Powder-coated in a sleek black finish, it blends seamlessly with the Axiom's modern aesthetic, resisting salt spray, UV exposure, and the relentless pounding of waves. Start by removing your a9X unit, position the adapter over the existing holes, secure with provided hardware, and mount your new Axiom 9. It's that simple, preserving waterproof integrity and vibration resistance.

• Matches factory hole patterns precisely for a secure, wobble-free hold.
• Supports the full weight and torque of Axiom 9 multifunction displays.
• Ideal for retrofits on consoles, bulkheads, or overhead mounts.

Pro tip from seasoned installers: Double-check cable routing during the swap to leverage Axiom's enhanced connectivity options like Wi-Fi, NMEA 2000, and Bluetooth for sensors and apps.

Unlock Next-Level Performance Without the Hassle

Moving to Axiom 9 means gaining Lighthouse chartplotter software with razor-sharp HybridTouch controls, superior radar integration, and fishfinder sonar that's more sensitive to structure and baitfish. The adapter plate empowers this transition, eliminating the need for bezel modifications or custom brackets that could compromise your boat's IPX rating.

Durability is non-negotiable at sea. Built to thrive in extreme conditions—from tropical storms to arctic sprays—this component endures where lesser parts fail. It's not just an adapter; it's an investment in uninterrupted voyages, backed by Raymarine's commitment to rugged marine-grade construction.

a9X Series	Axiom 9 with Adapter
Legacy processing	Quad-core speed for fluid charts and video
Basic networking	Quantum radar, FLIR cameras, full MFD expansion
Standard durability	Enhanced thermal management and optics

Perfect Fit for Targeted Setups

Engineered exclusively for swapping a9X 9-inch units with Axiom 9 chartplotters, this plate ensures dimensional accuracy down to the millimeter. It's a game-changer for owners of older Raymarine systems looking to modernize without cascading changes to transducers, antennas, or power supplies. Verify your a9X model shares the standard fixing pattern—most do—for hassle-free compatibility.

Frequently Asked Questions

Does this adapter work with all a9X models?

Yes, it's designed for standard 9-inch a9X series displays, aligning with their common fixing hole patterns. Confirm your unit's dimensions match for a perfect fit.

Is installation DIY-friendly for boat owners?

Absolutely—screw-on design means most skippers can handle it in under 30 minutes with basic tools, no marine expertise needed.

Will it maintain my display's waterproofing?

Yes, the plate preserves the original seal integrity when installed correctly, keeping your setup IPX6/IPX7 rated against splashes and submersion.

Can I use this for overhead or flush mounts?

It supports various orientations including overhead and surface mounts, as long as hole spacing matches your a9X setup.

What if I need to connect existing accessories?

Axiom 9 retains backward compatibility with most a9X peripherals via adapters or direct plugs, making the switch seamless.

How does the finish hold up in saltwater environments?

The powder-coated black finish is corrosion-resistant, proven in harsh marine conditions for long-term aesthetics and function.

For more than 80 years, we‘ve been global leaders in high performance marine electronics for the recreational boating and light commercial marine markets. We continue to innovate and provide full electronic systems to boaters around the world. Our products are engineered for the tough marine environment and renowned for ease-of-use, rugged design and reliability. Our full range features chartplotters, fishfinders, radars, marine instruments, marine cameras, AIS units and VHF radios.

Raymarine A80526 Attributes

• Compatibility: Axiom 9 Inch Chart Plotter To a9X
• Mounting Style: Screw-On

Raymarine A80526 Features & Benefits

• For Use With Axiom 9 Series Chart Plotter To A9X
• High-Performance Products Proven In The Harshest Of Environments
• Rugged Design And Reliability
• Engineered To Perform In Extreme Conditions
• Limited 2 Year Warranty

Raymarine A80526 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

A9X to Axiom 9 Adapter Plate to Existing Fixing Holes

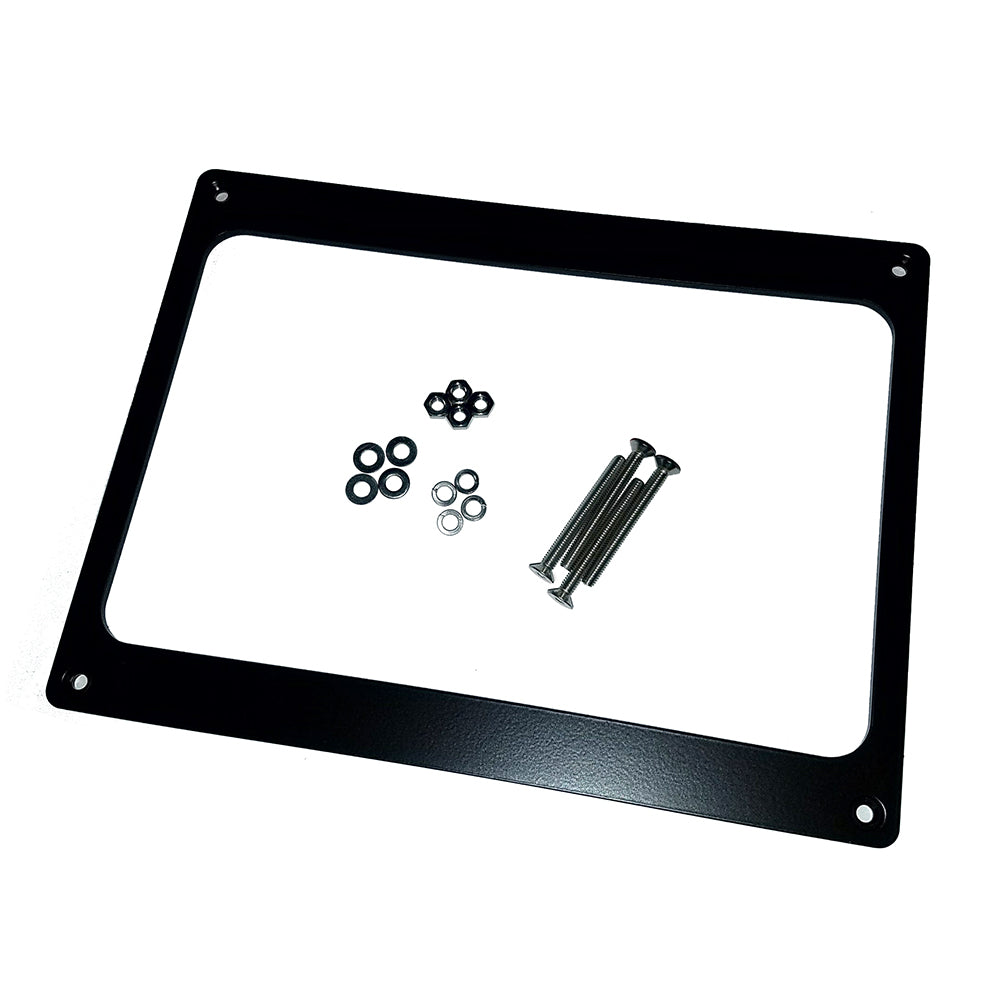

Powder coated black to match the Axiom, this adapter plate is designed to enable a simple and stylish installation of Axiom 9" multifunction displays in place of a A9x Series Display.

A9X to Axiom 9 adapter plate to the existing fixing hole black powder coating to match Axiom, this adapter plate is designed to achieve simple and stylish installation...
SKU: NVN-67435
MPN: A80526
UPC: 723193821381
