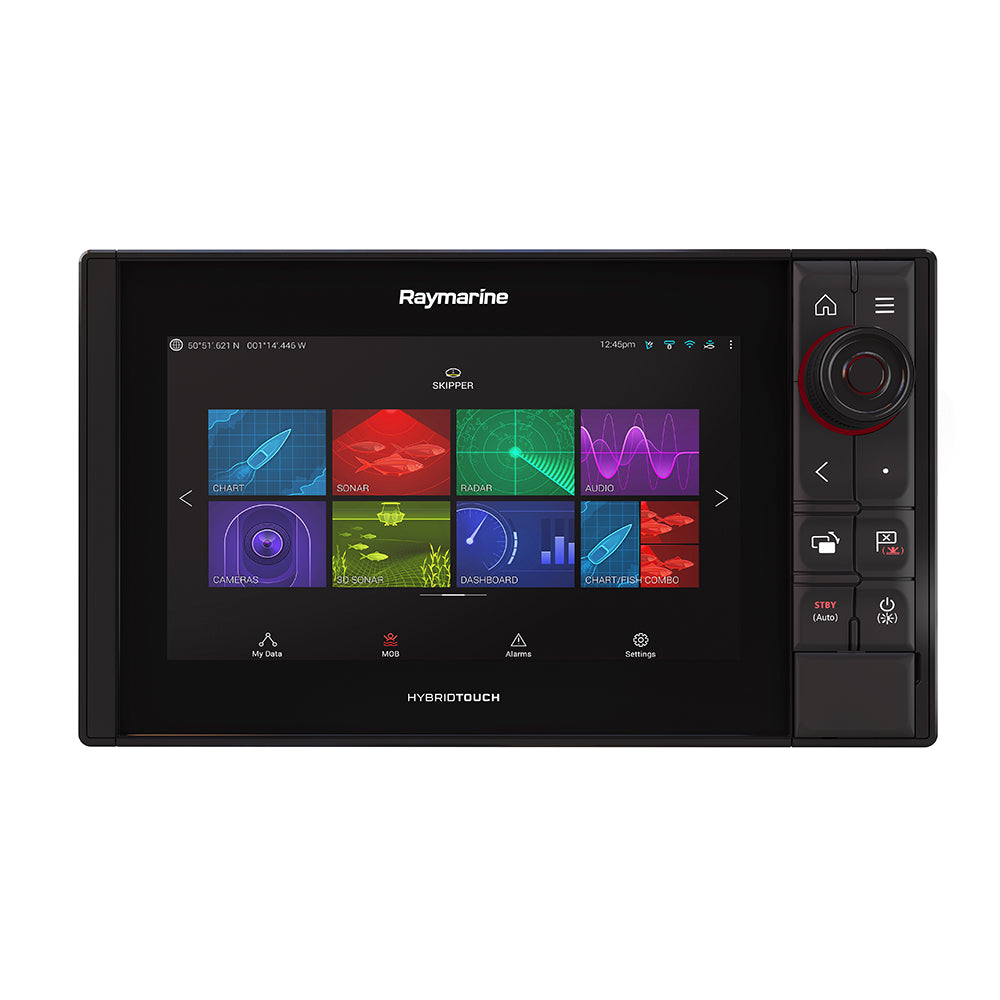

Raymarine Axiom Pro 9 RVX MFD w/RealVision 3D and 1kW CHIRP Sonar - Navionics+ North America Chart
Raymarine Axiom Pro 9 RVX MFD w/RealVision 3D and 1kW CHIRP Sonar - Navionics+ North America Chart — Product description
Imagine navigating treacherous waters or pinpointing that perfect fishing spot with crystal-clear 3D sonar views right at your fingertips. The Raymarine Axiom Pro 9 RVX sets a new benchmark for marine multifunction displays, blending cutting-edge sonar technology with seamless charting for boaters who demand precision and performance. Whether you're chasing trophy fish in deep offshore waters or hugging coastal contours, this 9-inch powerhouse delivers an unmatched blend of speed, clarity, and connectivity.
Unlock Superior Fishfinding with RealVision 3D and 1kW CHIRP Sonar
At the heart of the Axiom Pro 9 RVX lies its built-in RealVision 3D sonar, which transforms traditional 2D scans into immersive, lifelike 3D images of the underwater world. Spot fish hiding in complex structures, map drop-offs with pinpoint accuracy, and even distinguish between bait schools and predators—all without guessing. Paired with 1kW CHIRP sonar, it covers low, medium, and high frequencies to excel in shallow bays, mid-range reefs, or depths up to 900 feet. Pro anglers swear by this combo for its scroll-back feature, letting you rewind sonar history to revisit missed opportunities mid-trip.
Real-world tip: Switch to SideVision mode for wide-area scanning up to 600 feet on each side, ideal for locating wrecks or schools before your bait even hits the water. It's like having a personal underwater drone.
Stunning Visibility Meets Blazing Speed
The optically bonded IPS display pumps out 1,200 nits of brightness, ensuring every detail pops even under direct sunlight or through polarized lenses. With WXGA 1280 x 720 resolution, charts, radar overlays, and sonar returns remain sharp from any angle—up to 88 degrees in all directions. Powering it all is a quad-core processor that juggles radar sweeps, video feeds, and apps without a hitch, thanks to the intuitive LightHouse OS.
HybridTouch control means you choose: swipe the multitouch screen, twist the rotary dial, or hit dedicated buttons for gloves-on reliability in rough seas. Customize a key for one-tap access to your go-to sonar view or autopilot commands.
Build Your Ultimate Onboard Network
Expand effortlessly with dual Ethernet ports, NMEA2000, NMEA0183, Wi-Fi, and Bluetooth. Link multiple Axiom units for a helm-spanning setup, add Quantum radars for bird-mode spotting during dawn patrols, or integrate Evolution autopilots for hands-free cruising. Video inputs handle analog cameras or up to 10 IP cams for 360-degree awareness, while FLIR thermal compatibility flags floating hazards with ClearCruise alerts.
For the tech-savvy captain, NMEA2000 drops in AIS data, engine vitals, and digital switching—keeping your cockpit clutter-free and data-rich.
Chart Your Course with Confidence
Preloaded Navionics+ charts for North America and coastal Canada offer daily updates via Wi-Fi, SonarChart Live for real-time bottom mapping, and advanced routing that factors in tides, currents, and no-go zones. Overlay radar, sonar, and weather GRIBs for a single-pane tactical view. With 16GB solid-state storage and dual microSD slots supporting up to 2TB, store endless waypoints (10,000+), routes, and tracks.
Rugged Design for Real Boating Adventures
IPX6/IPX7 waterproofing shrugs off spray and submersion, while the -25°C to +55°C operating range handles extreme climates. At just 3.35 lbs, it's easy to mount via trunnion bracket, surface, or flush options. Runs clean on 12/24V systems with low 20W draw—perfect for battery-conscious setups.
Pro maintenance advice: After saltwater exposure, rinse connectors with fresh water and store in a dry berth to maximize longevity.
What's Ready to Go Out of the Box
- Axiom Pro 9 RVX display unit
- Power, video, and NMEA0183 cable
- RayNet networking cable
- Micro-C to STNG adapter cable
- Trunnion bracket, knobs, and suncover
- Surface mount hardware and seals
- Navionics+ North America charts
Axiom Pro RVX is the standard for networked chartplotter displays. And with a blazing fast quad core processor, a super bright IPS display and the smart LightHouse OS, it delivers a fluid and intuitive navigation experience. Axiom Pro RVX is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology and more.
Raymarine 7037100NAG Attributes
- Maps: Navionics+ USA And Coastal Canada Charts
- Display Size: 9 Inch
- Display Type: WXGA 1280 x 720 Pixels Resolution
- Interface: Touchscreen Interface
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: Built-In CHIRP
Raymarine 7037100NAG Features & Benefits
- Blazing Fast: Axiom Pro's Quad Core Processor Delivers Instantaneous Response And The Ability To Run Multiple Apps Simultaneously Without Any Slowdowns
- Bold And Bright: Raymarine Optical Bonding Technology And IPS Display Panels Give You Stunning Color, Clarity And Contrast In All Lighting Conditions
- Safer Navigation: Axiom Pro Works With Raymarine's Full Lineup Of Cyclone And Quantum Solid-State Radars For All-Weather Collision Avoidance And Advanced Bird Identification Technology
- Video Monitoring: Keep An Eye On Everything Onboard From The Helm And Axiom Pro Supports Both Video Over IP And Analog Cameras
- Enhanced Thermal Awareness: Combine Axiom Pro With The FLIR Thermal Cameras And Enjoy ClearCruise ™ IR Object Detection. Axiom Pro Will Alert You Automatically To Hazards In The Vessel's Path
- Axiom Pro Is Ready To Network With All The Latest Electronics Using Standard NMEA2000 And NMEA0183 Connectivity
- Easily Identify Structure And Locate Fish With The Life-Like Clarity Of RealVision 3D Sonar
- Low, Medium Or High Wide Spectrum Of CHIRP Sonar Bands For Deep, Mid-Range And Shallow Water Fishing
- Features Navionics+ USA And Coastal Canada Chart
- Limited 2 Year Warranty
Raymarine 7037100NAG Installation Instructions
Raymarine 7037100NAG Warranties
Raymarine 7037100NAG Technical Bulletins
- AXIOM PRO 9 MDF E70371 2D Trunion Mount PDF.PDF
- AxiomPro-Brochure-USA.pdf
- AxiomPro-Brochure-USA.pdf
- AXIOM PRO 9 MDF E70371 2D Surface Mount PDF.PDF
- AXIOM PRO 9 MDF E70371 2D Trunion Mount PDF.PDF
- AXIOM PRO 9 MDF E70371 2D Rear Mount PDF.PDF
- Axiom Pro MFD Installation instructions 87319-3-EN.pdf
- AXIOM PRO 9 MDF E70371 2D Rear Mount PDF.PDF
- AXIOM PRO 9 MDF E70371 2D Surface Mount PDF.PDF
Axiom Pro 9 RVX MFD w/RealVision 3D and 1kW CHIRP Sonar - Navionics+ North America Chart
With RealVision 3D, 1kW CHIRP sonar and Raymarine HybridTouch control, Axiom Pro 9 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.
Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.
Blazing Fast
Quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
Bold & Bright
Optical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.
HybridTouch™
Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.
Custom Key
Get instant access to your favorite function with user-programmable Custom Key.
Lighthouse 3 OS
Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.
Specifications:
- Screen Size: 9"
- Display Resolution: 1280 x 720
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting Options: Front and trunnion mount Front
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
- Voltage: 12 / 24 V dc
- Weight: 3.35lbs / 1.52kg
- Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF)
- Wi-Fi
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Radar Compatible
- Thermal Night Vision Compatible
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in Sonar: RealVision 3D & 1kW CHIRP Sonar built in – RVX models only
- External Sonar Compatible
- GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288)
- Optional Remote Controls
- AIS
- Audio Integration
- Autopilot Control: Evolution Autopilot Control
- Digital Switching: Empirbus compatible
- Dimensions (w x h x d): 11.9" x 6.85" x 2.56" / 300 x 174 x 65 mm
The Axiom Pro 9 RVX includes surface and trunnion mounting kits and hardware, suncover, power/video/NMEA0183 cable, micro-C DeviceNet (F) to STNG (F) 1M cable, Raynet (F) to Raynet (F) 2M cable and installation instructions. Navionics+ North America Chart
With an excellent fast quad-core processor, super bright IPS display and smart LightHouse OS, Axiom Pro can provide a smooth and intuitive navigation experience. Axiom Pro...
SKU: NVN-66969
MPN: E70371-00-NAG
UPC: 723193822319
