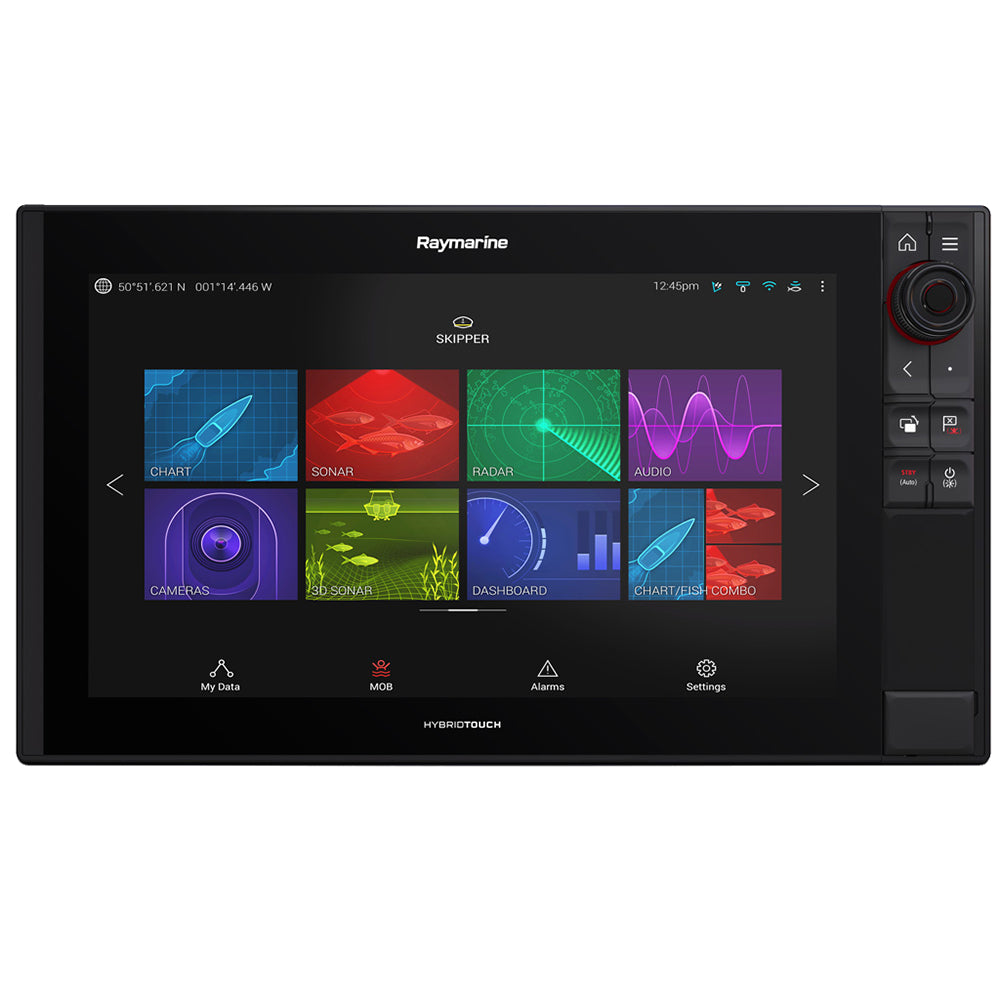

Raymarine Axiom Pro 16 S MFD w/Single Channel High CHIRP Sonar - Navionics+ North America Chart
Raymarine Axiom Pro 16 S MFD w/Single Channel High CHIRP Sonar - Navionics+ North America Chart — Product description
Experience the pinnacle of marine navigation with the Raymarine Axiom Pro 16 S, a powerhouse multifunction display that blends cutting-edge technology with rugged reliability for serious boaters. Whether you're plotting courses across vast coastal waters or tracking fish in real-time, this 16-inch all-in-one unit delivers unmatched clarity and responsiveness. Its built-in single-channel High CHIRP sonar reveals underwater details with precision, while preloaded Navionics+ charts for North America ensure you're always on the safest path—from bustling harbors to remote inlets along USA and Coastal Canada waters.
Superior Performance That Handles Any Adventure
Powered by a blazing-fast quad-core processor, the Axiom Pro 16 S multitasks effortlessly, running charts, radar overlays, and sonar simultaneously without lag. The intuitive LightHouse operating system feels familiar from the first touch, customizable to match your boating style. HybridTouch control lets you swipe smoothly on the vibrant IPS touchscreen or rely on physical keys and knobs during choppy conditions, giving you confidence in any weather.
Optically bonded displays eliminate air gaps for glare-free viewing, even under direct sunlight or through polarized lenses. At 1,200 nits brightness and wide 170-degree viewing angles, every detail—from subtle depth contours to distant radar returns—pops with stunning FHD 1920x1080 resolution.
High CHIRP Sonar: Crystal-Clear Underwater Insights
The integrated single-channel High CHIRP sonar module excels at separating targets, making it ideal for anglers spotting bait balls or cruisers mapping bottom structure. Reach depths up to 900 feet (274 meters) with exceptional target separation, and scroll back through sonar history to revisit missed opportunities. Pair it with compatible CPT-S transducers for plug-and-play setup, and expand to advanced modules like CP470 for dual-channel or DownVision imaging when needed.
Boaters rave about its reliability in varied conditions, from shallow bays to deep offshore runs, providing the data you need to navigate safely and fish productively.
Navionics+ Charts: Precision Mapping for North American Waters
Preloaded with Navionics+ charts covering the USA and Coastal Canada, you'll access daily updates via SonarChart Shading for the latest bathymetric data. Spot-to-spot Auto Guidance plots optimal routes around hazards, while Community Edits highlight marinas, ramps, and hazards crowdsourced from fellow navigators. Dynamic tides, currents, and detailed coastal overlays keep you ahead of changing conditions.
Seamless Expandability for a Full Navigation Suite
Transform your helm into a networked command center with dual RayNet Ethernet ports, NMEA2000, NMEA0183, Wi-Fi, and Bluetooth connectivity. Add Quantum solid-state radars for collision avoidance with CHIRP pulse compression, Evolution autopilots for hands-free cruising, or FLIR thermal cameras for night operations. Support up to 10 IP cameras for 360-degree awareness, AIS for traffic monitoring, and even digital switching for streamlined onboard controls.
Compatible with sailing features like laylines and polar tables, it's versatile for powerboats, sailboats, and commercial vessels alike. Trusted by the U.S. Coast Guard, this MFD scales with your needs without compromise.
Rugged Build for Marine Demands
IPX6/IPX7 waterproofing withstands heavy spray and submersion, operating from -25°C to +55°C (-13°F to 131°F). Compact at 17.8 x 10.2 x 2.72 inches and just 6.25 lbs, it mounts via trunnion, flush, or optional RAM ball for flexible installs. 16GB solid-state storage plus dual microSDXC slots handle vast waypoints (10,000+), routes, and tracks.
What's Included in Your Package
- Axiom Pro 16 S display
- Trim kit and suncover
- Trunnion mounting kit with hardware
- Power/video/NMEA0183 cable (1.5m)
- Mounting template and quick start guide
- Warranty card and Raymarine decal
- Navionics+ North America charts
Pro Tips for Optimal Setup and Use
For best sonar performance, select transducers matched to your hull type and target depths. Network multiple Axiom units for mirrored or distributed displays, enhancing situational awareness across the bridge. Customize the rotary dial and programmable keys for one-touch access to sonar zoom or chart quick-pans. Regular firmware updates via Wi-Fi keep LightHouse OS current with new features like enhanced C-MAP support.
Frequently Asked Questions
What type of sonar is built into the Raymarine Axiom Pro 16 S?
It features single-channel High CHIRP sonar, capable of depths up to 900 feet with excellent target separation for fishfinding and bottom mapping.
Does the Axiom Pro 16 S come with North America charts?
Yes, it's preloaded with Navionics+ charts covering the USA and Coastal Canada, including Auto Guidance, SonarChart Shading, and daily updates.
Is the display suitable for bright sunlight conditions?
Absolutely. The optically bonded IPS panel delivers 1,200 nits brightness and works perfectly with polarized sunglasses, ensuring readability in any light.
Can I connect radar or autopilot to this MFD?
Yes, it supports Raymarine Quantum radars, HD/SHD radars, and Evolution autopilots via Ethernet, NMEA2000, and NMEA0183 for full integration.
What mounting options are available for the Axiom Pro 16 S?
It includes trunnion (bracket) mounting, with options for flush surface-mount or RAM ball adapters for bail or portable setups.
Is this unit networkable with other displays?
Yes, dual RayNet Ethernet ports allow networking with additional Axiom displays, sharing data like sonar, radar, and charts across your helm.
Does it support thermal cameras or video inputs?
It accommodates FLIR thermal night vision via IP or analog, plus one BNC analog input and up to 10 IP cameras for comprehensive monitoring.
The Axiom Pro S line of networked chartplotter displays offers premium all-in-one performance with blazing fast quad-core processing and the simplicity of the LightHouse operating system. Optically bonded IPS displays bring charts, radar and navigation data to life in all lighting conditions, while Raymarine HybridTouch ™ offers the ease of touch screen and the confidence of keypad control when seas are rough. Built-in high CHIRP sonar provides reliable depth and bottom imaging for worry-free cruising. Expand Axiom Pro S into a multifunction powerhouse with additional Axiom displays, Evolution autopilot, solid state radar and FLIR thermal night vision cameras.
Raymarine 7048300NAG Attributes
- Maps: Navionics+ USA And Coastal Canada Charts
- Display Size: 16 Inch
- Display Type: FHD 1920 x 1080 Pixels Resolution
- Interface: Touchscreen Interface
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: Built-In CHIRP
Raymarine 7048300NAG Features & Benefits
- Powerful Chartplotting: Navigate, Pan And Zoom Effortlessly Through LightHouse, Navionics Or C-MAP Charts With Axiom Pro's Fast Quad-Core Processor
- Trusted By The Pros: Axiom Pro Displays Incorporate The Same Chartplotting, AIS And Radar Technologies Trusted By The United States Coast Guard
- Advanced Radar Navigation: Axiom Pro Is Compatible With Raymarine's Cyclone And Quantum Solid-State Radars For All-Weather Collision Avoidance And Radar/Chart Overlay
- Cruise And Sail Smarter: With Dynamic Laylines Overlays, Polar Performance Data And Graphical Sailing Dashboard Displays
- ClearCruise Augmented Reality: Upgrade To ClearCruise AR And Make Smarter Navigation Decisions With AIS Targets And Chart Objects Overlaid On High-Definition Video
- Easy To Expand: Standard NMEA0183 And NMEA2000 Ports And Two RayNet Ethernet Ports For Additional Displays, Radars, FLIR And Video Monitoring Cameras
- Intuitive Control
- Features Navionics+ USA And Coastal Canada Chart
- Limited 2 Year Warranty
Raymarine 7048300NAG Installation Instructions
Raymarine 7048300NAG Warranties
Raymarine 7048300NAG Technical Bulletins
- Axiom Pro MFD Installation instructions 87319-3-EN.pdf
- AxiomPro-Brochure-EMEA.pdf
- AxiomPro-Brochure-EMEA.pdf
Axiom Pro 16 S MFD w/Single Channel High CHIRP Sonar - Navionics+ North America Chart
With single channel high CHIRP Sonar and Raymarine HybridTouch control, Axiom Pro 16 is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.
Axiom Pro is engineered for captains that want it all. The new standard for “all in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.
Blazing Fast
Quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
Bold & Bright
Optical bonding technology and IPS display panels give you stunning Color, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.
HybridTouch™
Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.
Custom Key
Get instant access to your favorite function with user-programmable Custom Key.
Lighthouse 3 OS
Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalize for your style of boating.
Specifications:
- Screen Size: 15.6"
- Display Resolution: 1920 x 1080
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting Options: Front
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
- Voltage: 12 / 24 V dc
- Weight: 6.25lbs / 2.84kg
- Operating Temperature: -25ºC to +55ºC (13ºF to 131ºF)
- Wi-Fi
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Radar Compatible
- Thermal Night Vision Compatible
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in Sonar: High CHIRP Sonar built in – S models only
- External Sonar Compatible
- GPS: Built-in GNSS Receiver: GPS/GLONASS/Beidou - 10Hz 167 Channel | External Accessory: GA150 (A80288)
- Optional Remote Controls
- AIS
- Audio Integration
- Autopilot Control: Evolution Autopilot Control
- Digital Switching: Empirbus compatible
- Dimensions (w x h x d): 17.8" x 10.2" x 2.72" / 452 x 258 x 69 mm
Axiom PRO is designed for captains who need all functions. With CHIRP sonar and Raymarine HybridTouch control, Axiom PRO is the new standard for "all in one" display. With an excellent fast quad-core PROcessor, super bright IPS display and smart LightHouse OS, Axiom PRO provides a smooth and intuitive navigation experience. Axiom PRO is easy to expand into an advanced navigation network, which includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, etc.
SKU: NVN-66967
MPN: E70483-00-NAG
UPC: 723193822487
