Raymarine Trunnion Bracket Kit f/es9 & Axiom Pro 9
Raymarine Trunnion Bracket Kit f/es9 & Axiom Pro 9 — Product description
Enhance your marine navigation setup with the Raymarine Trunnion Bracket Kit designed specifically for es9 and Axiom Pro 9 displays. This robust mounting solution provides a secure, adjustable perch for your multifunction display, ensuring optimal viewing angles whether you're navigating choppy waters or docked at the marina. Crafted for durability in harsh marine environments, it combines precision engineering with straightforward installation to keep your focus on the horizon, not the hardware.
Why This Bracket Kit Stands Out for Boaters
Boat owners know that a reliable mount is non-negotiable for chartplotters and fishfinders. Unlike generic brackets that wobble or corrode over time, this kit delivers rock-solid stability. Tilt and swivel adjustments let you customize the position for helm station ergonomics, reducing glare and neck strain during long outings. It's the perfect upgrade for es9 users transitioning to professional-grade setups or Axiom Pro 9 owners seeking a flush, OEM-style fit.
Key Features Tailored for Marine Use
- Precision-Fit Design: Engineered exclusively for Raymarine es9 and Axiom Pro 9, ensuring seamless compatibility without modifications.
- Full Adjustability: Smooth tilt and 360-degree swivel for the best sightlines from any seating position on your vessel.
- Corrosion-Resistant Hardware: Stainless steel components withstand saltwater exposure, UV rays, and constant vibrations.
- Complete Kit: Includes all mounting hardware, gaskets, and fasteners—no hunting for extras at the boatyard.
- Compact Profile: Sleek design that integrates neatly into tight console spaces without dominating your dashboard.
Effortless Installation on Your Vessel
Setting up this trunnion bracket takes minutes, even for DIY boaters. Start by selecting a sturdy mounting surface on your console or bulkhead. Align the bracket base, secure with provided screws, and attach your display using the quick-release mechanism. Pro tip: Apply marine sealant around screw holes for extra waterproofing in high-splash areas. Once mounted, test the adjustments to dial in your preferred angle—it's intuitive and tool-minimal, freeing you to test it on the water sooner.
For best results, pair it with Raymarine's gimbal covers during storage to shield against dust and moisture. This kit not only secures your es9 or Axiom Pro 9 but also enhances resale value by maintaining that factory-fresh look.
Built to Handle Real-World Boating Demands
From offshore fishing trips to coastal cruising, this bracket endures. Its reinforced construction absorbs engine vibrations and rough seas, keeping your display steady for critical radar, sonar, or chart readings. Anglers appreciate the forward tilt for scanning fish arches, while sailors value the overhead swivel for wind data at a glance. Invest in reliability that matches Raymarine's legendary marine electronics heritage.
Frequently Asked Questions
Is this trunnion bracket compatible with other Raymarine displays?
This kit is specifically designed for Raymarine es9 and Axiom Pro 9 models, ensuring a perfect fit. It won't work with larger or smaller displays without adapters.
How do I adjust the tilt and swivel on the bracket?
Use the integrated friction knobs for smooth, tool-free adjustments. Tighten for stability in rough conditions or loosen for frequent repositioning.
Can this bracket withstand saltwater exposure?
Yes, featuring corrosion-resistant stainless steel hardware, it's built for prolonged marine environments, including saltwater splashes and humidity.
What's included in the trunnion bracket kit?

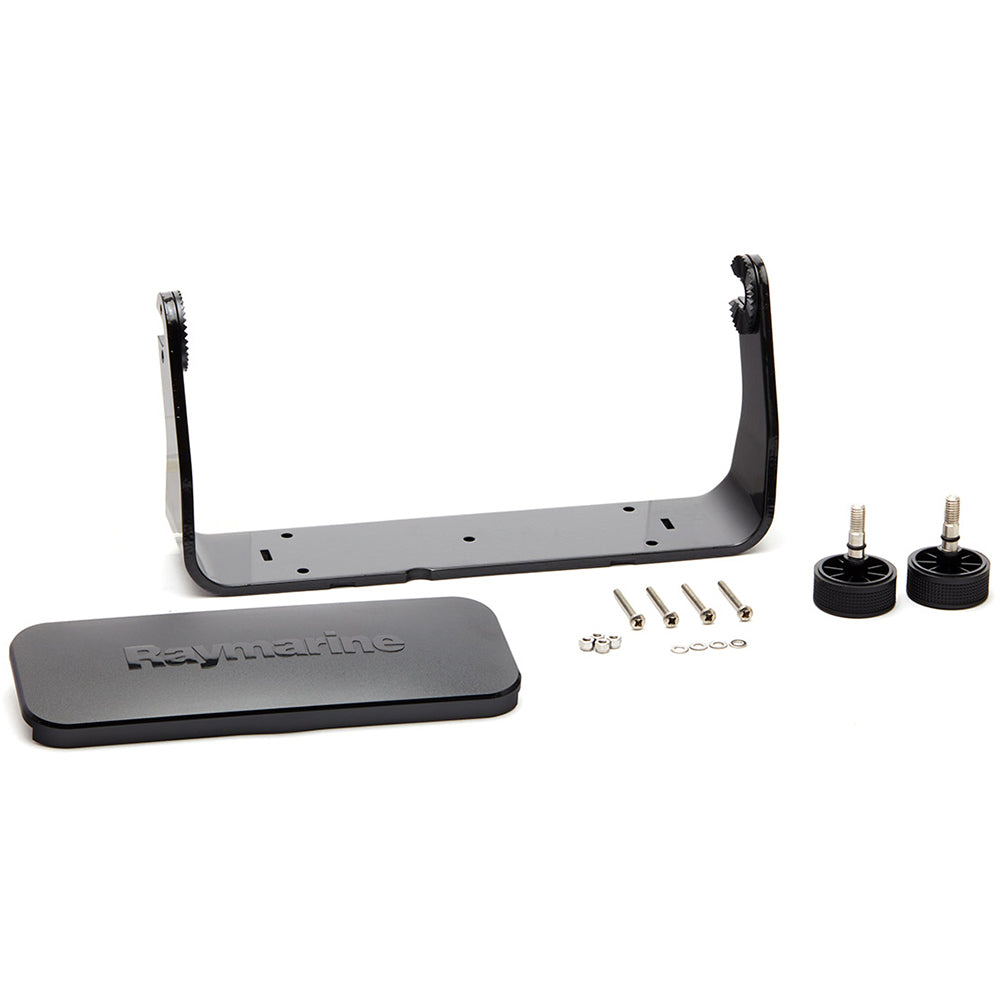

The complete kit includes the trunnion bracket, mounting base, stainless steel screws, gaskets, and all necessary fasteners for immediate installation.
Is professional installation required?
No, it's user-friendly for most boat owners. Basic tools like a screwdriver suffice, and it typically installs in under 30 minutes.
Does the bracket allow for display removal when not in use?
Absolutely—a quick-release latch lets you detach the display easily for secure storage or transport.
Will this work on smaller boats or kayaks?
It's ideal for consoles on mid-sized boats and larger. For kayaks or very small craft, consider flush-mount options due to space constraints.
Trunnion Bracket Kit for es9 & Axiom Pro 9
The Trunnion Bracket Kit for Raymarine es9 and Axiom Pro 9 displays includes all the necessary hardware to mount your display.
Developed by Raymarine using some of the heaviest and most reliable materials, these materials can provide you with years of reliability. Remaline...
SKU: NVN-66240
MPN: R70384
UPC: 723193794418
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Trunnion Bracket Kit f/es9 & Axiom Pro 9 |
| SKU / MFR# | 66240 |
