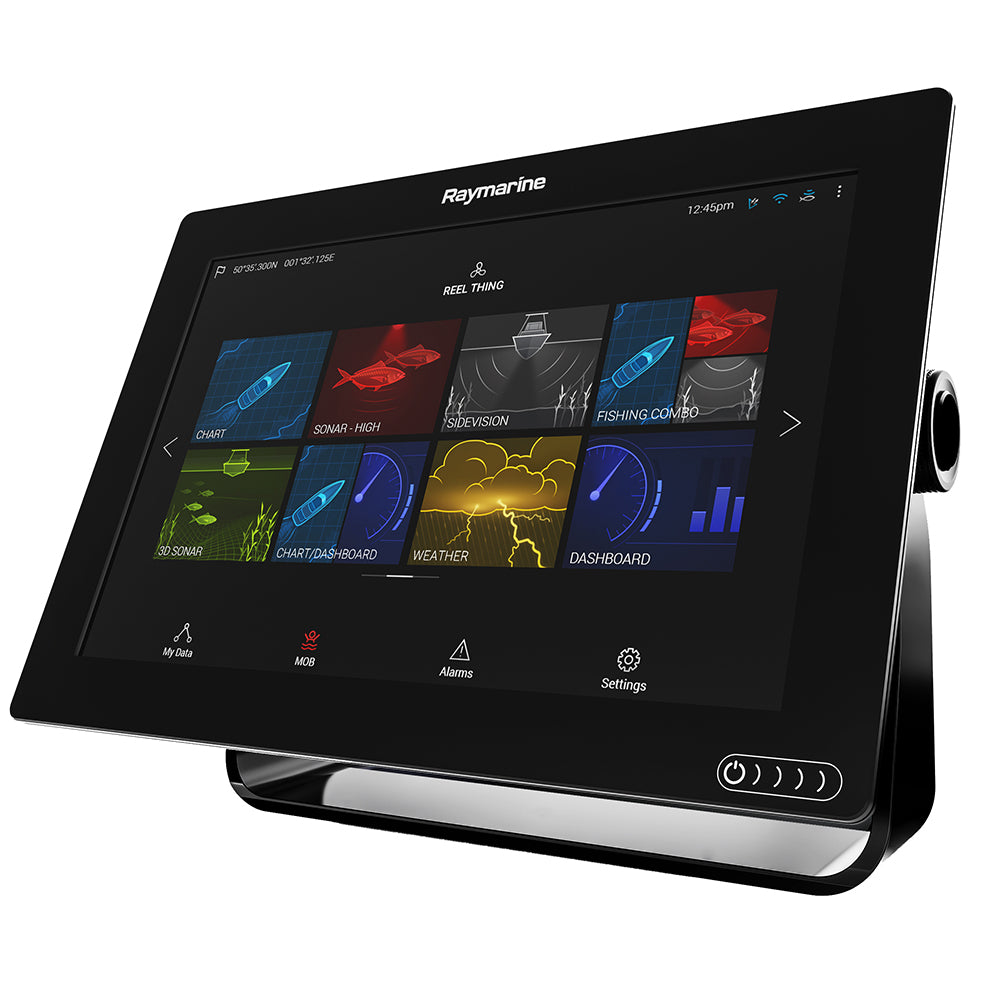

Raymarine Axiom™ 12 RV 12" MFD w/RealVision 3D™ Sonar & Navionics+ Chart - No Transducer
Raymarine Axiom™ 12 RV 12" MFD w/RealVision 3D™ Sonar & Navionics+ Chart - No Transducer — Product description
Discover the ultimate edge on the water with the Raymarine Axiom 12 RV, a 12-inch multifunction display that blends cutting-edge RealVision 3D sonar with intuitive navigation tools. Perfect for serious anglers and cruisers alike, this powerhouse delivers crystal-clear underwater views and precise charting without the clutter of extra buttons or complicated menus. Imagine scanning the depths in lifelike 3D, spotting fish hiding near structures, or plotting your next route across vast coastal waters—all from a sleek, sunlight-readable touchscreen that's built to withstand the harshest marine environments.
Immersive RealVision 3D Sonar for Unmatched Fishfinding
At the heart of the Axiom 12 RV lies its integrated RealVision 3D sonar, a game-changer for anyone chasing trophy catches. This advanced imaging sonar paints a photo-realistic picture of the seabed, revealing bait schools, wrecks, and ledges in stunning detail. Paired with wide-spectrum CHIRP technology transmitting across 60 frequencies, it excels at target separation, helping you distinguish between fish and structure even in murky waters. While the transducer is sold separately, compatibility with high-performance RV models ensures seamless setup for DownVision, SideVision, and traditional 600W sonar modes.
Effortless Navigation with Navionics+ Charts and LightHouse 3
Preloaded with Navionics+ charts covering the USA and coastal Canada—plus over 80,000 inland lakes, ponds, and rivers—you get detailed bathymetry, custom depth shading, and dynamic tides & currents right out of the box. Enhance your maps in real-time using SonarChart Live, turning your boat's sonar data into personalized HD contours. Raymarine's LightHouse 3 operating system ties it all together with fluid, customizable interfaces: swipe to power on, pinch to zoom charts, and access radar overlays or thermal feeds with a tap. The fast 10Hz GPS/GLONASS receiver keeps your position rock-solid for smooth heading updates and SOG tracking.
Built Tough for Real-World Boating
Engineered with a rugged all-glass display boasting WXGA 1280x800 resolution, the Axiom 12 RV shines in direct sunlight thanks to its optically bonded screen. IPX6 and IPX7 waterproof ratings mean it laughs off spray, rain, or accidental submersion. Compact dimensions (12.36" wide x 8.93" high x 3" deep) fit flush or surface mounts effortlessly, with included trunnion bracket for flexible positioning. Operating from 12V or 24V systems, it handles extreme temps from -13°F to 131°F without flinching.
Expand Your Horizon: Seamless Connectivity and Accessories
Why stop at sonar and charts? The quad-core processor powers a web of connections: RayNet Ethernet for multi-display networking, NMEA2000 for engine data, instruments, and autopilots, plus Wi-Fi/Bluetooth for app control from your phone or tablet. Hook up Quantum CHIRP radar for clutter-free short- and long-range scans, FLIR thermal cameras for night navigation, IP cameras for 360° awareness, or even NMEA2000 audio systems to pump your favorite tunes. It's future-proof, scaling from a solo fishing rig to a full-bridge command center.
What's Included for Quick Setup
- 12-inch MFD with trunnion adapter pre-fitted
- Trunnion bracket and knobs
- Suncover for glare protection
- Panel mount gasket and rear brackets
- Power/NMEA 2000 cable assembly
- Mounting hardware (threaded studs and thumb nuts)
- Documentation pack
- Navionics+ USA & Coastal Canada charts
Key Specifications at a Glance
| Specification | Details |
|---|---|
| Display | 12" Optically Bonded WXGA (1280 x 800) |
| Sonar | RealVision 3D, CHIRP (Down/Side/High Freq), 600W Traditional |
| GPS | 10Hz 72-Channel GPS/GLONASS/BeiDou |
| Networking | RayNet Ethernet, NMEA2000, Wi-Fi, Bluetooth |
| Waterproof Rating | IPX6/IPX7 |
| Power | 10.8-31.2V DC (12/24V) |
| Mounting | Flush, Surface, Trunnion, Rear |
Frequently Asked Questions
What makes RealVision 3D sonar different from traditional fishfinders?
RealVision 3D provides a lifelike, photo-like 3D view of the underwater world, combining side, down, and forward scans for effortless structure and fish identification—far beyond 2D cone views.
Does the Axiom 12 RV include a transducer?
No, the transducer is sold separately, giving you flexibility to choose the ideal RealVision 3D model for your vessel and fishing style.
What charts come preloaded on this unit?
Navionics+ charts for the USA and coastal Canada, including detailed coverage of over 80,000 inland waterways, with support for SonarChart Live updates.
Is the Axiom 12 RV suitable for saltwater fishing boats?
Absolutely—its IPX6/IPX7 waterproofing, corrosion-resistant build, and powerful sonar make it ideal for offshore and inshore saltwater adventures.
Can I connect radar or thermal cameras to this display?
Yes, it's fully compatible with Quantum CHIRP radar and FLIR M100/M200 thermal cameras via RayNet and NMEA2000 for enhanced safety and visibility.
How does the LightHouse 3 OS improve usability?
LightHouse 3 offers a fast, intuitive touchscreen interface with customizable panels, real-time radar adjustments, and seamless app integration for effortless operation.
What mounting options are available?
Versatile options include trunnion bracket (included), flush/surface mounting with gaskets, and rear system mounting for clean installations.
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Raymarine 7036900NAG Attributes
- Maps: Navionics+ USA And Coastal Canada Charts
- Display Size: 12 Inch
- Display Type: WXGA 1280 x 800 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 12.36 Inch Width X 3 Inch Depth X 8.93 Inch Height
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: CHIRP And 600 Watt (50/200 kHz)
Raymarine 7036900NAG Features & Benefits
- Axiom Chartplotter Displays Feature A Built-In GPS Receiver
- Simple Touchscreen Operation
- Fast Quad-Core Performance
- Rugged All-Glass Display Optimized For Flush Or Surface Mounting
- Sleek Buttonless Design With Swipe-To-Power Control
- Blazing Fast Performance And Power
- LightHouse Operating System Is Fast, Fluid And Easy To Learn Which Is An Uncluttered Interface Is Easily Personalized For Your Style Of Navigating
- Features Integrated RealVision 3D ™ Sonar
- Features Navionics+ USA And Coastal Canada Chart
- Limited 2 Year Warranty
Raymarine 7036900NAG Installation Instructions
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
Raymarine 7036900NAG Warranties
Raymarine 7036900NAG Technical Bulletins
- AXIOM 12 MFD E70368 E70369 2D Trunion Mount PDF.PDF
- Axiom MFD Installation instructions 87298-3-EN.pdf
- AXIOM 12 MFD E70368 E70369 2D Flush Mount PDF.PDF
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- AXIOM 12 MFD E70368 E70369 2D Flush Mount PDF.PDF
- AXIOM 12 MFD E70368 E70369 2D Front Install PDF.PDF
Axiom™ 12 RV 12" MFD with RealVision 3D Sonar & Navionics+ Chart - No Transducer
The Axiom is a powerful multifunction navigation system from Raymarine. The Axiom 12 RV features a 12-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 12 RV has built-in RealVision 3D sonar. Add the RealVision 3D transducer of your choice to make a complete system.
Axiom 12 RV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
The Axiom 12 RV is bundled with Navionics+ Charts for North America with full coastal coverage for the USA and Canada, plus over 80,000 inland ponds, lakes and rivers. You can also make your HD contour maps with your depth sounder and Navionics SonarChart Live.
The Axiom 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
- Rugged All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
The award-winning Raymarine Axiom is a powerful multifunctional navigation system. Axiom 12 RV has a 12-inch rugged all-glass touch screen display and is powered by the powerful Raymarines new LightHouse 3 operating system and supercharged quad-core processor. Axiom 12 RV has a built-in RealVision 3D sonar that allows you to easily identify structures and locate fish with realistic clarity. Axiom 12 RV is extensible, so its functions can be expanded as needed. It supports various Raymarine accessories, including quantum radar, CHIRP sonar, FLIR thermal imager, audio integration, instrumentation, camera and Evolution autopilot. Standard Wi-Fi and Bluetooth connections allow connection to the latest Raymarine app for tablets and smartphones. Axiom 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cables, and installation instructions. It is bundled with Navionics + Charts in North America and has complete coastal coverage in the United States and Canada, as well as more than 20,000 inland ponds, lakes and rivers. Navionics+ charts are also compatible with advanced features such as SonarChart Live and Dock-to-Dock automatic routing. Axiom 12 RV can also handle various raster and vector electronic charts from C-MAP and lighthouse charts.
SKU: NVN-64456
MPN: E70369-00-NAG
UPC: 723193817797
