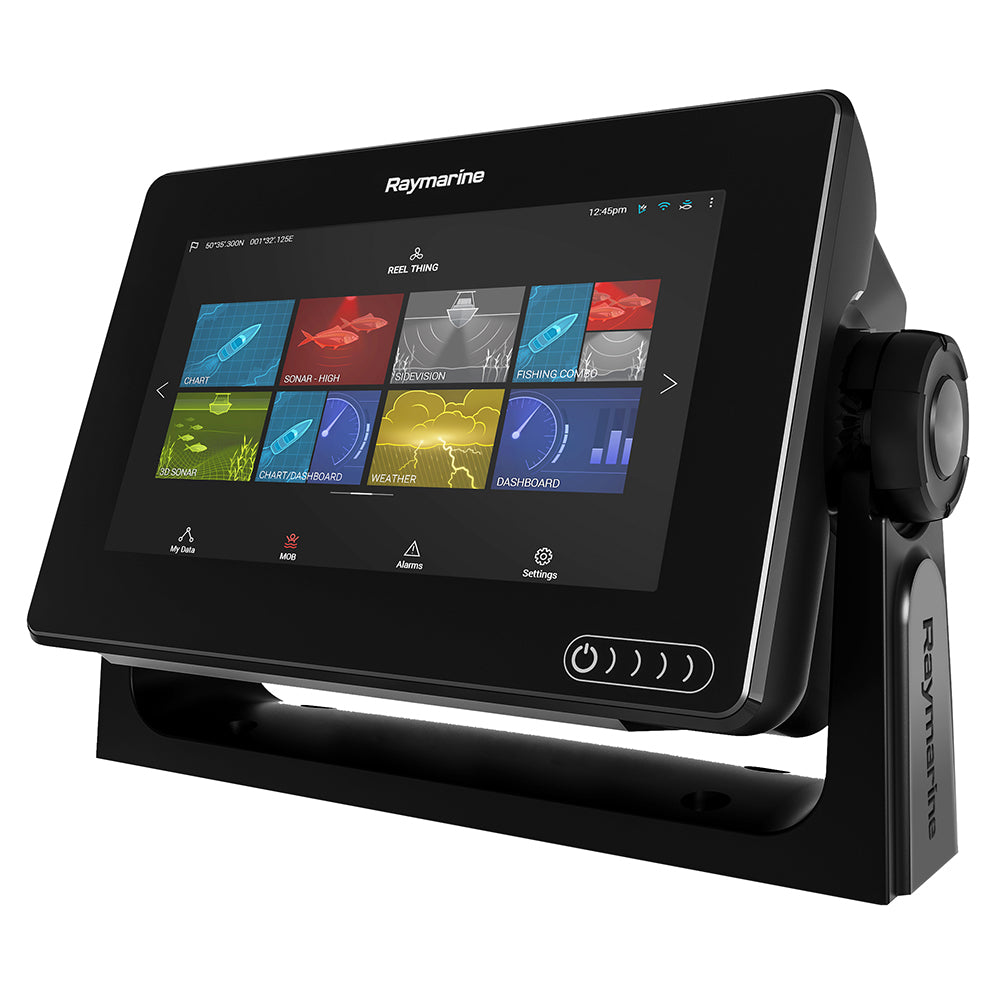

Raymarine Axiom™ 7 DV 7" Multifunction Display with CHIRP DownVision™, CPT-100 DVS Transducer & Navionics+ Charts
E70364-02-NAGE70364-02-NAG723193816844
Navigate with confidence using professional-grade marine electronics. The Raymarine Axiom™ 7 DV combines advanced chartplotting capabilities with dual-channel CHIRP DownVision™ sonar technology in a rugged 7" touchscreen display. Complete with CPT-100 DVS transducer and Navionics+ charts covering USA and coastal Canada.
Built-in 600W dual-channel CHIRP sonar with DownVision™ imaging provides crystal-clear bottom structure identification and superior fish targeting capabilities up to 900 feet deep.
?️ Premium Navionics+ Chart Coverage
Includes comprehensive Navionics+ charts for USA and coastal Canada, covering over 80,000 inland ponds, lakes, and rivers with detailed coastal navigation data.
? LightHouse 3 Operating System
Powered by quad-core processor and intuitive LightHouse 3 OS for lightning-fast performance, smooth operation, and easily customizable interface tailored to your navigation style.
Complete Technical Specifications
Display Technology
Screen Size
7.0" optically bonded LCD touchscreen
Resolution
800 x 480 WVGA pixels
Brightness
1,200 nits for excellent sunlight visibility
Viewing Angles
60°/70°/70°/70° (Top/Bottom/Left/Right)
Interface
Multi-touch with swipe-to-power control
Construction
Rugged all-glass display, buttonless design
Waterproof Rating
IPX6/IPX7 marine-grade protection
CHIRP Sonar Capabilities
Sonar Type
Dual-channel CHIRP with DownVision™ imaging
Transmit Power
600W integrated sonar module
Frequencies
CHIRP DownVision™ and traditional fishfinder
Maximum Depth
DownVision: 600ft | Traditional: 900ft
Beam Coverage
25° low frequency / 60° high frequency
Bottom Tracking
Advanced CHIRP technology for precise depth
Temperature Sensor
Built-in water temperature monitoring
Navigation and GPS
GPS Receiver
Built-in 72-channel GPS/GLONASS receiver
Update Rate
Fast 10Hz positioning for smooth tracking
Chart Support
Navionics+, LightHouse Vector/Raster charts
Waypoints
Unlimited waypoint storage and route planning
Chart Features
SonarChart Live bathymetric mapping capability
Coverage Area
USA, coastal Canada, 80,000+ inland waters
Physical Specifications
Dimensions
7.92" W x 5.24" H x 3.0" D (201 x 133 x 76mm)
Weight
3.35 lbs (1.52 kg)
Mounting Options
Flush, surface, front, or bracket mounting
Power Requirements
12V DC (8V to 16V DC operating range)
Operating Temperature
-13°F to 131°F (-25°C to +55°C)
Storage Temperature
-22°F to 158°F (-30°C to +70°C)
CPT-100 DVS Transducer Specifications
Installation Type
Transom mount with adjustable angle
Construction Material
Marine-grade urethane housing
Cable Length
33 feet (10 meters) with connector
Hull Compatibility
Fiberglass, wood, and metal hulls
Deadrise Range
0-90° transom deadrise angles
Max Depth Rating
DownVision: 600ft | Fishfinder: 900ft
Sensors
Depth and water temperature monitoring
Beam Pattern
Optimized for CHIRP DownVision imaging
Connectivity and Expansion Options
Wireless Connectivity
Built-in Wi-Fi for smartphone/tablet integration
Bluetooth connectivity for device pairing
Raymarine mobile app compatibility
Wireless chart syncing and waypoint sharing
Network Integration
RayNet Ethernet networking capability
NMEA 2000 marine network compatibility
Multiple display networking support
Engine data and instrument integration
Optional Accessories
Quantum CHIRP radar systems
FLIR thermal imaging cameras (M100/M200)
Evolution autopilot system integration
Marine audio system control (NMEA2000)
IP cameras and security systems
Complete System Package
Axiom™ 7 DV Multifunction Display - 7" touchscreen with LightHouse 3 OS
CPT-100 DVS Transom Mount Transducer - CHIRP DownVision compatible
Navionics+ Chart Bundle - USA and coastal Canada coverage
Surface Mount Kit - Complete bracket and hardware
Trunnion Mount Kit - Alternative mounting solution
Power/Data Cable - Marine-grade wiring harness
Installation Hardware - All mounting screws and brackets
Documentation Package - Installation guide and operation manual
Installation and Mounting Options
Versatile Mounting Solutions:
Flush Mount: Clean integration into helm panels
Surface Mount: Quick installation with included bracket
Front Mount: Dashboard installation option
Bracket Mount: Adjustable positioning capability
Professional Installation Recommended: While designed for straightforward installation, professional marine electronics installation ensures optimal performance and warranty compliance.
Frequently Asked Questions
What's the difference between traditional sonar and CHIRP DownVision?
Traditional sonar provides fish arches and bottom depth information. CHIRP DownVision creates photo-like images of underwater structure, showing rocks, vegetation, and fish in detail. The Axiom 7 DV includes both technologies for comprehensive underwater viewing.
Can I add radar to the Axiom 7 DV system?
Yes, the Axiom 7 DV is compatible with Raymarine's Quantum CHIRP radar systems. Connection is made via RayNet networking, and the display can show radar overlay on charts or dedicated radar screens.
What Navionics+ chart features are included?
Navionics+ charts include detailed bathymetric data, marina information, tide and current data, and over 80,000 inland lakes and rivers. You can also create custom depth contours using SonarChart Live feature with the built-in sonar.
How deep can the CPT-100 DVS transducer read?
The CPT-100 DVS transducer provides DownVision imaging to 600 feet and traditional fishfinder readings to 900 feet in optimal conditions. Actual performance varies based on water conditions, bottom composition, and boat speed.
Can I control the Axiom 7 DV from my smartphone?
Yes, built-in Wi-Fi allows connection to Raymarine mobile apps for remote viewing and control. You can also sync waypoints and charts between the display and Navionics mobile apps on your smartphone or tablet.
Warranty and Technical Support
Comprehensive Protection:
2-year limited manufacturer warranty
Global Raymarine service network support
Professional installation guidance available
Technical support and software updates
Marine-grade construction for harsh environments
Professional Navigation Technology You Can Trust
The Raymarine Axiom™ 7 DV represents decades of marine electronics expertise in a compact, feature-rich package. Whether you're navigating coastal waters, fishing inland lakes, or exploring new territories, this system provides the accuracy, reliability, and advanced sonar imaging capabilities that serious boaters demand.
Invest in proven marine technology. From weekend fishing adventures to extended cruising, the Axiom 7 DV delivers the performance and expandability to grow with your boating needs while maintaining the reliability that Raymarine is known for worldwide.
Raymarine
Raymarine
GPS - Fishfinder Combos
[product.price]USDIn StockNew
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Raymarine 7036402NAG Attributes
Maps: Navionics+ USA And Coastal Canada Charts
Display Size: 7 Inch
Display Type: WVGA 800 x 480 Pixels Resolution
Interface: Touchscreen Interface
Dimensions: 7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
Waterproof: IPX6/ IPX7 Waterproof
Sonar Compatibility: Built-In CHIRP
Raymarine 7036402NAG Features & Benefits
Axiom Chartplotter Displays Feature A Built-In GPS Receiver
Simple Touchscreen Operation
Fast Quad-Core Performance
Rugged All-Glass Display Optimized For Flush Or Surface Mounting
Sleek Buttonless Design With Swipe-To-Power Control
Blazing Fast Performance And Power
LightHouse Operating System Is Fast, Fluid And Easy To Learn Which Is An Uncluttered Interface Is Easily Personalized For Your Style Of Navigating
Wide Spectrum CHIRP Sonar: DownVision For Structure Identification And CHIRP Sonar For Fish Detection And Bottom Tracking
Features Navionics+ USA And Coastal Canada Chart And CPT-100 DVS Transducer
Axiom™ 7 DV 7" MFD with CHIRP DownVision™, CPT-100 DVS Transducer & Navionics+ Chart
The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 7 DV features a 7-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 7 DV has built-in dual channel CHIRP DownVision sonar for imaging bottom structure and fish. A deluxe CPT-100DVS transom mount CHIRP DownVision transducer is included.
Axiom 7 DV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
The Axiom 7 DV is bundled with Navionics+ Charts for North America with full coastal coverage for the USA and Canada, plus over 80,000 inland ponds, lakes and rivers. You can also make your HD contour maps with your depth sounder and Navionics SonarChart Live.
Axiom 7 DV also includes a CPT-100DVS transom mount transducer, surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions. Navionics+ Chart
Features:
Rugged, All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility
LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting- hands down!
Deluxe CPT-100 DVS Transom Mount Transducer Included for CHIRP DownVision and fish targeting
Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges
Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps
CPT-100DVS Transom Mount CHIRP DownVision™ Transducer
Installation: Transom Mount
Material: Urethane
Max Depth (Ft): DV=600 | FF=900
Frequency (KHz): CHIRP DownVision | CHIRP DownVision / Fishfinder
Beam Width (L/H)25°/60°
Records: Depth / Temperature
Approved Hull Material: Fibreglass / Wood / Metal
Cable Length (Ft/M):33'/10M
Deadrise: 0-90° Transom
Fast performance and powerful functions at your fingertips. Raymarine launched the powerful Axioma multi-function navigation system. Axiom 7 DV has a 7-inch diagonal, solid all-glass touch screen display, and is supported by the powerful Raymarines new LightHouse 3 operating system and supercharged quad-core processor. Built-in DownVision sonar: Axiom 7 DV has a built-in dual-channel CHIRP DownVision sonar for imaging the bottom structure and fish, including the CHIRP DownVision sensor installed on the back of the CPT-100DVS. Expanded network hub: Axiom 7 DV can be expanded, so it can expand functions as needed, and can support all Raymarine accessories, including quantum radar, CHIRP sonar, FLIR thermal imager, audio integration, instruments, cameras and Evolution autopilot; You can connect standard Wi-Fi and Bluetooth connectivity to the latest Raymarine app for tablets and smartphones. Applicable to North America, with full coastal coverage of the United States and Canada, and more than 80,000 inland ponds, lakes and rivers. Your depth sounder and Navionics SonarChart Live. The main functions of Axiom 7 DV's sturdy all-glass display are optimized for embedded or surface mounting. Lightweight 7.0-inch buttonless design, which can be controlled by sliding the power supply. Optical bonding can provide brighter colors, sharper contrast and visibility in sunlight. High visibility and 800 x 480 high resolution. WVGA LCD display, brightness adjustable to 1200 nits. View from multiple angles: 60/70/70/70 (top/bottom/left/right) New LightHouse 3 OS is fast, smooth and easy to learn. The simple interface is easy to customize according to your navigation style. Broad-spectrum CHIRP sonar can transmit the most realistic sonar image frequency on 60 different frequencies, as well as the best signal targeting fish! DownVision CPT-100DVS tail plate mount sensor, used for CHIRP DownVision and fish aiming. Fast 10Hz 72-channel GPS/GLONASS receiver for fast positioning and heading updates, and smoothly displayed on the screen to support the best charts from Navionics and LightHouse Raster, as well as from leading map manufacturers such as NV Digital, Blue Latitude Vector illustration. Optional FLIR M100 and M200 compact marine thermal imaging cameras. Quantum CHIRP Radar Ready The excellent solid-state CHIRP radar will not degrade performance at long and very short distances. Marine audio controls can increase the volume and control NMEA2000 compatible marine audio systems, such as Rockford Fosgate. Prepare for network connection via Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand through Quantum, HD radar, IP cameras, engine meters, autopilots, instruments, etc. The built-in Wi-Fi allows you to stream and control Axiom directly from your smartphone or tablet. You can also synchronize Axioms waypoints, routes and charts with the Navionics mobile app. Customizable installation methods, simple installation options for top, embedded, front and bracket installation. Box axiom display content (included with Trunnion adapter) Trunnion bracket Trunnion knob x 2 Suncover Trunnion mounting panel mounting gasket for surface/embedded M5 x 58 x 4 M5 wing nut x 4 Document packaging power supply/NMEA 2000 cable (with 1.5 m (4.92 ft) power cord and 0.5 m (1.64 ft) NMEA 2000 cable) DownVision CPT-100DVS sensor and related accessories
