Raymarine Transom Mount Mounting Bracket f/CPT-60
Raymarine Transom Mount Mounting Bracket f/CPT-60 — Product description
Secure Your Sonar Setup with the Raymarine Transom Mount Bracket
Installing a transom-mount transducer like the CPT-60 requires a reliable foundation that handles the rigors of open water. This dedicated bracket provides that stability, keeping your sonar readings clear and consistent even in choppy conditions. Crafted for boaters who demand precision, it positions the transducer at the ideal angle to capture accurate depth, fish arches, and bottom contours without interference from hull turbulence.
Whether you're chasing trophy fish offshore or navigating shallow bays, this bracket eliminates common mounting headaches like vibration-induced signal loss or misalignment from rough seas. It's the unsung hero that ensures your Raymarine electronics perform at their peak.
Standout Features for Reliable Performance
- Durable Construction: Built to resist corrosion from saltwater exposure and UV degradation, standing up to years of marine abuse.
- Precision Fit: Engineered exclusively for the CPT-60, ensuring a snug, wobble-free installation that maintains optimal transducer orientation.
- Easy Angle Adjustment: Adjustable deadrise compensation lets you fine-tune the mount to match your hull's shape, maximizing sonar beam coverage.
- Low-Profile Design: Minimizes drag while providing robust support, helping preserve your boat's speed and fuel efficiency.
- Universal Bolt Pattern: Compatible with standard transom hardware, simplifying retrofits on most fiberglass or aluminum hulls.
Perfect Match for Your Raymarine Ecosystem
This bracket pairs seamlessly with the CPT-60 CHIRP transducer, enhancing systems like Axiom chartplotters and Element fishfinders. It's ideal for vessels from center consoles to sportfishers, where transom space is premium but performance can't be compromised. Boaters upgrading from flush-mount setups appreciate how it unlocks the full potential of down-facing sonar without drilling extra holes.
Step-by-Step Installation for Quick Setup
Getting this bracket on your transom takes under an hour with basic tools. Here's a proven approach based on real-world installs:
- Clean the transom surface thoroughly, removing marine growth or old adhesive for maximum adhesion.
- Position the bracket parallel to the waterline, using a level to account for your boat's deadrise angle.
- Mark and drill pilot holes, then secure with stainless steel bolts—avoid over-tightening to prevent cracking.
- Attach the CPT-60 transducer, adjusting the angle until the sonar beam points straight down (test in calm water).
- Route cables neatly with zip ties, sealing entries with marine sealant to block water ingress.
Pro tip: Mount it 1/3 from the transom center to avoid prop wash interference, ensuring cleaner readings at trolling speeds.
Why This Bracket Elevates Your Boating Experience
Beyond holding things in place, it delivers tangible gains. Expect sharper fish targets thanks to stable transducer positioning, fewer false bottom readings from flexing mounts, and peace of mind knowing your setup won't fail mid-trip. Anglers report spotting structure and bait balls they previously missed, turning good days into limits. For tournament pros, that edge in depth accuracy can mean the difference between first and finishing back in the pack.
Long-Lasting Care Tips
Keep it performing like new with simple habits:
- Rinse with fresh water after every saltwater outing to flush away salt crystals.
- Inspect bolts and brackets seasonally for looseness or wear, torquing as needed.
- Apply marine grease to pivot points annually to prevent seizing from electrolysis.
- Avoid trailering impacts by securing the outboard fully before launch.
Frequently Asked Questions
Is this bracket compatible with all CPT-60 transducers?
Yes, it's specifically designed for the Raymarine CPT-60 series, ensuring a perfect fit without modifications.
Can I use this on aluminum boats?
Absolutely. The corrosion-resistant materials work great on aluminum hulls—just use anti-seize on fasteners to prevent galvanic corrosion.
Does it adjust for different hull deadrise angles?
Yes, the adjustable design accommodates deadrise angles up to 20 degrees, common on most planing hulls.
Will mounting this affect my boat's speed?
No, its streamlined profile adds negligible drag, preserving top-end performance even at high speeds.
How do I know if it's installed correctly?
Test in shallow water: look for a crisp zero-depth reading at idle and consistent bottom tracking as you plane off.
Is professional installation required?
Not at all—DIY-friendly with standard tools, though a marine tech can speed it up if you're short on time.
What if my transom has limited space?
Its compact footprint fits tight spots near outboards or trim tabs without crowding other gear.
Raymarine's mounting bracket specifically for CPT-60.

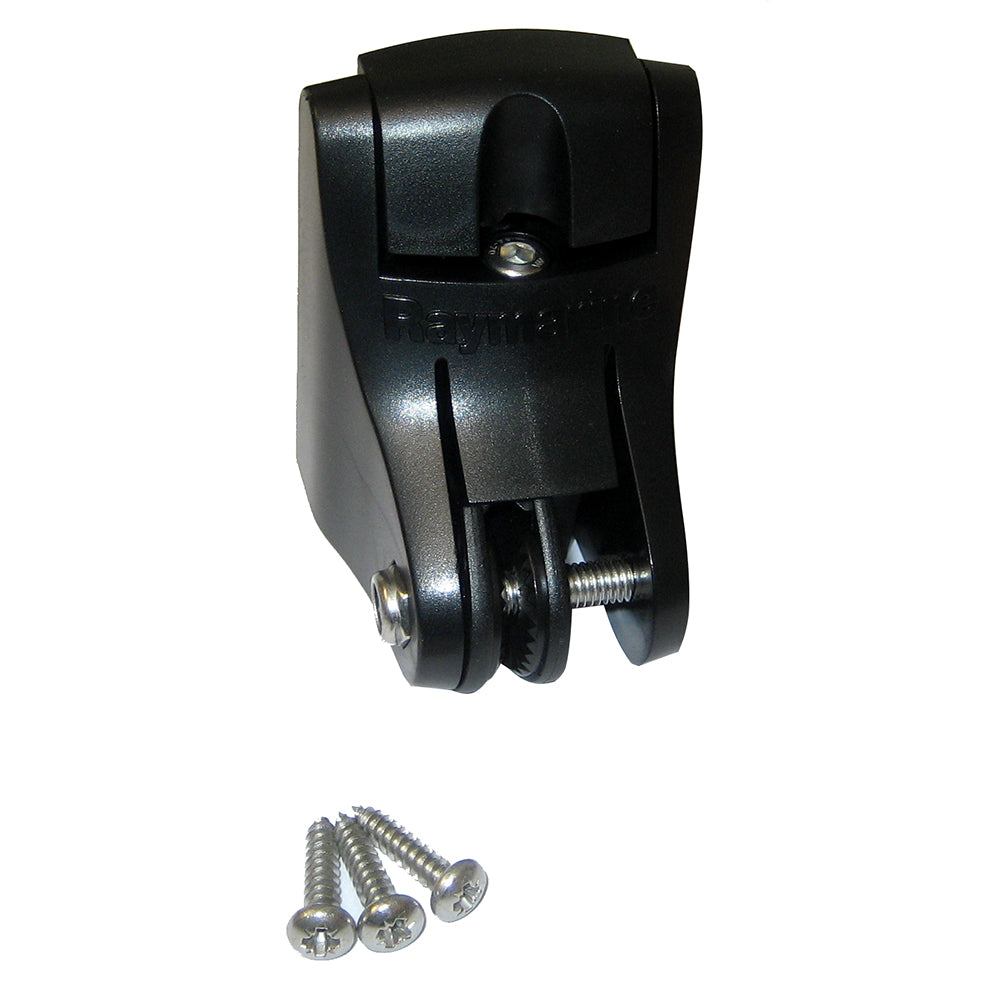

"RaymarineThis Raymarine Transom-Mount Bracket lets you conveniently mount a CPT-60 Dragonfly transducer on the transom of your vessel. All necessary mounting hardware is included."
SKU: NVN-61575
MPN: R70257
UPC: 723193785553
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Transom Mount Mounting Bracket f/CPT-60 |
| SKU / MFR# | 61575 |
