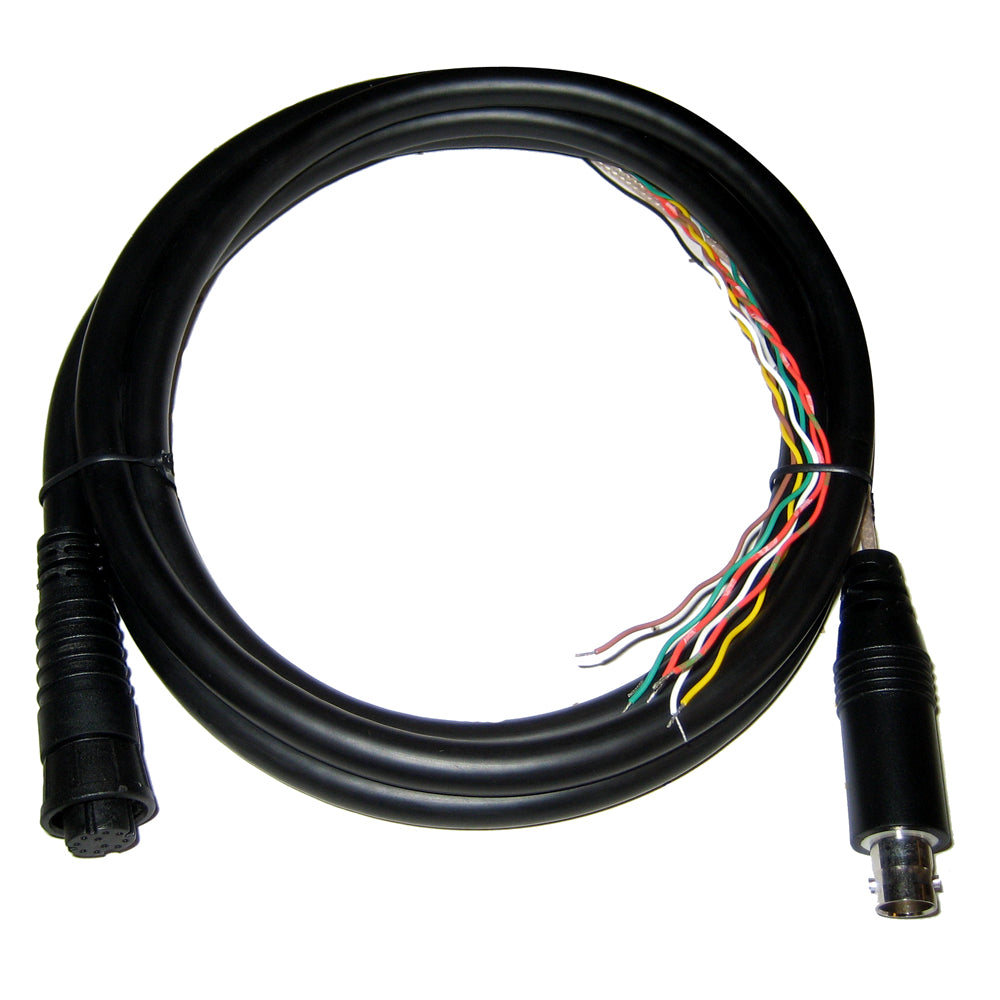

Raymarine Video In/NMEA 0183 Cable f/es7 Series
Raymarine Video In/NMEA 0183 Cable f/es7 Series — Product description
Unlock the full potential of your Raymarine es7 multifunction display with this dedicated Video In/NMEA 0183 cable. Designed exclusively for the compact yet powerful 7-inch es7 series, this accessory cable bridges the gap between your chartplotter and external video sources or legacy NMEA 0183 devices, delivering reliable marine-grade performance on the water.
Seamless Connectivity for Everyday Boating Adventures
Whether you're monitoring a stern camera for docking precision, integrating an engine camera feed, or pulling in data from older autopilot systems and instruments, this cable simplifies it all. The es7's touchscreen interface shines brighter when fed real-time video and navigational data—no adapters or workarounds needed. Mariners appreciate how it maintains the clean, clutter-free setup of Raymarine's ecosystem, keeping your helm organized even during rough seas.
Key Features That Stand Out on the Water
- Direct Video Input: Composite video (CVBS) support lets you overlay camera feeds directly on your es7 screen, perfect for engine rooms, bait wells, or underwater views.
- NMEA 0183 Integration: Bi-directional data lines for talkers and listeners, ensuring compatibility with classic marine sensors like wind gauges, depth sounders, and GPS receivers.
- es7-Specific Design: Plugs straight into the unit's proprietary connector, avoiding compatibility headaches with generic cables.
- Rugged Build: Tinned copper conductors and UV-stabilized jackets resist corrosion, saltwater spray, and constant vibration—built to thrive in harsh marine environments.
- Compact and Flexible: Slim profile routes easily through tight console spaces without kinking.
Why This Cable Elevates Your es7 Setup
Generic cables often fall short in marine applications, leading to signal loss or intermittent connections that distract during critical moments. This Raymarine original ensures pixel-perfect video and stable data flow, enhancing situational awareness. Imagine docking in low light with a clear aft camera view overlaid on charts, or cross-checking NMEA data from your chain counter without switching screens. It's these practical integrations that turn a good display into an indispensable tool.
Pro tip from seasoned installers: Pair it with a Raymarine quantum radar or forward-facing sonar for a holistic command center. The cable's low-latency video path keeps everything responsive, even in split-screen mode.
Effortless Installation for DIY Boaters
Getting up and running takes minutes:
- Power off your es7 and locate the accessory port on the rear.
- Securely connect one end of the cable to the es7.
- Route the other end to your video source (e.g., camera RCA) or NMEA device (using the labeled TX/RX wires).
- Configure inputs via the es7 menu—video appears under "Inputs," NMEA under "Data Sources."
- Test in calm conditions before heading out.
Need to troubleshoot? Check for proper grounding first; marine electronics love a solid earth connection to avoid noise.
Real-World Applications Across Vessel Types
- Fishing Boats: Live baitwell cams help spot lively lures.
- Cruisers: Stern thruster cams for effortless maneuvers.
- Racers: NMEA feeds from polar tables for tactical edges.
- Tenders: Compact video for trailering safety.
This cable isn't just wiring—it's the backbone of a smarter, safer voyage.
Frequently Asked Questions
What devices does this cable connect to the es7?
It supports composite video cameras (RCA) for live feeds and NMEA 0183 instruments like GPS, depth finders, and autopilots via dedicated data wires.
Is this cable compatible with other Raymarine displays?
No, it's engineered specifically for the es7 series connector. For eS or Axiom models, use their respective cables to ensure a perfect fit.
How long is the cable?
It's a practical length suited for most helm installations, offering enough reach without excess slack that could snag.
Does it support waterproof connections?
The cable itself is marine-rated for exposure, but always use sealed glands or IP67 connectors at endpoints for submersion protection.
Can I use it for NMEA 2000?
This handles NMEA 0183 only. For N2K networks, opt for Raymarine's dedicated adapters or STNG cables.
Will video quality be affected by cable length?
Optimized for standard runs; for longer distances, active baluns can maintain clarity without degradation.
How do I configure NMEA data on the es7?
Access Settings > Data Sources, select the port, and assign sentences like GGA for GPS—automatic baud detection simplifies setup.
In/NMEA 0183 accessory cable specifically for Raymarine es7 Series.
Raymarine R70414 video input/NMEA0183 cable is specially designed for use with Raymarine es7 series equipment. This product is made of high-quality materials and can serve you...
SKU: NVN-58991
MPN: R70414
UPC: 723193796726
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Video In/NMEA 0183 Cable f/es7 Series |
| SKU / MFR# | 58991 |
Set product metafields under specs.* to populate this table.
