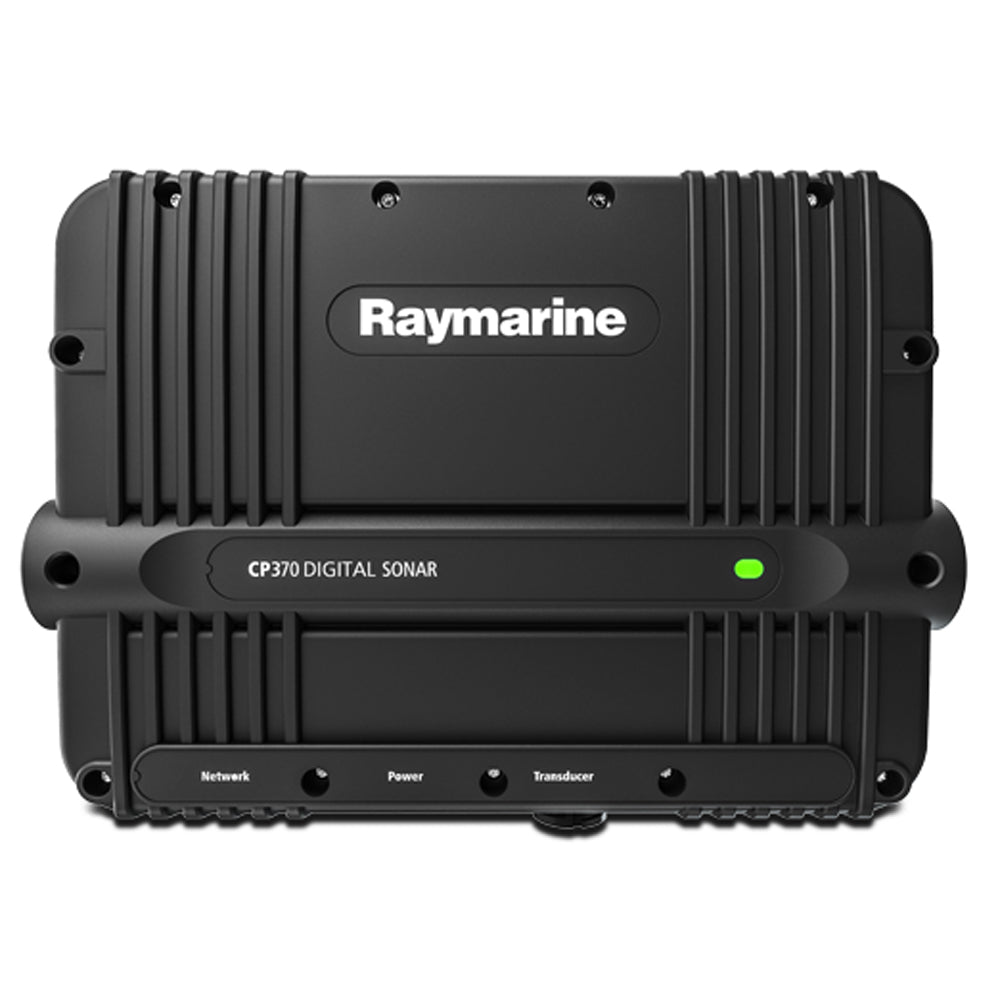

Raymarine CP370 Digital Sonar Module

High-Performance Digital Sonar Module for Professional Fishing

The Raymarine CP370 Digital Sonar Module delivers next-generation ClearPulse™ digital sonar processing for exceptional underwater clarity and superior fish detection. Engineered for serious offshore and coastal fishing applications, this advanced sonar module provides up to 1,000 watts of power with intelligent automatic operation that lets anglers focus on fishing, not adjusting settings.

Revolutionary ClearPulse™ Digital Processing

Advanced Signal Processing Technology

ClearPulse™ Technology: Next-generation digital sonar processing eliminates manual adjustments
Automatic Noise Filtering: Intelligent noise reduction in all water conditions
Auto Sensitivity Control: Optimal target detection without operator intervention
Enhanced Digital Filtering: Superior target separation through entire water column
Clutter-Free Display: Clear fish targets without interference from noise

Exceptional Target Clarity

Sharper Fish Targets: Enhanced target resolution for precise fish identification
Bait Fish Detection: Clear separation between bait schools and game fish
Target Intensity Control: Smart algorithms reveal fish with exceptional clarity
Full Water Column Coverage: Detect fish from surface to bottom

Dual-Frequency High-Power Performance

Versatile Frequency Operation

50 kHz Frequency: Deep water offshore fishing down to 5,000 feet (1,500m)
200 kHz Frequency: High-resolution inshore and coastal fishing
Dual Channel Operation: Simultaneous frequency operation for comprehensive coverage
Fixed Frequency Channels: Stable, interference-free operation

Powerful Transmitter Performance

600W/1000W Power: Output power depends on transducer selection
Deep Water Capability: Track seafloor to 5,000 feet depth
High-Speed Bottom Tracking: Reliable operation at planning speeds
Canyon Performance: Accurate tracking through depth transitions

Advanced Bottom Tracking Technology

Superior Bottom Detection

Enhanced Algorithms: Improved bottom tracking in challenging conditions
High-Speed Performance: Reliable tracking while running at speed
Canyon Capability: Consistent tracking through dramatic depth changes
Extreme Conditions: ClearPulse™ processing maintains bottom lock
Structure Definition: Clear bottom composition and structure detail

Professional Installation Features

Marine-Grade Construction

IPX6 Waterproof Rating: Complete protection against powerful water jets
Compact Design: 11.79"W x 7.9"D x 3.3"H fits tight spaces
12/24V DC Operation: Flexible voltage compatibility
30.6W Maximum Draw: Efficient power consumption

Network Integration

RayNet Connectivity: High-speed 10/100 Mbps Ethernet networking
Multi-Display Support: Share sonar data across multiple MFDs
System Integration: Works with all Raymarine display systems
Plug-and-Play Operation: Automatic detection by compatible displays

Extensive Display Compatibility

Universal Raymarine Integration

a-Series: Axiom and modern touchscreen displays
c-Series: Classic and widescreen chartplotters
e-Series: Classic and widescreen multifunction displays
gS-Series: Glass cockpit displays
Legacy Support: Compatible with older Raymarine systems

Advanced Sonar Features

Professional Fishing Tools

Standard Zoom: Magnify specific depth ranges for detail
Bottom Lock: Maintain constant bottom reference
Fish Symbols: Optional fish symbol interpretation
Depth Lines: Customizable depth reference markers
A-Scope: Traditional flasher-style display option

Technical Specifications

Sonar Performance

Sonar Type: Digital ClearPulse™ processing
Frequencies: Fixed 50 kHz and 200 kHz channels
Power Output: 600W/1000W (transducer dependent)
Maximum Depth: 5,000 feet (1,500 meters)
Recommended Use: Coastal and offshore fishing

Electrical Specifications

Input Voltage: 12/24V DC
Power Consumption: 30.6W maximum
Waterproof Rating: IPX6
Operating Temperature: Marine environmental range

Physical Specifications

Dimensions: 11.79"W x 7.9"D x 3.3"H
Weight: Compact marine construction
Mounting: Standard marine electronics mounting
Ventilation: Natural convection cooling

Connectivity

Network: RayNet connector (10/100 Mb/s Ethernet)
Power: DC power connection with 1.5m cable
Transducer: Standard Raymarine transducer connection

Complete Installation Package

Everything Included

CP370 Sonar Module: Main digital processing unit
1.5m Power Cable: DC power connection cable
2m RayNet Cable: Female-to-female network cable
Mounting Hardware: Four #8 screws for secure installation
Documentation Package: Installation and operation guides

Professional Applications

Commercial Fishing

Charter Boats: Reliable fish finding for paying customers
Commercial Vessels: Professional-grade sonar for commercial operations
Sport Fishing: Tournament-level fish detection capabilities
Deep Sea Fishing: Offshore capability to 5,000 feet depth

Recreational Applications

Serious Anglers: Professional-grade fish finding technology
Yacht Installation: High-end sonar for luxury vessels
Multi-Station Systems: Share sonar data throughout the boat

Why Choose the CP370?

Next-generation ClearPulse™ digital processing technology
Automatic operation eliminates manual sonar adjustments
Dual-frequency operation for versatile fishing applications
Up to 1,000W power for deep water performance
Enhanced bottom tracking in challenging conditions
Universal compatibility with all Raymarine displays
Professional marine construction and reliability
Complete installation package included

Important: Transducer Required

Transducer sold separately. Choose from Raymarine's range of 50/200 kHz transducers to match your installation requirements. Power output (600W or 1000W) depends on transducer selection.

Frequently Asked Questions

Does this sonar module include a transducer?

No, the CP370 is a sonar module only - transducer sold separately. You'll need to select a compatible Raymarine 50/200 kHz transducer based on your installation type (transom, through-hull, or in-hull) and power requirements.

What Raymarine displays are compatible with the CP370?

The CP370 is compatible with all major Raymarine display series including a-Series (Axiom), c-Series, e-Series, gS-Series, and many legacy systems. It connects via RayNet Ethernet for plug-and-play operation.

What's the difference between 600W and 1000W power output?

The power output depends on your transducer selection. Some transducers are rated for 600W while others can handle the full 1000W. Higher power provides better deep water performance and target separation.

How does ClearPulse technology improve fishing?

ClearPulse automatically manages sonar settings for optimal performance in all conditions. It provides automatic noise filtering, sensitivity control, and enhanced digital filtering, so you see clearer fish targets without constantly adjusting settings.

Can multiple displays share the CP370 sonar data?

Yes, the CP370 connects to the RayNet network, allowing multiple Raymarine displays throughout your boat to simultaneously display the same sonar data. This creates a comprehensive fishing system accessible from any station.

Technical Specifications

Sonar Performance

Technology: ClearPulse™ digital processing
Frequencies: 50 kHz / 200 kHz fixed
Power: 600W / 1000W (transducer dependent)
Maximum Depth: 5,000 feet (1,500m)
Channels: Dual frequency simultaneous

Electrical

Input Voltage: 12/24V DC
Power Consumption: 30.6W maximum
Waterproof: IPX6 rating
Operating Temp: Marine environmental range

Physical

Dimensions: 11.79"W x 7.9"D x 3.3"H
Construction: Marine-grade materials
Mounting: Standard electronics installation
Cooling: Natural convection

Connectivity

Network: RayNet Ethernet (10/100 Mbps)
Compatibility: All major Raymarine displays
Transducer: Standard Raymarine connection
Power Cable: 1.5m included

Features

ClearPulse™ automatic processing
Enhanced noise filtering
Auto sensitivity control
Improved bottom tracking
Standard zoom capability

Brand	Raymarine
Model	Raymarine CP370 Digital Sonar Module
SKU / MFR#	55525
