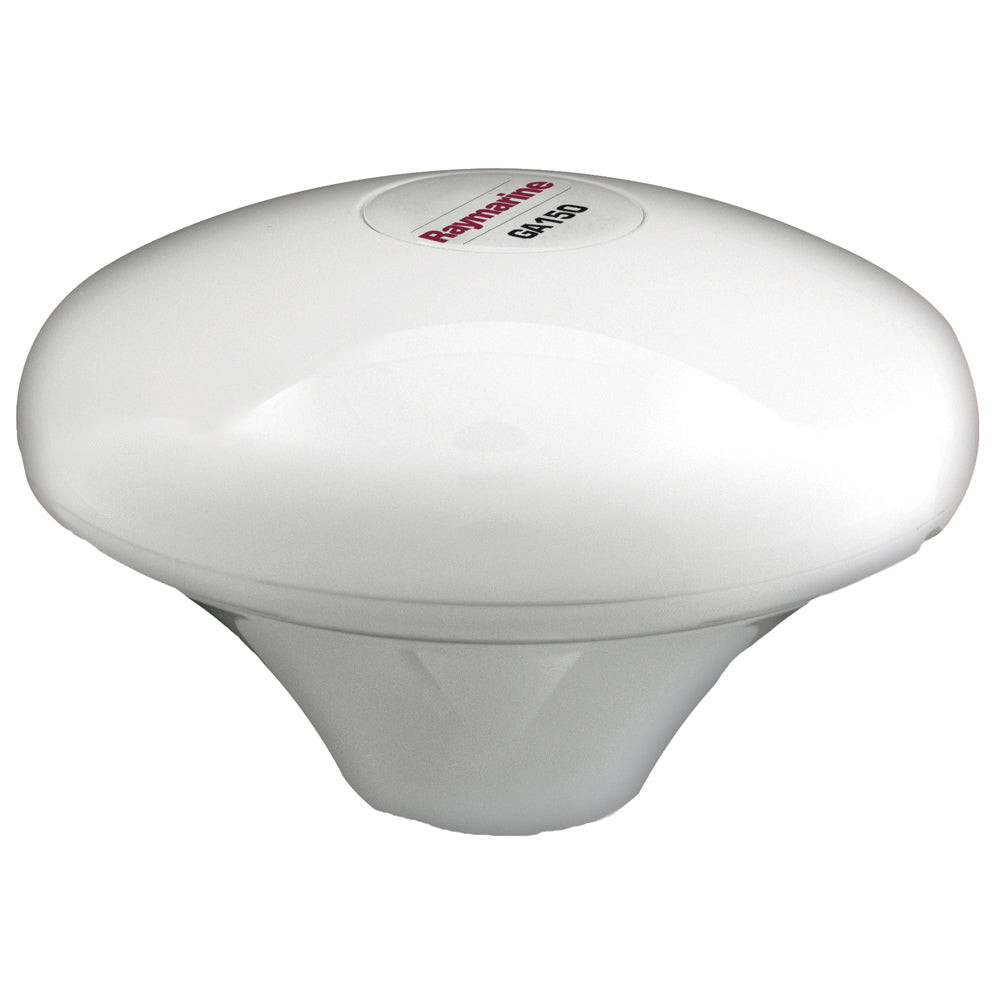

Raymarine GA150 GPS/FLONASS External Antenna f/a9 & a12 Series Only
Raymarine GA150 GPS/FLONASS External Antenna f/a9 & a12 Series Only — Product description
Enhance your boating navigation with the Raymarine GA150 external GPS/GLONASS antenna, a compact powerhouse designed specifically for a9 and a12 series multifunction displays. Whether you're mounting your chartplotter below decks, under a hardtop, or in any spot with obstructed sky views, this passive antenna captures strong satellite signals and relays them directly to your MFD's built-in receiver. No need for complex active GPS units—just plug and play for reliable positioning even in the toughest marine conditions.
Why Choose the GA150 for Superior Signal Reception?
Modern multifunction displays rely on precise GNSS data for charting, autopilot integration, and fishfinding. But internal antennas often struggle in enclosed spaces. The GA150 solves this by acting as a remote signal booster. Its high-sensitivity patch design pulls in GPS and GLONASS signals from multiple satellites, ensuring faster fixes and fewer dropouts. Boaters report lock-on times dropping from minutes to seconds after installation, keeping you on course during coastal cruises or offshore adventures.
Built to Raymarine's legendary standards, it thrives in saltwater spray, pounding waves, and extreme weather. The rugged housing withstands impacts and corrosion, while seals prevent water ingress—proven in real-world tests from the tropics to the Arctic.
Versatile Mounting Options for Any Vessel
Adapt to your boat's layout with ease. Flush-mount it on a horizontal deck or rail using the included gasket and hardware for a low-profile look. Or elevate it with the pole mount adapter for unobstructed views above superstructures. At just 95mm across and 30mm tall (62mm with adapter), it blends seamlessly without adding windage or cluttering your deck.
Seamless Integration with Your Raymarine Ecosystem
This antenna pairs exclusively with select LightHouse-powered MFDs, channeling signals via a pre-fitted 10-meter cable with a secure TNC connector. Simply attach to the dedicated port on the back of your display—no extra power or configuration needed. Your MFD's internal GNSS stays active, combining external boost with onboard processing for optimal performance.
Confirmed compatibility includes:
- aSeries: a95, a97, a98, a125, a127, a128
- eS Series: eS97, eS98, eS127, eS128
Pro tip: Position the antenna as high and clear as possible, away from metal masts or engines, to maximize satellite acquisition in crowded marinas or under bimini tops.
Key Specifications at a Glance
| Specification | Details |
|---|---|
| Dimensions | Diameter: 95 mm (3.7 in.); Height: 30 mm (1.2 in.); Height with pole adapter: 62 mm (2.5 in.) |
| Operating Temperature | 0°C to +55°C (+32°F to +131°F) |
| Storage Temperature | -30°C to +70°C (-22°F to +158°F) |
| Relative Humidity | Up to 95% |
| Waterproof Rating | IPX6 and IPX7 |
Everything You Need for Quick Setup
- GA150 antenna with 10m (33 ft.) cable
- Mounting gasket for secure seal
- Pole mount adapter
- Thumb nuts, studs, and screws
- Documentation pack
Installation is straightforward: Clean the surface, apply the gasket, secure with hardware, and route the cable neatly through existing conduits. Most skippers complete it in under an hour, no special tools required.
Real Boater Benefits Beyond Specs
Skip the frustration of 'no fix' errors mid-voyage. Pair it with Raymarine radars or sonar for a full nav suite that performs when it counts. Its longevity means fewer replacements, saving time and hassle on the water. Trusted by serious anglers, racers, and cruisers worldwide for over eight decades of Raymarine innovation.
For more than 80 years, we‘ve been global leaders in high performance marine electronics for the recreational boating and light commercial marine markets. We continue to innovate and provide full electronic systems to boaters around the world. Our products are engineered for the tough marine environment and renowned for ease-of-use, rugged design and reliability. Our full range features chartplotters, fishfinders, radars, marine instruments, marine cameras, AIS units and VHF radios.
Raymarine A80288 Attributes
Raymarine A80288 Features & Benefits
- High-Performance Products Proven In The Harshest Of Environments
- Built To Last Longer Life
- Rugged Design And Reliability
- Easy To Install
- Limited 2 Year Warranty
Raymarine A80288 Installation Instructions
Raymarine A80288 Warranties
Raymarine A80288 Technical Bulletins
GA150 GPS/FLONASS External Antenna f/a9 & a12 Series Only
Raymarine's GA150 external antenna for the a9 and a12 multifunction displays enables the use of the MFD's internal GPS/GLONASS receiver in challenging, below-decks installations. The GA150 connects directly to the external antenna connection on the rear of a9 and a12 displays and passes the satellite signals to the MFD's internal receiver. The ultra-compact GA150 can be pole mounted using the included pole mounting kit, or surface mounted to any horizontal surface using the included surface mounting kit. The antenna has a 10-meter cable with TNC connector and works exclusively with the a9 and a12 systems.
Features:
- Ideal for internal installations
- Great for challenging below-deck applications
The ga150 is directly connected to the external antenna connection on the back of the a9 and a12 displays, and transmits the satellite signal to the mfds internal receiver. ultra...
SKU: NVN-53141
MPN: A80288
UPC: 723193788219
Technical specifications
| Brand | Raymarine |
| Model | Raymarine GA150 GPS/FLONASS External Antenna f/a9 & a12 Series Only |
| SKU / MFR# | 53141 |
