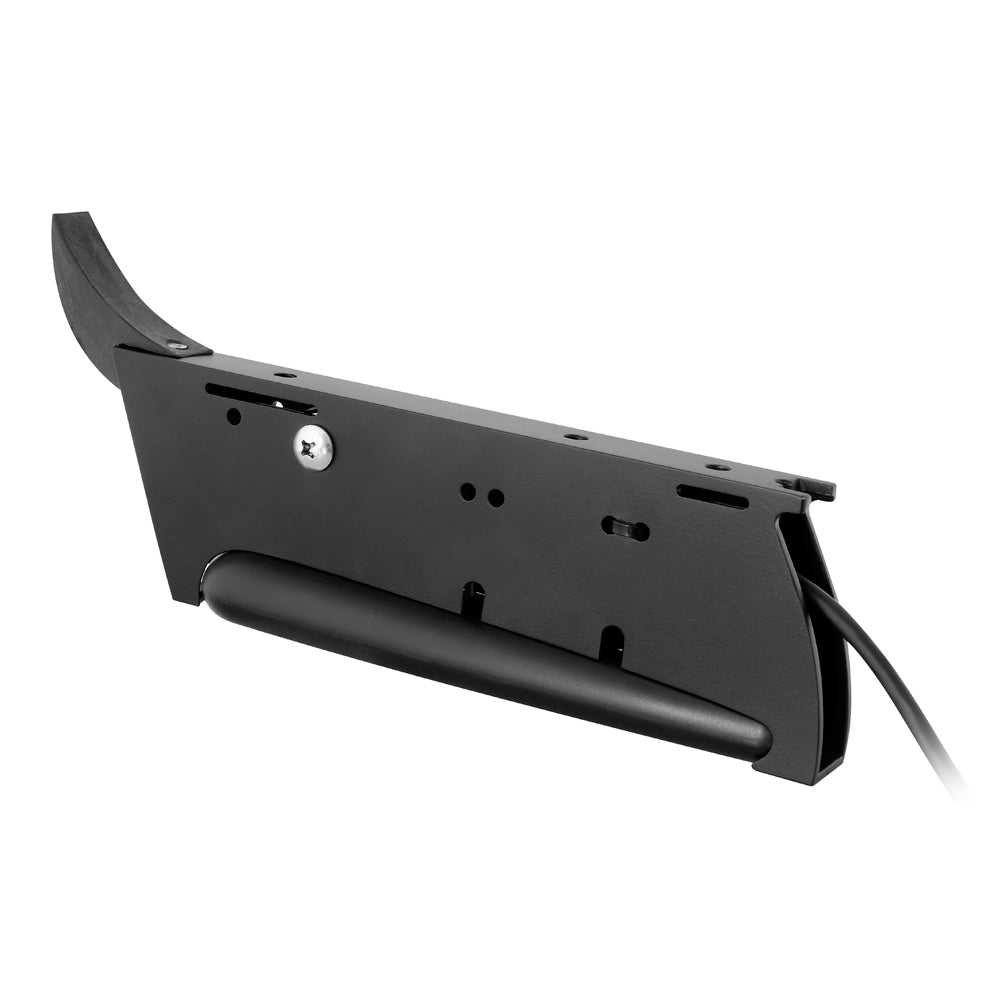

Raymarine Trolling Motor Bracket f/Dragonfly
Raymarine Trolling Motor Bracket f/Dragonfly — Product description
Upgrade your fishing setup with the Raymarine Trolling Motor Bracket designed exclusively for Dragonfly transducers. Anglers who rely on precise sonar readings while maneuvering through shallow waters or weed beds know the challenge of keeping a transducer stable. This bracket solves that by providing a secure, low-profile mount directly on your trolling motor shaft, ensuring consistent depth and fish-finding performance without dragging or interference from the prop wash.
Why This Bracket Elevates Your Dragonfly Experience
Crafted from high-strength marine-grade materials, the bracket withstands the rigors of saltwater exposure, rough handling, and constant vibration from motor operation. Unlike generic mounts that wobble or fail under pressure, this purpose-built accessory locks the Dragonfly transducer in place for crystal-clear CHIRP sonar images and reliable GPS tracking. It's the go-to solution for kayak anglers, bass boat enthusiasts, or anyone chasing walleye in tight spots.
- Perfect Fit: Engineered specifically for Dragonfly series transducers, eliminating guesswork and ensuring optimal transducer angle for maximum coverage.
- Vibration-Resistant: Tighten-down clamps and reinforced arms minimize movement, delivering steady data even at trolling speeds up to 5 mph.
- Quick-Release Design: Easily detach the transducer for trailering or storage, protecting your gear from theft or damage.
- Universal Trolling Motor Compatibility: Works seamlessly with popular models like Minn Kota, MotorGuide, and Haswing, adapting to various shaft diameters.
Installation Tips for Seamless Setup
Getting this bracket on your rig takes minutes with basic tools. Start by positioning the transducer at a 20-degree downward angle for best forward-facing sonar. Secure the bracket's base clamp around the motor shaft using the included hardware—aim for 1/4-turn past snug to avoid slippage. Route the transducer cable along the shaft with zip ties, keeping it clear of moving parts. Pro tip: Test in shallow water first to fine-tune the angle, preventing air bubbles that can ghost your screen.
Many users report a game-changing improvement in live sonar tracking, spotting suspended crappie or structure changes in real-time without the transducer flipping in choppy conditions. It's not just a mount; it's an extension of your Dragonfly's capabilities, helping you cover more water confidently.
Real-World Applications for Serious Anglers
Whether you're sight-fishing for reds in skinny water or dialing in patterns on deep structure, this bracket keeps your transducer submerged and scanning effectively. Tournament pros appreciate its no-fuss reliability during high-stakes events, while casual weekend warriors love how it simplifies spot-lock sessions. Pair it with forward-facing sonar features on newer Dragonfly models for hyper-accurate bait tracking and jigging presentations.
Frequently Asked Questions
Is the Raymarine Trolling Motor Bracket compatible with all Dragonfly transducers?
Yes, it's custom-designed for Raymarine Dragonfly transducers across the series, ensuring a precise fit for models with standard thru-hull or transom mounts adapted for trolling motors.
What size trolling motor shafts does this bracket fit?
It accommodates most common shaft diameters from 1 to 2 inches, making it versatile for bow-mount trolling motors like those on bass boats or jon boats.
How do I prevent cable interference during installation?
Secure the transducer cable along the motor shaft with marine-grade zip ties, avoiding tight loops near the prop or pivot points to prevent wear or snags.
Can this bracket handle rough water conditions?
Absolutely—its reinforced construction and secure clamping system resist vibration and impacts, maintaining transducer stability in chop up to 2 feet.
Is the bracket easy to remove for storage?
Yes, the quick-release mechanism allows tool-free removal of the transducer, while the bracket stays on the motor if preferred, streamlining transport.
Does it affect sonar performance when the motor is tilted?
The design accounts for common tilt angles, keeping the transducer face parallel to the water bottom for accurate readings even when stowed.
What materials make this bracket corrosion-resistant?
It's constructed from powder-coated aluminum and stainless steel components, ideal for both freshwater and saltwater environments.
Raymarine's Trolling Motor Bracket is made specifically for Raymarine's Dragonfly Transducer.
The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. It will meet your needs...
SKU: NVN-49600
MPN: A80207
UPC: 723193767962
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Trolling Motor Bracket f/Dragonfly |
| SKU / MFR# | 49600 |
