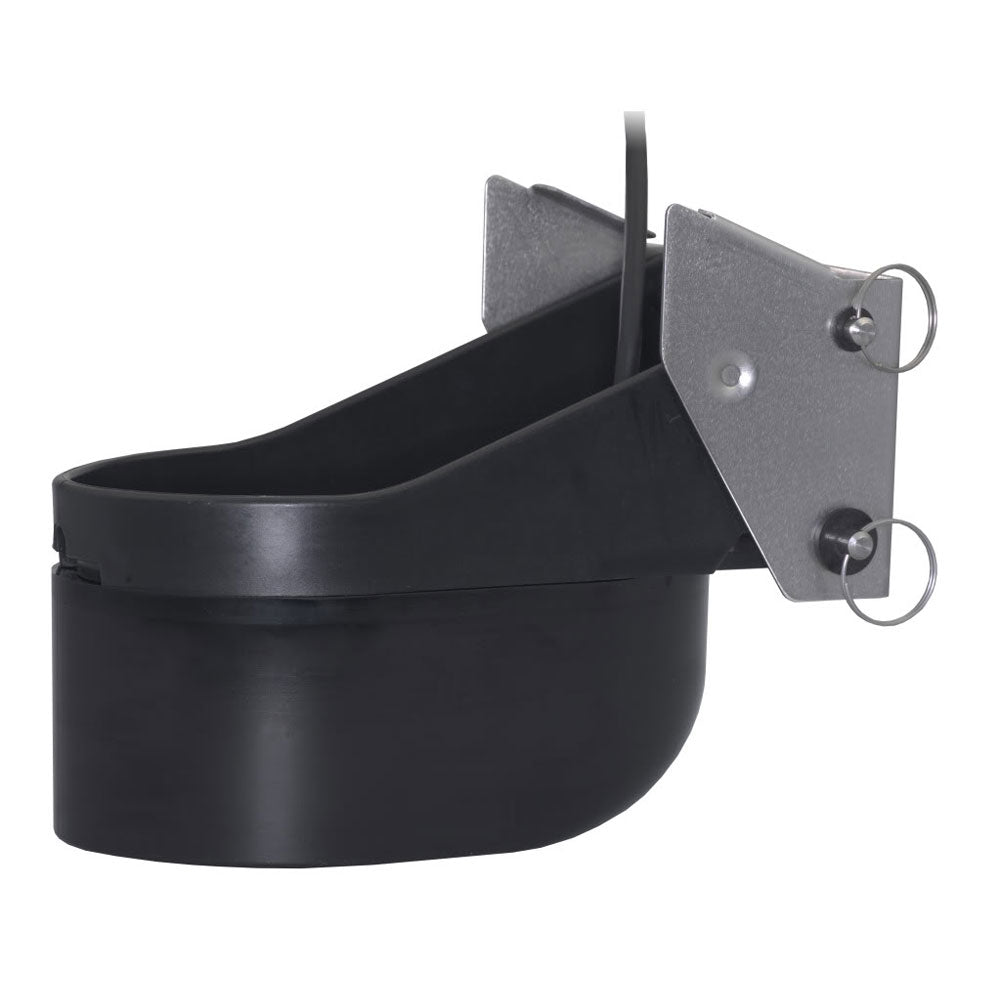

Raymarine TM265LH Transom Mount 1kw Chirp Transducer

Unlock Superior Fishfinding with CHIRP Innovation

Imagine slicing through murky waters with crystal-clear images of fish schools, underwater structures, and the seabed—regardless of depth. The TM265LH transom mount transducer elevates your marine electronics setup by harnessing advanced CHIRP technology. Unlike traditional fixed-frequency sonar, CHIRP sweeps across a broad spectrum of frequencies, delivering exceptional target separation and detail. This means distinguishing between individual fish in a bait ball or spotting subtle bottom contours that hold trophy catches.

With its dual Low/High (LH) configuration, it excels in versatile scenarios. The low-frequency band punches through to depths exceeding 3,000 feet for offshore pursuits, while the high-frequency option sharpens resolution for inshore structure fishing. Anglers and navigators rave about its reliability in choppy conditions, where conventional transducers might falter.

Key Technical Edge for Real-World Performance

Crafted for durability, this 1kW powerhouse features eight internal ceramics that amplify signal strength and clarity. Beam widths adapt dynamically: wider for broad searches at lower frequencies (25° to 16°) and narrower for pinpoint accuracy at higher ones (10° to 6°). It handles deadrise angles up to 25°, making it a fit for most hull designs.

• Frequency Sweep: 42-65 kHz (Low) for deep penetration; 130-210 kHz (High) for shallow precision.
• Depth Ratings: Up to 3,000 feet low-freq / 1,000 feet high-freq—ideal for everything from coastal reefs to bluewater canyons.
• Cable: 33 feet of rugged cabling ensures flexible routing without signal loss.
• Housing: Tough urethane build resists impacts and marine growth.

Pro tip: Pair it with compatible chartplotters for temperature readings alongside sonar, giving you a complete environmental snapshot.

Effortless Transom Installation for Weekend Warriors

Mounting is straightforward for DIY enthusiasts. Position it 1/3 from the transom's stern edge, slightly off-center to avoid prop wash interference. Ensure the transducer sits flush or slightly below the hull deadrise for optimal water flow. Drill sparingly—use stainless hardware for corrosion resistance. In under an hour, you'll have it wired and scanning.

1. Clean and sand the transom surface for secure adhesion.
2. Mark and drill holes, applying marine sealant around fasteners.
3. Route the cable inside the hull, securing with zip ties away from electrical noise.
4. Test at idle speeds to fine-tune vertical trim.

Common pitfall: Avoid air pockets by keeping the face wet during operation. This setup shines on planing hulls under 40 feet.

Versatile Applications Across Fishing Styles

Offshore captains use the low CHIRP for tuna runs, detecting marks at 2,000+ feet. Inshore, switch to high for jigging over wrecks or tracking schooling snapper. Its rugged design withstands trailering and rough seas, while the integrated temp sensor aids in locating thermoclines where bait—and predators—gather.

For tournament anglers, the target separation turns chaotic returns into actionable intel, boosting hook-up ratios. Even recreational boaters appreciate the clutter-free images that reveal baitfish layers and bait-stealing bait thieves.

Long-Term Reliability and Care

Built to last, this transducer shrugs off UV exposure and saltwater corrosion. Routine maintenance keeps it peaking: Rinse after every use, inspect the face for marine fouling, and store dry during off-seasons. A quick freshwater flush prevents crystal buildup in the ceramics.

Users report years of trouble-free service, even in high-use commercial ops. Backed by solid manufacturer support, it's a smart investment for serious mariners.
