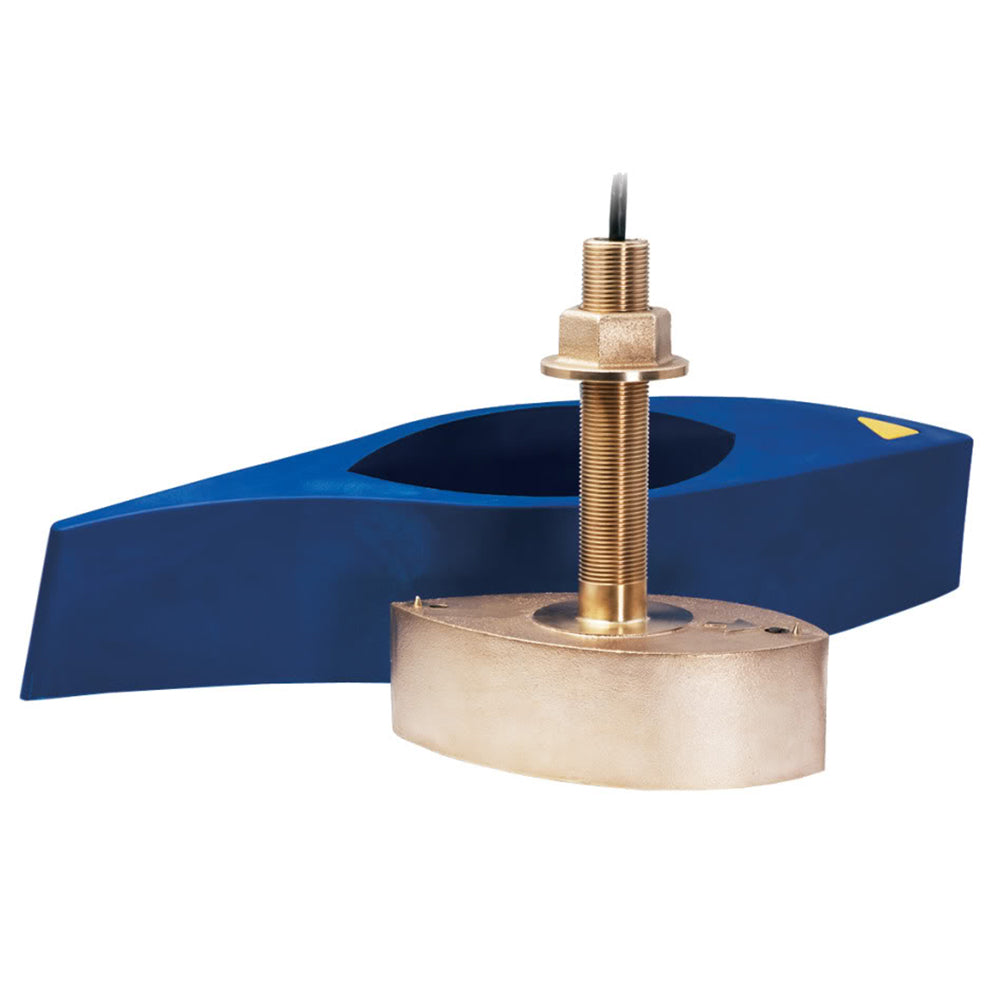

Raymarine B260 Bronze Broadband Ultra-High Performance Thru-Hull Transducer with Fairing
Professional 1000W Dual Frequency Transducer for Deep Water & Structure Fishing
Achieve unmatched sonar performance with the Raymarine B260 Bronze Broadband Transducer – the ultimate deep-water fishing solution designed for serious anglers targeting structure and bottom-holding fish. This ultra-high performance thru-hull transducer delivers exceptional sensitivity and crystal-clear resolution where it matters most.
Engineered specifically for bottom fishing applications, the B260 combines advanced broadband technology with dual-frequency capabilities to provide superior fish detection in challenging deep-water environments. Whether you're targeting grouper on offshore ledges, snapper around structure, or bottom fish in depths exceeding 1000 feet, this transducer delivers the precision and clarity professional anglers demand.
Broadband Technology Advantage
Reduced Ringing Technology
Advanced broadband design significantly reduces transducer "ringing" at 200kHz, delivering cleaner sonar returns and superior fish-to-bottom separation for precise structure fishing.
8-Element Ceramic Array
Eight internal ceramic elements provide exceptional deep-water sensitivity, ensuring reliable fish detection in depths up to 2,500 feet at low frequency.
Dual Frequency Optimization
Precision-tuned 200kHz narrow beam for detailed bottom structure and 50kHz wide beam for deep blue-water coverage, optimized for different fishing scenarios.
Technical Specifications
Frequency & Power
- Max Power: 1000 Watts
- Frequencies: 50kHz / 200kHz dual frequency
- Beam Angles: 200kHz: 6°, 50kHz: 19°
- Elements: 8-element ceramic array
Depth Performance
- Maximum Depth (200kHz): 1,000 feet for detailed structure resolution
- Maximum Depth (50kHz): 2,500 feet for deep blue-water applications
- Temperature Sensor: Integrated for water temperature monitoring
- Hull Deadrise: 0° to 20° compatible
Installation Specifications
- Mounting Type: Thru-hull bronze construction with 1" shaft
- Hull Compatibility: Fiberglass and wood hulls
- Cable Length: 30 feet with 8-pin connector
- Fairing Block: High-speed fairing included for reduced turbulence
Superior Fishing Performance
Bottom Structure Resolution
The narrow 6° beam at 200kHz provides exceptional resolution for identifying bottom composition, structure details, and fish holding tight to cover. Low ringing technology ensures clear fish-to-bottom separation.
Deep Water Sensitivity
Seven-element 50kHz array with wide 19° beam coverage excels in deep blue-water fishing applications, providing reliable fish detection in extreme depths.
Structure Fishing Optimization
Designed specifically for finding fish holding tight to bottom structure, reefs, wrecks, and ledges where traditional transducers struggle with clarity.
Temperature Monitoring
Integrated temperature sensor provides critical water temperature data for identifying thermoclines and optimal fishing conditions.
Echo Sounder Compatibility
Engineered for seamless integration with Raymarine's professional fishfinder systems:
DSM Series
- DSM250 Digital Sonar Module
- DSM300 Digital Sonar Module
SL Series
- SL755RC, SL760RC
- SL1250, SL1250RC
hsb2 Plus Series
- L755RC, L760, L760RC
- L1250, L1250RC
hsb2 HDFI Series
- DSM250, L770D, L770DRC
- L1260D, L1260DRC
Professional Installation Features
Bronze Construction
Marine-grade bronze housing provides superior corrosion resistance and longevity in saltwater environments. Professional-grade materials ensure reliable long-term performance.
High-Speed Fairing
Included fairing block reduces turbulence and cavitation at high speeds, maintaining sonar performance during trolling and high-speed transit.
Flexible Hull Compatibility
Accommodates hull deadrise angles from 0° to 20°, suitable for most sportfishing and commercial vessel configurations.
Ready-to-Install Package
Complete with 30-foot cable, 8-pin connector, fairing block, and all necessary hardware for professional installation.
Optimal Fishing Applications
Bottom & Structure Fishing
Exceptional performance for targeting grouper, snapper, sea bass, and other bottom-dwelling species around reefs, wrecks, and ledges.
Deep Water Fishing
Reliable fish detection in depths exceeding 1000 feet, ideal for offshore fishing operations and deep-drop fishing techniques.
Commercial Applications
Professional-grade performance for commercial fishing vessels requiring reliable fish detection and bottom mapping capabilities.
Tournament Fishing
Tournament-proven reliability and precision for competitive anglers who demand the best sonar performance available.
Frequently Asked Questions
What hull materials are compatible with the B260?
The B260 is designed for installation in fiberglass and wood hulls. It accommodates deadrise angles from 0° to 20°, making it suitable for most sportfishing and commercial vessel configurations.
How does broadband technology improve sonar performance?
Broadband technology reduces transducer "ringing" at 200kHz, resulting in cleaner sonar returns, better fish-to-bottom separation, and improved target identification when fishing around bottom structure.
What's the advantage of the 8-element ceramic array?
The 8-element ceramic array provides exceptional deep-water sensitivity, enabling reliable fish detection at maximum depths while maintaining signal clarity and resolution for precise target identification.
Is professional installation required?
Yes, thru-hull transducer installation requires cutting a hole in the hull and proper sealing. Professional installation by a certified marine electronics technician is strongly recommended to ensure waterproof integrity and optimal performance.
Does the fairing block affect performance at different speeds?
The included high-speed fairing block is specifically designed to reduce turbulence and maintain sonar performance during high-speed operation and trolling, ensuring consistent readings across all boat speeds.
Professional Support & Warranty
Backed by Raymarine's comprehensive 2-year limited warranty and global network of authorized service centers. Raymarine's marine electronics expertise ensures reliable technical support and parts availability for professional marine applications.
