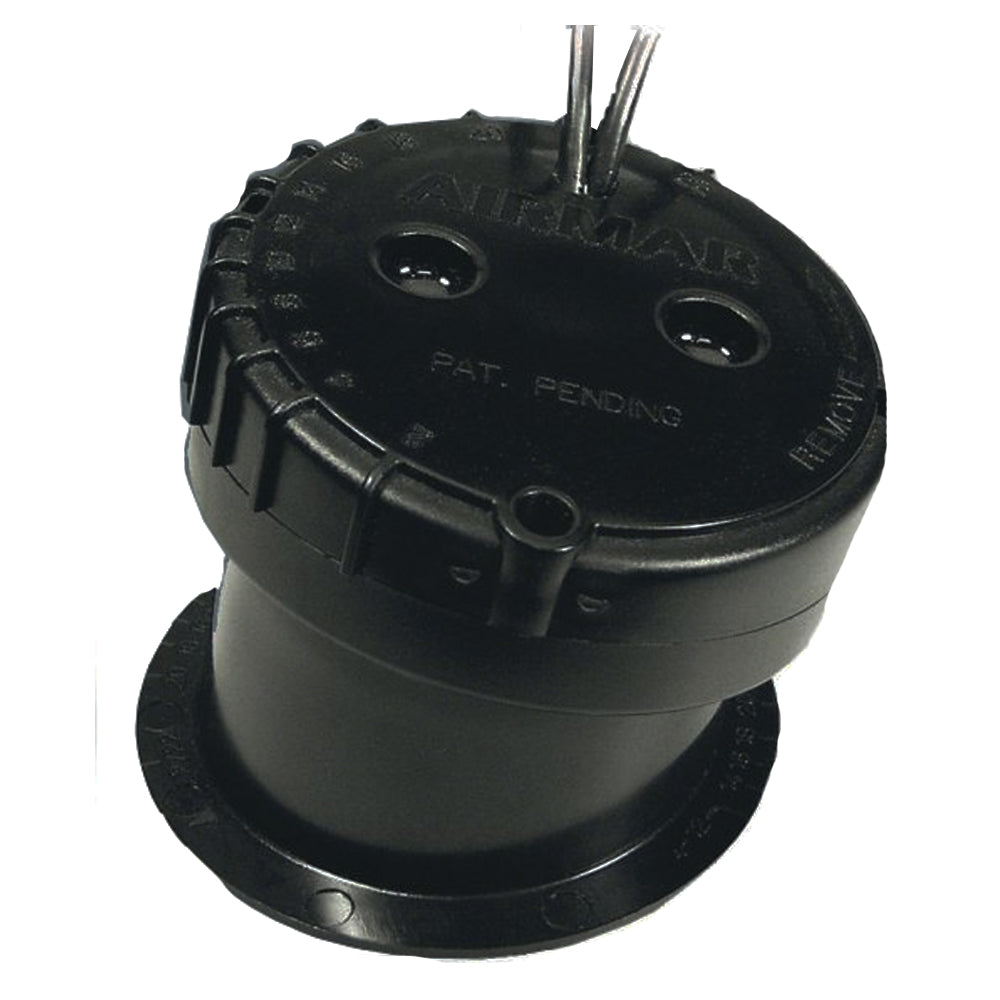

Raymarine P79 Adjustable In-Hull Transducer
Raymarine P79 Adjustable In-Hull Transducer — Product description
Raymarine P79 Adjustable In-Hull Transducer E66008 - Professional Depth Sonar Solution
Experience hassle-free transducer installation with the Raymarine P79 adjustable in-hull transducer - engineered for fiberglass hulls requiring no drilling, cutting, or hull penetration. This innovative 600-watt dual-frequency transducer delivers professional sonar performance while maintaining hull integrity and minimizing drag.
Revolutionary In-Hull Installation Technology
- No Hull Penetration: Mounts inside hull using marine epoxy with no cutting, drilling, or hull protrusion
- Adjustable Deadrise Compatibility: Accommodates 2° to 22° deadrise angles with built-in alignment markings
- Liquid-Filled Design: Propylene glycol filling ensures optimal sound transmission through fiberglass
- Removable Transducer: Quick-disconnect system allows removal for servicing or storage in seconds
- High-Speed Performance: Minimal drag design ideal for high-performance and racing applications
- Professional Power: 600-watt output delivers strong echoes and reliable depth readings
Technical Specifications
| Power Rating: | 600 watts maximum |
| Operating Frequencies: | 50 kHz / 200 kHz |
| Beam Angles: | 45° (50 kHz) / 12° (200 kHz) |
| Maximum Depth: | 1,000 ft (50 kHz) / 600 ft (200 kHz) |
| Cable Length: | 30 feet (10 meters) |
| Connector Type: | 8-Pin Raymarine |
| Deadrise Range: | 2° to 22° adjustable |
| Hull Compatibility: | Fiberglass up to 5/8" thick |
| Functions: | Depth Only |
| Warranty: | Limited 2-Year Manufacturer Warranty |
Extensive Raymarine System Compatibility
The P79 integrates seamlessly with multiple Raymarine fishfinder series:
- SL Series: SL755RC, SL760RC, SL1250, SL1250RC
- hsb2 Plus Series: L755RC, L760, L760RC, L1250, L1250RC
- hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, L1260DRC
- Additional Systems: CP370, CP300, DSM30, DSM300
Professional Installation Features
The innovative flange design uses built-in alignment markings to match your boat's deadrise angle perfectly. Once positioned and sealed with marine epoxy, the chamber is filled with non-toxic propylene glycol antifreeze, creating an optimal acoustic coupling medium that transmits sound waves efficiently through the fiberglass hull.
Performance Optimization
Unlike traditional bonded transducers, the P79's liquid-filled design eliminates sound-absorbing adhesive layers between the transducer face and hull. This engineering approach ensures maximum sound energy transmission, resulting in stronger echoes and more reliable depth readings.
Ideal Applications
Perfect for trailered boats, high-speed vessels, racing sailboats, and any application requiring minimal drag. The in-hull design protects against impact damage while providing professional sonar performance without compromising hull integrity or boat speed.
Frequently Asked Questions
What hull materials are compatible with the P79?
The P79 works with solid fiberglass hulls up to 5/8" thick and aluminum hulls less than 3.8mm thick. It's not compatible with cored hulls or hulls with foam/honeycomb sandwich construction.
Can the P79 be used with speed and temperature sensors?
The P79 provides depth readings only. For speed and temperature, it can be used in conjunction with the Raymarine E66019 ST69 speed and temperature sensor for complete navigation data.
How does the adjustable angle feature work?
The flange includes built-in alignment markings that allow precise adjustment to match your boat's deadrise angle from 2° to 22°. This ensures the transducer beam points straight down for optimal echo returns.
What maintenance is required for the P79?
The P79 requires minimal maintenance. The transducer can be removed in seconds for cleaning or storage, while the permanently mounted base remains sealed to the hull. Periodic propylene glycol replacement may be needed.
Professional Marine Electronics Excellence
Trust Raymarine's decades of marine sonar innovation with the P79 adjustable in-hull transducer. This professional-grade solution combines advanced acoustic technology with innovative installation design, delivering reliable depth performance while preserving your boat's hull integrity.
The P79 adjustable, in-hull depth transducer is ideal for boats with fiberglass hulls looking for a fast and easy installation, high-speed performance, or those who want to minimize drag. The transducer installs inside of the boat's hull, transmitting and receiving echoes through the solid fiberglass bottom with no hull protrusion whatsoever. P79 comes with an innovative flange that installs on the inside of the boat's hull using quick-setting marine epoxy. No cutting or drilling is required. Using built-in markings the flange is aligned to match the dead rise angle of the boat's hull. Once set in place and made liquid-tight, the flange is filled with propylene glycol non-toxic antifreeze and the active transducer cap is attached. Finally, the transducer cap is dialed-in and locked in place for a straight-down beam and maximum echo returns. The design of the P79 accommodates a wide range of dead rise angles from 2 Degree to 22 Degree. This transducer is intended for use on vessels with solid fiberglass hulls with a maximum thickness of 5/8 Inch. P79 can also be used on aluminum hulls less than 3.8 Millimeter thick.
Raymarine E66008 Attributes
- Mounting Location: In-Hull Mount
- Number Of Pins: 8
- Depth: 1000 Feet Maximum Depth At Low Frequency/ 600 Feet Maximum Depth At High Frequency
- Power Rating: 600 Watt
- Frequency Range: 50/ 200 kHz Frequency
- Supported Angle: 45/ 12 Degree Beam Width/ 2 To 22 Degree Deadrise
- Cable Length: 30 Feet
Raymarine E66008 Features & Benefits
- Using Built-In Markings The Flange Is Aligned To Match The Dead Rise Angle Of The Boat's Hull
- P79 Adjustable, In-Hull Depth Transducer Is Ideal For Boats With Fiberglass Hulls Looking For A Fast And Easy Installation, High-Speed Performance
- Transducer Installs Inside Of The Boat's Hull, Transmitting And Receiving Echoes Through The Solid Fiberglass Bottom With No Hull Protrusion Whatsoever
- Features Innovative Flange That Installs On The Inside Of The Boat's Hull Using Quick-Setting Marine Epoxy
- No Cutting Or Drilling Is Required
- Limited 2 Year Warranty
Raymarine E66008 Warranties
Adjustable In-Hull Transducer
600 Watt adjustable angled in hull transducer. (P79)
Compatible with the following Echo Sounders:
SL Series: SL755RC, SL760RC , SL1250, and SL1250RC
hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC
hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC
Compatible hull material: fiberglass
Max Power: 600 W
Frequency: 200/50 kHz
Beam Angles: 200 kHz 11 50 kHz 45
Features:
- Depth only.
- Can be used in conjunction with the E66019 ST69 speed and temperature sensor
- Easily adjusts to any deadrise angle up to 22
- Transmits sound waves directly at the bottom so strong echoes are reflected back to the transducer
- Can be removed in seconds for servicing or storage
- Only the base piece is bonded to the hull. There is no adhesive layer under the transducer face to absorb sound energy
- Simplifies in-hull installation
30ft (10m) Cable
The unique adjustable angle design of Raymarine P79 for DSM unit ensures that the beam is oriented vertically to achieve maximum echo return and best performance. because...
SKU: NVN-13902
MPN: E66008
UPC: 023193660080
Technical specifications
| Brand | Raymarine |
| Model | Raymarine P79 Adjustable In-Hull Transducer |
| SKU / MFR# | 13902 |
