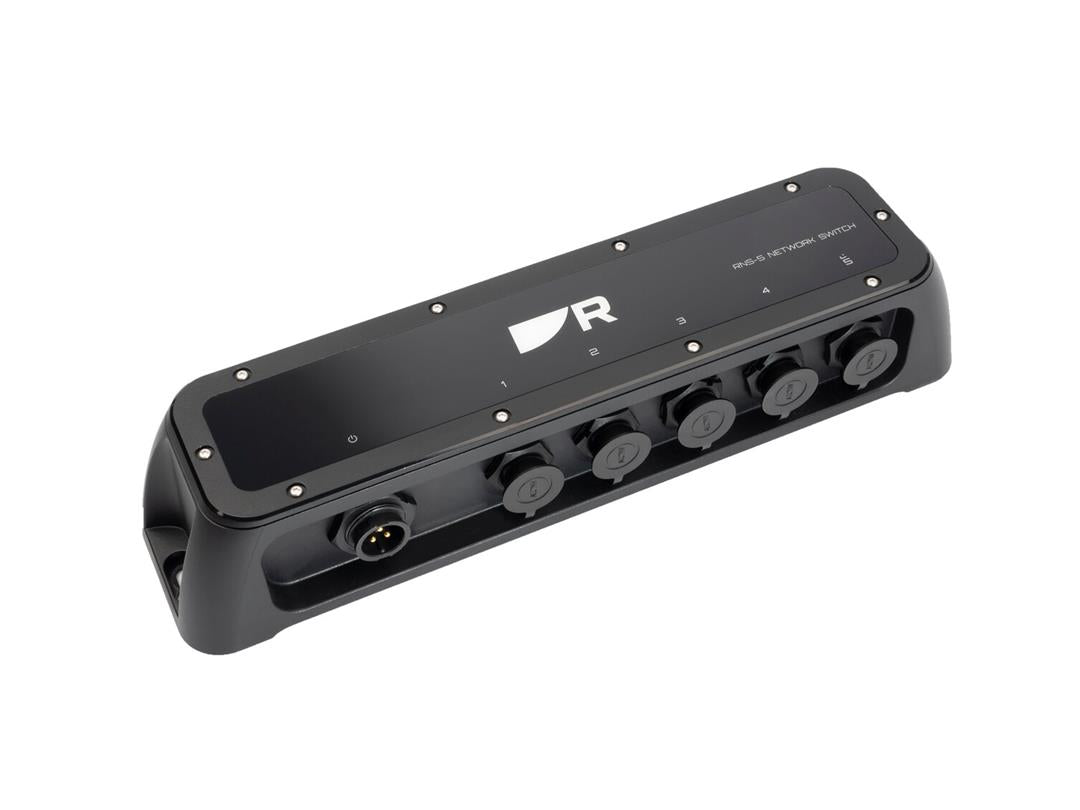

Raymarine RNS-5 5 Port RayNet Gigabit Switch
Raymarine RNS-5 5 Port RayNet Gigabit Switch — Product description
Enhance your marine navigation setup with a reliable way to connect multiple devices seamlessly. This 5-port RayNet Gigabit switch makes it straightforward to build out your Raymarine network, linking chartplotters, sensors, and cameras without signal dropouts or complex configurations. Whether you're upgrading your Axiom display system or adding advanced peripherals like thermal imaging, it delivers gigabit speeds over rugged, waterproof cabling designed for harsh saltwater environments.
Why Integrate with a Dedicated RayNet Switch
Boat owners know that reliable connectivity is crucial for safe and efficient voyages. This switch stands out by supporting high-bandwidth data flows between devices, ensuring real-time updates from radar sweeps to sonar readings appear instantly on your screens. Its unmanaged design means you skip the IT headaches—just connect and go, freeing you to focus on the water ahead.
- Boosts network capacity for multi-display setups or expanded sensor arrays
- Handles demanding applications like HD video from IP cameras or thermal feeds
- Enables daisy-chaining for scalable systems without performance loss
- Built tough to withstand vibrations, splashes, and temperature swings common on deck
Perfect Fit for Raymarine Ecosystems
Raymarine's RayNet cabling simplifies expansion, and this switch is at the heart of it. Pair it with Axiom multifunction displays to overlay radar, fishfinder data, and FLIR thermal imagery. It's also ready for YachtSense controls, letting you manage lights, engines, and more from your helm station. Anglers benefit from networked sonar modules sharing precise bottom contours, while cruisers appreciate integrating IP cameras for all-around visibility.
For larger vessels, chain two units to connect over a dozen devices, maintaining gigabit throughput for smooth operation even in rough seas.
Effortless Setup for Onboard Networking
Installation boils down to a few secure steps: mount it on a bulkhead away from direct spray, wire in your power source within the 9-32V range, and snap in RayNet cables to your devices. Green LEDs confirm activity on each port, so troubleshooting is visual and quick. No software tweaks or IP addressing required—it's plug-and-play from the start.
- Choose a stable, ventilated spot with easy cable access
- Secure using included mounting hardware
- Connect power and observe the power LED
- Plug RayNet cables; watch port LEDs light up
- Test data flow across your network
Pro tip: Keep cables routed away from high-heat engines to preserve signal integrity over long runs.
Detailed Performance Specs
| Category | Details |
|---|---|
| Power Supply | 12/24 V DC nominal, 9-32 V range, under 2.5 W (<600 mA at 12 V) |
| Operating Temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage Temperature | -30°C to +70°C (-22°F to 158°F) |
| Humidity Tolerance | Up to 93% at 40°C (104°F) |
| Water Protection | IPX6 rated |
| Dimensions (W x H x D) | 286 x 69 x 55 mm (11.26 x 2.72 x 2.17 in) |
| Weight | 0.36 kg (0.79 lbs) |
| Ports | 5 x RayNet Gigabit Ethernet (1 Gbps), supports legacy SeaTalkHS via adapter |
Long-Term Reliability On the Water
Rugged construction shrugs off spray and shocks, but regular checks keep it humming. Inspect connectors for corrosion annually, especially in saltwater use, and ensure firmware updates via Raymarine tools maintain peak compatibility. Low power draw fits any boat's electrical setup without taxing batteries during anchored nights.
Frequently Asked Questions
Can this switch connect Raymarine Axiom displays to radar domes?
Yes, it excels at linking Axiom chartplotters with Quantum or HD radars over RayNet, delivering fast target updates for safer navigation.
Is it suitable for mounting in exposed deck areas?
Absolutely, with its IPX6 rating and bulkhead design, it handles heavy spray and vibrations typical of open boats.
Does it support daisy-chaining for bigger networks?
Yes, link up to two switches to expand to 10 ports while keeping gigabit speeds intact.
What power sources work with it?
It operates on 9-32 V DC, compatible with standard 12 V or 24 V marine batteries.
Do I need special software to set it up?
No, it's unmanaged—simply plug in RayNet cables, and devices communicate automatically.
Can it integrate with thermal cameras?
Yes, it supports Teledyne FLIR cameras, streaming thermal video to your displays without lag.
The RNS-5 network Gigabit switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras.
Raymarine A80731 Attributes
- Used To: Expand Raymarine Integrated Chart Plotter Systems Using RayNet High-Speed Ethernet Cabling
- Input Voltage: 9 To 32 Volt
- Input Current: 600 Milliampere
- Waterproof: IPX6 Rating Waterproof
Raymarine A80731 Features & Benefits
- IPX6 Waterproof Rating
- Built To Last Longer Life
- Designed For Durability
- Easy To Install
- No Supplier Warranty
Raymarine A80731 Warranties
RNS-5 5 Port RayNet Gigabit Switch
The RNS-5 network Gigabit switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.
Features:
- 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
- Rugged IPX6 and IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices
- No complicated setup or configuration
SKU: NVN-96372
MPN: A80731
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine RNS-5 5 Port RayNet Gigabit Switch |
| SKU / MFR# | 96372 |
