Raymarine Axiom Pro 16RVX MFD Reman No Transducer No Charts
Raymarine Axiom Pro 16RVX MFD Reman No Transducer No Charts — Product description
Discover the Power of Advanced Marine Navigation

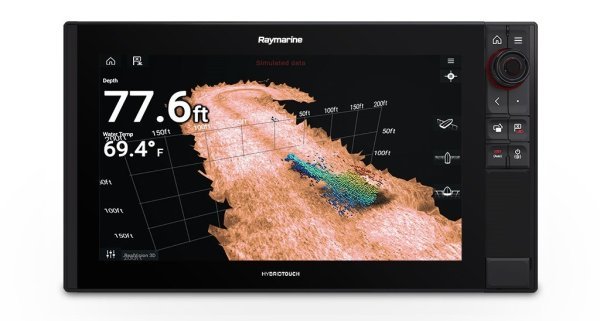

Imagine commanding your vessel with crystal-clear visuals of the underwater world and seamless chartplotting on a massive, sunlight-readable screen. The Raymarine Axiom Pro 16RVX remanufactured multifunction display (MFD) delivers exactly that, blending cutting-edge sonar technology with robust networking for serious boaters and anglers. Its built-in RealVision 3D sonar paints a lifelike picture of the seabed, structure, and fish, while 1kW CHIRP side and down scanning reaches depths that reveal hidden hotspots others miss.
This 15.6-inch powerhouse stands out in rough seas or bright sunlight, thanks to its optically bonded IPS panel that fights glare and maintains wide viewing angles. Whether you're running a center console, sportfisher, or yacht, it integrates effortlessly with your existing electronics, turning your helm into a command center.
Standout Features That Elevate Your Boating Experience
- Immersive Sonar Views: RealVision 3D combines CHIRP sonar with side and down vision for 3D fishfinding that's intuitive and game-changing—spot wrecks, bait balls, and drop-offs like never before.
- High-Performance Processing: Quad-core processor ensures buttery-smooth panning, zooming, and split-screen multitasking, even with radar overlays or multiple sonar sources.
- HybridTouch Interface: Swipe, pinch, and tap like a tablet, or use knobs for gloved hands in wet conditions—versatility meets precision.
- Endless Connectivity: Dual Ethernet ports, NMEA2000/0183, Wi-Fi, Bluetooth, and video inputs link radars, autopilots, cameras, AIS, and more into one cohesive system.
- Rugged Build: IPX6/IPX7 waterproofing, extreme temperature tolerance, and optical bonding make it ready for salt spray, storms, and long voyages.
- Smart Storage and Navigation: 16GB internal memory plus dual microSD slots store waypoints, routes, and tracks aplenty, with support for popular chart formats via Lighthouse OS.
Real-World Performance: Why Boaters Swear By It
In practice, the Axiom Pro 16RVX shines during offshore runs. Its 1kW CHIRP sonar punches down to 900 feet, separating fish from clutter in deep water, while RealVision 3D helps navigate skinny waters by highlighting contours and hazards. Pair it with Quantum radar for collision avoidance in fog, or add IP cameras for 360-degree awareness.
Networking is a breeze—drop it into a SeaTalkNG or NMEA2000 backbone, and it auto-configures with Evolution autopilots or external sounders like CP470. The ClearCruise feature simplifies autopilot engagement, and upcoming updates promise even more, like enhanced Bluetooth audio and C-MAP support.
Remanufactured units like this one undergo rigorous factory testing, often performing like new at a fraction of the cost, making high-end marine tech accessible without compromise.
Technical Edge for Demanding Conditions
Built for pros, this MFD boasts Full HD resolution (1920x1080) on a 1,200-nit display visible from any angle. Dimensions fit tight consoles at 17.8 x 10.2 x 2.72 inches, with flexible mounting: trunnion, flush, or RAM ball options.
Power draw hovers around 45W on 12/24V systems (8-32V DC tolerant), and sonar depths impress—CHIRP to 900 feet, DownVision to 600 feet. GNSS receiver tracks GPS/GLONASS/Galileo/BeiDou at 10Hz for pinpoint accuracy.
Seamless Integrations
- Sonar: CPT-S transducers (adapter needed for some); external modules like CP370/470.
- Radar: Quantum CHIRP, HD, SuperHD.
- Other: AIS (N2K), thermal cameras, up to 10 IP cams, digital switching, weather overlays.
Ready to Mount and Go
Kit includes the remanufactured Axiom Pro 16RVX, trim kit, suncover, trunnion bracket with hardware, 1.5m power/video/NMEA cable, template, quick start guide, warranty card, and Raymarine decal. Note: Transducer and charts sold separately—pair with your preferred CPT-S or add Lighthouse/Navionics later.
Frequently Asked Questions
What type of sonar is built into the Raymarine Axiom Pro 16RVX?
It features RealVision 3D sonar with 1kW CHIRP capabilities, providing side, down, and forward scanning for detailed underwater imaging up to 900 feet deep.
Is the Axiom Pro 16RVX suitable for saltwater use?
Yes, with IPX6 and IPX7 waterproof ratings, it handles heavy spray, submersion, and harsh marine environments from -25°C to +55°C.
What networking options does it support?
Dual RayNet Ethernet, NMEA2000 (micro-C), NMEA0183, SeaTalkNG (with adapter), Wi-Fi, Bluetooth, and USB for comprehensive system integration.
Does it come with a transducer or charts?
No, this remanufactured model ships without a transducer or preloaded charts, allowing customization with CPT-S transducers and Lighthouse/Navionics cards.
What mounting options are available?
Surface trunnion mount included; also supports flush mounting and optional RAM ball adapters for bail or pedestal setups.
Can it control an autopilot?
Absolutely—compatible with Raymarine Evolution autopilots via NMEA2000 for point-and-go navigation.
What's the difference between remanufactured and new?
Remanufactured units are factory-refurbished, fully tested to meet original specs, often with full warranty support, offering premium performance reliably.
Raymarine Axiom Pro 16RVX Remanufactured 15.6" MFD With RealVision 3D, 1kw CHIRP sonar
Model: E70373r- RealVision 3D, 1kw CHIRP sonar
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
- NMEA2000 & NMEA0183
| Display Size | 15.6" IPS Optically Bonded LCD |
| Display Resolution | 1920 x 1080 FHD |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
| Mounting | Top, Front, and optional RAM ball mount adapter |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temp | minus 13deg F to 131deg F (-25deg C to +55deg C) |
| Storage Temp | minus 22deg F to 158deg F (-30deg C to +70deg C) |
| Sensors | |
| Sonar Type - Built-in | RealVision 3D, 1kw CHIRP sonar |
| Sonar Connections | 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. |
| Sonar Depth | CHIRP Sonar = 900 feet (974 m) DownVision™ = 600 feet (183 m) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - N2K compatible |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP or Analogue |
| Video / Camera | 1 x Analogue input (BNC) Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only |
| Audio | N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control | RMK-10 (A80438) & RCU-3 (E62351) |
| Networking | |
| Ethernet | 2 x 10/100/1000 Mbits/ Network (RayNet) |
| NMEA0183 | 1 Transmit / 2 Receive |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) |
| USB | 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi | WiFi - 802.11 a / b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
| Navigation | |
| Cartography | Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| MEMORY | |
| Internal | 16GB Solid State |
| 16GB Solid State | 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Input Voltage | 12V and 24V DC (8 V to 32 DC) |
| Input Draw | ~45W |
| Dimensions | 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) |
What's in the Box:
- Axiom Pro 16RVX Remanufactured
- Trim Kit
- Suncover
- Trunnion Kit
- PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
- Mounting Hardware
- Mounting Template
- Quick Start Guide
- Warranty Card
- Raymarine window decal
Raymarine Axiom Pro 16RVX remanufactures 15.6"" MFD models with RealVision 3D, 1kw CHIRP sonar: E70373rRealVision 3D, 1kw CHIRP sonarNMEA2000 and NMEA0183 sonar rolling BackHybridTouchâ„¢ quad-core processor optical bonding technology and IPS DisplaysIP and...
SKU: NVN-1001848
MPN: E70373R
UPC:
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom Pro 16RVX MFD Reman No Transducer No Charts |
| SKU / MFR# | 1001848 |
