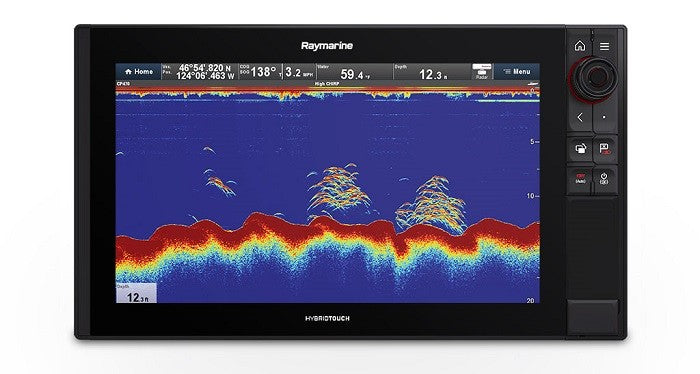

Raymarine Axiom Pro 16S MFD No Transducer Lighthouse NC2 North America
Raymarine Axiom Pro 16S MFD No Transducer Lighthouse NC2 North America — Product description
Discover the power of advanced marine electronics with the Raymarine Axiom Pro 16S, a 15.6-inch multifunction display (MFD) designed for serious boaters who demand crystal-clear visuals and seamless integration. Whether you're navigating challenging coastal waters, hunting trophy fish offshore, or simply enjoying a day on the water, this powerhouse MFD combines cutting-edge sonar, responsive charting, and robust networking to elevate your boating experience. Built on the intuitive Lighthouse operating system with NC2 North America charts preloaded—including detailed lakes and coastal tide data—it delivers reliable performance in any condition.
Unmatched Display and Processing Power
The Axiom Pro 16S features a stunning 15.6-inch optically bonded IPS LCD with full HD 1920 x 1080 resolution and 1,200 nits brightness, ensuring readability even under direct sunlight. Its wide 88-degree viewing angles from all sides mean your crew stays informed without straining to see. Powered by a quad-core processor, it handles multiple tasks effortlessly—from real-time sonar scrolling to overlaying radar and chart data—making split-second decisions intuitive and fast.
- HybridTouch controls for glove-friendly operation
- ClearCruise technology for clutter-free sonar views
- Supports Quantum CHIRP, HD, and Super HD radars for superior target detection
Superior Sonar for Anglers and Divers
Dive deep into fishfinding with built-in single-channel High CHIRP sonar, capable of reaching up to 900 feet. Paired with compatible CPT-S transducers, it paints a precise picture of the underwater world, separating baitfish from bigger game with remarkable clarity. The sonar scroll-back function lets you rewind history to analyze structure or mark spots on the fly. For those expanding their setup, it integrates seamlessly with external modules like CP470 for DownVision sidescan imaging down to 600 feet.
Real-world tip: Offshore anglers love how the High CHIRP slices through thermoclines, revealing wrecks and reefs that traditional sonar misses, turning good days into record-breakers.
Robust Connectivity for Multi-Screen Setups
Connect up to 10 displays via dual Gigabit Ethernet RayNet ports, NMEA2000, NMEA0183, Wi-Fi, and Bluetooth. Add IP cameras, digital switching, and even audio streaming to create a fully integrated helm. Remote controls like RMK-10 keep command at your fingertips from anywhere on deck.
Pro boaters appreciate the SeaTalkNG compatibility and USB for easy data transfers, making fleet-wide synchronization a breeze during multi-boat tournaments.
Built to Withstand the Elements
Rated IPX6/IPX7 waterproof, it thrives in harsh marine environments from -13°F to 131°F. Compact dimensions (17.8" x 10.2" x 2.72") and versatile mounting options—trunnion, flush, or RAM ball—fit any console. Low power draw (~45W) suits 12V/24V systems without draining batteries.
Ready-to-Install Package
- Axiom Pro 16S display
- Trim kit and suncover for a clean look
- Trunnion mounting kit with hardware and template
- Power/video/NMEA0183 cable (1.5m straight)
- Quick start guide, warranty card, and Raymarine decal
- Lighthouse NC2 North America Lakes and Coastal Tide Stations on microUSB
Frequently Asked Questions
Raymarine Axiom Pro 16S 15.6" MFD With Single Channel CHIRP and Lighthouse NC2 North America Lakes and Coastal Tide Stations
Model: E70483-00-101- High CHIRP
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
- NMEA2000 & NMEA0183
| Display Size | 15.6" IPS Optically Bonded LCD |
| Display Resolution | 1920 x 1080 FHD |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
| Mounting | Top, Front, and optional RAM ball mount adapter |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temp | minus 13deg F to 131deg F (-25deg C to +55deg C) |
| Storage Temp | minus 22deg F to 158deg F (-30deg C to +70deg C) |
| Sensors | |
| Sonar Type - Built-in | High CHIRP |
| Sonar Connections | 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. |
| Sonar Depth | CHIRP Sonar = 900 feet (974 m) DownVision™ = 600 feet (183 m) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - N2K compatible |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP or Analogue |
| Video / Camera | 1 x Analogue input (BNC) Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only |
| Audio | N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control | RMK-10 (A80438) & RCU-3 (E62351) |
| Networking | |
| Ethernet | 2 x 10/100/1000 Mbits/ Network (RayNet) |
| NMEA0183 | 1 Transmit / 2 Receive |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) |
| USB | 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi | WiFi - 802.11 a / b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
| Navigation | |
| Cartography | Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| MEMORY | |
| Internal | 16GB Solid State |
| 16GB Solid State | 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Input Voltage | 12V and 24V DC (8 V to 32 DC) |
| Input Draw | ~45W |
| Dimensions | 17.8" x 10.2" x2.72" (452 x 258 x 69 mm) |
What's in the Box:
- Axiom Pro 16S
- Trim Kit
- Suncover
- Trunnion Kit
- PWR/VIDEO/NMEA0183 CBL, STRT 1.5M
- Mounting Hardware
- Mounting Template
- Quick Start Guide
- Warranty Card
- Raymarine window decal
- Lighthouse NC2 North America Lakes and Coastal Tide Stations microUSB
Axiom PRO is designed for captains who need all functions. With CHIRP sonar and Raymarine HybridTouch control, Axiom PRO is the new standard for "all-in-one" display. With excellent fast quad-core PROcessor, super bright IPS display and smart LightHouse OS, Axiom PRO provides a smooth and intuitive navigation experience. Axiom PRO is easy to expand into an advanced navigation network, which includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, etc.
SKU: NVN-1001322
MPN: E70483-00-101
UPC: 723193834275
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom Pro 16S MFD No Transducer Lighthouse NC2 North America |
| SKU / MFR# | 1001322 |
