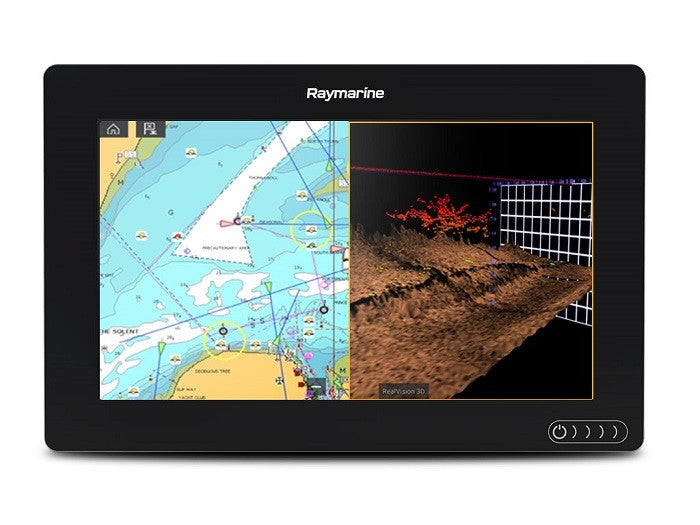

Raymarine Axiom 9 RV 9 MFD No Transducer Lighthouse NC2 North America
Raymarine Axiom 9 RV 9 MFD No Transducer Lighthouse NC2 North America — Product description
Discover the Ultimate Fishing and Navigation Companion
Imagine gliding across tranquil lakes or navigating coastal waters with crystal-clear 3D sonar images that reveal hidden structures and schools of fish like never before. The Raymarine Axiom 9RV transforms your boating experience into something truly immersive. This 9-inch multifunction display packs integrated RealVision 3D sonar capabilities, delivering lifelike underwater views without the complexity of traditional setups. Paired with preloaded Lighthouse NC2 charts for lakes and coastal areas, it's your go-to tool for spotting prime fishing spots or charting safe passages.
What sets this display apart? Its rugged, all-glass touchscreen withstands harsh marine environments while offering swipe-to-power simplicity—no buttons to fumble with on choppy days. Powered by the intuitive LightHouse 3 operating system, it learns your habits, customizing dashboards for quick glances at critical data like depth, speed, or radar overlays.
Revolutionary RealVision 3D Sonar: See Beneath the Surface
Dive into the future of fishfinding with wide-spectrum CHIRP sonar transmitting across 60 frequencies. This powerhouse supports RealVision 3D, CHIRP SideVision, DownVision, and traditional 600W high-frequency sonar—all in one compact unit. Gyro-stabilization counters boat roll and pitch, ensuring steady, realistic 3D imagery even in rough conditions.
Anglers rave about how it simplifies targeting: distinguish baitfish from keepers, map drop-offs, and track wrecks with ease. No transducer included means you can pair it with your preferred RV-100 or existing setup for tailored performance. Pro tip: For shallow waters under 10 feet, crank up the high-frequency CHIRP to pinpoint jigging spots effortlessly.
Built to Conquer the Elements
From blistering sun to pounding waves, this IPX6/IPX7-rated powerhouse thrives in -13°F to 131°F temps. Optically bonded 800x480 display fights glare and fogging, while versatile mounting—flush, surface, bracket, or rear—fits any helm. A single MicroSD slot handles chart updates and waypoints without fuss.
Quad-core processor ensures buttery-smooth multitasking, whether overlaying sonar on charts or splitting screens for radar and video.
Everything You Need to Get Started
Unbox and mount with confidence: trunnion bracket, flush gasket, power/NMEA2000 cable, suncover, and preloaded NC2 charts microSD card. Threaded studs and thumb nuts make installation a breeze for DIY boaters.
Frequently Asked Questions
What makes RealVision 3D sonar different from standard fishfinders?
RealVision 3D uses gyro-stabilized CHIRP technology across multiple frequencies to create lifelike 3D underwater images, making it easier to identify fish, structures, and bottom contours compared to 2D sonar.
Does the Raymarine Axiom 9RV include a transducer?
No, this model ships without a transducer, allowing you to select and install the ideal RealVision-compatible module like the RV-100 for your boat and fishing style.
Can I connect radar or thermal cameras to the Axiom 9RV?
Yes, it's fully compatible with Quantum radars, HD radomes, and FLIR M100/M200 thermal cameras via RayNet and Ethernet networking.
What charts are preloaded on this display?
It comes with Lighthouse NC2 charts for lakes and coastal tide stations, with support for Navionics, raster, and vector charts via MicroSD.
Is the Axiom 9RV suitable for autopilot integration?
Absolutely, it integrates seamlessly with Raymarine Evolution autopilots over NMEA2000 for full control right from the touchscreen.
How many video inputs does it support?
View up to four video-over-IP cameras simultaneously, ideal for engine rooms, docks, or multi-angle monitoring.
What's the power requirement for installation?
It operates on 12V/24V DC systems, with a wide input range of 10.8V to 31.2V DC, making it versatile for various vessels.
Raymarine Axiom 9RV - 9" MFD with integrated RealVision 3D, 600W Sonar with Lighthouse NC2 lakes and Coastal Tide Stations, No Transducer
Model: E70367-00-101- Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.
- New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
- Uncluttered Radar - New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays.
- LightHouse Live View Menu™ - Lets you see radar adjustments in real time.
- Enhanced Thermal Awareness - Exclusive FLIR ClearCruise™ thermal video analytics technology actively monitors the scene and provide alerts when any non-water objects enter the camera’s field of view
- Video Monitoring Make Axiom your video observation center. Add docking cameras or keep watch on the crew. View 4 video over IP cameras simultaneously.
- High-Powered Black Box Sonar Axiom is compatible with CP470 and CP570 CHIRP sonar modules.
- Marine Audio Control Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
- Connect Axiom with NMEA2000 and SeaTalkng compatible devices.
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
- Gyro-Stabilized Sonar Technology - Gyro stabilization compensates for boat movement, delivering life-like 3D sonar imagery.
- Easy Fish Identification - Easily identify structure and locate fish with the life-like clarity of RealVision™ 3D sonar.
- Wide Spectrum CHIRP Sonar - Transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting — hands down!
- Powerful 4 Channel Sonar - Supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar.
A powerful new multifunction navigation system from Raymarine. With all new LightHouse 3 operating system, and blazing fast quad core performance, AXIOM will transform your time on the water.
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Specifications| Display Size | 9.0" Optically Bonded LCD |
| Display Resolution | 800 x 480 WQVGA |
| Screen Type | Touchscreen |
| Mounting Options | Top / Flush / Bracket / Rear Mounting |
| Networking | 1 x 10/100 Mbits/ Network (RayNet) |
| Waterproofing Standard | IPX6 and IPX7 |
| Memory Card Slots | 1x MicroSD |
| Bluetooth | Bluetooth 2.1 + EDR power class 1.5 (supports AVRCP 1.0) |
| Radar Compatible | Yes |
| Thermal Night Vision Compatible | Yes — compatible with FLIR M100 and M200 cameras |
| Video Cameras | Optional |
| External Sonar Compatible | Yes — support for Digital and CHIRP sonar modules |
| Built-in Sonar | RealVision 3D |
| GPS | Built-in GNSS Receiver: GPS/GLONASS/Beidou* - 10Hz 72 Channel |
| Optional Remote Controls | RMK-10 |
| AIS | With optional receivers and transceivers |
| Autopilot Control | Evolution Autopilot Integration |
| Digital Switching | Empirbus compatible |
| Audio Integration | Support for NMEA2000 compatible audio devices |
| Operating Temperature | -13 F to +131 F (-25 C to +55 C) |
| Input Voltage | 12V / 24V DC (10.8 V DC to 31.2V DC) |
What's in the Box:
- MFD (supplied with Trunnion adaptor fitted)
- Trunnion bracket
- Trunnion knobs x 2
- Suncover
- Panel mount gasket for surface/flush mounting
- Rear mounting brackets
- Documentation pack
- Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- M5x58 Threaded studs x 4
- M5 Thumb nuts x 4
- Lighthouse NC2 lakes and Coastal Tide Stations microSD
"A powerful new multifunction navigation system from Raymarine. With the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water. Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones (a future LightHouse 3 software update required for mobile app compatibility)."
SKU: NVN-1001314
MPN: E70367-00-101
UPC: 723193834176
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom 9 RV 9 MFD No Transducer Lighthouse NC2 North America |
| SKU / MFR# | 1001314 |
