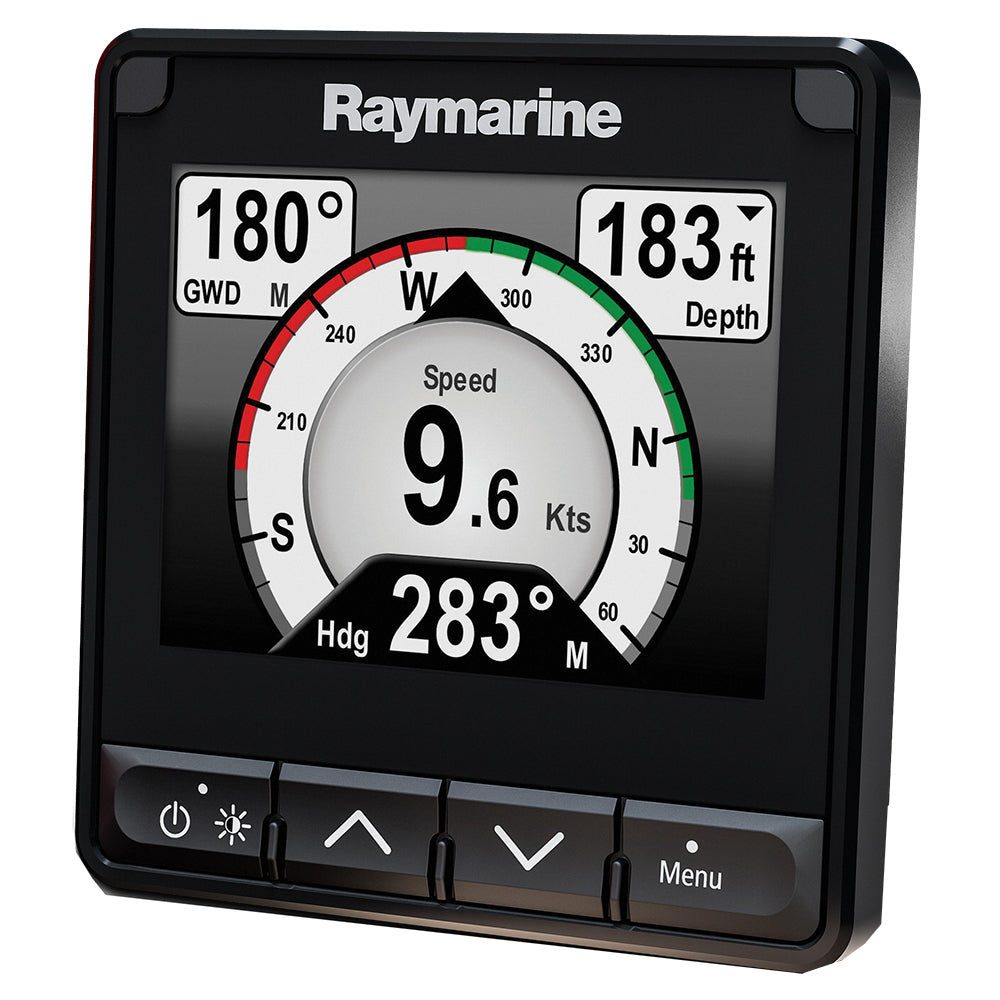

Raymarine i70s Multifunction Instrument Display - Ultimate Marine Navigation Control Center

Transform Your Boat's Navigation with Professional-Grade Instrument Display Technology

The Raymarine i70s Multifunction Instrument Display (Model E70327) delivers uncompromising visibility and versatility for serious mariners who demand professional-grade performance. Featuring a brilliant 4.1-inch color LCD with optically bonded display technology, this advanced marine instrument puts critical navigation data at your fingertips with crystal-clear visibility in all weather conditions.

Whether you're navigating coastal waters, offshore fishing, or cruising the high seas, the i70s seamlessly integrates with your existing Raymarine systems while offering flexible networking capabilities through SeaTalkng and NMEA2000 connectivity. This isn't just another instrument display—it's your command center for safer, smarter boating.

Why Marine Professionals Choose the Raymarine i70s

? Superior Visibility Technology

• 4.1-inch super-bright LCD delivers 1,200 cd/m² brightness for daylight readability
• All-weather optically bonded display eliminates condensation and glare
• 160-degree viewing angle ensures clear visibility from any helm position
• Four customizable color palettes including day, inverse, and red/black night modes

⚡ Advanced Networking Capabilities

• Native SeaTalkng connectivity for seamless Raymarine system integration
• NMEA2000 compatible with DeviceNet adapter for universal marine electronics compatibility
• Backward compatible with first-generation SeaTalk networks
• User-selectable data sources for multi-sensor network integration

? Comprehensive Data Display

• Wind speed, direction, and angle with analog and digital readouts
• Depth, speed, and tridata displays with customizable formats
• Engine monitoring including RPM, temperature, and fuel consumption
• AIS repeater mode tracks up to 25 nearby vessels for enhanced safety

? Professional Installation Features

• IPX6/IPX7 waterproof rating ensures reliable operation in harsh marine environments
• Surface mount design with optional trunnion mount kit
• Low 1.7-watt power consumption extends battery life
• Sculpted rubber keypad provides precise operation in all conditions

Technical Specifications & Compliance

Display Technology

• Screen Size: 4.1 inches diagonal
• Resolution: 320 x 240 pixels (16-bit color, 64K colors)
• Display Type: TFT LCD with optically bonded glass
• Brightness: 1,200 cd/m² maximum
• Viewing Angle: 160 degrees

Power & Environmental

• Voltage Range: 9-16V DC (12V nominal)
• Power Consumption: 1.7 watts
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Waterproof Rating: IPX6/IPX7
• Dimensions: 4.33"W x 4.53"H x 1.3"D

Connectivity & Standards

• Primary Interface: SeaTalkng connector
• Network Compatibility: NMEA2000, SeaTalk, SeaTalkng
• Data Standards: NMEA2000 certified
• Installation: Surface or flush mount options

Installation & Compatibility Information

Transducer Integration Options

• ITC-5 Instrument Transducer Converter: Seamlessly connect analog depth, wind, speed, compass, and rudder transducers
• Airmar DST800 Transducers: Direct network integration with smart transducer technology
• P70s Smart Transducer: Advanced in-hull transducer compatibility
• Traditional Sensors: Compatible with Rotavecta masthead wind units and conventional marine sensors

Network Configuration

The i70s offers flexible deployment options as either a master display hosting its own transducer data or as a repeater display showing information from other network sources. This versatility makes it perfect for expanding existing instrument systems or creating comprehensive new installations.

Included Accessories

• Panel seal gasket for waterproof installation
• 400mm SeaTalkng spur cable (A06038)
• Protective suncover (A80357)
• Black bezel (eS Series style) pre-installed
• Spare gunmetal bezel (e Series style)
• Complete mounting hardware

Warranty & Professional Support

Backed by Raymarine's comprehensive 2-year limited warranty, the i70s represents a long-term investment in your vessel's navigation capabilities. As a marine electronics leader with decades of experience, Raymarine provides extensive technical support, regular firmware updates, and a global network of authorized service centers.

Frequently Asked Questions

Can the i70s display engine data from my outboard motor?

Yes, the i70s can display comprehensive engine data including RPM, temperature, fuel flow, and engine hours when connected to NMEA2000-compatible engine interfaces or gateway modules from your outboard manufacturer.

Is the i70s compatible with my existing Garmin or Furuno electronics?

The i70s integrates with any NMEA2000-compliant marine electronics system using the appropriate SeaTalkng to DeviceNet adapter. This includes Garmin, Furuno, Simrad, and other major marine electronics brands.

How difficult is it to install the i70s on my boat?

Installation typically takes 2-4 hours for experienced marine technicians. The surface-mount design simplifies installation, requiring only a 4.1-inch cutout, 12V power connection, and SeaTalkng network cable. Professional installation is recommended for optimal performance and warranty compliance.

Can I use multiple i70s displays on the same boat?

Absolutely. Multiple i70s displays can be networked together, with each display configurable to show different data or duplicate critical information at various helm positions. This is ideal for larger vessels or boats with multiple steering stations.

What's the difference between the i70s and older i60 series instruments?

The i70s features a larger 4.1-inch color display (vs. smaller monochrome displays), optically bonded glass technology, enhanced networking capabilities, AIS repeater functionality, and the intuitive LightHouse user interface that matches Raymarine's latest multifunction displays.

Does the i70s work with traditional wind vanes and paddle wheel sensors?

Yes, when paired with the ITC-5 Instrument Transducer Converter, the i70s seamlessly integrates with analog sensors including traditional wind vanes, paddle wheel speed sensors, and depth transducers, making it perfect for retrofitting older vessels.

Make the Smart Choice for Your Marine Navigation

The Raymarine i70s Multifunction Instrument Display represents the pinnacle of marine instrument technology, combining professional-grade performance with user-friendly operation. Whether you're upgrading aging instruments or building a state-of-the-art navigation system, the i70s delivers the reliability, functionality, and visibility that serious mariners demand.

Join thousands of satisfied mariners worldwide who trust Raymarine for their most critical navigation needs. The i70s isn't just an instrument display—it's your gateway to safer, more informed boating adventures.

The i60 Wind instrument display calculates both true and apparent wind speed and angle. Wind angle is presented on an easy-to-understand analog needle gauge, while wind speed is reported on its high-contrast LCD readout. The i60 Wind instrument provides critical information for sailing vessels and is also right at home onboard well-equipped cruising and fishing powerboats. The i60 Wind instrument is engineered for easy viewing, by day or night. Its high-contrast LCD and red backlighting combine to deliver superior visibility under all conditions. i60 instruments also support local and group dimming control. This makes it easy to adjust the brightness of multiple Raymarine products all at once. Simple push button controls provide easy access to all its data displays. i60 series instruments are the perfect combination of powerful performance, easy operation and rugged reliability. All i60 instruments are designed to fully integrate with Raymarine’s autopilots and other navigation equipment. Each i60 instrument can be configured as a Master display, hosting its own transducer, or as a Repeater display, showing information from another source on the network. i60 instruments are SeaTalkng network-ready and can be easily adapted to connect to NMEA2000 or older SeaTalk networks.

Raymarine E70327 Attributes

• Display Size: 4.1 Inch
• Display Type: LCD
• Resolution: 320 x 240 Pixels
• Interface: Keypad
• Dimensions: 4.33 Inch Width X 4.53 Inch Height
• Waterproof: IPX6/ IPX7 Rating Waterproof

Raymarine E70327 Features & Benefits

• Analog Needle Display Reports Relative Wind Angle From 000 Degree To 180 Degree
• Colorized Port And Starboard Segments Call Out Close-Hauled Wind Angles
• High Contrast LCD For Wind Speed, Beaufort, Max Wind, VMG, And Tack Angle Reporting
• Red Backlighting Enhances Night Visibility
• SeaTalkng, NMEA2000 And SeaTalk Network Compatible
• Built-In Wind Transducer Interface For Traditional Or Rotavecta Masthead Units
• Compact Footprint
• Low Power Consumption
• Surface Mount Or Optional Trunnion Mount Kit
• Limited 2 Year Warranty

Raymarine E70327 Installation Instructions

• i70 i70s Instrument Operation instructions 81401 (Rev 2) (EN).pdf
• i70s Installation instructions 87420 (Rev 1) (EN).pdf

Raymarine E70327 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine E70327 Technical Bulletins

• i70 i70s Instrument Operation instructions 81401 (Rev 2) (EN).pdf
• i70s Installation instructions 87420 (Rev 1) (EN).pdf
• i70s Instruments E70327 2D Flush Mount PDF.PDF
• i70s Instruments E70327 2D Flush Mount PDF.PDF

i70s Multifunction Instrument Display

Maximum Visibility and Maximum Versatility
The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1_ display, the i70s is easy-to-customize with digital, analogue and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours.

Features:

• 4.1" super bright oversized LCD for maximum visibility

• All weather optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle

• Glass bridge industrial design compliments Raymarine eS and gS Series multifunction displays

• Simple user interface with sculpted rubber keypad for precise operation in all conditions

• Customizable data displays of depth, speed, wind and more

• SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000* networks

• NMEA2000 connectivity* for engine, environment fuel and navigation data

• Convenient AIS repeater mode allows you to visually track nearby AIS targets

• Combine the i70s with the ITC-5 instrument transducer convertor and connect to analog depth, speed, and wind sensors

• Network the i70s with Airmar DST800 transducers and the new in-hull P70s smart transducer

• Supplied with both black (eS Series style) & (e Series style) gunmetal bezels and protective suncover

*NMEA2000 certification pending. A DeviceNet to SeaTalknj adatop is required for connecting the i70s to NMEA2000 backbone.

Intuitive LightHouse User Interface
The i70s places frequently used navigation functions right at your fingertips. The LightHouse instrument interface is consistent with Raymarine LightHouse multifunction displays, so Raymarine MFD users will feel right at home with the i70s.

Networking
Raymarine i70s allows for connectivity to the following on board networks:

• First generation SeaTalk networks using a SeaTalk to SeaTalkng adapter cable

• Current generation SeaTalkng networks

• NMEA2000 networks using a SeaTalkng to DeviceNet adaptor

• In addition to flexible networking capability the i70s features user-selectable data sources, for integration with multi-sensor networks.

AIS Repeater
Display AIS targets from NMEA 2000 AIS receivers. View the closest 25 AIS-equipped vessels and select individual targets to obtain vessel information.

Transducer Connectivity
Pair i70s instruments with the innovative iTC-5 instrument transducer converter for seamless integration with analogue depth, wind, speed, compass and rudder transducer. Alternatively, you can network the i70s to DST800 and p79s Airmar smart tranducers.

Customization
The Raymarine i70s instrument is easily customised to suit your personal boating requirements. From traditional analogue dials to engine information and tank levels, i70s has the capabilities to show it all.

"The i70s multifunction gives you the flexibility to display instrument and navigation data that is most important to you. Equipped with a bold and bright 4.1\" display the i70s is easy-to-customize with digital, analog and graphical displays of depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors, the choice is yours."
SKU: NVN-61763
MPN: E70327
UPC: 723193812297
