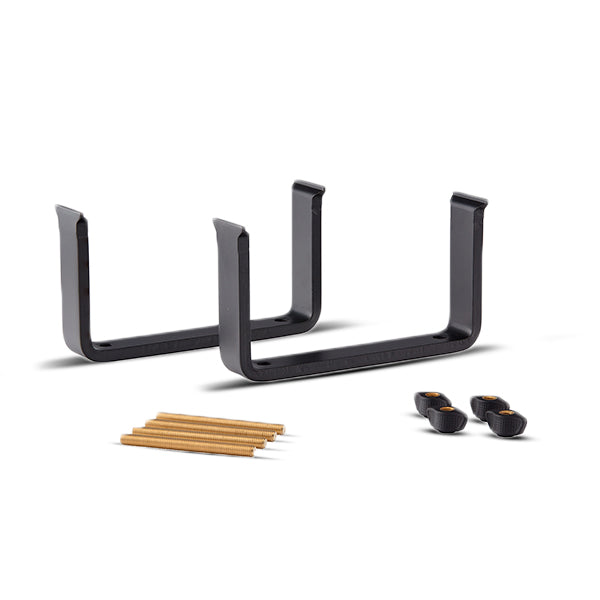

Raymarine R70528 Rear Mount Kit for Axiom 7
Raymarine R70528 Rear Mount Kit for Axiom 7 — Product description
Transform the way you integrate your Raymarine Axiom 7 into your vessel's helm with the R70528 rear mount kit. Designed specifically for boaters who demand a seamless, professional-grade setup, this kit lets you flush-mount your display from behind the panel. No more bulky brackets cluttering your console—achieve that sleek, integrated look that enhances both functionality and aesthetics on the water.
Why Boaters Choose the R70528 for Their Axiom 7
Every detail matters when you're navigating challenging waters, from coastal cruises to offshore adventures. The R70528 stands out by offering rock-solid stability that withstands vibrations, spray, and heavy seas. Unlike generic mounts, it's precision-engineered to match the Axiom 7's dimensions, ensuring a perfect fit without gaps or wobbles. This means more focus on your charts, sonar, and radar feeds, less on worrying about your electronics shifting mid-journey.
Imagine installing your Axiom 7 in tight spaces like flybridge pods or center consoles. The rear access design simplifies cable routing, keeping wiring hidden and protected from the elements. It's a game-changer for custom builds or retrofits, giving your setup that factory-fresh vibe.
Standout Features and Benefits
- Flush Rear Mounting: Secures the Axiom 7 from behind for a clean, bezel-less appearance that blends into any dashboard.
- Durable Construction: Built with marine-grade materials resistant to corrosion, UV exposure, and saltwater, ensuring longevity in harsh environments.
- Precision Fit: Tailored exclusively for the Axiom 7 model, eliminating compatibility guesswork and installation headaches.
- Enhanced Accessibility: Easier service and maintenance since the display can be removed quickly without dismantling panels.
- Vibration Resistance: Locks in place firmly, ideal for high-speed planing hulls or pounding through chop.
Installation Insights for a Flawless Setup
Setting up the R70528 is straightforward for DIY enthusiasts or pros alike. Start by tracing the mount's template on your panel—it's thoughtfully included for accuracy. Cut the hole precisely, then secure the bracket with the provided stainless steel fasteners. Thread your power, data, and transducer cables through the rear port before snapping the Axiom 7 into place. Pro tip: Apply a marine sealant around the panel edges to create a watertight seal, boosting protection against moisture ingress.
For best results, position the display at eye level to minimize neck strain during long watches. If you're pairing it with other Raymarine gear like Evolution autopilots or Quantum radars, this mount keeps everything aligned for optimal viewing angles and reduced glare from overhead lights or the sun.
Real-World Applications Across Marine Scenarios
Fishermen love how it positions their Axiom 7 for quick glances at StructureScan or CHIRP sonar returns without obstructing rod holders. Cruisers appreciate the streamlined helm that frees up space for instruments or cup holders. Even sailboat skippers retrofit it into binnacle pods for tack-sharp heading data visibility. No matter your pursuit—tournament angling, weekend getaways, or commercial ops—this kit elevates your boating experience.
Steer clear of makeshift solutions that compromise safety. The R70528 delivers OEM-quality reliability, helping you stay connected to critical nav data when it counts most.
Frequently Asked Questions
Is the Raymarine R70528 rear mount kit compatible only with the Axiom 7?
Yes, the R70528 is engineered specifically for the Axiom 7 multifunction display to ensure a precise, secure fit without modifications.
What tools are typically needed to install the R70528 mount?
Basic tools like a jigsaw or hole saw, drill, screwdriver, and measuring tape suffice. The kit includes a template and fasteners to simplify the process.
Does this rear mount kit affect the Axiom 7's touchscreen responsiveness?
No, it maintains full access to the hybrid touch-and-keypad interface, preserving the display's intuitive controls for gloved or wet hands.
How does the R70528 handle rough water conditions?
Its robust design with vibration-dampening features and corrosion-resistant hardware keeps the display stable even in pounding seas or high-speed runs.
Can I use the R70528 for surface mounting instead of flush?
While optimized for rear flush mounting, it can adapt to certain surface applications with minor adjustments, though flush is recommended for best results.
Is wiring access easier with the R70528 compared to bail mounts?
Absolutely—rear access allows clean, hidden cable runs, reducing clutter and exposure to weather compared to exposed bail mount setups.
What maintenance does the R70528 require over time?
Minimal; occasional inspection of fasteners for tightness and cleaning with fresh water after saltwater exposure keeps it performing like new.
SKU: NVN-1002933
MPN: R70528
UPC: 723193818374
Technical specifications
| Brand | Raymarine |
| Model | Raymarine R70528 Rear Mount Kit for Axiom 7 |
| SKU / MFR# | 1002933 |
Set product metafields under specs.* to populate this table.
