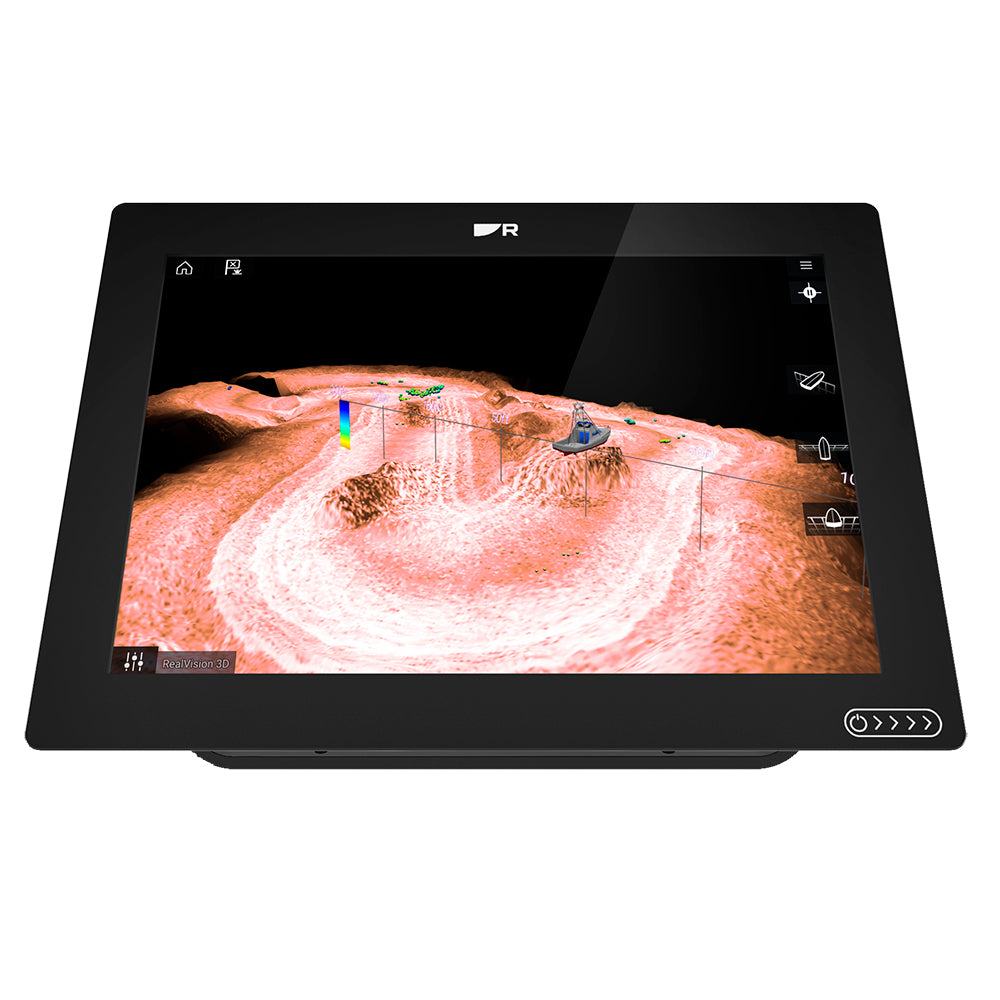

Raymarine Axiom+ 12 RV 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart
Raymarine Axiom+ 12 RV 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart — Product description
Discover the ultimate blend of power, clarity, and innovation with this advanced marine multifunction display tailored for serious anglers and navigators. Equipped with cutting-edge sonar technology and seamless charting, it transforms your boat's helm into a command center for exploring waters confidently. Whether you're chasing trophy fish in shallow bays or plotting long coastal runs, this unit delivers real-time insights that keep you ahead of the game.
Unlock Superior On-Water Performance
Powered by a robust quad-core processor, this display handles demanding tasks effortlessly—from lightning-fast chart redrawing to immersive augmented reality overlays. Pair it with the included all-in-one transducer, and you get a crystal-clear view beneath the surface that reveals fish-holding structures like never before.
- Stunning Visuals: High-density IPS screen offers expansive viewing angles and brilliant brightness, ensuring readability even under direct sunlight or in choppy conditions.
- Intuitive Interface: The streamlined operating system lets you customize dashboards, swipe through menus, and access tools with minimal learning curve—perfect for solo outings or crewed adventures.
- Versatile Sonar Suite: Dive into lifelike 3D imagery, pinpoint targets with wide-spectrum CHIRP, or scan sides and depths for comprehensive coverage up to hundreds of feet.
- Precision Positioning: Built-in high-sensitivity GPS receiver locks in your location quickly, supporting smoother routes and accurate waypoints.
Revolutionize Your Fishing with RealVision 3D Sonar
The heart of this system is its advanced sonar capabilities, driven by the RV-100 transom-mount transducer. This rugged unit combines four sonar channels into one: high-frequency CHIRP for fish ID, DownVision for bottom detail, SideVision for wide-area sweeps, and RealVision 3D for photo-like underwater landscapes.
Imagine maneuvering through structure-rich waters and spotting bait balls suspended over drop-offs in stunning 3D—motion-stabilized imagery compensates for boat roll and pitch, delivering steady views in rough seas. The integrated temperature sensor adds another layer, helping you track thermoclines where fish congregate.
Pro Tip for Optimal Setup
Mount the transducer on your transom with the kick-up bracket to handle impacts from debris. For jackplate or stepped-hull boats, consider compatible brackets to maintain performance without drilling hassles.
Build Your Dream Network
Expand without limits using RayNet Ethernet and NMEA2000 ports. Link multiple screens, add radar for horizon-scanning, integrate thermal cameras for low-light ops, or monitor engines and instruments in one glance. It's ready for modern boating ecosystems, from autopilots to IP cameras.
Technical Highlights
| Category | Details |
|---|---|
| Display | 12.1-inch IPS, 1280 x 720 resolution, 1,800 nits brightness, 88° viewing angles |
| Dimensions | 12.36 x 8.54 x 3.0 inches (excluding mount) |
| Power | 12V DC (8-16V), 19.96W max consumption |
| Sonar Depths | High CHIRP: 900ft, DownVision: 600ft, SideVision/RealVision 3D: 300ft |
| GPS | 10Hz GNSS (GPS/GLONASS/Galileo/BeiDou) |
| Networking | Ethernet (RayNet), NMEA2000, Wi-Fi, Bluetooth |
| Memory | 16GB internal + microSD slot |
| Environmental | IPX6/7 waterproof, -25°C to +55°C operating |
Ready for the Water
Everything you need arrives in one package: the display unit, trunnion and surface mounts, power/data cables, RV-100 transducer with 26ft cable and bracket, preloaded charts, and full install guides. Surface, flush, or bracket mounting options fit most consoles.
Frequently Asked Questions
What makes RealVision 3D sonar different from traditional 2D sonar?
RealVision 3D provides a lifelike, shadow-free 3D view of the bottom and fish, using stabilized imagery that accounts for boat movement. It's like having a forward-facing camera underwater, far superior for spotting structure details over standard cone scans.
Can I use this with other transducers or sonar modules?
Yes, it supports external sonar via RayNet, like CP-series modules, plus compatibility with additional transducers for deeper or specialized scanning needs.
How easy is it to install the RV-100 transducer?
The transom-mount design is straightforward with included hardware and a kick-up bracket for protection. It takes about 30-60 minutes for most DIYers; ensure it's aligned dead astern for best results.
Does it support wireless control from my phone?
Absolutely—built-in Wi-Fi and Bluetooth allow app-based control, waypoint syncing, and sonar streaming to compatible mobile devices for shared situational awareness.
What chart options are available beyond the included North America maps?
It works with Navionics, C-MAP, and more via microSD. Update charts easily and overlay community edits for the latest depth contours and no-go zones.
Is this display suitable for rough offshore conditions?
Designed tough with IPX7 waterproofing, impact-resistant glass, and wide temp range, it thrives in spray, waves, and extreme weather—trusted by offshore pros.
Axiom+™ 12 RV - 12" Chartplotter/Fishfinder with RV-100 Transom Mount & Lighthouse North America Chart
The performance-tuned Axiom® Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
Designed for speed, responsiveness, and future expansion.
• Powerful quad-core processor, plus increased onboard storage for personal data and apps
• Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP
• ClearCruise™ Augmented Reality-capable for smarter navigation decisions
• Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.
• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
• HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
• Improved viewing with new LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions, RV-100 Transom Mount Transducer and Lighthouse North America Chart.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
RV-100 - RealVision 3D™ All-In-One Transom Mount Transducer
Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)
What’s in the Box?
- RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
- Transom bracket
- Mounting hardware
- Installation instructions
Axiom+™12 RV-12-inch chartplotter/fishfinder with RV-100 tailstock and lighthouse North American charts The performance-adjusted Axiom®Plus is the award-winning new generation of Raymarine multifunction displays. For speed,...
SKU: NVN-85068
MPN: E70639-03-102
UPC: 723193839638
Technical specifications
| Brand | Raymarine |
| Model | Raymarine Axiom+ 12 RV 12" Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart |
| SKU / MFR# | 85068 |
