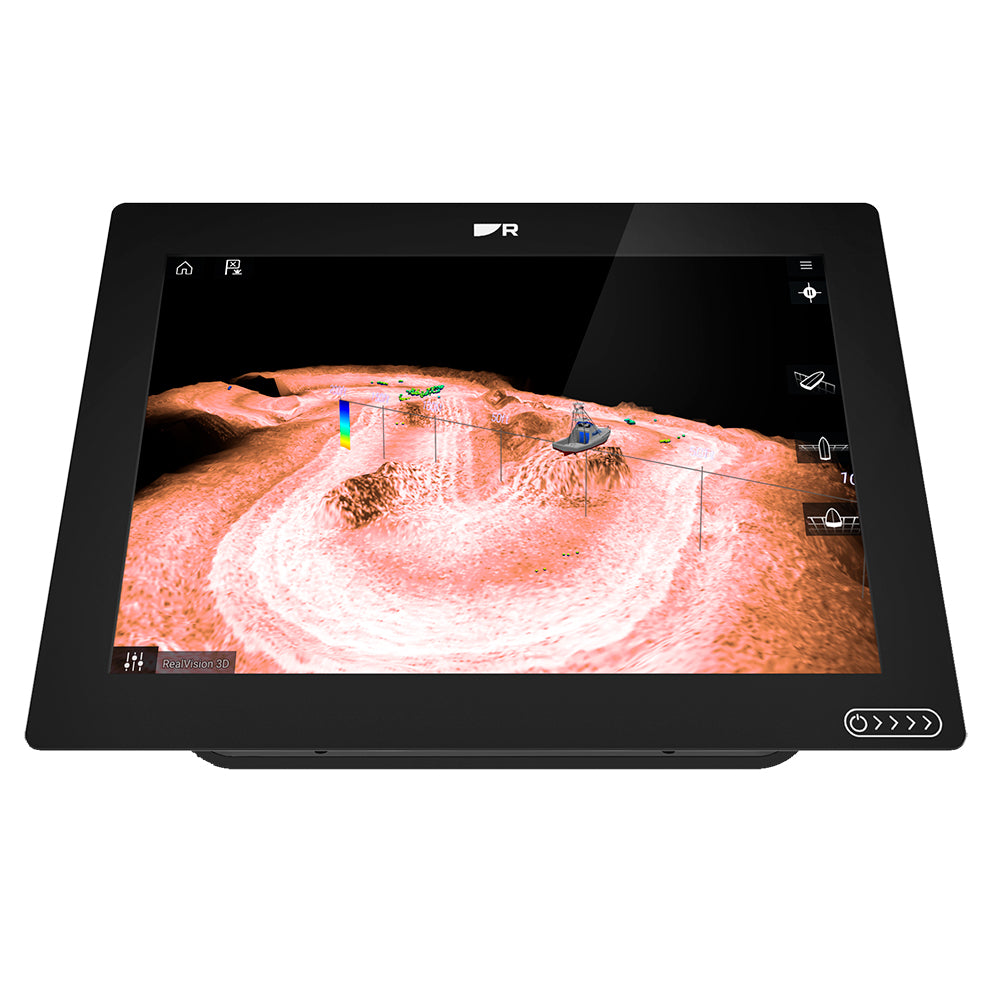

Raymarine Axiom+ 12 RV - 12" Chartplotter/Fishfinder

Imagine pinpointing fish in crystal-clear 3D underwater vistas while charting your course through crowded harbors with effortless precision. The Raymarine Axiom+ 12 RV transforms your boating adventures into high-tech triumphs, blending cutting-edge sonar imaging with a responsive touchscreen interface tailored for real-world marine challenges. Anglers swear by its ability to reveal hidden structures, while cruisers appreciate the fluid navigation that keeps you ahead of the curve. This powerhouse multifunction display stands out in the competitive world of chartplotters and fishfinders, delivering pro-level performance without the complexity.

What sets it apart? A quad-core processor that powers silky-smooth chart redrawing and augmented reality overlays, ensuring you never miss a beat on the water. Pair that with an expansive 12-inch high-resolution screen, and you've got a command center that shines in blazing sun or pitch-black nights.

Unlock the Depths with RealVision 3D Sonar

Dive into fishing like never before. The built-in RealVision 3D sonar creates gyro-stabilized, lifelike models of the seabed and water column, letting you spot fish, wrecks, and drop-offs from angles that traditional 2D sonar can't touch. High-frequency CHIRP scans wide spectra for superior target separation, while DownVision and SideVision extend your view to crystal-clear bottom details and side-scanning up to hundreds of feet away.

• CHIRP DownVision: Pin-sharp images of structure and baitfish schools.
• SideVision: Scout beyond your boat's beam for submerged obstacles or prime fishing spots.
• RealVision 3D: Interactive 3D sweeps that rotate and zoom for intuitive bottom reading.
• 600W traditional sonar compatibility for deeper water probing.

Pro tip: In murky coastal waters, toggle to wide-spectrum CHIRP modes to cut through clutter and zero in on trophy fish with unmatched accuracy. Serious offshore anglers often pair it with external modules for even greater depth penetration.

Brilliant Visibility in Any Conditions

The 12-inch WXGA IPS touchscreen boasts twice the contrast of older panels, with wide viewing angles that keep everyone on deck informed. HydroTough nano-coating sheds water, oil, and fingerprints, maintaining touch responsiveness even in pounding spray. crank up the 1,800 nits brightness for midday glare, or switch to night mode for stealthy runs.

LightHouse OS intuitive themes—day, dusk, night—adapt to your environment, reducing eye strain during long hauls.

Effortless Charting and GPS Precision

No pre-loaded maps mean you load your favorites: LightHouse raster/vector, Navionics, or C-MAP for detailed bathymetry and custom waypoints. The 10Hz GPS/GNSS receiver locks on fast with four times the sensitivity, tracking routes with pinpoint accuracy even in challenging areas like canyons or urban marinas.

Augmented reality overlays via ClearCruise superimpose radar and camera feeds on live charts, making docking or obstacle avoidance second nature. Store thousands of waypoints, routes, and tracks on 16GB internal memory, expandable via microSD.

Expand Your Network Seamlessly

RayNet Ethernet, NMEA2000, Wi-Fi, and Bluetooth open doors to full-system integration. Link multiple displays, Quantum radars, Evolution autopilots, IP cameras, or even marine audio. Stream to tablets for crew collaboration, or control via smartphone apps.

• Quantum CHIRP radar ready for short- and long-range target acquisition.
• FLIR thermal cameras for night navigation.
• NMEA2000 engine data, AIS, and digital switching.

Build a scalable helm that grows with your boat, from solo fishing trips to tournament setups.

Built to Withstand the Marine Grind

IPX6/IPX7 waterproofing laughs off heavy seas, while the slim profile fits flush or trunnion mounts. Operating from -25°C to +55°C, it's ready for extreme outings. Power draw stays efficient at under 20W, perfect for battery-conscious setups.

Ready for the Water—Out of the Box

Your Axiom+ 12 RV arrives complete with trunnion bracket, knobs, suncover, flush mount gasket, power/NMEA2000 cable, DeviceNet to SeaTalkNG adapter, mounting hardware, and docs. Surface, flush, or bracket installs keep setup straightforward for DIYers.

Frequently Asked Questions

What sonar technologies are built into the Raymarine Axiom+ 12 RV?

It features RealVision 3D, High CHIRP, DownVision, SideVision, and 600W traditional sonar for comprehensive underwater imaging.

Does the Axiom+ 12 RV come with pre-loaded charts?

No, it ships without pre-loaded maps, allowing you to choose and install LightHouse, Navionics, or C-MAP charts via microSD.

How rugged is the display for boating use?

IPX6/IPX7 rated with HydroTough nano-coated glass that repels water and smudges, plus impact resistance for harsh marine environments.

Can I network this with other Raymarine gear?

Yes, via RayNet Ethernet, NMEA2000, Wi-Fi, and Bluetooth for radars, autopilots, cameras, AIS, and multi-display setups.

What's the GPS performance like?

10Hz GNSS receiver (GPS/GLONASS/Galileo/BeiDou) with 4x sensitivity for fast, accurate positioning.

Is it suitable for both fishing and cruising?

Absolutely—advanced sonar excels at fishing, while AR navigation, chart support, and radar compatibility make it ideal for all cruising needs.

How does the touchscreen handle wet conditions?

HydroTough coating ensures precise touch response even when wet, with glove-friendly operation.

Expert Tips for Maximizing Your Axiom+ 12 RV

1. Calibrate sonar in calm water for optimal 3D imaging—adjust sensitivity based on water clarity.
2. Use AR overlays during night passages to blend thermal camera feeds with charts.
3. Sync with mobile apps for remote waypoint sharing on multi-boat trips.
4. Mount flush for sleek consoles, or trunnion for easy angling toward the helm.

Whether chasing billfish or weekend cruising, this unit elevates your command of the water.

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.

Raymarine E70639 Attributes

• Maps: No Pre-Loaded Maps
• Display Size: 12 Inch
• Display Type: WXGA 1280 x 800 Pixels Resolution
• Interface: Touchscreen Interface
• Dimensions: 12.36 Inch Width X 3 Inch Depth X 8.54 Inch Height
• Waterproof: IPX6/ IPX7 Waterproof
• Sonar Compatibility: RealVision 3D, 600W Sonar

Raymarine E70639 Features & Benefits

• High Frequency CHIRP Sonar For Targeting Fish And Determining Bottom Density
• CHIRP DownVision Sonar For High Definition Views Of Structure, Fish Habitat And Man-Made Objects
• CHIRP SideVision For Scanning Beyond Casting Distance To See Fish, Structure And Submerged Objects Out To The Sides Of The Boat
• RealVision 3D Sonar Which Provides A Gyro-Stabilized, GPS-Locked Bathymetric Model Of The Bottom And Water Column
• Upgraded IPS Display Technology Delivers Charts, Sonar, Radar And Video In Stunning Color And Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
• Smart And Intuitive LightHouse OS Makes Navigating Easy
• Axiom+ Features HydroTough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil And Smudges
• All-Weather HydroTough Technology Delivers Improved Color And Contrast And Accurate Touch Controls - Even When Wet
• Limited 2 Year Warranty

Raymarine E70639 Installation Instructions

• Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
• Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
• Axiom MFD Installation instructions 87298-3-EN.pdf

Raymarine E70639 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine E70639 Technical Bulletins

• Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
• Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
• Axiom MFD Installation instructions 87298-3-EN.pdf

Axiom+ 12 RV - 12" Chartplotter/Fishfinder

The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

• Designed for speed, responsiveness, and future expansion
• Powerful quad-core processor, plus increased onboard storage for personal data and apps
• Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
• ClearCruise™ Augmented Reality-capable for smarter navigation decisions
• Smart and intuitive LightHouse 3 OS makes navigating easy

MAXIMUM VISIBILITY

• Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
• HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
• Improved viewing with LightHouse 3 color themes, including light, dark, and night mode

The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

Features:

• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
• RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
• Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
• Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
• Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
• Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app

Axiom + 12 RV-12 "Chartplotter/Fishfinder performance-tuned Axiom Plus is the generation of the award-winning Raymarine multifunction display. Optimized for speed, Axiom Plus...
SKU: NVN-85056
MPN: E70639
UPC: 723193836972
