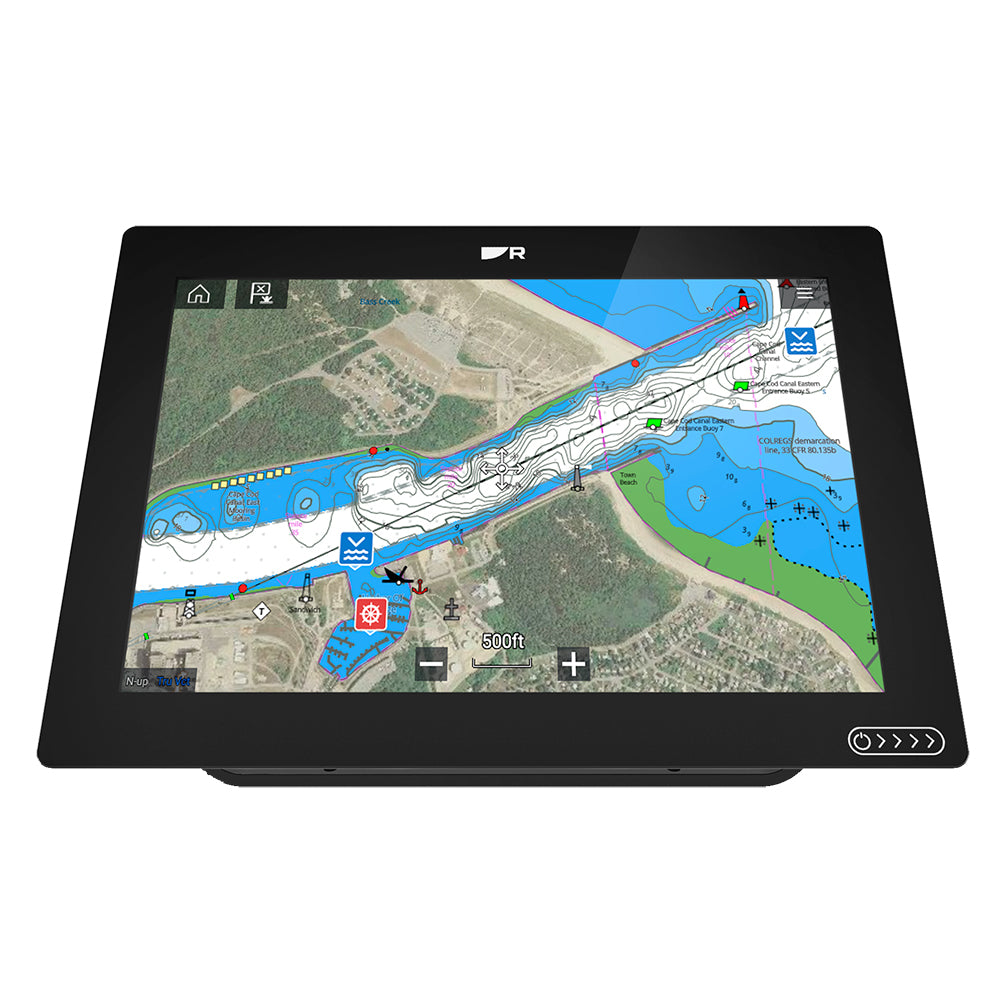

Raymarine Axiom+ 12 - 12" MFD Chartplotter
Raymarine Axiom+ 12 - 12" MFD Chartplotter — Product description
Discover the pinnacle of marine navigation with the Raymarine Axiom+ 12, a 12-inch multifunction display (MFD) chartplotter engineered for boaters who demand precision, speed, and reliability on the water. Whether you're charting new offshore adventures, tracking fish with radar overlays, or cruising coastal waters, this powerhouse delivers seamless performance powered by a quad-core processor and stunning IPS visuals. Dive into intuitive controls via the acclaimed LightHouse operating system, and expand effortlessly to build your dream setup without compromising on visibility or responsiveness.
Blazing-Fast Performance for Demanding Conditions
At the heart of the Axiom+ 12 lies a robust quad-core processor paired with generous onboard storage, ensuring lightning-quick chart redrawing—even with complex LightHouse charts, Navionics, or C-MAP overlays. Imagine panning across detailed vector maps or zooming into raster imagery without lag, all while running multiple apps for weather, routes, or engine data.
- 10 Hz GPS/GNSS receiver for pinpoint accuracy, with four times the sensitivity of standard units, keeping you locked on position during rough seas or under tree cover near inlets.
- ClearCruise Augmented Reality mode overlays digital charts and waypoints directly onto live video from compatible cameras, revolutionizing hazard avoidance and docking in low visibility.
- Fluid LightHouse OS interface: Customize dashboards, pinch-to-zoom effortlessly, and access personalized data layers tailored to your boating style—be it sportfishing, sailing, or long-range cruising.
This isn't just a screen; it's a command center that anticipates your needs, from real-time track recording (up to 16 tracks with 10,000 points) to waypoint management (10,000+ points in 200 groups).
Unrivaled Visibility in Any Light
The 12.1-inch WXGA (1280 x 800) IPS display shines at up to 1,800 nits—25% brighter than predecessors—delivering crisp charts, sonar echoes, radar sweeps, and video feeds from any angle (88° viewing cone). Switch between day, dusk, and night themes for fatigue-free operation from dawn patrols to midnight returns.
- HydroTough nano-coating repels water, oil, and fingerprints, maintaining crystal-clear touch response even in pounding spray or greasy hands after handling bait.
- Impact-resistant glass withstands the rigors of marine life, from accidental rod strikes to heavy helm traffic.
- Twice the resolution and contrast of older tech ensures you spot subtle nuances like buoy shadows or fish arches miles away.
Endless Expansion for Your Vessel
Built to grow with you, the Axiom+ 12 networks via RayNet Ethernet, NMEA 2000 (DeviceNet port included), Wi-Fi, and Bluetooth. Link multiple displays for helm redundancy, add Quantum CHIRP radar for clutter-free short-range targets, or integrate FLIR thermal cameras for night navigation.
- Control Evolution autopilots, monitor engines, or stream GRIB weather—up to 10 IP cameras for 360° awareness.
- Marine audio integration via NMEA 2000 or Bluetooth; even SiriusXM for tunes and forecasts (region-dependent).
- Sync routes and waypoints with mobile apps over Wi-Fi, or use USB/microSD for backups and updates.
IPX6/IPX7 waterproofing and extreme temps (-25°C to +55°C operating) make it ready for open ocean or inland extremes.
Complete Kit for Quick Setup
Everything you need arrives in one box: the MFD unit, trunnion bracket with knobs, suncover, flush-mount gasket, threaded studs and nuts, documentation, DeviceNet-to-SeaTalkNG adapter, power/NMEA 2000 cable, and rear brackets. Surface or bracket mounting is straightforward, with optional front kits for clean consoles.
Frequently Asked Questions
What display technology does the Raymarine Axiom+ 12 use?
It features a 12.1-inch high-density IPS touchscreen with WXGA 1280 x 800 resolution, HydroTough nano-coating, and up to 1,800 nits brightness for superior visibility from any angle.
Does the Axiom+ 12 include built-in sonar?
No built-in sonar, but it's fully compatible with external modules like CP370, CP470, RVX1000, or CP570 via RayNet for advanced fishfinding including RealVision 3D.
What charts are supported on this chartplotter?
Compatible with Raymarine LightHouse Charts (raster and vector), Navionics, and C-MAP electronic charts via microSD. No pre-loaded maps included.
How does networking work on the Axiom+ 12?
Includes RayNet Ethernet, NMEA 2000 (DeviceNet port), Wi-Fi (802.11 a/b/g/n), Bluetooth 4.0, and USB. Connect radars, autopilots, cameras, instruments, and more.
What is the waterproof rating and temperature tolerance?
IPX6/IPX7 waterproof rating, operating from -25°C to +55°C (-13°F to +131°F), and storage up to -30°C to +70°C.
Can I use it with thermal cameras or radar?
Yes, supports Quantum/HD radars and FLIR thermal cameras (M100/M200, AX8, M300/M400/M500 series) for enhanced night navigation and target detection.
What GPS capabilities does it have?
Built-in 10 Hz GNSS receiver (GPS/GLONASS/Galileo/BeiDou) with 28 channels and 4x sensitivity for reliable positioning.
Axiom ® + is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 Percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness. Seamlessly redraw charts and expand Axiom+ with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.
Raymarine E70638 Attributes
- Maps: No Pre-Loaded Maps
- Display Size: 12 Inch
- Display Type: WXGA 1280 x 800 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 12.36 Inch Width X 3 Inch Depth X 8.54 Inch Height
- Waterproof: IPX6/ IPX7 Waterproof
Raymarine E70638 Features & Benefits
- Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps
- Smart And Intuitive LightHouse OS Makes Navigating Easy
- Ready To Expand: Network With Multiple Displays, Radars, Engines, Marine Cameras And More
- Upgraded IPS Display Technology Delivers Charts, Sonar, Radar And Video In Stunning Color And Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
- Axiom+ Features HydroTough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil And Smudges
- All-Weather HydroTough Technology Delivers Improved Color And Contrast And Accurate Touch Controls - Even When Wet
- Make Smarter Navigation Decisions
- Limited 2 Year Warranty
Raymarine E70638 Installation Instructions
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
Raymarine E70638 Warranties
Raymarine E70638 Technical Bulletins
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87298-3-EN.pdf
Axiom+ 12 - 12" MFD Chartplotter
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
- Designed for speed, responsiveness, and future expansion
- Powerful quad-core processor, plus increased onboard storage for personal data and apps
- Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions
- Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
- HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom 12 includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps
Our store is constantly updated, just because we don’t have your item today doesn’t mean we won’t have it tomorrow. So please check back often to check all our new products and...
SKU: NVN-85053
MPN: E70638
UPC: 723193836958
