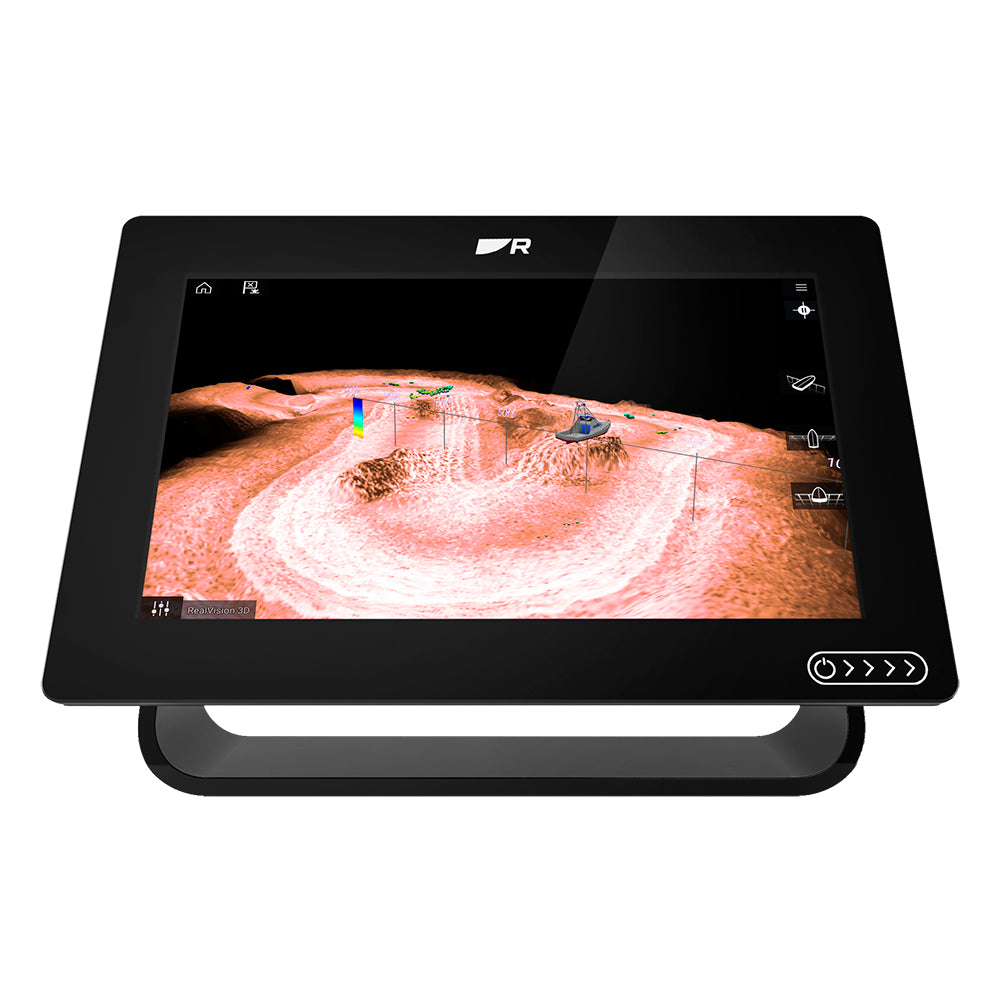

Raymarine Axiom+ 9 RV - 9" Chartplotter/Fishfinder w/Navionics+ Chart
Raymarine Axiom+ 9 RV - 9" Chartplotter/Fishfinder w/Navionics+ Chart — Product description
Discover Superior Fishfinding and Navigation with Raymarine Axiom+ 9 RV
Imagine gliding across the water, pinpointing fish and structure with crystal-clear, lifelike sonar images while charting your course effortlessly on detailed maps. The Raymarine Axiom+ 9 RV transforms your boating experience with its powerful blend of advanced sonar, responsive chartplotting, and rugged design built for real-world marine adventures. Whether you're chasing trophy bass in shallow bays or trolling deep offshore, this 9-inch multifunction display delivers the tools serious anglers and boaters demand.
What sets it apart? A quad-core processor ensures silky-smooth performance, even when juggling sonar overlays, radar feeds, and AR navigation. Paired with upgraded IPS screens boasting 25% more brightness, you get vivid visuals from dawn patrols to dusk runs, no matter the glare or angle. Anglers report spotting fish in ways traditional sonar can't match, thanks to innovative imaging that feels like peering through the hull.
RealVision 3D Sonar: See Underwater Like Never Before
At the heart of the Axiom+ 9 RV lies RealVision 3D CHIRP sonar, creating gyro-stabilized, photo-realistic views of the bottom, water column, and fish. Combine it with CHIRP SideVision for wide-angle scans up to 300 feet sideways—perfect for finding bait schools or wrecks beyond your cast. CHIRP DownVision reveals high-definition bottom details, while high-frequency CHIRP excels at marking individual fish and gauging bottom hardness.
- Scan depths: High CHIRP up to 900 feet, DownVision/SideVision/RealVision 3D to 300-600 feet.
- Built-in 600W digital sonar (50/200 kHz) ready for Airmar transducers via optional adapters.
- Wide-spectrum transmission across 60 frequencies for the sharpest target separation.
Pro tip: Toggle between 2D, 3D, and forward-scan modes during live fishing to react instantly to structure changes. Users rave about how it cuts through thermoclines, revealing suspended fish that flat-screen sonars miss.
Brilliant 9-Inch Touchscreen for All Conditions
The WXGA (1280 x 720) IPS display shines at 1500 nits, offering wide 85-degree viewing angles and sharp contrast. HydroTough nano-coating sheds water, oil, and fingerprints, keeping touches precise even in choppy sprays. Switch seamlessly between Day, Dusk, and Night themes via intuitive LightHouse 3 OS—fast, customizable, and beginner-friendly yet packed with pro features.
- Touchscreen responds fluidly with multitouch gestures.
- Dimensions: Compact 9.65" W x 6.22" H x 3" D for easy console fit.
- IPX6/IPX7 waterproofing handles heavy rain or washdowns.
Boaters appreciate the anti-glare performance during sunny afternoons, making chart reads and sonar scrolls effortless without squinting.
Precision Navigation with Built-In Charts and GPS
Preloaded Navionics+ charts for USA and Coastal Canada provide shaded relief, daily updates via app sync, and community edits for the latest hotspots. A 10Hz GPS/GNSS receiver (GPS/GLONASS/BeiDou/Galileo) locks positions 4x faster for pinpoint waypoints, routes, and tracks—up to 10,000 waypoints, 150 routes.
- Supports LightHouse, Navionics, and C-MAP cartography.
- Wi-Fi/Bluetooth for app mirroring, waypoint sharing, and audio control.
- ClearCruise AR overlays camera views with charts for hazard avoidance.
Enhance trips by overlaying sonar history on charts to replay hot spots, a game-changer for pattern fishing.
Expandable Ecosystem for Endless Upgrades
RayNet Ethernet and NMEA2000 networking let you link multiple displays, Quantum radars, Evolution autopilots, FLIR thermal cams, IP cameras, and engine data. Add sonar modules like RVX1000 for even deeper capabilities. Control marine audio or digital switching right from the screen.
16GB storage plus microSD slot handles apps, routes, and custom maps. Power-sipping at 12W max, it runs cool on 8-16V DC systems.
Grow your setup over time—start simple, scale to tournament-ready without swapping units.
Easy Setup and Everyday Reliability
Surface, flush, or trunnion mount with included kits. Plug-and-play cables handle power, NMEA2000, and SeaTalkNG. Operating from -25°C to +55°C, it's tough for all seasons.
What's included: Display, trunnion bracket/knobs, suncover, mounting hardware, power/NMEA cable, DeviceNet adapter, Navionics card, and docs.
Owners love the plug-in simplicity—no IT degree needed. Quick firmware updates via Wi-Fi keep it cutting-edge.
Frequently Asked Questions
What sonar features are built into the Raymarine Axiom+ 9 RV?
It includes RealVision 3D CHIRP, CHIRP SideVision, DownVision, and high-frequency CHIRP sonar for detailed fish targeting and structure imaging, with a 25-pin RealVision connector for transducers.
Does it come with preloaded charts?
Yes, it features Navionics+ charts covering USA inland and coastal Canada, with support for updates and additional LightHouse or C-MAP options.
What display specs make it stand out?
9-inch WXGA IPS touchscreen (1280x720) with 1500 nits brightness, 85° viewing angles, and HydroTough coating for wet, glare-free operation.
Can I add radar or other accessories?
Absolutely—compatible with Quantum/HD radars, FLIR thermal cameras, AIS, autopilots, IP cameras, and sonar modules via RayNet Ethernet and NMEA2000.
Is it suitable for networking multiple units?
Yes, with RayNet, NMEA2000 (DeviceNet port), Wi-Fi, Bluetooth, and SeaTalkNG adapter for expanding to instruments, engines, and more displays.
What's the GPS performance like?
Built-in 10Hz GNSS receiver supports GPS/GLONASS/Galileo/BeiDou for fast, accurate positioning and tracking.
How durable is the unit for marine use?
IPX6/IPX7 waterproof, impact-resistant glass, and wide temp range (-25°C to +55°C) ensure reliability in harsh conditions.
Axiom®+ RV is a new generation of Axiom chartplotters with RealVisionTM 3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game. A quad-core processor delivers responsive performance and gives you the power to expand Axiom+ RV with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.
Raymarine 7063700NAG Attributes
- Maps: Navionics+ USA And Coastal Canada Charts
- Display Size: 9 Inch
- Display Type: WXGA 1280 x 720 Pixels Resolution
- Interface: Touchscreen Interface
- Dimensions: 9.65 Inch Width X 3 Inch Depth X 6.22 Inch Height
- Waterproof: IPX6/ IPX7 Waterproof
- Sonar Compatibility: Chirp Sonar
Raymarine 7063700NAG Features & Benefits
- High Frequency CHIRP Sonar For Targeting Fish And Determining Bottom Density
- CHIRP DownVision Sonar For High Definition Views Of Structure, Fish Habitat And Man-Made Objects
- CHIRP SideVision For Scanning Beyond Casting Distance To See Fish, Structure And Submerged Objects Out To The Sides Of The Boat
- RealVision 3D Sonar Which Provides A Gyro-Stabilized, GPS-Locked Bathymetric Model Of The Bottom And Water Column
- Built-In 600 Watt Digital Sonar At 50 Kilohertz And 200 Kilohertz Add An Optional Adapter Cable And AIRMAR Transducer To Your Axiom+ RV System
- Upgraded IPS Display Technology Delivers Charts, Sonar, Radar, And Video In Stunning Color
- Improved Viewing With New LightHouse Color Themes, Including Day, Dusk And Night Mode
- Fast And Fluid Chart Redraw Of LightHouse, Navionics And C-MAP Electronics Charts
- Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps
- Limited 2 Year Warranty
Raymarine 7063700NAG Installation Instructions
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
Raymarine 7063700NAG Warranties
Raymarine 7063700NAG Technical Bulletins
- Axiom MFD Installation instructions 87298-3-EN.pdf
- Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
- Axiom MFD Installation instructions 87414 (Rev 2) (EN).pdf
Axiom+ 9 RV - 9" Chartplotter/Fishfinder with Navionics+ Chart
The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
- Designed for speed, responsiveness, and future expansion
- Powerful quad-core processor, plus increased onboard storage for personal data and apps
- Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP
- ClearCruise™ Augmented Reality-capable for smarter navigation decisions
- Smart and intuitive LightHouse 3 OS makes navigating easy
MAXIMUM VISIBILITY
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)
- HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls
- Improved viewing with LightHouse 3 color themes, including light, dark, and night mode
The Axiom+ 9 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Features:
- IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
- LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating
- RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world
- Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar
- Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting
- Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
- Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more
- Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
- Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range
- Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
- Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more
- Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app
Axiom + 9 RV-9-inch Chartplotter/Fishfinder with Navionics + charts. Performance-tuned Axiom Plus is the generation of the award-winning Raymarine multifunction display. against...
SKU: NVN-85049
MPN: E70637-00-NAG
UPC: 723193838532
